NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 8230 | 2130.81 | PowerPad® Jr. Model 8230 (No Probe) (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59) | $0.00 | Discontinued |
|
| 8230 | 2130.82 | PowerPad® Jr. Model 8230 w/MN93-BK (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59) | $0.00 | Discontinued |
|
| 8230 | 2130.87 | PowerPad® Jr. Model 8230 w/MN193-BK (DISCONTINUED replaced by PEL102 Cat # 2137.51 , PEL103 Cat #2137.52 , PEL105 Cat # 2137.55/2137.59) | $0.00 | Discontinued |
|
|
||||||||||
|
||||||||||
|
||||||||||
Model 8230 - Cat. #2130.81: Includes set of (2) 10 ft (3m) color-coded leads (red/black) with alligator clips, optical USB cable, US 110 V power adapter, set of (6) 1.2 V AA NIMH rechargeable, carrying bag and USB stick supplied with DataView® software and user manual.
Model 8230 Kits (see Cat. #'s above): Include user selectable current probes with 10 ft lead and black connector, black and red 10 ft voltage leads and alligator clips, optical USB cable, NiMH battery, 120 V US wall charger, carrying bag, and USB stick supplied with DataView® software and user manual.

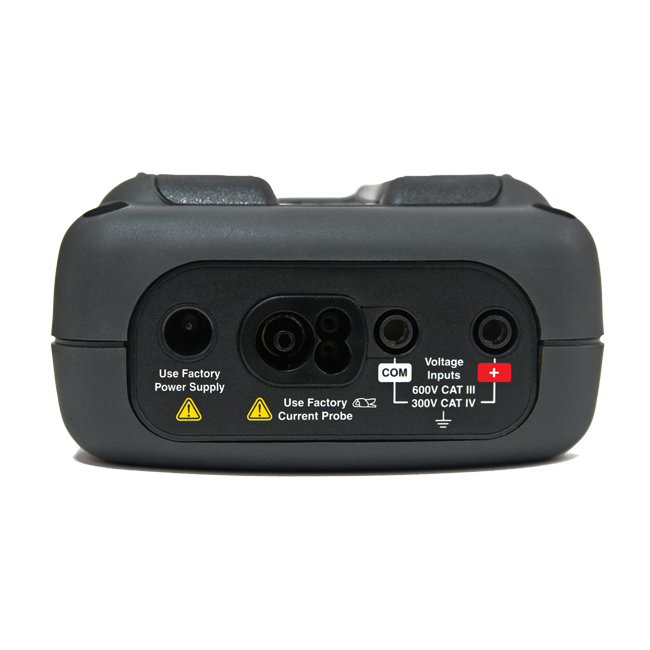

| Inputs | 1 Voltage / 1 Current | ||||
| Sample Rate | 256 per Cycle | 12.8 kHz at 50 Hz | 15.36 kHz at 60 Hz | ||
| Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
| Volt | |||||
| Vrms (AC + DC) | 600V | 6 to 600V | 0.1V | ±0.5% Rdg + 2cts | |
| Vpk | 850V | 6 to 850V | 0.1V | ±1% Rdg + 5cts | |
| Vrms Half Cycle | 600V | 6 to 600V | 0.1V | ±0.8% Rdg + 5cts | |
| Volt DC | 600V | 6 to 600V | 0.1V | ±1% Rdg + 5cts | |
| Amps (accuracy excluding clamp accuracy) | |||||
| Amps (AC + DC) | Current probes | 1.2 x Inom | 0.1A & 1A | ±0.5% Rdg + 2cts | |
| AmpFlex & MiniFlex | Range 6500A | 10 to 9190A | 0.1A & 1A | ±1% Rdg + 1A | |
| Apk | Current probes | 1.7 x Inom | 0.1A & 1A | ±1% Rdg + 1A | |
| AmpFlex & MiniFlex | Range 6500A | 10 to 9190A | 0.1A & 1A | ±1% Rdg + 1A | |
| A Half Cycle | Current probes | 1.2 x Inom | 0.1A & 1A | ±1% Rdg + 5cts | |
| AmpFlex & MiniFlex | Range 6500A | 10 to 6500A | 0.1A & 1A | ±1.5% Rdg + 4A | |
| DC current | MR193 probe | 1 to 1700A | 0.1A & 1A | ±1% Rdg + 1A | |
| Frequency | 40 to 69Hz | 0.01Hz | ±1ct | ||
| Power | |||||
| Watts (VA, var) P-Q-S | 0W to 9999kW (kVA, kvar) | 4 digits minimum | ±1% Rdg cosΦ ≥ 0.8 | ||
| Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±1.5% Rdg cosΦ ≥ 0.5 | ||
| Energy | |||||
| kWh (kVAh, kvarh) P-Q-S | 0.1Wh to 9999MWh (kVAh, kvarh) | ±1% Rdg | |||
| Harmonics | DC, 1 to 50 | ||||
| Volts >50V & Amps Inom ÷ 10 |
f |
0.0 to 999.9% | 0.1% | ±1% Rdg + 5cts | |
| Volts >50V & Amps Inom ÷ 10 |
r |
0.0 to 99.9% | 0.1% | ±1% Rdg + 5cts | |
| K Factor | 1 to 99.99 | 0.01 | ±1% Rdg + 5cts | ||
| Displacement Factor (DPF) | -1 to +1 | 0.001 | ±1° Rdg + 5cts | ||
| General Features | |||||
| Inrush Current | Yes | ||||
| Phase Rotation | Yes | ||||
| Programmable Alarm | Yes | ||||
| Snapshot | Up to 8 photographs (screen BMP + all channels data) | ||||
| Interface | Isolated USB, for direct transfer to PC. Dataview software for real time data, configuration and reporting included | ||||
| Memory | Flash memory for trend, screen captures and Inrush current | ||||
| Display | Large color graphic display ¼ VGA (320 x 240) | ||||
| Real-Time Clock | Time and date stamp for Trend mode, System Monitor and event capture | ||||
| Power Supply | (6) 1.2 V AA NIMH rechargeable ≥ 40 h with display OFF | ||||
| US wall plug 120V ± 10% 60Hz; 230V ± 10% 50Hz available on request | |||||
| Dimensions (L x W x H) | 8.3 x 4.3 x 2.4” (211 x 108 x 60mm) | ||||
| Weight | 1.94 lbs (880g) | ||||
| Altitude Operating | 2000m (6560ft) | ||||
| Operating Temperature | 32° to 122°F (0°C to 50°C) ≤85% RH | ||||
| Storage Temperature | -4° to 122°F (20°C to +50°C) ≤75% RH | ||||
| IP Rating | IP54 per IEC 60529 | ||||
| Safety | IEC/EN 61010-1 (600V CAT III), IEC 1326-1 |
||||
User Manuals
Model 8230
Model 8230 - French (CA France version)
Model 8230 - Español (CA France version)
Battery Recharge Time / Rechargeable NiMH Notice
Tiempo de recarga de las baterías / Aviso de NiMH recargable
Datasheets
Brochures
Comparison Charts
Power Analyzer - Current Probe Selection Chart
Power Quality Analyzer Comparison Chart - English
Power Quality Analyzer Comparison Chart - Español
Power Quality Analyzers and Loggers Sensor Compatibility
Software
Application Notes
White Papers
Forms
Stored Measurement Results Form
High Voltage Warning Sign (color)
High Voltage Warning Sign (black & white)
Calculators
Firmware
Technical Bulletins
Videos
What's New in DataView 3.50
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2118.49 | Adapter - 110V Outlet Adapter w/4mm Banana Plugs for Models L230, L260, L261, L562, 8220 & 8230 | $44.00 |
|
|
|
2119.48 | Multi-purpose Canvas Pouch for Ground Testers Models (6416-17), Clamp-on Meters Models (203, 401, 403-404, 601, 603), Power Meters Models (205, 405, 407, 605, 606-7), and Discontinued Models (3710-3731, 8220-30) Dimensions: (11 x 5 x 2.25) in |
$40.80 |
|
|
|
2135.41 | Optical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series | $73.65 |
|
|
MN93-BK
|
2140.32 | AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $265.00 |
|
|
SR193-BK
|
2140.33 | AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $449.00 |
|
|
193-24-BK |
2140.34 | AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $335.00 |
|
|
193-36-BK |
2140.35 | AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $390.00 |
|
|
MN193-BK
|
2140.36 | AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $353.00 |
|
|
|
2140.40 | Adapter – BNC Adapter for AC/DC Current Probe Model SL261 & SL361 to be used with Models 8220, 8333, 8335, 8336, 8436 & PEL 102 & PEL 103 | $157.50 |
|
|
2140.50
|
2140.50 | MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $320.00 |
|
|
|
2140.63 | Lead - Set of 2, Color-coded 10 ft (3m) {Rated 600V CAT IV} w/Color-coded alligator clips (Red/Black) {Rated 1000V CAT IV, 15A} Replacement set for Models 8220/8230 |
$62.75 |
|
|
MA196-14-BK
|
2140.79 | MiniFlex® Sensor 14" (Waterproof - IP67) Model MA196-14-BK for use only with Models 8435, 8436, PEL 105, & PEL 115 Special Order Only | $359.00 | Consult Factory for Availability |
|
MA194-24-BK
|
2140.80 | MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $345.00 | Consult Factory for Availability |
|
|
5000.43 | Probe - set of 2, color-coded (red/black) magnetized voltage probes (Rated 600V CAT IV, 1000V CAT III) for models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and PEL series (or any lead that accepts a 4mm safety banana plug) | $37.85 |
|
|
|
2140.37 | Adapter - US 110V Power Adapter - Replacement for Model 8230 (may be used with Model 8220) | $0.00 | Discontinued |
|
|
2140.38 | Adapter - 220V Power Adapter for use with Model 8230 Discontinued | $0.00 | Discontinued |
|
|
2140.78 | MiniFlex® Sensor 24" Model MA193-24-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series (Discontinued: Replaced by Cat. #2140.80) | $0.00 | Discontinued |
|
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
