Simple Logger® II Model L261

The Simple Logger® II Model L261 is a one channel recording device powered by two alkaline batteries. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. Harmonics are only available from the Simple Logger® II Control Panel within the free DataView® software included with the unit. The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
L261 2126.05 Simple Logger® II Model L261 $425.00 Consult Factory for Availability
ModelL261
Cat. #2126.05
DescriptionSimple Logger® II Model L261
List Price$425.00
Consult Factory for Availability

Model L261- Cat. #2126.05: Includes USB cable, (1) set of color-coded leads and alligator clips (red/black) and a USB thumb drive supplied with DataView® software.

Print
Channels One
Input 4mm safety banana jacks
Ranges (2) 5 to 600VAC/AC+DC
Accuracy (50/60Hz) 5 to 50V ±(0.5% Rdg +1V)
50 to 600V (0.5% Rdg +0.5V)
Resolution 0.1VAC/AC+DC
Maximum Input Voltage 1.2 x 600Vrms or 720Vrms
Input Impedance 40MΩ
Sample Rate 64 samples / cycle
Storage Rate Programmable from 125ms to 1 per day
Storage Modes Start/Stop, FIFO,  extended mode (XRM) and Alarm
Recording Length 15 minutes to 6 weeks, programmable using DataView
Memory 240,000 measurements (512KB). Recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
Communication USB 2.0 optically isolated
Power Source 2x1.5V AA (LR6) alkaline batteries
Battery Life 100 hours to >45 days (depending of sample rate/recording length)
Dimensions 4.94 x 2.75 x 1.28” (125 x 70 x 32mm)
Weight (With Battery) 6.4 oz (180g)
Case Polycarbonate
Operating Temperature 14° to 122°F (-10° to 50°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Relative Humidity Up to 85% @ 95°F (35°C)
Ingress Protection (IP) IP40
EMC EN 61326-1
Safety Compliance IEC 61010-1, EN 61010-2-32 600V CAT III Pollution Degree 2

User Manual

Simple Logger II - English

Simple Logger II Multi-lingual (CA France version)

Quick Start Guides

Simple Logger II

Datasheet

Model L261 - English

Modelo L261 - Spanish

Brochure

Simple Logger® II Data Loggers

Comparison Charts

Data Logger - Probe Selection Chart

Registradores de datos - Tabla de selecction de sondas

Software

DataView Software

Ver. 3.61.0008   Open Release Notes for the latest updates   |   Models Supported by DataView
Release Date: November 12, 2019

DataView® Complete

Contains report generation and ALL DataView® control panels. If you don't want to download the entire DataView® package, simple scroll below to locate individual component installers.

Self-extracting Executable: v3.61.0008 .exe — We recommend you use the executable file to simplify the installation process. Click on the link to download it, double-click on the downloaded .exe file to begin the installation process, and follow the installation prompts.

Zipped File: v3.61.0008 (471MB). zip — Alternatively you can manually extract the files from the zipped file. Please note: you should NEVER install these files from within the zipped file. You MUST extract them prior to installing.

IMPORTANT:

  • Back-up all template files before installation to ensure that they do not get overwritten.
  • Uninstall previous version of DataView before installing a new version.
  • PQL Loggers and Sentinel Series are no longer supported by DataView. See bottom of the page for a compatible version

Click here for the Minimum System Requirements


Below are the individual DataView component installers

This is the DataView core report generation software without any control panels

Release Date: 07/15/19
77MB Download v3.61.0008 .zip format

This control panel supports models: L452, 1510, 1821, 1822, 1823, 1110, 1246, 1227, 10101, and 10141

Release Date: 02/25/19
75MB Download v2.02.0085 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports model 8510

Release Date: 02/25/19
40MB Download v1.02.0006 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports model 6417

Release Date: 02/25/19
57MB Download v1.02.0004 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 6470-B, 6471, and 6472

Release Date: 02/25/19
44MB Download v1.05.0003 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 6116, 6116N, and 6117

Release Date: 02/25/19
65MB Download v1.07.0022 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 1060, 5060, 5070, 6550, 6555, 6526, 6532, and 6534

Release Date: 02/25/19
57MB Download v4.02.0071 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 6240, 6250, 6255, and 6292

Release Date: 02/25/19
47MB Download v1.07.0005 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 8220, 8230, 3945-B, 407, 607, and 8335 (if using firmware ≤2.8)

Release Date: 09/17/19
70MB Download v3.08.0019 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 8333, 8335 (if using firmware >2.8), 8336, 8435, 8436

Release Date: 11/12/19

67MB Download v1.07.13010 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: PEL102, PEL103, and PEL105
39MB Download v2.5.12642 .zip format

Release Date: 06/03/19
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: L261, L264, CL601, L702, L101, L102, L104, L642, L111, L432, AL834, ML912, ML914, L322, L562, L564, L404, and L481

Release Date: 10/17/19
63MB Download v1.05.0009 .zip format

This control panel requires DataView version 3.61.0008 or higher






NOTE: PQL Loggers and Sentinel Series are no longer supported by DataView.

To obtain an older version of DataView that is compatible for these instruments, click the link below:

Download v3.09.0008 - .zip format

Supported Operating Systems:
Windows XP
Windows 7 (32 & 64 Bit)
Windows 8/8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)

LabView Drivers

Procedures for installing the LabView drivers.   LabView Installation PDF


  Megohmmeters
Ver. 1.0 Model 1060 Overview PDF
Ver. 1.1 Models 5060 & 5070 Overview PDF
Ver. 1.0 Models 6550 & 6555 Overview PDF

  Power Quality & Energy
Ver. 1.0 Models 8333, 8435, 8335, & 8336 Overview PDF
Ver. 1.0 Models PEL 102 & 103 Overview PDF

  Simple Logger II Series

Ver. 1.0

Simple Logger II

 Overview PDF
  SCOPIX IV – OX9000 Series

Ver. 1.0

Ver. 1.0

LabView Drivers

LabWindows/CVI drivers:

LabWindowsCVI_SCOPIX_IV_ox9000.zip

LabWindowsCVI_SCOPIX_IV_ox9000.zip



Application Notes

Connecting a Simple Logger II to the Data Logger Control Panel

Forms

Stored Measurement Results Form

Firmware

Simple Logger® II - Firmware

Technical Bulletins

Watts Current Issue 12

Videos

What's New in DataView 3.50

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2118.09 General Carrying Case
Dimensions: 13 x 9.5 x 3" 		$63.00
2118.49 Adapter - 110V Outlet Adapter w/4mm Banana Plugs for Models L230, L260, L261, L562, 8220 & 8230 $41.95

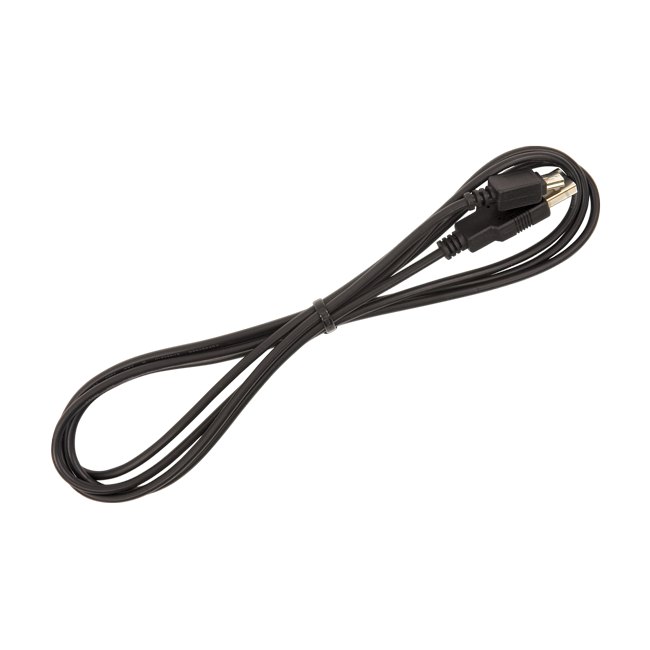

2126.49 Cable – Replacement USB (type A to 5-pin mini-B) cable for Simple Logger® II series and Model 1950 (RoHS Compliant) $8.25
2133.72 Compact tool bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5" 		$33.50

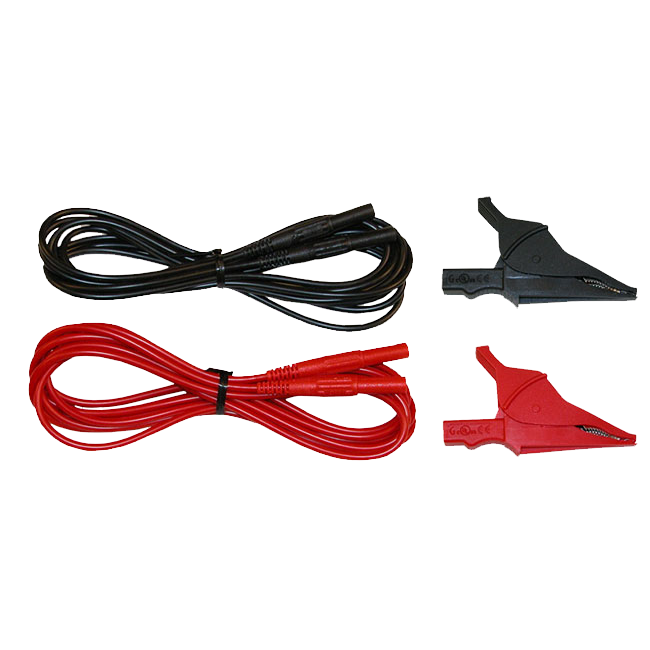

2140.62 2140.62 Cat.# 2140.62 DISCONTINUED Click on replacement items: Cat #5100.07 : Safety Leads. Cat #5000.99: Blk Alligator Clip. Cat #5100.00: Red Alligator Clip. $0.00 Discontinued
