GroundFlex® Field Kit Model 6474

Revolutionize Tower Grounding Assessment with Our Innovative Kit!

Power transmission towers play a critical role in meeting the demands of millions of consumers. Ensuring the safe and efficient flow of electricity requires cutting-edge tools, and we present the perfect solution: The GroundFlex® Field Kit Tower Ground Resistance Testing System.

Reliable, Accurate, and Quick Comprehensive Testing

Model 6472, coupled with the advanced Model 6474 GroundFlex® Adapter, forms a robust ground resistance testing system. Now, testing energized Tower Systems is not just easy but exceptionally accurate. Test towers with one to four legs effortlessly, measuring current flow for precise resistance calculations — all WITHOUT disconnecting the overhead ground wire!

Exceptional Features for Unmatched Performance

  • Flexible Sensors: Wrapped around each tower leg, these sensors provide accurate, high-sensitivity measurements that surpass other techniques.
  • Comprehensive Testing: Measure traditional ground parameters, including Fall-Of-Potential, soil resistivity, bonding, and earth coupling. Determine overhead ground conductor quality and conduct tests at selected frequencies or across the full range for lightning strike analysis.
  • Data Management: Store up to 512 complete measurements in internal memory, downloadable for analysis and report generation using our FREE included DataView® software.
  • Portability and Durability: Housed in rugged, water-resistant polycarbonate cases and packaged in a field travel case that doubles as a workstation, this kit is designed for the field.

Operational Versatility and Cost-Efficiency

  • Power Options: Operate on batteries, AC power, or 12V DC, even while being charged.

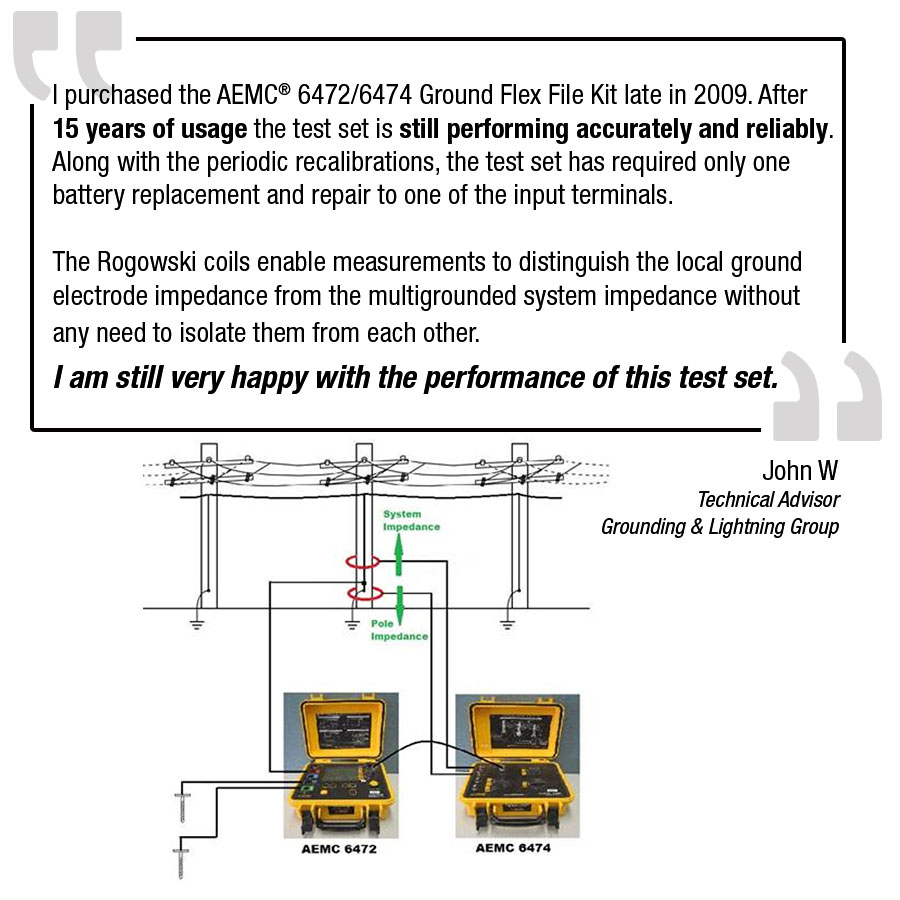

  • No Tower Isolation: Assess grounding resistance without disconnecting or isolating the tower from other structures, resulting in significant time and cost savings.
  • Rapid Return on Investment: The innovative system pays for itself in just a few months, offering a cost-efficient solution for power transmission, cellular, windmill, and other towers.

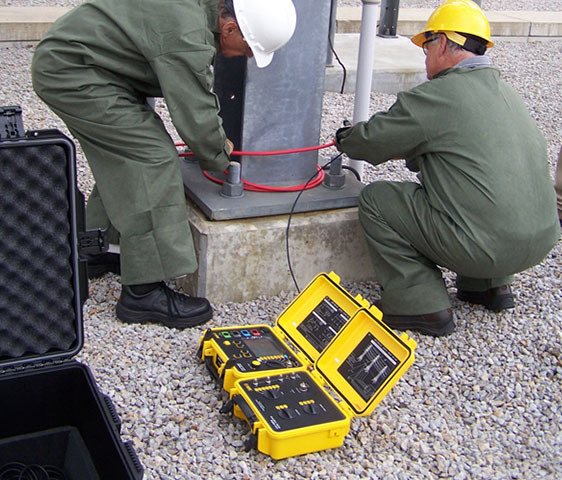

  • Safety: This system was designed to prioritize safety of the workers in the field by enabling comprehensive ground resistance testing on energized towers, eliminating the need for tower isolation and minimizing risks associated with traditional testing methods.

Features At a Glance

  • Multi-function testing capabilities
  • Impedance analysis at frequencies from 41 Hz to 5 kHz
  • Wide measurement range with optimum resolution
  • Rejection of interference voltages up to 60V peak
  • Automatic calculation of ground coupling coefficient and resistivity
  • Measure leakage current and stray voltage
  • Recording of results

Choose the GroundFlex® Field Kit Tower Ground Resistance Testing System for unparalleled accuracy, efficiency, and cost savings in assessing the grounding resistance of vital towers. Elevate your testing capabilities with a system designed for the challenges of the modern electrical landscape.

NOTE: The GroundFlex® Adapter Model 6474 can only be used with the Ground Tester Model 6472 Kit – 500 ft.

Curious About the GroundFlex® Kit?

Discover the power of this kit with a hands-on demo. We are happy to schedule a demo to showcase its features and address any questions you may have. Request A Demo Today!

Want Private Training for Your Team?

Elevate your expertise with our fully detailed on-site training seminar, focusing on the GroundFlex® Field Kit Model 6474.

Dive deep into tower testing theory and master the functions of the Ground Tester Model 6472 such as Soil Resistivity, Fall-of-Potential, Step and Touch Potential. Learn instrument setup, and deployment tactics such as overcoming right-of-way challenges, step-by-step deployment of instrument leads, axillary rods and probes for testing, and setup for testing the OGC. Participants will also gain proficiency in instrument measurements, including passage measurement, active measurement, and interpreting results as well as receiving an overview of AEMC's GroundFlex® worksheet.

Finally, immerse yourself in hands-on field work with the GroundFlex® kit ensuring you and your team have the knowledge and know-how to excel in every tower testing scenario.

Send Your Inquiry Today!

NOTE: Please contact factory for availability
Model Cat. # Description List Price Quantity/Status
6474 2136.03 GroundFlex® Field Kit Model 6474 (Tower Tester) $0.00 Consult Factory for Availability
Model6474
Cat. #2136.03
DescriptionGroundFlex® Field Kit Model 6474 (Tower Tester)
List Price$0.00
Consult Factory for Availability

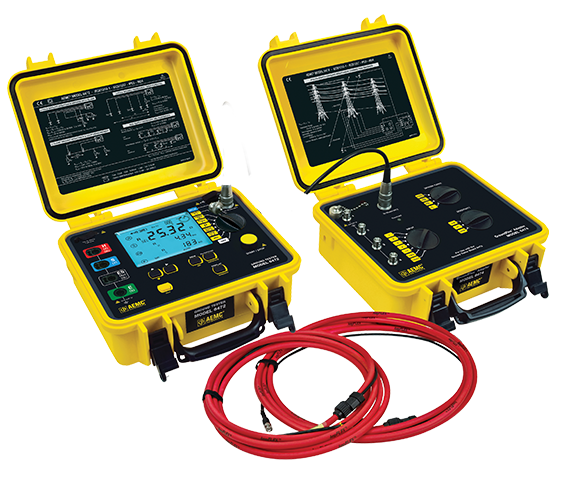

Model 6474 Kit - Cat. #2136.03: Includes GroundFlex® Adapter Model 6474, Ground Tester Model 6472,(4) GroundFlex® sensors (16 ft/5 m) with (12) color-coded rings, connection lead, (2) extension leads on H reel (black/green) with color-coded alligator clips, (1) extra black and green alligator clip, (6) BNC extension leads, (1) calibration loop, (3) C-clamps, a carrying case with wheels and handle for meters, carrying bag for meter and kit, (1) inverter 12 Vdc to 120 Vac 200 watt (vehicle use) and a user manual.

IEEE Std 81-2012 Inclusion

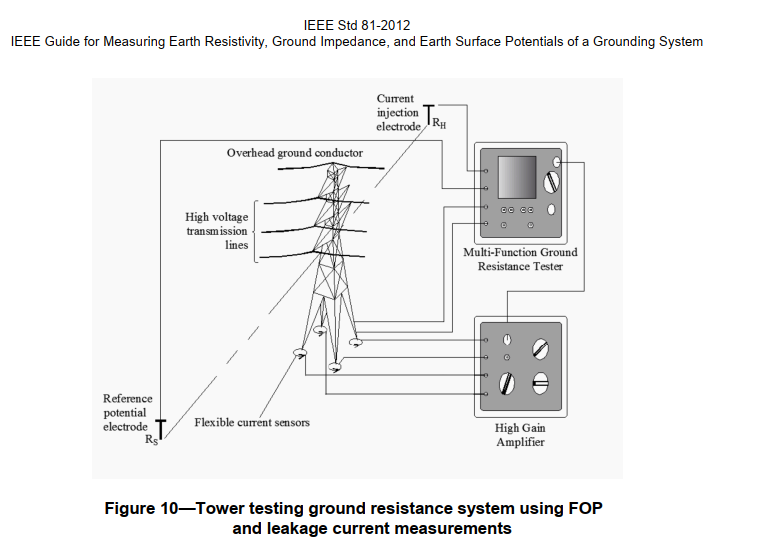

We are proud that IEEE includes the AEMC® Instruments GroundFlex® Kit and Tower Tester process in their documentation as a reference for measuring ground/earth resistivity, ground impedance and earth surface potentials of a grounding system.

IEEE 81 reference of AEMC GroundFlex Kit and process for properly testing a grounding system

User Manuals

Datasheets

Brochures

Application Notes

Workbooks

Forms

Calculators

Technical Bulletins

Videos

Grounding Assessment Monopole Tower Testing Challenge and Solution

Choosing the Right Ground Resistance Tester

Tower Testing Using the Model 6474 GroundFlex® Kit and Model 6472 Ground Resistance Tester

Understanding Ground Resistance Testing

Reel Accessories to Save You Time

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2135.75 Replacement - Connection Lead for Model 6472/6474 $109.00

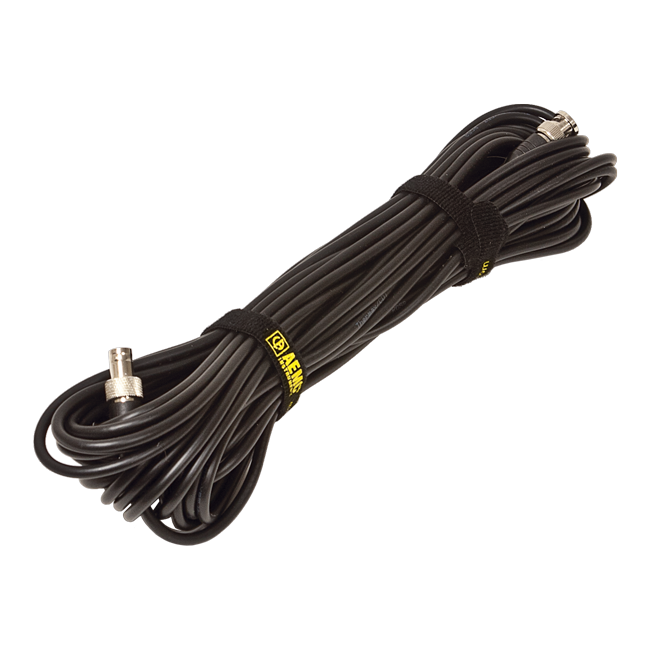

2135.76 BNC 50 ft (15m) M/F Extension Lead - for use with any instrument that requires BNC connection $67.00

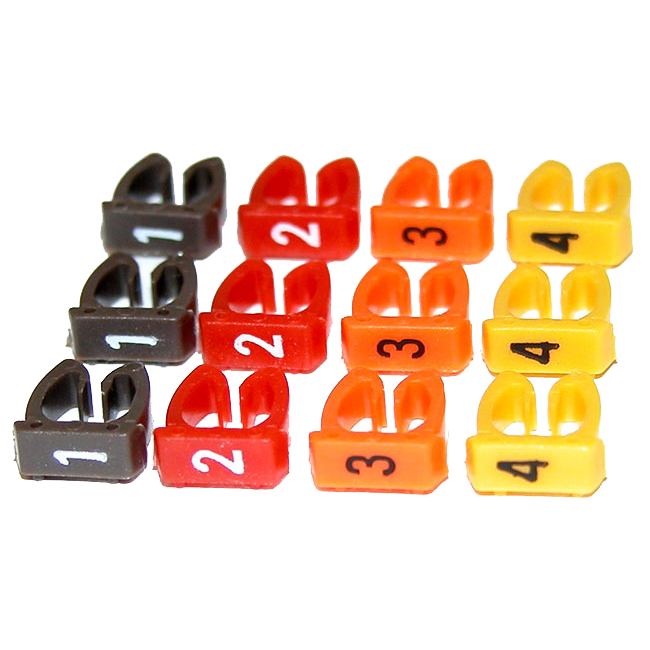

2135.77 Replacement - Set of 12, Groundflex® Rings for Model 6472/6474 Kit $16.50

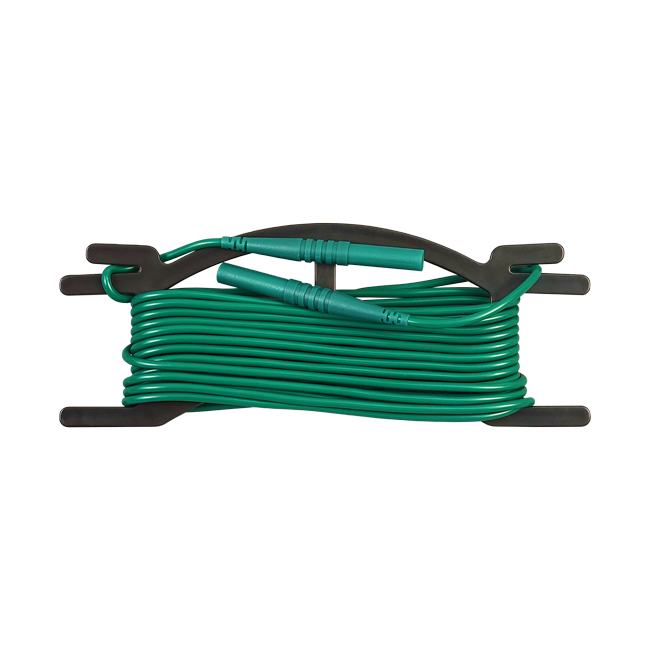

2135.78 Green Extension Lead (5m) on H Reel.
For use with general test equipment accepting a 4mm safety banana plug
$41.00

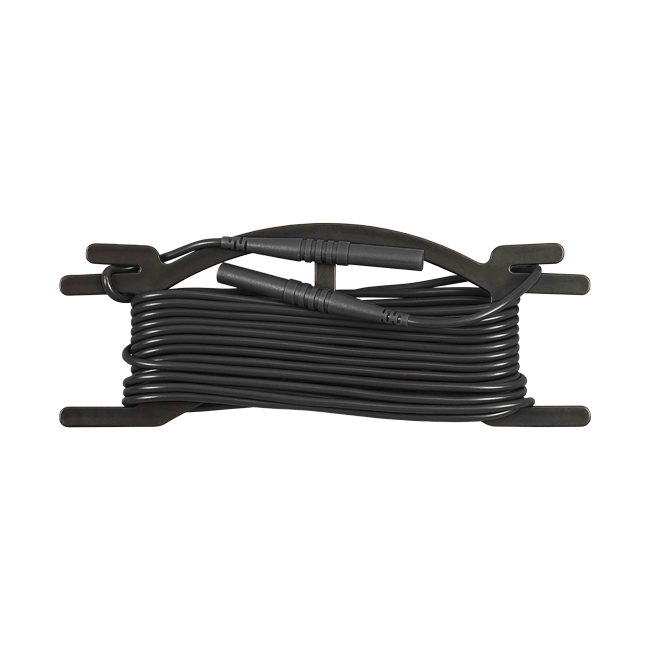

2135.79 Black Extension Lead (5m) on H Reel. For use with general test equipment accepting a 4mm safety banana plug $41.00

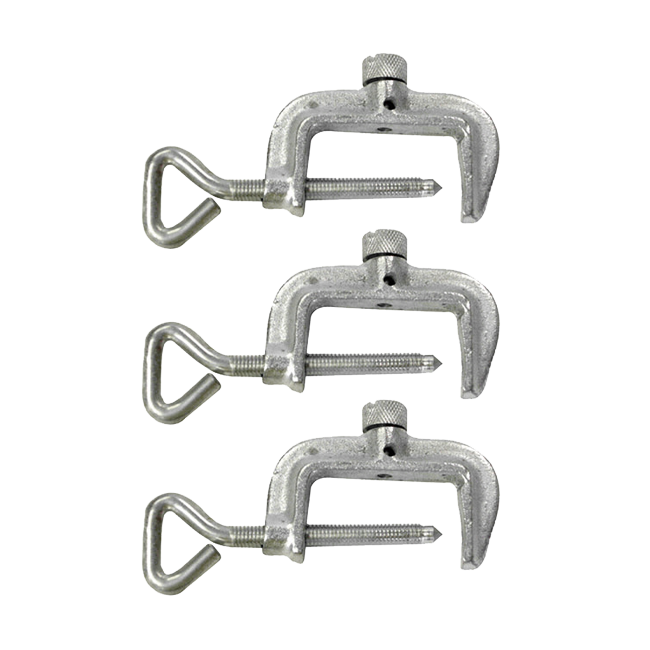

2135.80 Replacement - Set of 3, C-Clamps for the Model 6472/6474 Kit $60.00

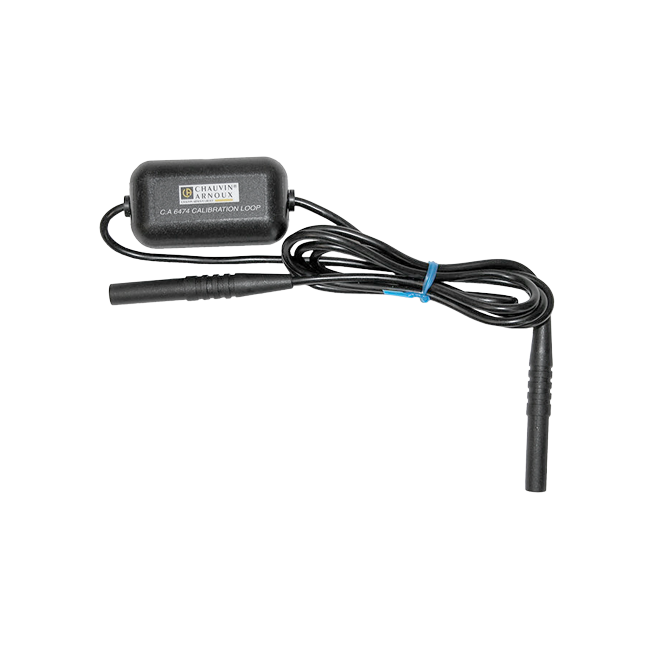

2135.82 Replacement - Calibration Loop for Model 6474 $180.00

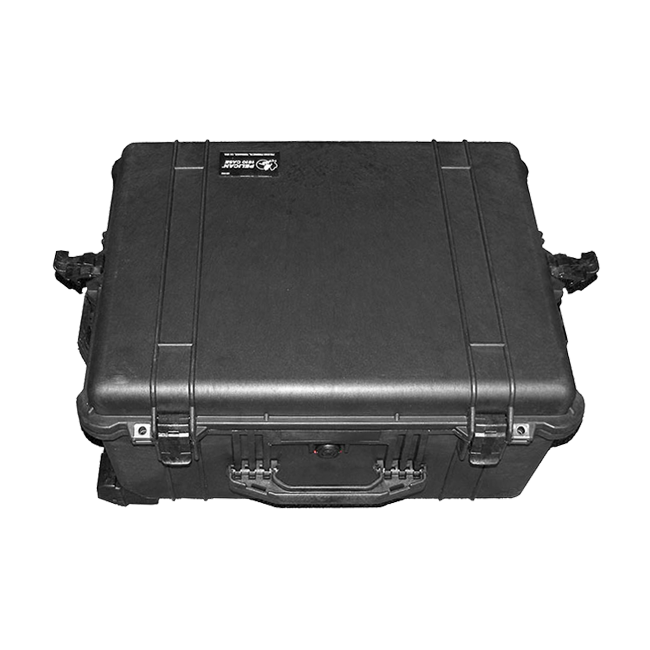

2135.83 Replacement – Carrying Case for Model 6474 (tray not included) $1,025.00 Consult Factory for Availability

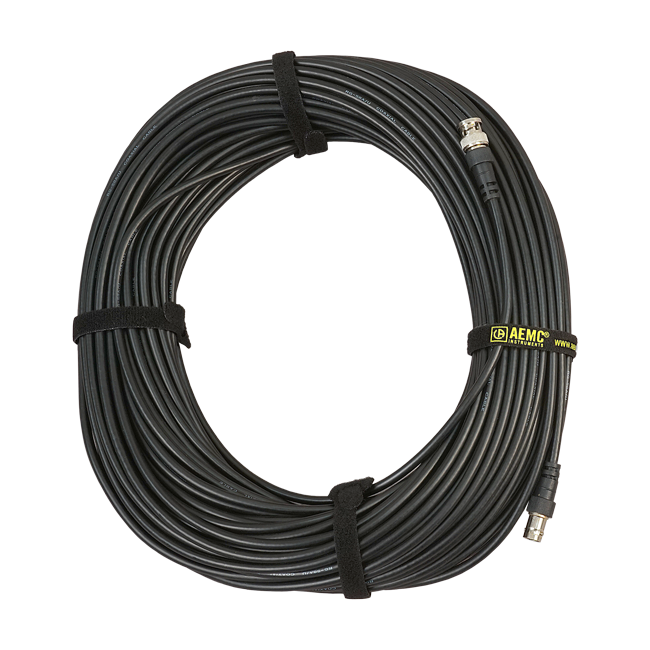

2135.86 BNC 150 ft (45m) M/F Extension Lead - for use with any instrument that requires BNC connection $99.00
Sale: $49.50
2135.87

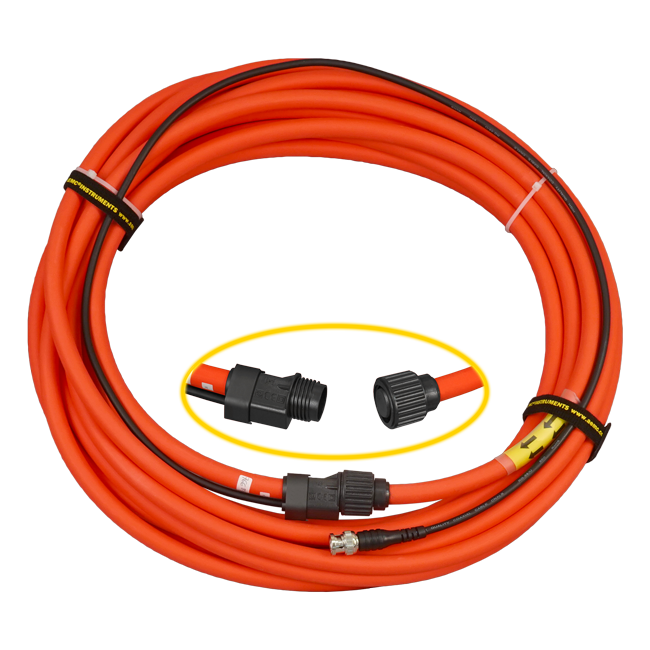

Groundflex® (10m) Sensor for use only with Model 6474

$1,299.00

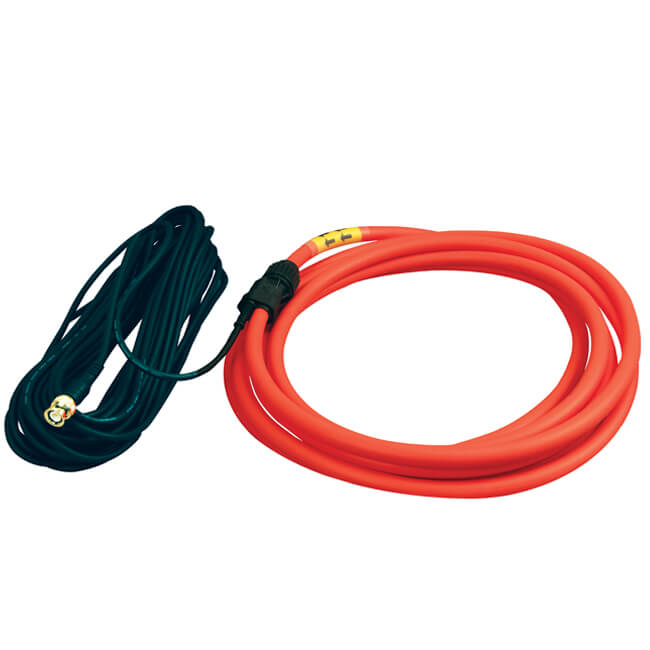

2135.92 Replacement - Replacement - One Groundflex® Sensor (5m w/16m black cable) for use with Model 6474 $669.00
5000.18 Empty replacement reel for ground kits (holds up to 500ft of wire) Outer Ø: 7.5" - Inner Ø: 3.75" - Width: 4.56" $22.50
5100.02 Latches - Replacement set of 2 for use with AEMC Yellow cases $13.25
Model
Cat. #2135.75
DescriptionReplacement - Connection Lead for Model 6472/6474
List Price$109.00
Model
Cat. #2135.76
DescriptionBNC 50 ft (15m) M/F Extension Lead - for use with any instrument that requires BNC connection
List Price$67.00
Model
Cat. #2135.77
DescriptionReplacement - Set of 12, Groundflex® Rings for Model 6472/6474 Kit
List Price$16.50
Model
Cat. #2135.78
DescriptionGreen Extension Lead (5m) on H Reel.
For use with general test equipment accepting a 4mm safety banana plug
List Price$41.00
Model
Cat. #2135.79
DescriptionBlack Extension Lead (5m) on H Reel. For use with general test equipment accepting a 4mm safety banana plug
List Price$41.00
Model
Cat. #2135.80
DescriptionReplacement - Set of 3, C-Clamps for the Model 6472/6474 Kit
List Price$60.00
Model
Cat. #2135.82
DescriptionReplacement - Calibration Loop for Model 6474
List Price$180.00
Model
Cat. #2135.83
DescriptionReplacement – Carrying Case for Model 6474 (tray not included)
List Price$1,025.00
Consult Factory for Availability
Model
Cat. #2135.86
DescriptionBNC 150 ft (45m) M/F Extension Lead - for use with any instrument that requires BNC connection
List Price$99.00
Sale: $49.50
Model
Cat. #2135.87
Description

Groundflex® (10m) Sensor for use only with Model 6474

List Price$1,299.00
Model
Cat. #2135.92
DescriptionReplacement - Replacement - One Groundflex® Sensor (5m w/16m black cable) for use with Model 6474
List Price$669.00
Model
Cat. #5000.18
DescriptionEmpty replacement reel for ground kits (holds up to 500ft of wire) Outer Ø: 7.5" - Inner Ø: 3.75" - Width: 4.56"
List Price$22.50
Model
Cat. #5100.02
DescriptionLatches - Replacement set of 2 for use with AEMC Yellow cases
List Price$13.25
