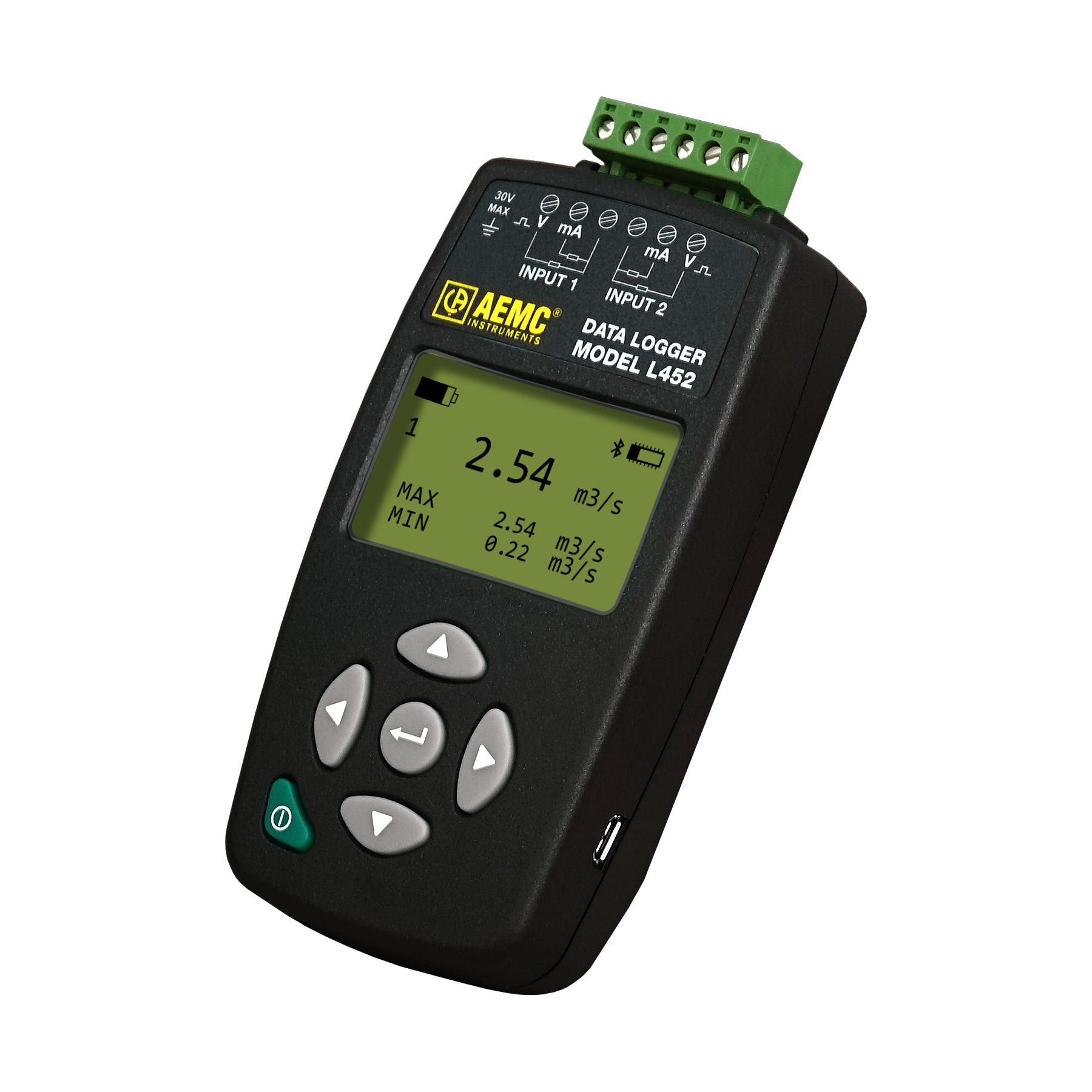

Data Logger Model L452

The Model L452 is a low cost, simple to use, two-channel data logger. It records DC voltage, DC current, pulses and events. Its two input channels allow the user to connect to various types of sensors in order to record data such as pressure, temperature, flow, humidity and more. This logger can also be used to record events such as machine run time. Each channel's real-time measurement is displayed on the LCD screen. The L452 communicates via USB or Bluetooth for configuration and data transfer to a PC using the free DataView software included with the unit. The logger can also be configured using its front panel with a very simple user interface.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
L452	2153.51	Data Logger Model L452 NIST Calibration ($80.00 each)	$560.00	In stock at factory. Find a Distributor

Model	L452
Cat. #	2153.51
Description	Data Logger Model L452
List Price	$560.00
In stock at factory. Find a Distributor

Channels	Two with LCD display
Input	4 mm safety banana jacks
Ranges (4)	100 mV / 1 V/ 10 V, (4 to 20) mA, Event & Pulse
Accuracy	± 100 mV, ±1 V, ±10 V: ±(0.5 % R +1 ct)
	(4 to 20) mA ±(0.25 % R +5 ct)
Resolution	Pulse: 3.3 V (with 1 MΩ pull up resistor)
	Event: ± 10 V
Input Impedance	V DC: 1 MΩ, DC current: 100 Ω Event: 1 MΩ, Pulse N/A
Sample Rate Max	V & Current DC: 5 samples/s, Event 16 samples/s, Pulse 100 samples/s
Storage Rate	Programmable from 200 ms to 60 min
Storage Modes	Start/Stop
Recording Length	15 min to 6 weeks, programmable using DataView^®
Memory	32 MB recorded data is stored in non-volatile memory and will be retained even if battery is low or removed.
Communication	USB 2.0, Bluetooth 2.1 Class 1 (100 m)
Power Source	(2) 1.2 V AA NIMH rechargeable batteries
Charger (Supply)	Rechargeable by main 110 to 240 V 50/60 Hz or via USB cable
Battery Life (Display ON)	18 days @ 200 ms sampling rate, 27 days @ 60 s
Battery Life (Display OFF)	36 days @ 200 ms sampling rate, 270 days @ 60 s
Dimensions	(4.92 x 2.60 x 1.30) in (125 x 66 x 33) mm
Weight (with battery)	7.4 oz (210 g)
Case	Polycarbonate
Operating Temperature	(32 to 122) °F (0 to 50) °C
Storage Temperature	(-4 to 140) °F (-20° to 65) °C
Relative Humidity	Up to 90 % @ 104 °F (40 °C)
Ingress Protection (IP)	IP40
EMC	EN 61326-1
Safety Compliance	IEC 61010-1, EN 61010-2-30

Quick Start Guides

Model L452

Datasheets

Model L452 - English

Modelo L452 - Español

Comparison Charts

Data Logger - Probe Selection Chart

Registradores de datos - Tabla de selecction de sondas

Application Notes

DataView 3.50 New Features

Forms

Stored Measurement Results Form

Applications - Graphic Illustrations

Manufacturing and Data Center Maintenance Testing

Videos

What's New in DataView 3.50

Introduction To Data Loggers

Cat. #	Description	List Price	Quantity/Status
2117.73	Pouch - Replacement or use with Models (1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, 6610, 6611, 6612, L261, 6527, 1510, 400D-10, 4000D-14, L452) Dimensions: (7 x 8.5 x 2) in	$24.00
2126.45	Adapter, Bluetooth USB for Simple Logger II 4-Channel Models, Models 6417, CA1510 & L452	$37.50

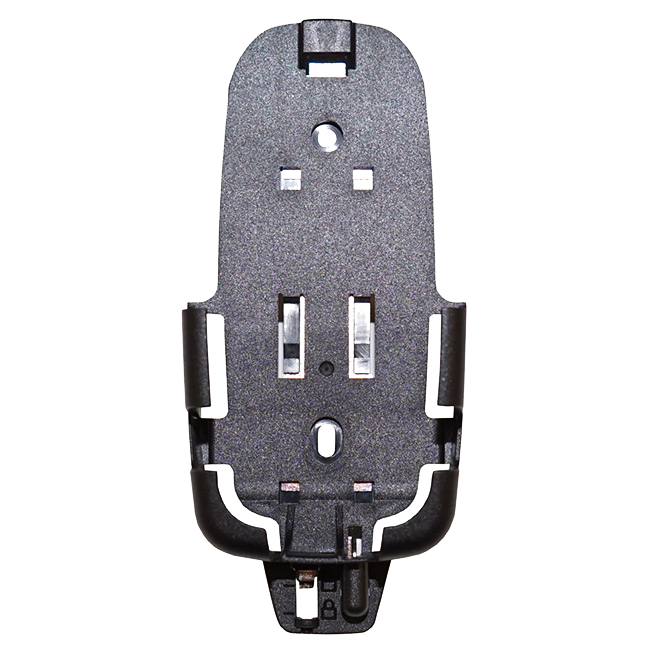

2138.61	Wall Mount for Model CA1510 & L452 (black)	$64.00	Consult Factory for Availability
2138.66	Cat. #2138.66 Cable – 6 ft. USB Type A - Type B micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and use with wall adapter for MR415 to MR527 series, SL306, & SL361	$19.50

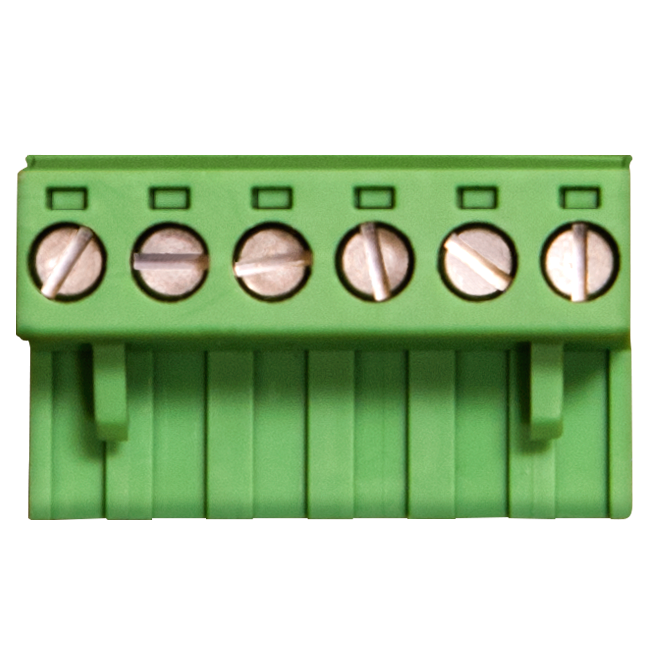

2153.77	Screw Terminal Block (6-pin) for Data Logger Model L452	$11.00
2153.78	Adapter – Replacement US Wall Plug to USB for Models L452, 1510, MH60 (Accessory for Models 1110,1227,1246, 1821,1822,1823, MR415 to MR527 series, SL306, & SL361)	$23.00
5000.44	MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D	$18.75

Model
Cat. #	2117.73
Description	Pouch - Replacement or use with Models (1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, 6610, 6611, 6612, L261, 6527, 1510, 400D-10, 4000D-14, L452) Dimensions: (7 x 8.5 x 2) in
List Price	$24.00

Model
Cat. #	2126.45
Description	Adapter, Bluetooth USB for Simple Logger II 4-Channel Models, Models 6417, CA1510 & L452
List Price	$37.50

Model
Cat. #	2138.61
Description	Wall Mount for Model CA1510 & L452 (black)
List Price	$64.00
Consult Factory for Availability

Model
Cat. #	2138.66
Description	Cat. #2138.66 Cable – 6 ft. USB Type A - Type B micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and use with wall adapter for MR415 to MR527 series, SL306, & SL361
List Price	$19.50

Model
Cat. #	2153.77
Description	Screw Terminal Block (6-pin) for Data Logger Model L452
List Price	$11.00

Model
Cat. #	2153.78
Description	Adapter – Replacement US Wall Plug to USB for Models L452, 1510, MH60 (Accessory for Models 1110,1227,1246, 1821,1822,1823, MR415 to MR527 series, SL306, & SL361)
List Price	$23.00

Model
Cat. #	5000.44
Description	MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D
List Price	$18.75
