Non-Contact High Voltage Detector Model 275HVD

The Model 275HVD is designed to detect the presence of high voltage without physical contact. An 8 position rotary switch selects the detection range. As the sensor is moved closer to the voltage carrying conductor, its sensor head picks up the radiated electric field. Once the threshold is reached, the buzzer sounds and a bright red warning light alerts the operator of live conductors.

The Model 275HVD is powered by three standard Alkaline C cell batteries and can be used both in- and out-of-doors. A universal spline on the back-end facilitates attachment to any standard hot stick. A self-test position ensures that all circuitry and annunciators are working properly before use.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
275HVD 2131.12 High Voltage Detector Model 275HVD $349.00
Model275HVD
Cat. #2131.12
DescriptionHigh Voltage Detector Model 275HVD
List Price$349.00

Model 275HVD - Cat. #2131.12: Includes a hard carrying case, universal spline for hotstick connection, (3) C cell batteries, shotgun adapter and a user manual.

Print
Detection Frequency (45 to 70) Hz
Ranges 240 V, 2 kV, 6 kV, 11 kV, 22 kV, 33 kV, 132 kV, 275 kV
Indicator Bright red LED and audible buzzer
Detection Non-contact. Selection range is detected at approximately 10 in (25 cm) from the voltage. Greater detection distances can be obtained at lower voltage positions.
Self-Test User selectable
Power Source (3) 1.5 V C cell batteries  (included)
Weight 1.3 lbs (590 g) with battery
Operation Temperature (5 to 130) °F (-15 to 55) °C
Storage Temperature (-4 to 150) °F (-20 to 65) °C
Relative Humidity (0 to 93) % at 104 °F (40 °C)
Shock Test IEC 68-2-29
Vibration Test EN 61010 clause 8.3
Drop Test EN 61010 clause 8.4
Impact Test EN 61010 clause 8.2
Safety Compliance CE Approved, EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 55011
Ingress Protection IP 65

User Manuals

Model 275HVD - English and Español

Datasheets

Model 275HVD - English

Modelo 275HVD - Español

Brochures

Non-Contact AC High Voltage Detector Model 275HVD

AEMC® Instruments Product Line Brochure

AEMC® Instruments Product Line Brochure (FR CAN)

Rent Now

Premiere Rental Partners

Applications - Graphic Illustrations

Power Distribution (Switchgear)
Model Cat. # Description List Price Quantity/Status Distributor
Stock Check

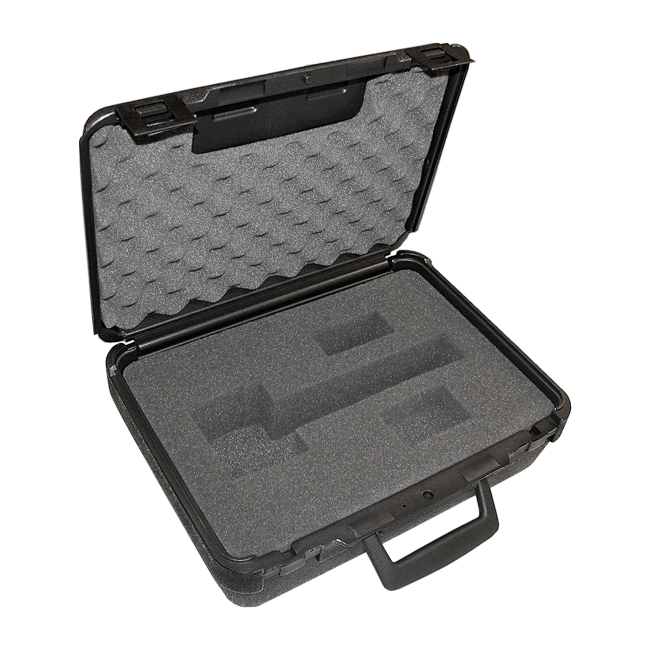

2131.36 Replacement Carrying Case for Model 275HVD $55.00

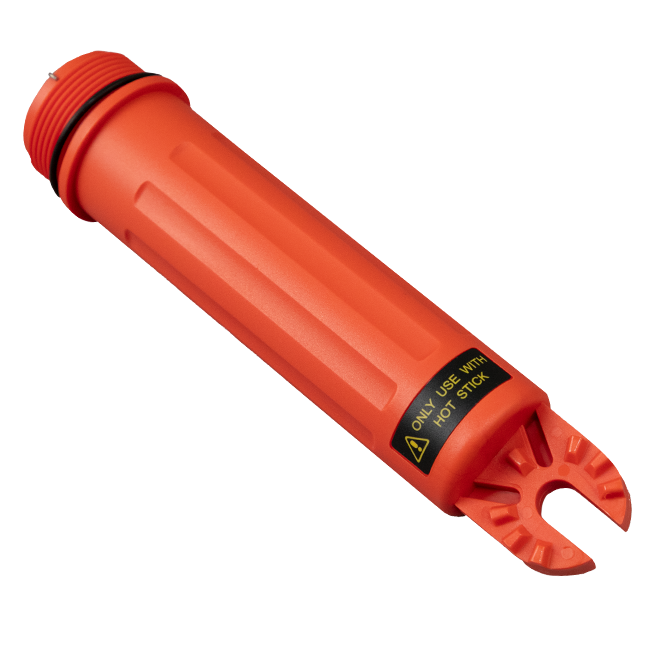

5100.03 Replacement - Battery housing with o-ring and spring for Model 275HVD $19.50

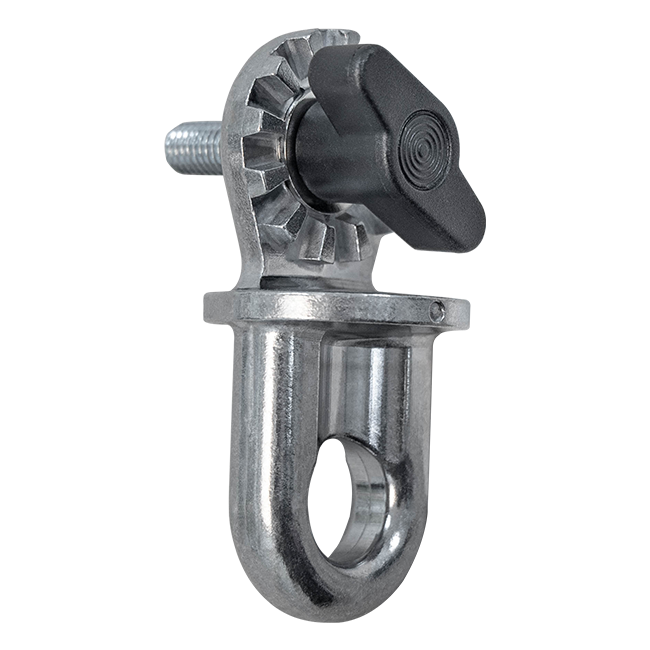

5100.11 5100.11 Adapter-Universal Spline Adapter for Model 275HVD $12.00
Model
Cat. #2131.36
DescriptionReplacement Carrying Case for Model 275HVD
List Price$55.00
Model
Cat. #5100.03
DescriptionReplacement - Battery housing with o-ring and spring for Model 275HVD
List Price$19.50
Model
Cat. #5100.11
Description5100.11 Adapter-Universal Spline Adapter for Model 275HVD
List Price$12.00
