Digital Transformer Turns Ratiometer Model 8510

The DTR® Model 8510 is an easy-to-use portable digital transformer turns ratiometer designed for on-site testing of power, potential and current transformers. When connected to a non-energized transformer, the DTR® Model 8510 accurately measures primary to secondary turns ratio, while simultaneously displaying polarity and excitation current.

The DTR® is fully automatic and uses an ANSI/IEEE compliant test method. No user calibration, range selection, hand cranking or tedious balancing is required. At each measurement, the DTR® automatically self-calibrates and checks for open windings/connections/circuit breakers, short circuits (excess excitation current), incorrect test lead placement, and reverse polarity. Measurements are displayed quickly and accurately.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
DTR 8510 2136.50 Digital Transformer Turns Ratiometer DTR® Model 8510 (110/220V) $3,475.00 Consult Factory for Availability
ModelDTR 8510
Cat. #2136.50
DescriptionDigital Transformer Turns Ratiometer DTR® Model 8510 (110/220V)
List Price$3,475.00
Consult Factory for Availability

DTR® Model 8510 - Cat. #2136.50 : Includes soft carrying case, NiMH batteries (installed), 115V power cord, set of (2) 15 ft leads, set of (2) alligator clips (red, black), 10 ft USB cable, external battery charger (90-264Vac, 50/60Hz) and USB drive with DataView® software and a user manual.

Print
VT/PT Ratio Range Auto-Ranging:  0.8000:1 to 8000.0:1
VT/PT Accuracy 0.8000 to 9.9999: ±0.2% of Reading
10.000 to 999.99: ±0.1% of Reading
1000.0 to 4999.9: ±0.2% of Reading
5000.0 to 8000.0: ±0.25% of Reading
CT Ratio Range Auto-Ranging: 0.8000 to 1000.0
CT Accuracy ±0.5% of Reading
Excitation Signal VT/PT Mode: 32Vrms max
CT Mode: Auto Level 0 to 1A, 0.1 to 4.5Vrms
Excitation Current Display Range: 0 to 1000mA
Accuracy: ±(2% of Reading +2mA)
Excitation Frequency 70Hz
Display LCD 16 character, 2 line, large format, LED backlight, day/night visible
Languages Supported English, Spanish, French, Italian, German, Portuguese
Communication Optically isolated USB 2.0
Data Storage Up to 10,000 complete measurements
Power Source Two rechargeable 12V NiMH batteries (included)
Battery Life Up to 10 hours of continuous operation
Low Battery Indication LED and LCD
External Charger 90 to 240V, 50/60Hz (smart charger)
Charging Time <4 hours
Measurement Method In accordance with ANSI/IEEE Std. C57.12.90-2006
Software DataView analysis software included
Dimensions 10.70 x 9.76 x 5.12” (272 x 248 x 130mm)
Weight 8.1 lbs (3.7kg)
Operation Temperature 14° to 122°F (-10° to 50°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Index of Protection IP40 (lid open), IP53 (lid closed)
Double Insulated Yes
CE Approved Yes
Safety Compliance IEC 61010-1 (1995-A2) 50V CAT IV Pollution 2

User Manuals

Datasheets

Brochures

Rent Now

Software

Application Notes

Forms

Firmware

Troubleshooting

Videos

DTR® Model 8510 - Overview

What's New in DataView 3.50

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check

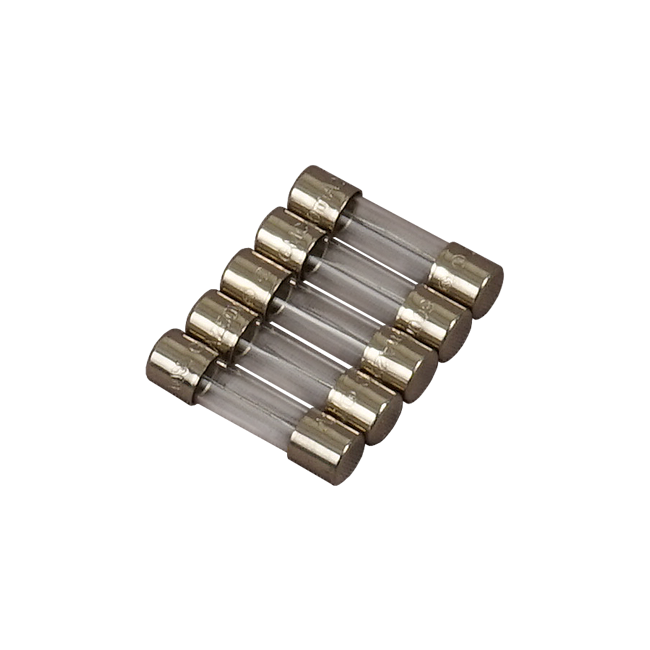

2118.53 Fuse – Set of 5, 0.5A, 250V, (Slow Blow), 5 x 20mm for Models DTR® 8500 & 8510 $12.95
2118.55 Fuse – Set of 3, 4 A, 125 V, (Slow Blow), 5 x 20 mm for Models DTR® 8500 & 8510 $26.25
2133.73 Bag – Extra Large Classic Tool Bag Replacement for Models 3945/3945-B, 6240, 6250, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8436, 8510 & PEL105
Dimensions: 18 x 9 x 12"
$53.00

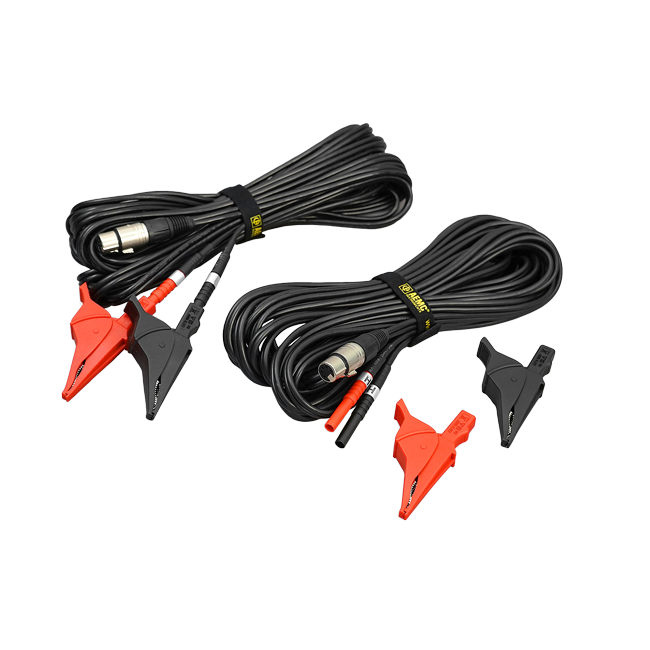

2136.76 Lead – Set of 2, 30 ft for DTR® Models 8500 & 8510 $399.00

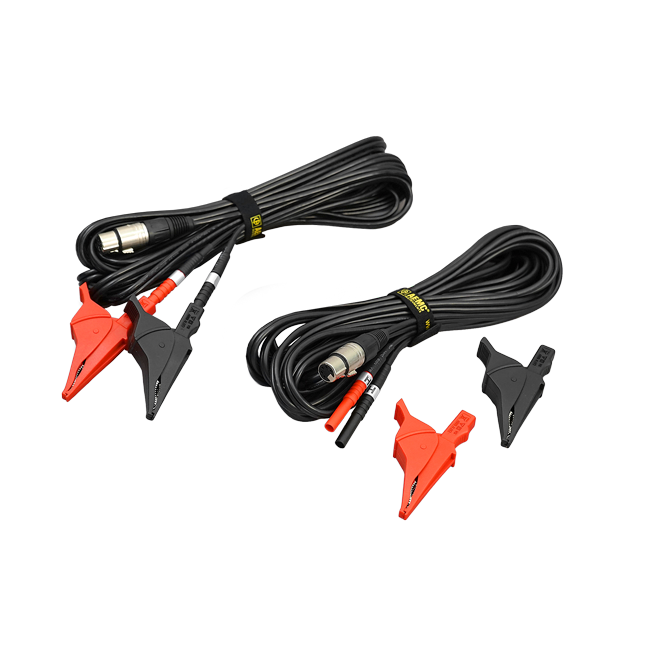

2136.77 Lead – Set of 2 (Replacement), 15 ft for DTR® Models 8500 & 8510 Replacement for Cat #2118.48 $299.00

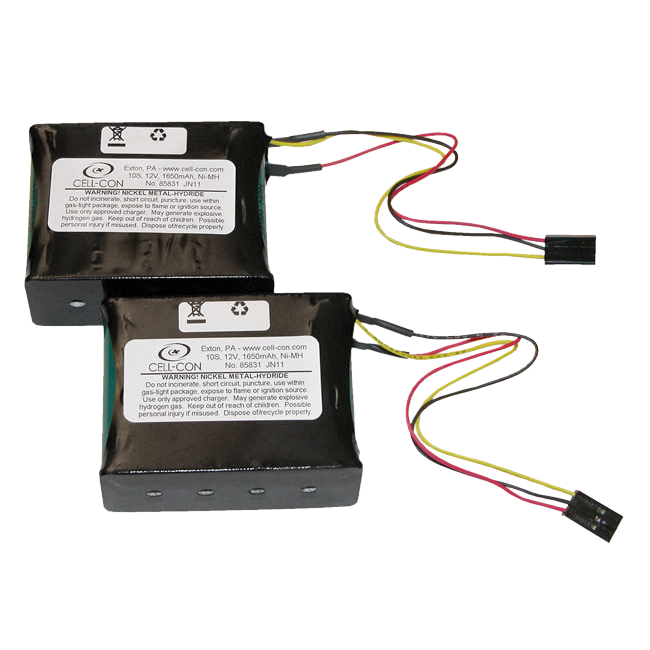

2136.78 Battery – Replacement, Set of 2, 12V NiMH Rechargeable for DTR® Model 8510 $249.00

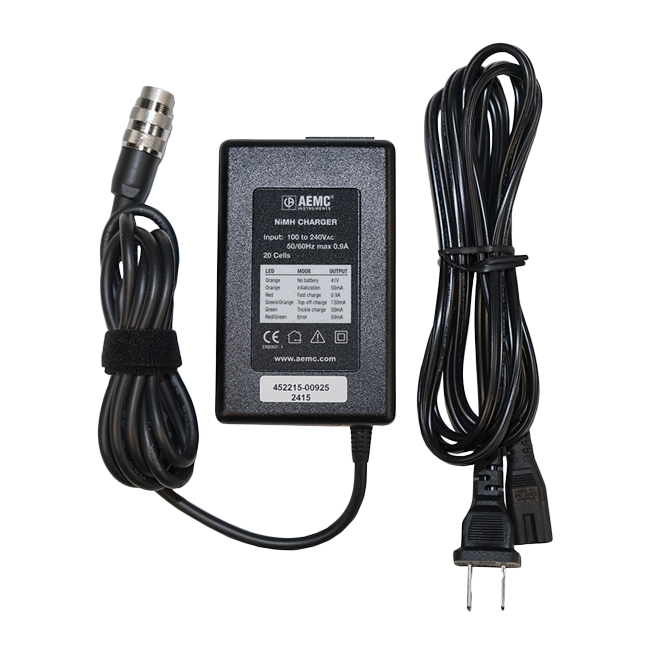

2136.79 Battery Charger – Replacement, 110 to 240V Charger for DTR® Model 8510 $265.00
2136.80 Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 {Replacement for Models DTR® 8510, C.A6116, DL913, & DL914} $19.00
5000.14 Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers $10.00
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
5100.02 Latches - Replacement set of 2 for use with AEMC Yellow cases $13.25
Model
Cat. #2118.53
DescriptionFuse – Set of 5, 0.5A, 250V, (Slow Blow), 5 x 20mm for Models DTR® 8500 & 8510
List Price$12.95
Model
Cat. #2118.55
DescriptionFuse – Set of 3, 4 A, 125 V, (Slow Blow), 5 x 20 mm for Models DTR® 8500 & 8510
List Price$26.25
Model
Cat. #2133.73
DescriptionBag – Extra Large Classic Tool Bag Replacement for Models 3945/3945-B, 6240, 6250, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8436, 8510 & PEL105
Dimensions: 18 x 9 x 12"
List Price$53.00
Model
Cat. #2136.76
DescriptionLead – Set of 2, 30 ft for DTR® Models 8500 & 8510
List Price$399.00
Model
Cat. #2136.77
DescriptionLead – Set of 2 (Replacement), 15 ft for DTR® Models 8500 & 8510 Replacement for Cat #2118.48
List Price$299.00
Model
Cat. #2136.78
DescriptionBattery – Replacement, Set of 2, 12V NiMH Rechargeable for DTR® Model 8510
List Price$249.00
Model
Cat. #2136.79
DescriptionBattery Charger – Replacement, 110 to 240V Charger for DTR® Model 8510
List Price$265.00
Model
Cat. #2136.80
DescriptionCable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 {Replacement for Models DTR® 8510, C.A6116, DL913, & DL914}
List Price$19.00
Model
Cat. #5000.14
DescriptionPower cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers
List Price$10.00
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.02
DescriptionLatches - Replacement set of 2 for use with AEMC Yellow cases
List Price$13.25
