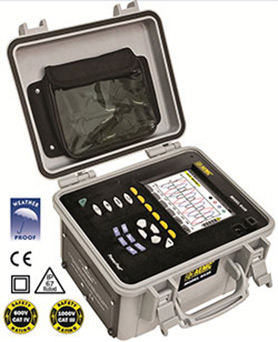

AEMC® Introduces the NEW Power Quality Analyzer PowerPad® III Model 8435
The PowerPad® III Model 8435 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Four voltage and four current inputs are provided. It is IP67 waterproof rated when recording with cover closed.
The Model 8435 has 2GB of memory available for storing trend data. Additional internal memory is conveniently partitioned to let you store alarms, transients, inrush and snapshot data synchronized or independent of each other. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.
Features:
Measurement of TRMS voltages up to 1000Vrms AD/DC for two-, three-, four- or five-wire systems
Measurement of TRMS currents up to 6500Arms (sensor dependent)
Direct measurement of neutral current and voltage
Frequency measurement (40 to 70Hz systems)
Records and displays trend data as fast as once per second for one month up to 25 variables
Captures up to 210 transient occurrences on all V and A inputs
Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
Recording, time stamping and characterization of disturbance (swells, sages and interruptions, exceedence of power and harmonic thresholds)
2GB SD Card for Trend Recording memory; Alarm, Snapshot, Transient and Inrush stored in internal flash memory
Measures energy VAh, VARh & Wh
65µs/sample transient recording
FREE DataView® software is included for configuring real-time display and report generation
Applications:
Verification of power distribution circuits
Pole mounting
In-plant troubleshooting of power distribution panels and individual machinery
Monitor pad mount transformers and phase unbalances
Determine harmonic problems originating from source or load
