AEMC Model 6683 Cable Verification & Tracing Analyzer

See What's Hidden. Trace it. Verify it. Fix it.

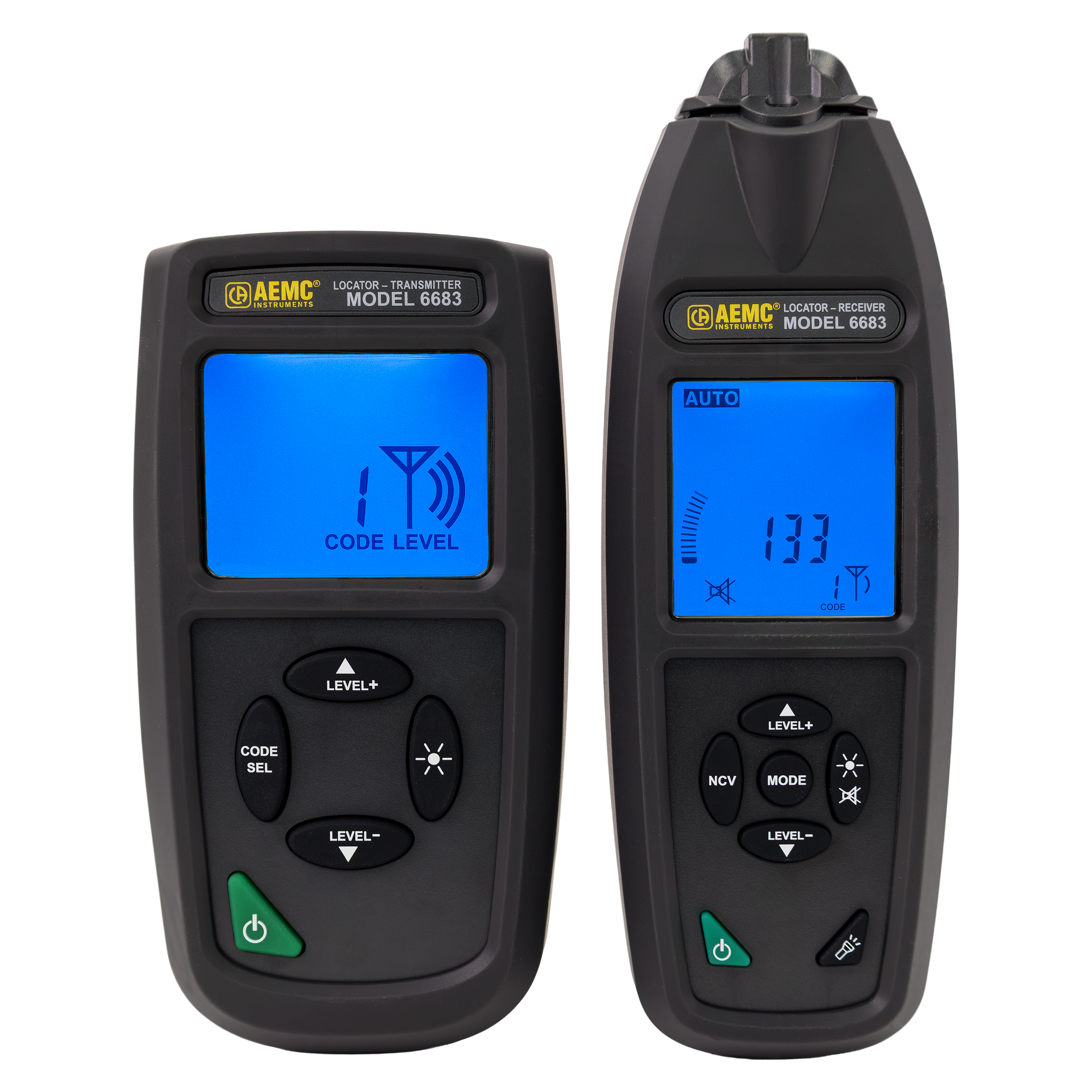

The AEMC^® Model 6683 Cable Verification & Tracing Analyzer is easy to use and quickly locates, traces, and verifies electrical cables, conductors, and metal water or heating pipes — even when they're buried or hidden behind walls, floors, and ceilings. With a dedicated transmitter/receiver pair, large backlit LCDs, NCV (non-contact voltage) detection and flexible connection modes, you get precision detection, clear feedback, and built-in safety so electricians, facility teams, and service technicians can safely pinpoint faults fast and keep systems running.

If voltage is present, the transmitter warns of the danger and indicates its value. The transmitted signal is digitally coded to avoid interference, and its power can be adjusted manually to fine-tune detection.

In complex cases, the identification code configuration allows up to 7 transmitters to be used simultaneously.

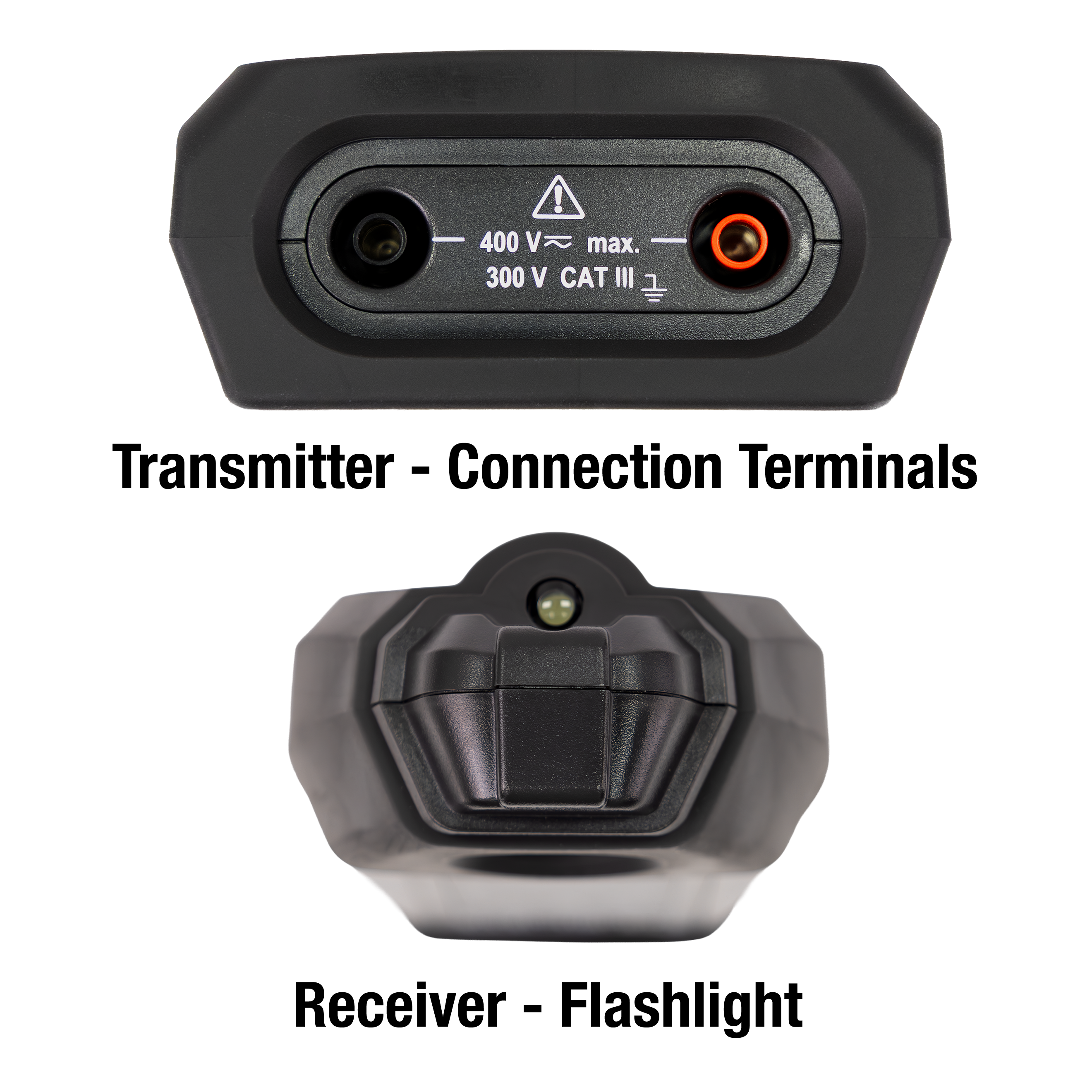

The receiver is equipped with a built-in light, a silent mode and automatic or manually adjustable sensitivity settings for greater selectivity to suit all situations on site. The receiver can also be used on its own to locate a live conductor connected to the active conductor (phase) of the electricity distribution network.

Main Applications

Data Centers & Telecom: Trace power and communication lines in dense racks and trays, find faults in control and signal wiring, and verify which runs are live before moving or adding equipment.
Electrical Contractors & Facility Maintenance: Identify which breaker feeds which outlet, follow hidden cable routes in walls and ceilings, locate junction boxes or buried conductors, and track down cable damage without tearing everything open.
Plumbing & Heating / Underfloor Systems: Locate metal pipes in walls or concrete and troubleshoot underfloor heating by running a conductor through the pipe path and tracing it with the receiver.

Introducing the AEMC^® Cable Verification & Tracing Analyzer Model 6683!

Below is an introductory video on the Model 6683 which covers key highlights, functions, and advantages of our newest Cable Verification and Tracing Analyzer.

Watch Now!

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
6683	2127.89	The AEMC Model 6683 cable tester quickly locates, traces, and verifies cables, conductors, metal water or heating pipes in walls or floors and energized or de-energized systems.	$359.00	In stock at factory. Find a Distributor

Model	6683
Cat. #	2127.89
Description	The AEMC Model 6683 cable tester quickly locates, traces, and verifies cables, conductors, metal water or heating pipes in walls or floors and energized or de-energized systems.
List Price	$359.00
In stock at factory. Find a Distributor

Model 6683 - Cat. #2127.89: Includes transmitter (Model 6683E) & receiver (Model 6683R), soft carrying case, set of (2) 5 ft silicone, color-coded (red/black) safety leads w/ 4 mm straight/right angle banana plugs, (2) safety alligator clips (red/black), 110 V outlet adapter with banana plugs, mini ground rod, E14 bulb adapter, (6) 1.5 V AAA (LR03) batteries and multilingual user manual.

TECHNICAL SPECIFICATIONS ¹
Model	6683E(TRANSMITTER)

Display	Backlit LCD Display
Information Displayed	Measured voltage level, type (AC or DC), transmitted signal power, battery status, identification code, voltage presence
Output Signal Frequency	125 kHz
External Voltage Identification Range	(12, 50, 120, 230) V and 400 V (50/60) Hz or DC ± 2.5 %
Signal Power	Adjustable (3 levels)
Transmitter Identification	Digital signal coding allowing the use of 7 transmitters simultaneously
Power Supply	(6) 1.5 V AAA batteries
Safety	IEC/EN 61010-2-030 300 V CAT III
Operating / Storage Temperature	Operating Temperature: (32 to 104) F° (0 to 40) C° Storage Temperature: (-4 to 140) F° (-20 to 60) C°
Dimensions / Weight	Dimensions: (6.3 x 3.30 x 1.57) in (160 x 84 x 40) mm; Weight: 12.34 oz (350 g)

Model	6683R (RECEIVER)

Display	Backlit LCD display
Information Displayed	Signal amplitude, detection sensitivity, transmitter identification code and transmitted signal strength, battery status, voltage presence
Detection Depth with Transmitter	Unipolar application: (0 to 6) ft (0 to 2) m Bipolar application: (0 to 1.6) ft (0 to 0.5) m Single loopback line: Up to 8.2 ft (2.5 m)
Detection Sensitivity	Automatic or manual adjustment (7 levels)
Non-Contact Voltage (NCV) Function	(12 to 1000) V_AC
Other Functions	Flashlight; audible signal deactivation
Power Supply	(6) 1.5 V AAA batteries
Safety	Type F sensor compliant with IEC/EN 61010-031 300 V CAT III
Operating / Storage Temperature	Operating Temperature: (32 to 104) F° (0 to 40) C° Storage Temperature: (-4 to 140) F° (-20 to 60) C°
Dimensions / Weight	Dimensions (7.8 x 2.63 x 1.42) in (198 x 67 x 36) mm; Weight: 10.93 oz (310g)

Note 1: Refer to the user manual for complete technical specifications

User Manuals

Model 6683 – English, Español, and Français

Datasheets

Model 6683 - English

Model 6683 - Español

Brochures

Cable Verification & Tracing Analyzer Model 6683

Cable Verification & Tracing Analyzer Model 6683 - Español

Applications - Graphic Illustrations

Residential & Commercial Applications

Power Distribution (Motor)

Videos

AEMC - Find Breaks, Shorts, and Hidden Wires - Introducing the Model 6683

Model	Cat. #	Description	List Price
	2118.49	Adapter - 110V Outlet Adapter w/4mm Banana Plugs for Models L230, L260, L261, L562, 8220 & 8230	$44.00
	5000.94	Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)	$28.00
	5000.97	Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2}	$9.00
	5000.98	Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}	$9.00
	5000.99	Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)	$12.00
	5100.00	Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)	$12.00
5100.22	5100.22	Mini Ground Rod for Use with Models 6681 and 6683	$13.65
5100.23	5100.23	Adapter - Replacement E14 Bulb Adapter for Model 6683	$125.00
5100.24	5100.24	Case - Replacement Soft Carrying Case for Model 6683	$10.00

Model
Cat. #	2118.49
Description	Adapter - 110V Outlet Adapter w/4mm Banana Plugs for Models L230, L260, L261, L562, 8220 & 8230
List Price	$44.00

Model
Cat. #	5000.94
Description	Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)
List Price	$28.00

Model
Cat. #	5000.97
Description	Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price	$9.00

Model
Cat. #	5000.98
Description	Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price	$9.00

Model
Cat. #	5000.99
Description	Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price	$12.00

Model
Cat. #	5100.00
Description	Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price	$12.00

Model	5100.22
Cat. #	5100.22
Description	Mini Ground Rod for Use with Models 6681 and 6683
List Price	$13.65

Model	5100.23
Cat. #	5100.23
Description	Adapter - Replacement E14 Bulb Adapter for Model 6683
List Price	$125.00

Model	5100.24
Cat. #	5100.24
Description	Case - Replacement Soft Carrying Case for Model 6683
List Price	$10.00
