Clamp-On Meters

Why Choose AEMC® Instruments Clamp-On Meters?

AEMC® Instruments rugged, dependable and safe clamp-on meters employ the latest technology, offer the very best quality and are simple to use with a fast delivery of one week (in-stock).

We offer a range of clamp-on meters to meet your need with economical and competitive pricing.

Safety

Our clamp-on meters are designed, manufactured and tested to IIEC/EN 61010 and 2-032, 600 V, 1000 V, CAT II, III and IV standards (model dependent).

Users can be sure of working in total safety with 1000 V CAT IV ratings.

Feature Rich Clamp-On Meters

AEMC® clamp-on meters feature simple, one-hand operation for measuring AAC, ADC, VAC, resistance, continuity, frequency, TRMS, %THD, CF, peak, and other parameters. They also perform diode checks.

Features (model dependent)

  • 1000 V CAT IV rated
  • UL 94 IV flame retardant self-extinguishing
  • IP54 rated
  • 10,000 count blue electroluminescent backlit display
  • Measures up to 1000 VAC (1400 V peak); (1000 VDC and AC+DC with resolution to 10 mV)
  • Measures up to 2000 AAC and 3000 ADC
  • Measures single- and three-phase power (real, reactive, and apparent) up to 3 MW with resolution to 1 W
  • Auto selects AC or DC measurement
  • Models available with wireless communication to PC or smart device
  • and more...

Tech Support

AEMC® Instruments provides complete technical support through our technical hot line 800-945-2362 (ext.351), speak directly to one of our tech support team members. Or e-mail your clamp meter questions to our tech team techsupport@aemc.com

Clamp-on Meters Selection Charts

We created this all-in-one comparison document to help you select a clamp-on meter for your specific needs.

CLAMP-ON METERS SELECTION CHART

CLAMP-ON METERS SELECTION CHART - Español

Clamp-On Meters

  •

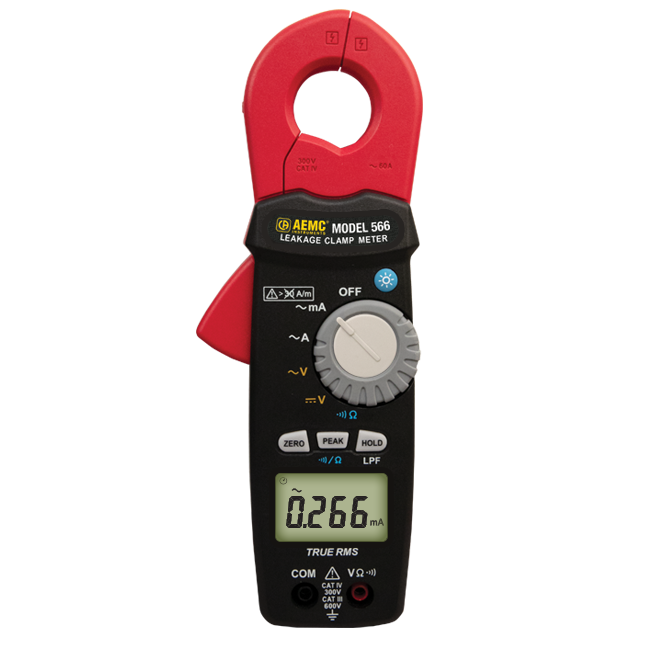

    Clamp-on Leakage Current Meter Model 566

    Cat. #2139.83
    TRMS Clamp-on Leakage Current Meter Model 566
    Measures low AC currents such as leakage currents in ground conductors. Low currents are measured using either the 60mA or 600mA range. The high sensitivity of the probe (1µA, 10µA and 100µA) is possible through special jaw construction such as critical shielding of the jaws. Can be used as a standard clamp-on meter measuring to 60Arms. Also measures AC and DC voltage, continuity (with beeper), and resistance.

  •

    Clamp-on Meter Model 205

    Compact Size, Professional Functionality
    Cat. #2139.40
    TRMS, 1000VAC/DC, 600AAC/900ADC
    Measures AC+DC voltage and current, frequency, continuity, resistance, power, Power Factor and phase rotation. Performs diode checks. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. MIN/MAX function tracks high and low values. Also tracks peak+ and peak– values. Safety rated at 600V CAT IV. IP54 rated to withstand dust and water spray.

  •

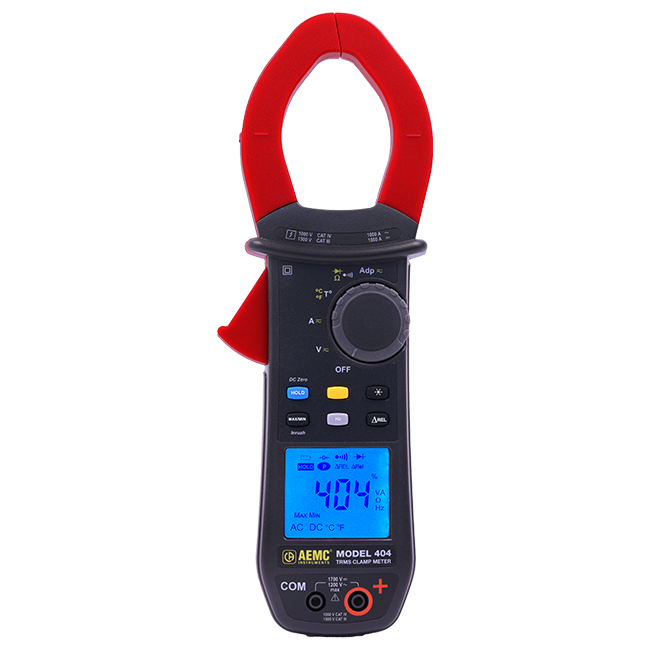

    Clamp-on Meter Model 404

    Mid-Size, Professional Functionality
    Cat. #2139.22
    TRMS, True InRush®, 1200 VAC, voltage and 1700 VDC
    Measures voltage, amps, frequency, resistance, diode, continutiy, True InRush®, and temperature. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. Safety rated at 1000 V CAT IV, 1500 V CAT III. IP54 rated to withstand dust and water spray.

  •

    Clamp-on Meter Model 407

    Mid-Size, Professional Functionality
    Cat. #2139.51
    TRMS, True InRush®, 1000VAC/DC, 1000AAC /1500ADC, Data Recording
    Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

  •

    Clamp-on Meter Model 505

    Cat. #2139.82
    Clamp-on Meter Model 505 (TRMS, AC/DC, 400AAC/DC, 600VAC/DC, Ohms, Continuity, Rated 600V CATIII

  •

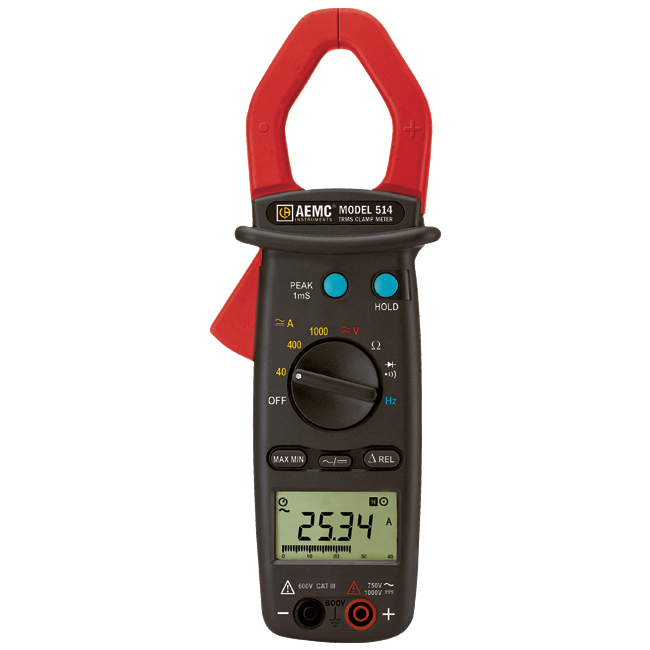

    Clamp-on Meter Model 514

    Economical
    Cat. #2117.70
    TRMS, 1000AAC/DC, 750VAC/1000VDC, Auto-Ranging
    Measures a complete set of ranges for AC voltage and current, DC voltage, continuity (with beeper), frequency (voltage or current), and resistance. Performs diode checks. Uses Hall sensor technology to provide both DC and AC current measurements to 1000A. In compliance with international safety and quality standards. Auto-ranging provides the best measurement range and resolution for troubleshooting, including high-resolution 40A range.

  •

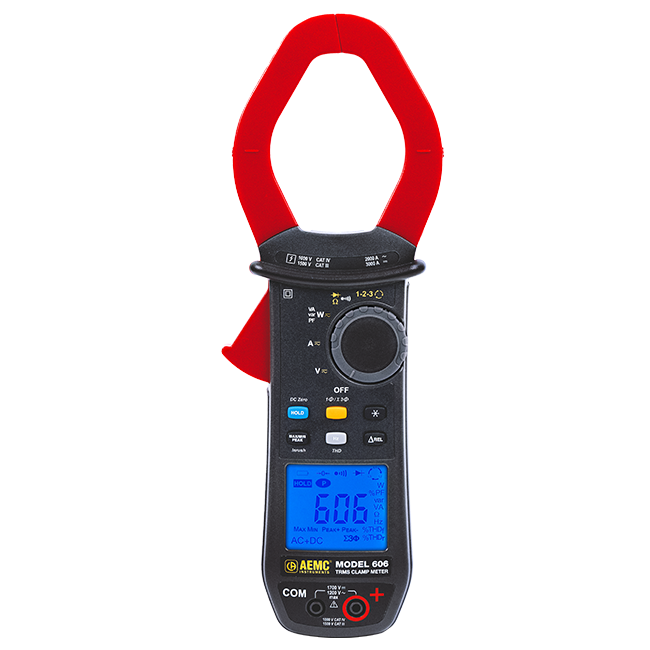

    Clamp-on Meter Model 606

    Large Size, Professional Functionality
    Cat. #2139.62
    TRMS, True InRush®, 1200 VDC, 1700 VA, current measurement up to 2000 AAC and 3000 ADC
    Measures AC, DC and AC+DC volts, amps and power, True InRush®, Delta relative function, phase rotation indication, power measurements, and more. Performs diode checks. Delta relative function allows new measurements to be compared to a reference value. Safety rated at 1000 V CAT IV and 1500 V CAT III. IP54 rated to withstand dust and water spray.

  •

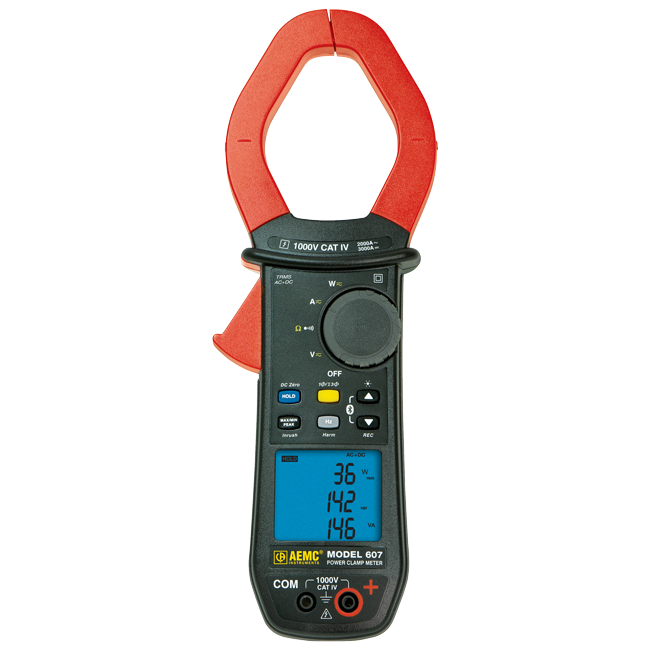

    Clamp-on Meter Model 607

    Large Size, Professional Functionality
    Cat. #2139.61
    TRMS, True InRush®, 1000 VAC/DC, 2000 AAC /3000 ADC, Data Recording
    Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000 V CAT IV. IP54 rated to withstand dust and water spray.

  •

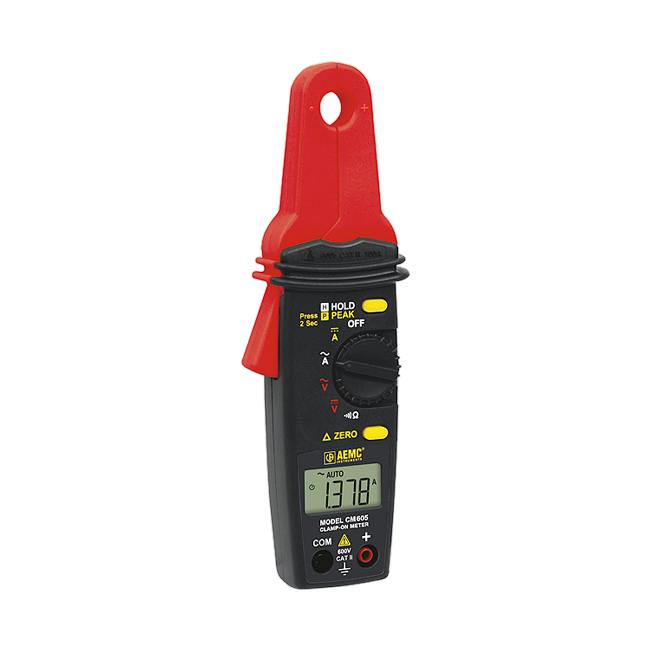

    Clamp-on Meter Model CM605

    Cat. #7000.02
    100AAC/DC, Low Current Measurement
    A good choice for both process and general industrial applications. It can detect milliamp process signals, as well as the higher currents up to 100A associated with general industrial monitoring and troubleshooting.
