Clamp-on Meter Model 404

Elevate your electrical testing capabilities with the cutting-edge AEMC® Model 404 Clamp-On Meter, now with enhanced photovoltaic functionality. This state-of-the-art instrument is designed to meet the demands of modern electrical professionals, offering precise and reliable measurements across a wide range of applications, including solar energy systems. The Model 404 seamlessly integrates advanced features such as current measurement, True InRush® current detection, voltage analysis, frequency assessment, and now, specialized photovoltaic capabilities for comprehensive solar panel system analysis.

This versatile instrument seamlessly measures AC Voltage up to 1200 V and DC Voltage up to 1700 V, making it an indispensable asset for tackling a wide range of electrical applications.

Accuracy and Safety

The Model 404 boasts exceptional measurement accuracy, ensuring that you can confidently gather reliable data for informed decision-making. It boasts current measurement up to 1000 A AC and 1500 A DC. 1000 V CAT IV  and 1500 VCAT III  safety ratings guarantee your protection even in the most demanding electrical environments, giving you peace of mind as you conduct critical tests.

Rugged Durability for Demanding Workplaces

Built to withstand the rigors of even the most challenging work environments, the Model 404 is IP54 rated, making it impervious to dust and water spray. This rugged construction ensures that your trusty tool will remain operational and reliable, even in demanding conditions.

Ergonomic Design for Effortless Operation

The Model 404 prioritizes user comfort with its ergonomic design, allowing for effortless one-handed operation. Function selection and button pushing can be easily accomplished even with gloves on, saving you time and effort while maximizing efficiency.

Unmatched Functionality for Diverse Applications

Beyond the standard measurements of volts, amps, frequency, resistance, diode checking, and continuity, the Model 404 offers an array of unequaled functions, including:

  • AC, DC, and AC+DC volts, amps, and Ohms
  • Diode checking
  • Continuity
  • Temperature and adapter function
  • True InRush®
  • Delta relative function

This comprehensive range of functionalities empowers you to tackle a wide spectrum of electrical challenges with confidence.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
404 2139.22 Clamp-on Meter Model 404 $449.00
Model404
Cat. #2139.22
DescriptionClamp-on Meter Model 404
List Price$449.00

Model 403 - Cat. #2139.22: Includes a soft carrying case, (2) 5 ft color-coded silicone insulated test leads (red/black), (2) color-coded alligator clips (red/black), (1) black test probe, (1) red test probe, K-thermocouple with 4 mm integrated adapter, (4) 1.5 V AA batteries, and a user manual.

Print
Voltage Range DC: 1700 Vrms Autoranging
Voltage Range AC: 1200 Vrms Autoranging
Resolution Max: 0.01 V to 1 V
Current Range: 1000 Arms AC, 1500 ADC
Resolution: (0.01 to 1) A
Accuracy V Typical: 1% ± 4cts
Accuracy A Typical: 1% ± 3cts
InRush: 10 A to 1000 AAC, 1500 ADC
Continuity: Selectable from (0 to 999.9) Ω
Resistance: 100 kΩ
Diode Test: (0 to 3.2) VDC
Frequency: 5 Hz to 20 kHz in V
5 Hz to 2 kHz in A
Temperature K Thermocouple: (-76.0 to 2192) °F (-60 to 1200) °C
Adapter Function: Yes (0 mV to 10 V) DC, ( 5 to 10) V AC
LCD w/backlight: Yes
MIN/MAX: Yes
Power Source: 4 x AA, NEDA 15A, IEC LR6
Battery Life: >350 hours
Dimensions: (10.7 x 3.6 x 1.6) in (272 x 92 x 41) mm
Weight: 1.32 lbs (600 g) with batteries
Jaw Opening: 1.89" (48 mm)
Operating Temperature: (-4 to to 131) °F (-20 to 55) °C
Storage Temperature: (-40 to 158) °F (-40 to 70) °C
Operating Humidity: 90 % up to 131 °F (55 °C)
Pollution Degree: 2
Ingress Protection: IP54
EMC: EN61326-1
Safety Compliance: EN/IEC 61010-1
EN/IEC 61010-2-030
EN/IEC 61010-032 to 1000 V CAT IV, 1500 V CAT III

User Manuals

PV Clamp-on Meter Model 404 - English

PV Clamp-on Meter Modelo 404 - Español

PV Clamp-on Meter Model 404 - French

Datasheets

PV Clamp-on Meter Model 404 - English

PV Clamp-on Meter Modelo 404 - Español

Brochures

Clamp-on Meters

AEMC® Instruments Product Line Brochure

Comparison Charts

Clamp-on Meter Comparion Chart (200/400/600 Series)

Application Notes

True RMS, True InRush, and True Megohmmeter

True InRush® and AEMC Power Clamp-On Meters

Videos

400 & 600 Clamp On Series Instructional Presentation

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2119.48 Multi-purpose Canvas Pouch for Clamp-on Meters, Clamp-on Ground Testers, Power Meters Model 8220 & 8230
Dimensions: 11 x 5 x 2.25") 		$39.00
2121.05 AC Line Splitter Model ALS-1 $18.00
2139.71 Thermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 1821,1822, 5233, 5217, MTX 3292B/92B-BT/93B/93B-BT, 203, 401, 403, 404, 601, 603, 675 & 5217) $14.00
2139.72 Replacement Pouch for Clamp-on Meter Models 401, 403, 405, 601, 603 & 605 and Megohmmeter Models 6528 & 6529. Dimensions: 13.54 x 4.75 x 2.75” $18.95
2152.15 Set of 2, 5 ft color-coded (red/black) silicone insulated safety leads (4mm right-angle banana plug and 4mm straight screw-on banana plug) rated 1000V CAT IV $35.00
2154.74 Lead - Replacement Set of 2, Needle Tip Color-coded (Red/Black) w/4mm Right-angle Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o Shield} for Models 5212, 5215 & 5217 (or any meter that accepts 4mm banana plugs) $13.25
5000.30 Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets $6.00
5000.94 Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) $26.50
5000.97 Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2} $9.00
5000.98 Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2} $9.00
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
Model
Cat. #2119.48
DescriptionMulti-purpose Canvas Pouch for Clamp-on Meters, Clamp-on Ground Testers, Power Meters Model 8220 & 8230
Dimensions: 11 x 5 x 2.25")
List Price$39.00
Model
Cat. #2121.05
DescriptionAC Line Splitter Model ALS-1
List Price$18.00
Model
Cat. #2139.71
DescriptionThermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 1821,1822, 5233, 5217, MTX 3292B/92B-BT/93B/93B-BT, 203, 401, 403, 404, 601, 603, 675 & 5217)
List Price$14.00
Model
Cat. #2139.72
DescriptionReplacement Pouch for Clamp-on Meter Models 401, 403, 405, 601, 603 & 605 and Megohmmeter Models 6528 & 6529. Dimensions: 13.54 x 4.75 x 2.75”
List Price$18.95
Model
Cat. #2152.15

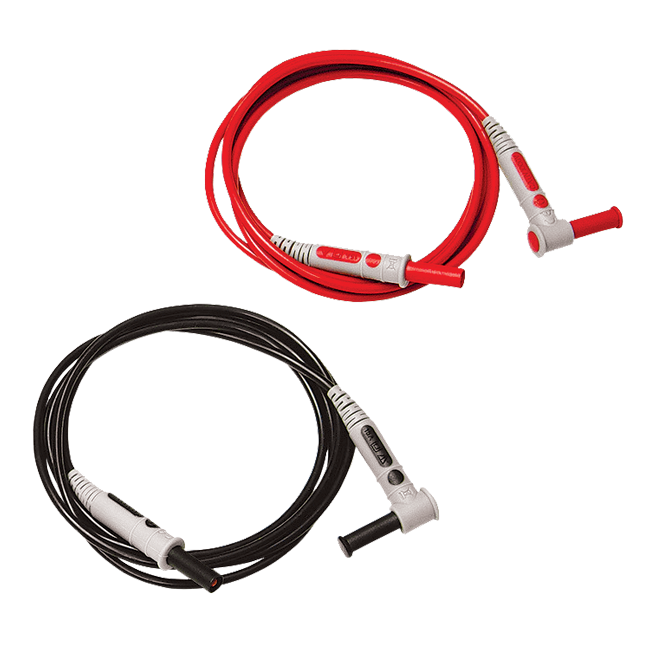

DescriptionSet of 2, 5 ft color-coded (red/black) silicone insulated safety leads (4mm right-angle banana plug and 4mm straight screw-on banana plug) rated 1000V CAT IV
List Price$35.00
Model
Cat. #2154.74
DescriptionLead - Replacement Set of 2, Needle Tip Color-coded (Red/Black) w/4mm Right-angle Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o Shield} for Models 5212, 5215 & 5217 (or any meter that accepts 4mm banana plugs)
List Price$13.25
Model
Cat. #5000.30
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets
List Price$6.00
Model
Cat. #5000.94
DescriptionLead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)
List Price$26.50
Model
Cat. #5000.97
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price$9.00
Model
Cat. #5000.98
DescriptionProbe - red test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price$9.00
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
