| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 505 | 2139.82 | Clamp-on Meter Model 505 (TRMS, AC/DC, 400AAC/DC, 600VAC/DC, Ohms, Continuity) RATED 600V CAT III | $194.00 |
|
|
|
||||||||||
Model 505 - Cat. #2139.82: Includes soft carrying case, pair of test leads (red/black with probe tips), (2) 1.5V AAA batteries and a user manual.
| ELECTRICAL | |||
| AC Current (Auto-Ranging) | 0.05 to 400A | ||
| Resolution | 0.01A and 0.1A | ||
| AC Voltage(Auto-Ranging) | 0.5 to 600V | ||
| Resolution | 0.1V and 1V | ||
| Input Impedance | 10MΩ | ||
| DC Current (Auto-Ranging) | 0.10 to 400A | ||
| Resolution | 0.01A and 0.1A | ||
| DC Voltage(Auto-Ranging) | 0.2 to 600V | ||
| Resolution | 0.1V and 1V | ||
| Input Impedance | 10MΩ | ||
| Resistance | 0.2 to 600Ω | ||
| Max Test Voltage | 1.5VDC | ||
| Continuity | <35Ω | ||
| Max Test Voltage | 1.5VDC | ||
| Zero Mode / Delta Function | Yes | ||
| Peak Function | Yes | ||
| MECHANICAL | |||
| Dimensions | 7.83 x 2.95 x 1.42" (199 x 75 x 36mm) | ||
| Weight | 8.57 oz. (243g) with batteries | ||
| Jaw Opening | 1.18" (30mm) | ||
| Power Source | 2 x AAA, IEC LR3 (included) | ||
| Battery Life | 40 hours | ||
| ENVIRONMENTAL | |||
| Operating Temperature | +32° to 104°F (0° to +40°C) | ||
| Storage Temperature | +14° to 140°F (-10° to +60°C) | ||
| Operating Humidity | <70% | ||
| Pollution Degeree | 2 | ||
| SAFETY | |||
| Safety Ratings | EN/IEC 61010 to 600V CAT III | ||
User Manuals
Datasheets
Brochures
Clamp-on Meters
HVAC Monitoring
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Comparison Charts
Application Notes
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|

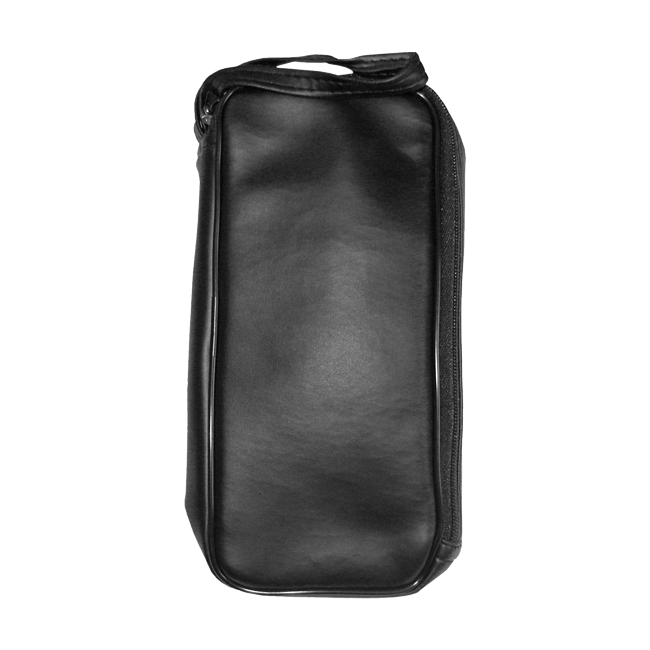

2117.73 | Pouch - Pouch – Replacement for Models 1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, & 6610 (8.5 x 6.75 x2.7) inches | $24.00 |
|
|
|
2154.74 | Lead - Replacement Set of 2, Needle Tip Color-coded (Red/Black) w/4mm Right-angle Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o Shield} for Models 5212, 5215 & 5217 (or any meter that accepts 4mm banana plugs) | $13.25 |
|
|
||||||||||
|
||||||||||
