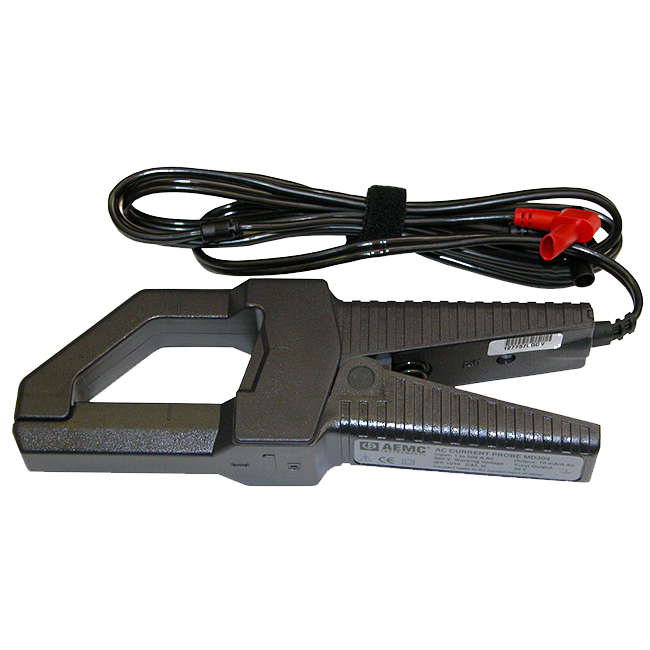

AC Current Probe Model MD301

The MD301 is built for ruggedness, versatility and ease of use. It is a general purpose 500A current probe, but with mVDC output for recorders, loggers and other instruments with mVDC inputs. Output termination is double insulated 5 ft lead with safety banana plugs.
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
MD301 1201.07 AC Current Probe Model MD301 $198.00
ModelMD301
Cat. #1201.07
DescriptionAC Current Probe Model MD301
List Price$198.00
Print
Maximum Conductor Size Cable 1.18" (30mm), bus bar 2.48x0.19” (63 x 5mm), dual cable 0.98” (25mm)
Current Range 500AAC
Measurement Range 2 to 500AAC
Output Signal 1mVDC / AAC (0.5VDC @ 500AAC)
Transformation Ratio 1000:1
Output Double insulated 5ft (1.5m) lead with safety 4mm banana plug
Accuracy 50/60Hz 1%  @ 500A
Frequency Range 48Hz to 1KHz
Phase Shift N/A
Load Impedance ≥100kΩ
Overload 700A for 10 min
Operating Temperature -5° to +122°F  (-15° to +50°C)
Storage Temperature -40° to +185°F  (-40° to +85°C)
Dimensions 2.6 x 7.68 x 1.34” (66 x 195 x 34mm)
Weight 14.82 oz (420g)
Pollution Degree 2
Rating UL 94 V0
Ingress Protection IP 20
EMC EN 50081-1 Class B, EN 50082-2, IEC 1000-4-2
Safety Compliance EN 61010-2-32, 600V CAT III, 300V CAT IV

User Manuals

Datasheets

Comparison Charts

Application Notes

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
1017.45 Adapter - 4mm Non-insulated for Safety Leads $18.00
2118.09 General Carrying Case
Dimensions: 13 x 9.5 x 3"
$60.00
2118.46 Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers
(600V CAT III)
$44.00
2119.94 Adapter - BNC (Female) to 4mm Banana (Male) 600V CAT III $20.00
2133.72 Compact tool bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5"
$33.50
2133.73 Bag – Extra Large Classic Tool Bag Replacement for Models 3945/3945-B, 6240, 6250, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8436 & PEL105
Dimensions: 18 x 9 x 12"
$49.00
2140.52 DISCONTINUED See replacement item: Cat #5100.00 (Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) ; $8.50 Consult Factory for Availability
2140.53 DISCONTINUED See replacement item: Cat #5000.99 (Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) ; $8.50
2140.54 DISCONTINUED See replacement item: Cat #5100.04 (Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) ; $8.50 Consult Factory for Availability
2140.55 Clip - Safety Alligator - White {Rated 1000V CAT IV, 15A, UL} $8.50
2140.56 Clip – Set of 4, Safety Alligator (Red, Black, Blue & White) {Rated 1000V CAT IV, 15A, UL} $0.00 Discontinued
2152.24 Lead - Set of 2, Color-coded (red/black) 5 ft PVC Safety Leads (1000V CAT IV)
Replacement for 2140.57
$0.00 Discontinued
