AC Current Probe Model MN09

The small, compact MINI 09 current clamp is an ideal complement for any multimeter to measure AC currents in low-power tertiary or industrial applications.

Its DC voltage output enables you to overcome the low AC sensitivity of certain measuring instruments.

Main features of the MINI 09 model:

  • Rated current: 150 AAC
  • Output signal: DC voltage
  • Output / input ratio: 100 mVDC / AAC
  • Output via lead and isolated Ø 4 mm male plugs
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
MN09 2129.21 AC Current Probe Model MN09 (150A, 100mV DC/A AC, 4mm Plugs) $99.00
ModelMN09
Cat. #2129.21
DescriptionAC Current Probe Model MN09 (150A, 100mV DC/A AC, 4mm Plugs)
List Price$99.00
Print
Maximum Conductor Size 0.39" (10mm)
Current Range 150AAC
Measurement Range 1 to 150A
Output 5ft (1.5m) lead with 4mm safety banana plug
Transformation Ratio N/A
Output Signal 100mVDC/AAC (150AAC / 15VDC)
Accuracy 50/60Hz 1 to 5A, 10% ±0.2A
5 to 15A 6% ±0.2A
15 to 40A 3% ±0.2A
40 to 150A ±4%
Frequency Range 48 to 65Hz
Phase Shift At 50Hz N/A
Open Secondary Voltage ≤30V
Load Impedance ≥50KΩ
Overload 170A for 10 min ON, 30 min OFF
Dimensions  (H x W x D) 4.43 x 1.48 x 1.02” (112.5 x 37.5 x 26mm)
Weight 6.5 oz (180g)
Operating Temperature 14° to +122°F  (-10° to +50°C)
Storage Temperature -40° to +176°F  ( -40° to +80°C)
Operating Humidity <85% RH
Pollution Degree 2
Ingress Protection (Ip) IP40
EMC EN 61326-1
Safety Compliance EN/IEC 61010-032 600V CAT III, 300 V CAT IV Pollution Degree 2

User Manuals

Datasheets

Comparison Charts

Application Notes

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check

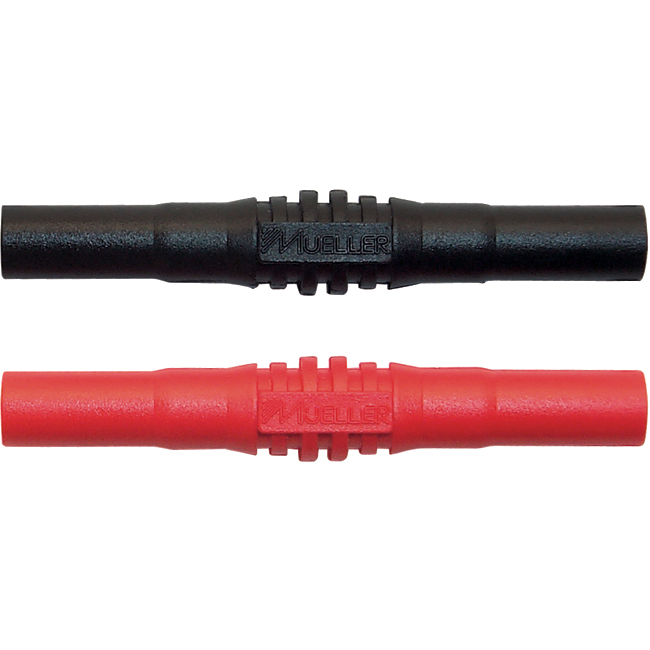

2115.98 Adapter, Set of 2, Color-coded (red/black) FEM-FEM to Male Leads $34.50
2118.46 Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers
(600V CAT III)
$44.00
Model
Cat. #2115.98
DescriptionAdapter, Set of 2, Color-coded (red/black) FEM-FEM to Male Leads
List Price$34.50
Model
Cat. #2118.46
DescriptionAdapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers
(600V CAT III)
List Price$44.00
