Resistance Decade Box Model BR07

The Resistance Decade Box Model BR07 is built into a metal bench top box. It is used for testing and calibration of test equipment. The main function of the Model BR07 is to create a resistance with a specific value by using a combination of the rotary decade switches. The Model BR07 has seven decade ranges from 1 to 10MΩ.

The Model BR07 is equipped with Ø 4mm safety terminals for connections. It is designed to EN 61010-1 safety standards. Includes ground jumper lead.
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status
BR07 2131.25 Resistance Decade Box Model BR07 $185.00 In stock at factory. Find a Distributor
ModelBR07
Cat. #2131.25
DescriptionResistance Decade Box Model BR07
List Price$185.00
In stock at factory. Find a Distributor
Print
Decade 1 2 3 4 5 6 7
Resistance 1 to 10Ω 10 to 100Ω 100Ω to 1kΩ 1 to 10kΩ 10 to 100kΩ 100kΩ to 1MΩ 1 to 10MΩ
Max. Current 700mA 200mA 70mA 20mA 7mA 1mA 0.1mA
Accuracy 1% ±10mΩ
Dimensions 16 x 3.4 x 3” (410 x 86 x 76mm)
Weight 3 lbs (1.4kg)
Operation Temperature    14° to 131°F (-10° to 55°C)
Storage Temperature    -40° to 158°F (-40° to 70°C)
Pollution Degree 2
Ingress Protection (IP) IP40
Safety Compliance EN 61010-2-03
Safety Rating 150V CAT II, 50V CAT III
Model Cat. # Description List Price Quantity/Status

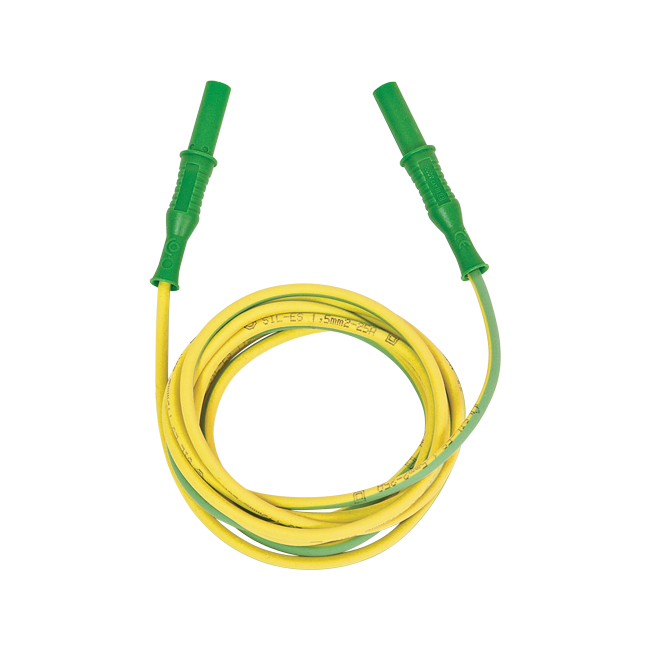

2131.35 Lead – Replacement, 6 ft Safety Lead, 4mm Female to Female for Decade Boxes $20.00
Model
Cat. #2131.35
DescriptionLead – Replacement, 6 ft Safety Lead, 4mm Female to Female for Decade Boxes
List Price$20.00
