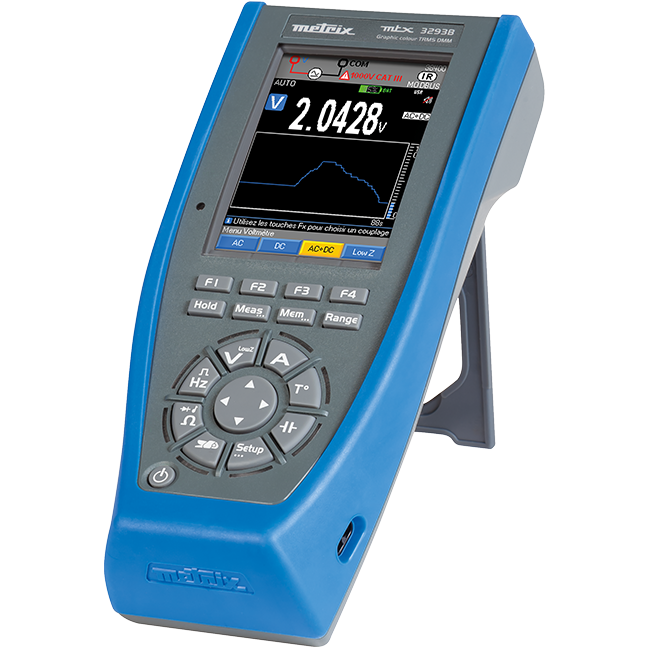

Digital Multimeter Model MTX 3293B

The Model MTX 3293B is a portable multimeter that measures voltage (AC and DC), resistance, capacitance, temperature, duty cycle, pulse counts, and frequency. The meter performs continuity checks and diode testing (including forward bias voltage), and includes an AC voltmeter function with low input impedance for finding ghost voltages. Other features include monitoring Min, Max, Avg, and Peak measurement; Auto Range mode, and Data HOLD.

The meter is compact, rugged, comfortable to grip, and waterproof to the IP67 standard; and is rated for safety (EN 61010-1, NF EN 61010-2-30 1000V CAT III, 600V CAT IV).

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
MTX 3293B 2154.04 Digital Multimeter Model MTX 3293B (ASYC IV, TRMS, 100K-CTS, USB, Color Graphical Display) $805.00 Consult Factory for Availability
MTX 3293B-BT 2154.06 Digital Multimeter Model MTX 3293B-BT (ASYC IV, TRMS, 100K-CTS, BT, USB, Color Graphic Display) $950.00 Consult Factory for Availability
ModelMTX 3293B
Cat. #2154.04
DescriptionDigital Multimeter Model MTX 3293B (ASYC IV, TRMS, 100K-CTS, USB, Color Graphical Display)
List Price$805.00
Consult Factory for Availability
ModelMTX 3293B-BT
Cat. #2154.06
DescriptionDigital Multimeter Model MTX 3293B-BT (ASYC IV, TRMS, 100K-CTS, BT, USB, Color Graphic Display)
List Price$950.00
Consult Factory for Availability

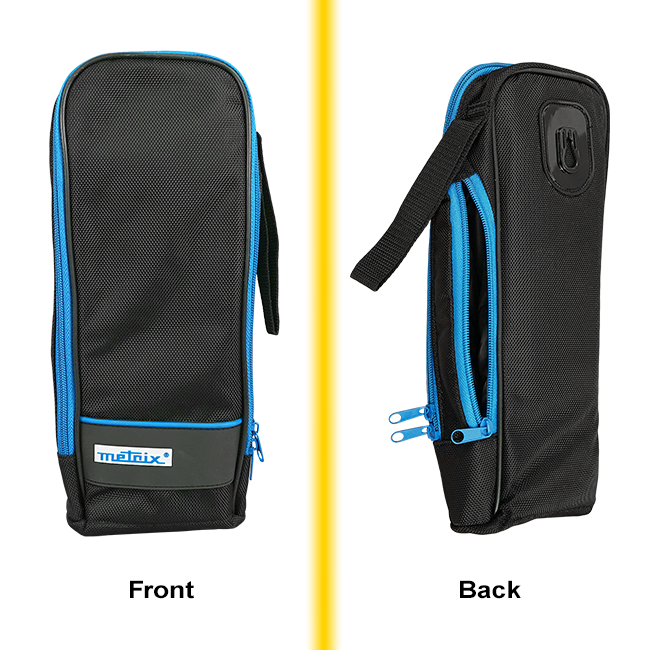

Model MTX 3293B - Cat. #2154.04& MTX 3293BT - Cat. #2154.06: Includes a soft carrying case, set of (2) color-coded safety leads (red/black), set of (2) color-coded test probes (red/black), Quick Start Guide, (4) 1.5V NiMH 2400mAh 1.5V rechargeable batteries (installed), optical USB cable, a USB Type A charger, USB charging cable, and a thumb drive with SX_DMM software and a user manual.

Print
Counts 100,000
Voltage AC/DC/AC+DC 1000VAC/DC/AC+DC
Current AC/DC/AC+DC 10AAC/DC/AC+DC (20A for 30s max)
Bandwidth AC/AC+DC 200kHz
Resistance 100MΩ
Frequency 10Hz to 5MHz
Capacitance 10mF
Continuity <20Ω
Temperature         PT100/1000:
                                      K/J TC:
-328° to 1472°F (-164° to 800°C)
-40° to 2192°F (-40° to 1200°C)
Diode Test Normal Diode, Zener and LED
VLowZ Yes
Duty Cycle/Pulse Width/Pulse Counting Yes all functions
∆REL Yes
MIN/MAX/AVG/PEAK Yes all functions
Clamp Function Current measurement with programmable ratio and unit
Memory 30,000 measurements
Display Color Graphical
Communication with PC USB (MTX 3293B); USB or Bluetooth (MTX 3293B-BT)
Software          SX-DMM (included)
Dimensions  (HxWxD) 7.72 x 3.54 x 1.85" (196 x 90 x 47.1mm)
Weight 1.26 lbs (570g)
Power Source Charger or 4 x AA Batteries or NiMH batteries (included)
Battery Life AA:100 hrs, NiMH:80 hrs
Operating Temperature -4° to 158°F (-20° to 70°C)
Storage Temperature -32° to 104°F (-35° to 40°C)
Pollution Degree 2
Ingress Protection (IP) IP67
EMC NF EN 61326-1
Safety Compliance NF EN 61010-1, NF EN 61010-2-30 1000V CAT III, 600V CAT IV

User Manual(s)

Datasheet(s)

Brochure(s)

Comparison Charts

Software

Application Notes

Firmware

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
MN251 2115.77 AC Current Probe Model MN251
(200A, 1mV/A, Lead)
$179.00 Consult Factory for Availability
1950 2121.40 Thermal Imaging IR Camera Model 1950 (Resolution 80 x 80) $1,595.00
1954 2121.41 Thermal Imaging IR Camera Model 1954 (Resolution 120 x 160) $2,250.00
MN03 2129.18 AC Current Probe Model MN03
(100AAC/0.1VAC (1mV/A), Lead)
$89.00 Consult Factory for Availability
2135.41 Optical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series $68.50
2139.71 Thermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 401, 403, 601, 603, 607, 675 & 5217) $12.50
2139.74 Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug $107.00
2152.28 Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL) $180.00 Consult Factory for Availability
2970.92 Fuse - Set of 5, 1100V, 11A, 10x38mm, 20kA for Models MTX 3281B-3283B-BT $35.70
5000.30 Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets $6.00
5000.44 MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D $17.75
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
5100.04 Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) $11.50
5100.05 Clip - Safety Alligator - White (1000V CAT IV, 15A, UL) $11.50
5100.06 Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL) $11.50
5100.07 Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs $25.00
2152.05 Cat.# 2152.05 is DISCONTINUED. Click on replacement items: Cat. #5000.94: Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL). Cat. #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) . Cat. #5100.00:Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). Cat #5000.30: Probe - black test probe (Rated 1000V CAT IV, 15A, UL). Cat #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. $0.00 Discontinued
5000.31 Cat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. $0.00 Discontinued
Model MN251
Cat. #2115.77
DescriptionAC Current Probe Model MN251
(200A, 1mV/A, Lead)
List Price$179.00
Consult Factory for Availability
Model 1950
Cat. #2121.40
DescriptionThermal Imaging IR Camera Model 1950 (Resolution 80 x 80)
List Price$1,595.00
Model 1954
Cat. #2121.41
DescriptionThermal Imaging IR Camera Model 1954 (Resolution 120 x 160)
List Price$2,250.00
Model MN03
Cat. #2129.18
DescriptionAC Current Probe Model MN03
(100AAC/0.1VAC (1mV/A), Lead)
List Price$89.00
Consult Factory for Availability
Model
Cat. #2135.41
DescriptionOptical USB Cable – Replacement for Models 6240, 6470/6470-B, 6471, 6472, 6550 ,6555, 8220, 8230 & MTX 328x Series
List Price$68.50
Model
Cat. #2139.71
DescriptionThermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 401, 403, 601, 603, 607, 675 & 5217)
List Price$12.50
Model
Cat. #2139.74
DescriptionLead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug
List Price$107.00
Model
Cat. #2152.28
DescriptionLead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL)
List Price$180.00
Consult Factory for Availability
Model
Cat. #2970.92
DescriptionFuse - Set of 5, 1100V, 11A, 10x38mm, 20kA for Models MTX 3281B-3283B-BT
List Price$35.70
Model
Cat. #5000.30
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets
List Price$6.00
Model
Cat. #5000.44
DescriptionMultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D
List Price$17.75
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.04
DescriptionClip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.05
DescriptionClip - Safety Alligator - White (1000V CAT IV, 15A, UL)
List Price$11.50
Model
Cat. #5100.06
DescriptionClip - Safety Alligator - Green (1000V CAT IV, 15A, UL)
List Price$11.50
Model
Cat. #5100.07
DescriptionLead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs
List Price$25.00
Model
Cat. #2152.05
DescriptionCat.# 2152.05 is DISCONTINUED. Click on replacement items: Cat. #5000.94: Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL). Cat. #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) . Cat. #5100.00:Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). Cat #5000.30: Probe - black test probe (Rated 1000V CAT IV, 15A, UL). Cat #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}.
List Price$0.00
Discontinued
Model
Cat. #5000.31
DescriptionCat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}.
List Price$0.00
Discontinued
