Oscilloscopes

Two and four-isolated-channel 600V CAT III rated with 12-bit resolution. Featuring built in functions to perform as an Oscilloscope, FFT Analyzer, TRMS Multimeter, Harmonic Analyzer, and Recorder. Perfect for both laboratory and field testing.

Oscilloscopes

This comprehensive line of hand-held and benchtop oscilloscopes (single, dual, and four channel) feature 12 bit resolution, full channel-to-channel isolation, and full-color displays that make complex waveforms easy to analyze. Bandwidths options range from 20 to 200MHz. Harmonic analysis, data storage, and ethernet connections are also available.

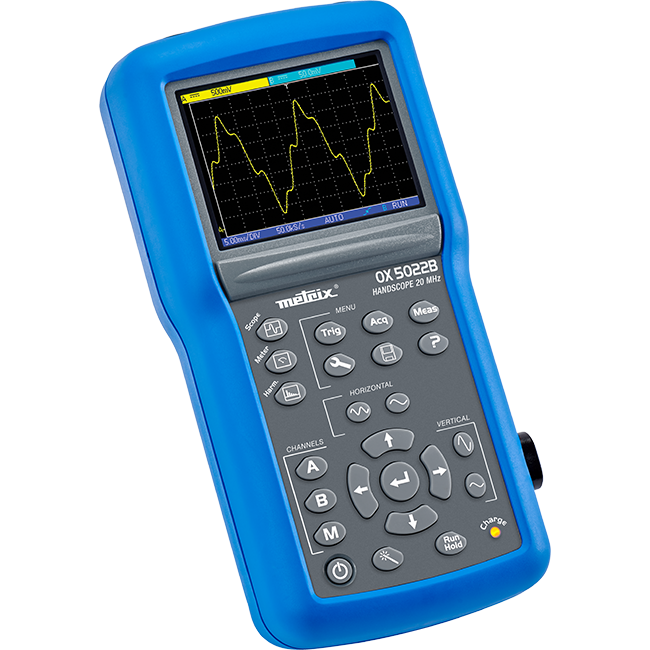

  • Handscope Portable Oscilloscope Model OX5022-CK

    Cat. #2150.20
    2-Channel, 20MHz
    Two-channel oscilloscope with 20MHz bandwidth. Also functions as an 8000-count multimeter with power measurements, and a harmonic analyzer to the 31st harmonic. Can store up to 2MB of recorded data. USB communication enables programing the instrument remotely with the supplied SX-METRO software.

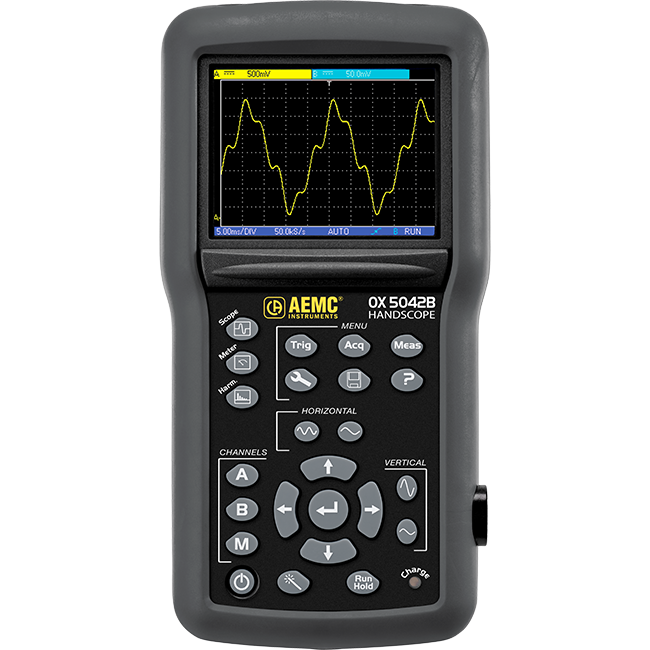

  • Handscope Portable Oscilloscope Model OX5042

    Cat. #2150.21
    2-Channel, 40MHz
    Two-channel oscilloscope with 40MHz bandwidth. Also functions as an 8000-count multimeter with power measurements, and a harmonic analyzer to the 31st harmonic. Can store up to 2MB of recorded data. USB communication enables programing the instrument remotely with the supplied SX-METRO software.

  • PC Scope Module Model MTX 1052B-PC

    Cat. #2150.10
    2-Channel, 150MHz
    Two-channel oscilloscope with 150MHz bandwidth. Vertical sensitivity from 250uV to 100V/div with 10 bit resolution. USB or Ethernet communication enables programing the instrument remotely with the supplied software. Rated 300V CAT III.

  • PC Scope Module Model MTX 1052BW-PC

    Cat. #2150.11
    2-Channel, Wi-Fi, 150MHz
    Four-channel oscilloscope with 150MHz bandwidth. Vertical sensitivity from 250uV to 100V/div with 10 bit resolution. USB, Ethernet, or Wi-Fi communication enables programing the instrument remotely with the supplied software. Rated 300V CAT III.

  • PC Scope Module Model MTX 1054B-PC

    Cat. #2150.12
    4-Channel, 150MHz
    Four-channel oscilloscope with 150MHz bandwidth. Vertical sensitivity from 250uV to 100V/div with 10 bit resolution. USB or Ethernet communication enables programing the instrument remotely with the supplied software. Rated 300V CAT III.

  • PC Scope Module Model MTX 1054BW-PC

    Cat. #2150.13
    4-Channel, Wi-Fi, 150MHz
    Four-channel oscilloscope with 150MHz bandwidth. Vertical sensitivity from 250uV to 100V/div with 10 bit resolution. USB, Ethernet, or Wi-Fi communication for connecting to a computer with the supplied software. Rated 300V CAT III.

  • PC Scope Module Model MTX 162UE

    Cat. #2150.14
    2-Channel, 60MHz
    Two-channel oscilloscope with 60MHz bandwidth. Vertical sensitivity from 5mV to 100V/div with 8 bit resolution. USB or Ethernet communication for connecting to a computer with the supplied software. Rated 300V CAT III.

  • PC Scope Module Model MTX 162UEW

    Cat. #2150.15
    2-Channel, WiFi, 60MHz
    Two-channel oscilloscope with 60MHz bandwidth. Vertical sensitivity from 5mV to 100V/div with 8 bit resolution. USB, Ethernet, or Wi-Fi communication for connecting to a computer with the supplied software. Rated 300V CAT III.

Show Discontinued Products
