NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|

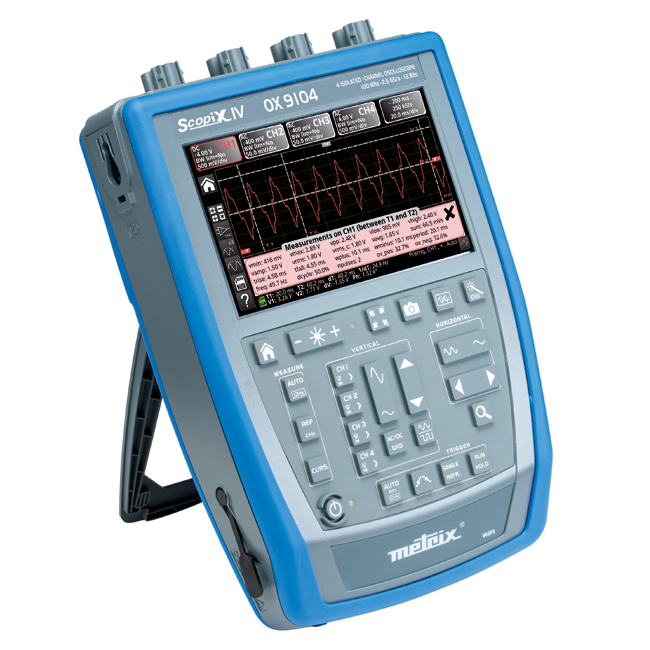

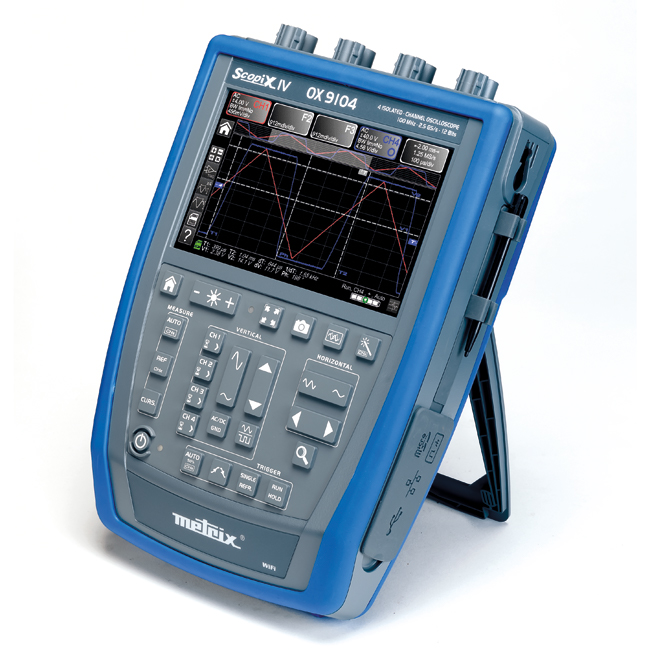

| OX 9104 IV | 2150.33 | Hand-held Portable Oscilloscope Model OX 9104 IV 100MHz | $4,975.00 | In stock at factory. Find a Distributor |
|
|
||||||||||
Model OX 9104 - Cat. #2150.33: Includes carrying case with shoulder strap, set of (2) 5 ft color-coded leads, alligator clips and test probes (4 mm diameter), 10 ft USB cable, µSD memory card, 1-PROBIX Banana Plug (4 mm) Adapter, set of (5) stylus pens, LI-ION 5.8 A•h battery, PA40W-2 power adapter with 110 V power cord.
| CHANNELS | |
| Inputs / Bandwidth | Isolated channels |
| Input Impedance | 1 MΩ ± 0.5 %, approx. 12 pF |
| INTERFACE | |
| Screen Specifications | Color 7-inch WVGA TFT LCD touch screen, 800 x 480 pixels |
| Display Mode | Vectors with interpolation - 2500 real acquisition points on screen |
| Traces On Screen | 4 Traces + 4 References (split screen and full screen modes) |
| Front Panel Control | 32 keys |
| Screen Control | Touch screen - ANDROID type icons and graphical commands |
| VERTICAL | |
| Vertical Sensitivity | 16 ranges from 2.5 mV to 200V div and up to 156 µV/div om vertical zoom mode (12-bit converter) Accuracy ± 2 % |
| Max Input Voltage | 600 V CAT III (1000 V per Probix) – from (50 to 400) Hz - Probix connectors |
| Vertical Zoom | One click Winzoomsystem (direct graphical zoom onscreen) x 16 max |
| HORIZONTAL | |
| Time Base Speed | 35 ranges from 1 ns/div. to 200 s/div Accuracy ± (50 ppm + 500 ps) Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom | One click Winzoom system (direct graphical zoom onscreen) x 100 max |
| TRIGGER | |
| Mode | Auto, Triggered, One-shot, Auto-level 50 % on all channels |
| Type | Edge, Pulse width (16 ns - 20 s) Delay (48 ns - 20 s) Counting (3 to 16,384 events) Continuous adjustment of Trigger position |
| Coupling | AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64 ns to 15 s |
| Autoset | Complete < 5 s with recognition of channels - Frequency > 30 Hz |
| Cursors | Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph |
| DIGITAL MEMORY | |
| Max. Sampling Rate | 2.5 GS/s in one-shot mode on each channel (100 GS/s max. in ETS mode) 12 bits resolution |
| Memory Depth | 100 kpts per channel and file viewer in the manager |
| Memory Capacity | Internal = 1 GB to store the files Trace, text, configuration, math functions System memory: .pdf print files, .png image files + high-capacity removable microSD-Card: SD 2 GB, SDHC (4 to 32) GB and SDXC > 32 GB |
| GLITCH Mode | Duration ≤ 2 ns – 500,000 Min/Max pairs |
| Display Modes | Envelope, vector, accumulation -, averaging (factors 2 to 64) XY (vector) and Y(f) = FFT |
| OTHER FUNCTIONS | |
| FFT Analyzer & Math Functions | FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor |
| Automatic Measurement | Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll |
| Multimeter Mode | 4 channels, 8000 counts + Min/Max/Frequency/relative – TRMS – Time stamp graphic recording in logger mode |
| AC, DC, AC+DC Voltages | 600 mV to 600 VRMS, 800 mV to 800 VDC: accuracy 0.5 % Bandwidth 200 kHz |
| Power and PF | Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements |
| Resistance, Temperature, Capacitance, Frequency, and Diode Test on channel 1 only | |
| Acquisition | Duration: 20,000 s - Interval: 0.2 s Files: 100,000 measurements |
| Harmonic Analyzer Mode | |
| Multi-Channel Analysis | 2, up to 61st, fundamental from (40 to 450) Hz in auto or manual mode |
| Simultaneous measurement | Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) |
| GENERAL FEATURES | |
| Interface | Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements |
| Batteries | Rechargeable LI-ION 5.8 A•h battery, External charger |
| Charging Time | (98 to 264) VAC (50/60 Hz) 2 hours when OFF |
| Battery life | Approx. 8 hours |
| Dimensions (L x W x H) | (11.5 x 8.29 x 2.6) in (292.5 x 210.6 x 66.2) mm |
| Weight | 4.7 lbs. (2.1 kg) |
| Altitude Operating | 2000 m (6560 ft) |
| Operating Temperature | (32 to 104) °F (0 to 40) °C ≤ 80 % RH |
| Storage Temperature | (-4 to 140) °F (-20 to 60) °C |
| IP Rating | IP54 per IEC 60529 |
| Safety | IEC/EN 61010-2-30 (1000 V CAT II; 600 V CAT III), IEC 1326-1 |
User Manuals
OX 9000 Series
Battery Pack Replacement for PowerPad® IV 8345, Oscilloscope Models OX 9000 Series, and Multi-Function Installation Tester Models CA 6116N & CA6117
Battery Recharge Time / Rechargeable NiMH Notice
Datasheets
Hand-held Oscilloscope Model OX 9104 IV
Osciloscopio portátil modelo OX 9104 IV 100 MHz (4 canales, 100 MHz) - Español
Brochures
Oscilloscope OX 9000 Series
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Software
OX Oscilloscope Software & Firmware
FIRMWARE - SCOPIX IV
Version: v1.12 | 03/15/22
Manual firmware upgrade for the follwing SCOPIX IV, Oscilloscope Models - OX 9062, OX 9102,OX 9104 and OX 9304
NOTE: Firmware version v1.12 is only compatible with v6.3 of the SX-Metro software.
Follow these instruction to upgrade your Firmware: HOW TO INSTALL SCOPIX IV FIRMWARE INSTRUCTIONS
To upgrade your oscilloscope, download this zipped file: Install SCOPIX IV v1.12 Download (150 MB)
FIRMWARE - Loader v2.8
Version: v4.23 | 11/12/15
v2.23 - For use with all OX I Series Oscilloscopesv3.23 - For use with OX II Series Oscilloscopes
v4.23 - For use with all OX III Series Oscilloscopes
To upgrade your Firmware, install the Loader v2.8: Loader v2.8 Download (51 MB)
Follow these instruction to install the Loader properly: HOW TO INSTALL FIRMWARE INSTRUCTIONS
SOFTWARE v6.3
Version: 6.3 | 03/15/22
For use with models OX5022, OX5042, OX5022B, OX5042B, and models OX9062, OX9102, OX9104, OX9302, OX9304 (with firmware version v1.10 or higher)
To install the software SX Metro v6.3, you need to download the .zip file, extract all the files and then run the Setup.exe file.
Executable: SX-METRO Self-extracting v6.3.exe (250 MB)
Zipped File: SX-METRO Software Download v6.3.zip (243 MB)
This software, designed for AEMC® Instruments OX Oscilloscopes, provides the following functions:
- Acquisition, recording and processing of curves from the oscilloscope
- Importing of screenshots
- Back-up or recovery of configurations
- Display curves in real time
- Communicate with the oscilloscope via TCP/IP network connection
- Transfer of data to Excel or Text files
- Mathematical processing, such as FFT of displayed signal
Languages
Five languages are supported: German, English, Spanish, French and Italian.
USB DRIVER
Install the USB driver onto a computer to communicate with the device hardware.
OX USB Driver Download (7 MB)
LabView Drivers
Procedures for installing the LabView drivers. LabView Installation PDF
| Digital Multimeters - MTX-3292B, MTX3292BT, MTX3293B, MTX3293-BT | |||
| Ver. 1.0 | LabView Drivers | ||
| Megohmmeters | |||
| Ver. 1.0 | Model 1060 | Overview PDF | |
| Ver. 1.1 | Models 5060 & 5070 | Overview PDF | |
| Ver. 1.0 | Models 6550 & 6555 | Overview PDF | |
| Power Quality & Energy | |||
| Ver. 1.0 | Models 8333, 8435, 8335, & 8336 | Overview PDF | |
| Ver. 1.0 | Models PEL 102 & 103 | Overview PDF | |
| Simple Logger II Series | |||
|
Ver. 1.0 |
Overview PDF | ||
| SCOPIX IV – OX9000 Series | |||
|
Ver. 1.0 Ver. 1.0 |
|||
Application Notes
Technical Bulletins
Videos
Battery Pack (Cat. #2960.47) Replacement Procedure (PowerPad ® IV 8345, OX 9000 Series, Installation Testers CA 6116N & CA 6117
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2124.75 | PROBIX PRHX5, 50 Ohm Adapter (HX0032) | $155.00 | Consult Factory for Availability |
|
|
2124.76 | PROBIX Banana Plug (4mm) Adapter (HX0033) | $86.00 | Consult Factory for Availability |
|
|
2136.80 | Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 (Replacement for Models DTR® 8510, C.A6116, DL913, DL914, 5060, and 5070) | $19.00 |
|
|
|
2157.01 | PROBIX 4mm Banana Plug Adapter for use up to 300Hz | $125.00 Sale: $62.50 |
|
|
|
2157.02 | PROBIX PRHX1, 1/10 Probe, 500MHz for use with OX Series (300V CAT III) Special Order Requests Only (Not Stocked) |
$390.00 | Consult Factory for Availability |
|
|
2157.03 | PROBIX PRHX1, 1/10 Probe, 250MHz for use with OX Series (600V CAT III) | $342.00 | Consult Factory for Availability |
|
|
2960.47 | Battery – Replacement 5.8AH 61.9Wh Li-ion Battery Pack for Models C.A6116N, C.A6117, OX9104-OX9304, & 8345
  Instruction Sheet
|
$350.00 | Consult Factory for Availability |
|
|
5000.17 | Set of 5 replacement stylus pens for Oscilloscopes | $6.95 |
|
|
|
5000.30 | Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets | $6.00 |
|
|
|
5000.94 | Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) | $26.50 |
|
|
|
5000.99 | Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|
5100.00 | Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|
2124.77 | PROBIX Current Probe, 20mA-20A, 100kHz for use with OX Oscilloscope Series | $0.00 | Discontinued |
|
|
2124.78 | PROBIX PRHX7, K Thermocouple Adapter (HX0035) | $0.00 | Discontinued |
|
|
2124.91 | AmpFlex® 0.5A to 3000A, 200kHz (HX0072) for use with Oscilloscope OX series User Manual
|
$0.00 | Discontinued |
|
|
2124.92 | MiniFlex® 0.5A to 300A, 3MHz (HX0073) for use with Oscilloscope OX series User Manual
|
$0.00 | Discontinued |
|
|
5000.22 | Razor plug 110V - replacement for OXIII & IV series Oscilloscopes | $0.00 | Discontinued | |
|
5000.31 | Cat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. | $0.00 | Discontinued |
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
