Power Supplies/Generators

Digital Power Supplies designed to meet the rigors of manufacturing, laboratory, and education applications. Features continuous duty cycle at full rated output.

Power Supplies/Generators

AEMC® power supplies/generators are designed for manufacturing, R&D, and education. They offer minimal heat dissipation and low electromagnetic emission while providing continuous duty cycle at full rated output. The generators feature Direct Digital Synthesis (DDS) to provide much higher accuracy and frequency stability than a traditional generator. Power supplies offer a unique master/slave relationship that allow adjustments and tracking on the fly.
  • DC Power Supply Model AX502

    Cat. #2130.06
    DC Power Supply, dual outputs, 0 to 2.5A; 0 to 30VDC
    Displays both voltage and current for each output. Includes dual 30V outputs, Coarse and Fine voltage adjustment, and a current limiting adjustment. Offers a unique master/slave tracking arrangement in which the ratio between the master and slave can be set up on the fly as needed during the test.

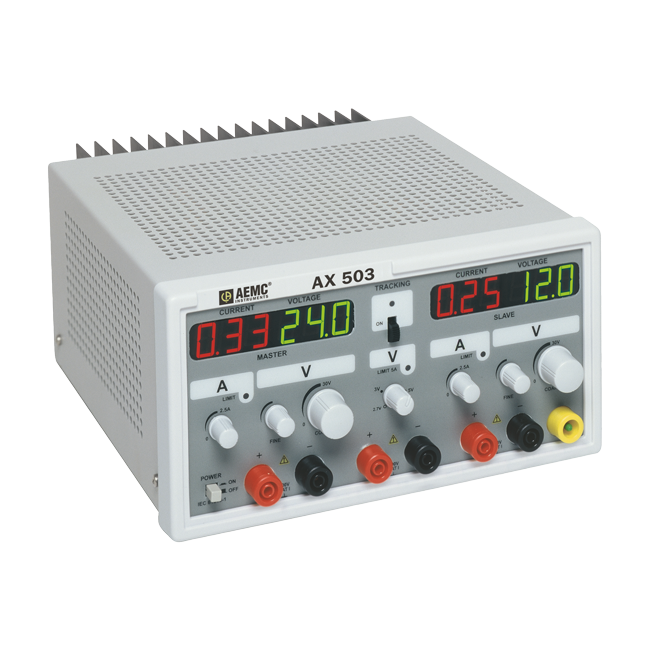

  • DC Power Supply Model AX503

    Cat. #2130.07
    DC Power Supply, triple outputs, two 0 to 2.5A; 0 to 30VDC; 2.7 to 5.5VDC
    Displays both voltage and current for each output. Includes Coarse and Fine voltage adjustment, and a current limiting adjustment. Offers a unique master/slave tracking arrangement in which the ratio between the master and slave can be set up on the fly as needed during the test. Also offers a 5V blind output adjustable from 2.7 to 5.5V. Dual 30V outputs can be connected in series to provide double the output voltage up to 60V, or they can be connected in parallel providing double the current output up to 5A.

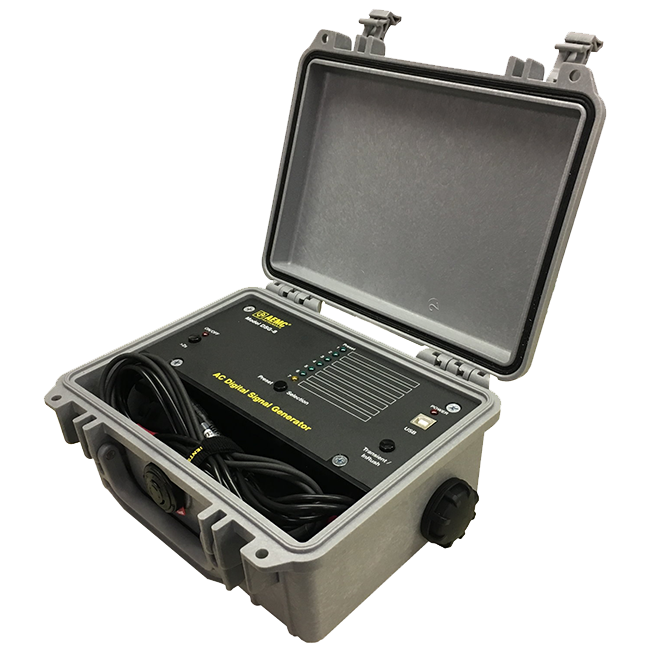

  • AC Digital Signal Generator Model DSG-8

    Cat. #6000.09
    Dual The AC Digital Signal Generator Model DSG-8 simulates waveforms for a variety of AEMC power analyzers, including the PowerPad, PowerPad III, and PEL 100 series. The DSG-8 can create simulations for any AC distribution system supported by these instruments, including capturing transients, inrush, and alarm events.

  • Function Generator Model GX320

    Cat. #2138.02
    DDS, 20MHz, USB
    Generates precise, varied signals including waveforms, sine, triangle, square & LOGIC, and TTL output. Users can choose the number of cycles per time period, and can simulate complex signals. Direct Digital Synthesis (DDS) feature provides much greater accuracy and frequency stability than a traditional generator. Features a large LCD screen. Ideal for higher education, R&D engineers and scientific research.
