Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|

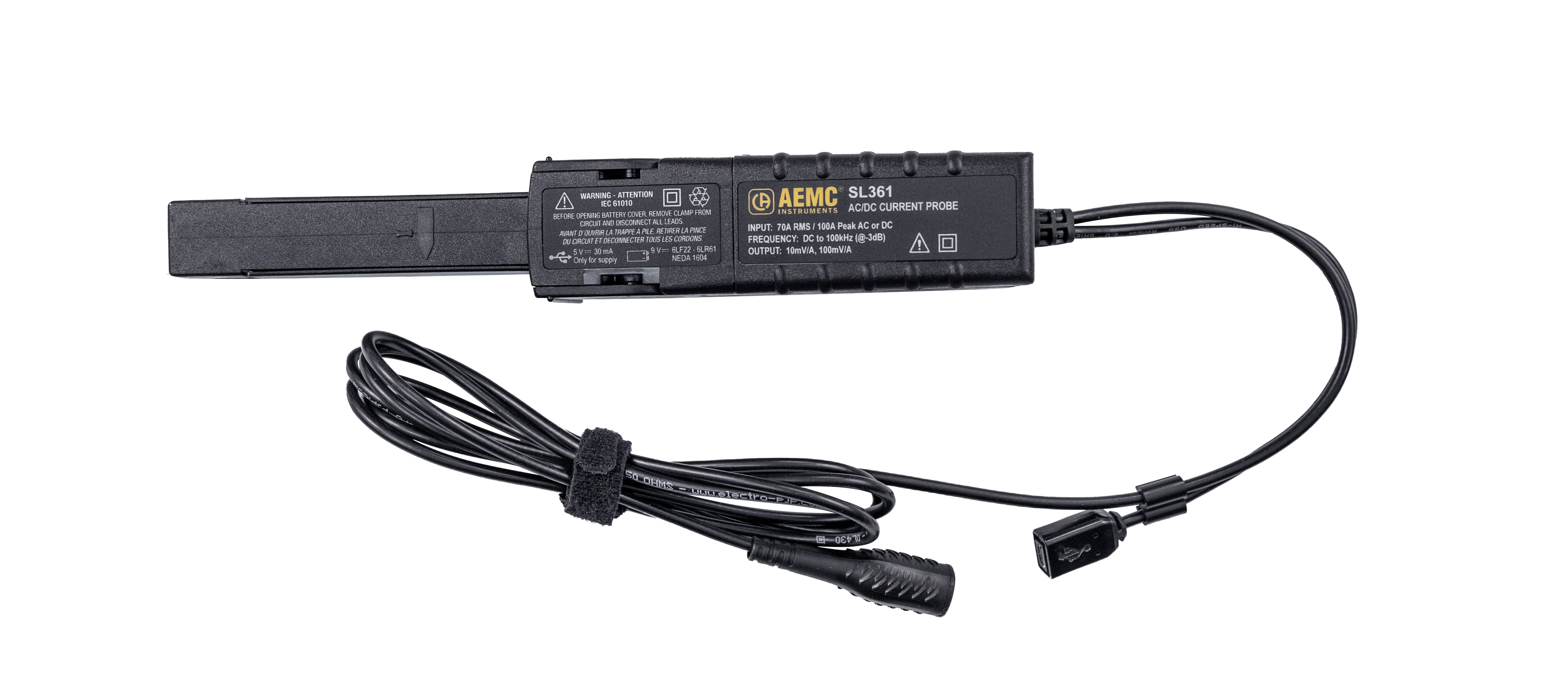

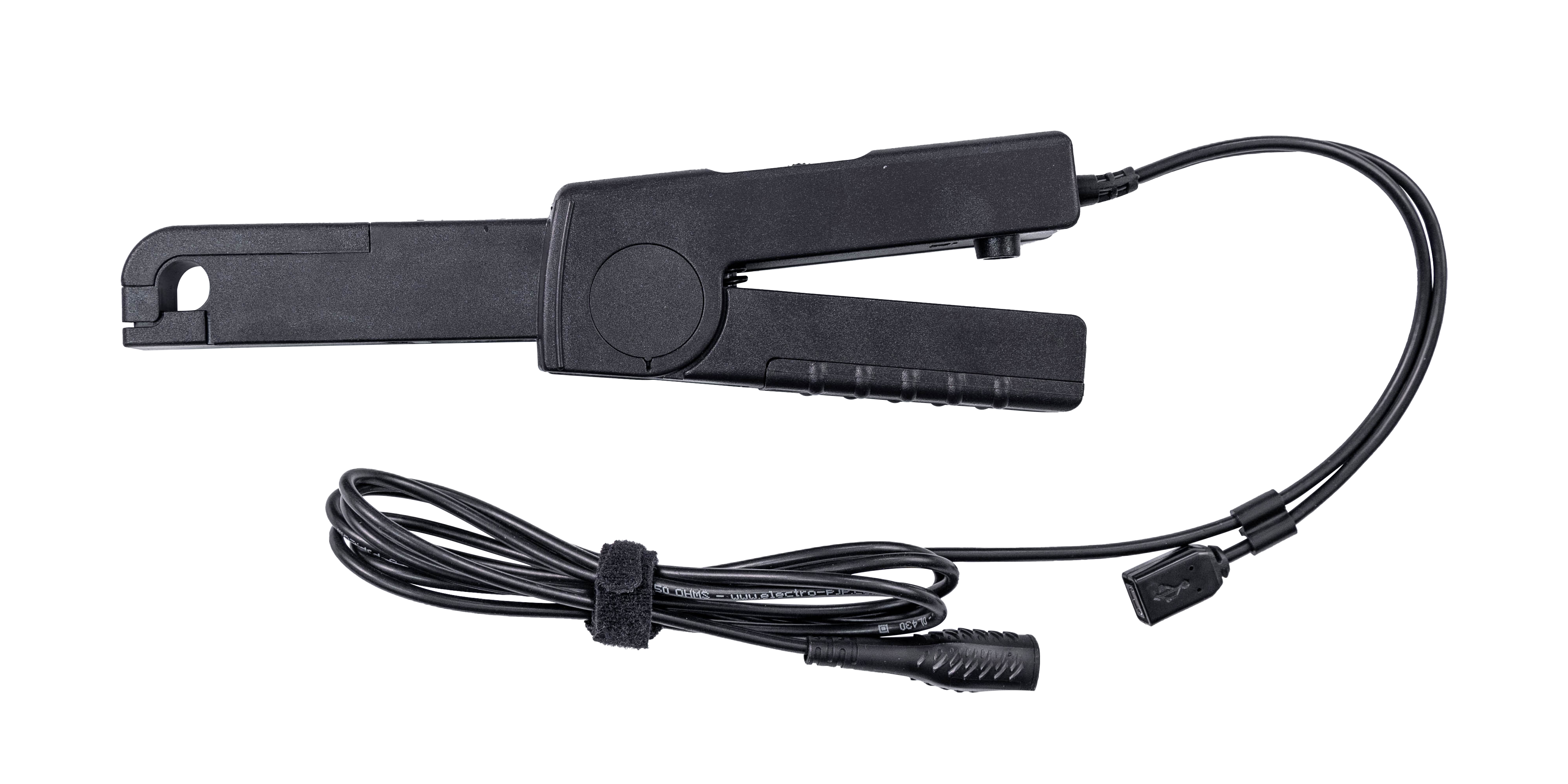

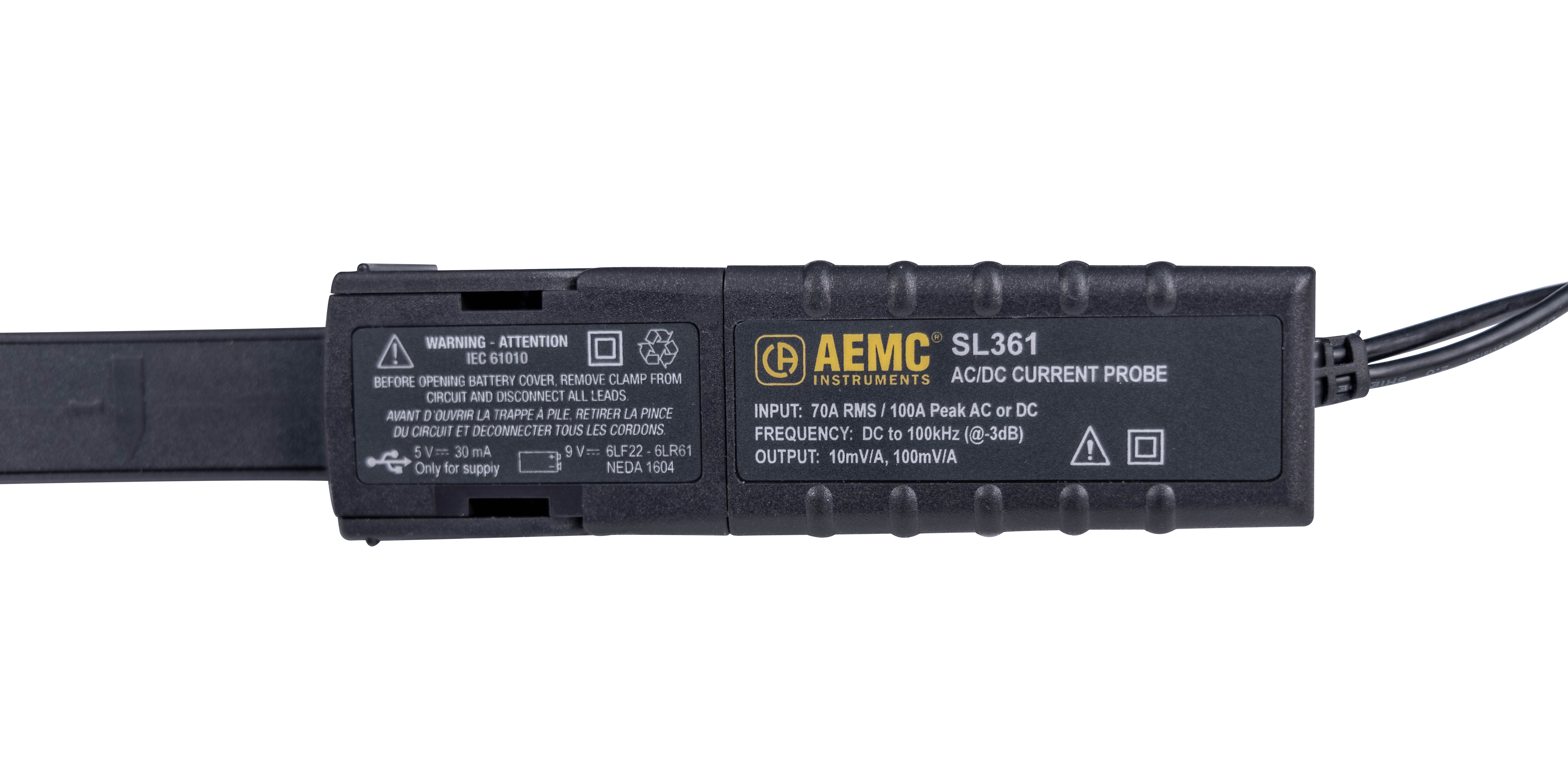

SL361 | 2153.09 | AC/DC Current Probe Model SL361 (10 Apeak, 100 mV/A & 100 Apeak, 10 mV/A, BNC) (Replacement for Cat #1201.45 - Model SL206) | $499.00 | Consult Factory for Availability |
|
|
ELECTRICAL | |||
---|---|---|---|
Nominal Range | 10 APEAK; 100 APEAK | ||
Measurement Range | 100 mA to 100 APEAK | ||
Bandwidth | 100 kHz (-3 dB) (depending on current value) | ||
Output Signal | 100 mV/A (10 A range) 10 mV/A (100 A range) |
||
Phase Shift (DC to 65 Hz) 1 mV/mA Range |
– |
||
Load Impedance | ≥ 1 MΩ and ≤ 100 pF | ||
Common Mode Voltage (600 V max) with AC measurement (max) |
600 V at 50/60 Hz: ≤ 1 mA/100 V at 400 Hz: ≤ 7 mA/100 V |
||
MECHANICAL | |||
Power Supply | 9 V alkaline battery or 5 Vdc via micro-USB (up to 80 hours with alkaline battery) |
||
Output Termination | 6.5 ft (2 m) coaxial cable terminated by (1) insulated BNC plug | ||
Maximum Conductor Size | 0.46 in (11.8 mm) | ||
Dimensions | (9.09 x 1.42 x 2.64) in (231 x 36 x 67) mm | ||
Weight | 11.6 oz (330 g) with battery | ||
ENVIRONMENTAL | |||
Operating Relative Humidity | (0 to 85) % RH with a linear decrease above 95 °F (35 °C) | ||
Operating Temperature | (14 to 122) °F (-10 to 50) °C | ||
Storage Temperature | (-22 to 176) °F (-30 to 80) °C | ||
SAFETY | |||
Electrical | IEC 61010-1, IEC 61010-2-032, 600 V CAT III, 300 V CAT IV ![]() |
||
Ingress Protection | IP20 per IEC 60529 | ||
UL Approval | Yes |
User Manuals
Model SL361 - English
Modelo SL361 - Español (CA France version)
Model SL361 - French (CA France version)
Datasheets
Brochures
Videos
Introducing the NEW SL306 & SL361 | AC/DC Current Probes
Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|
![]() |
2118.46 | Adapter – Banana (Female) – BNC (Male) (XM-BB) 600V CAT III (Model SL306 only) | $46.25 |
|
|
![]() |
2119.94 | Adapter – BNC (Female) to 4mm Banana (Male) 600V CAT III Replacement for Cat #2111.32 (Model SL361 only) | $28.00 | Consult Factory for Availability | |
![]() |
2138.66 | Cable – 6 ft. USB Type A - Type B micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and use with wall adapter for MR415 to MR527 series, SL306, & SL361 | $19.50 |
|
|
![]() |
2153.78 | Adapter – Replacement US Wall Plug to USB for Models L452, 1510, MH60 (Accessory for Models 1110,1227,1246, 1821,1822, 1823, MR415 to MR527 series, SL306, & SL361) | $23.00 |
|
|
|
||||||||||
|
||||||||||
|
||||||||||
|
