Data Loggers

Single, dual, four and 8 channel Data Loggers, including comprehensive software for data storage and report generation.

Data Loggers

Why Choose AEMC® Data Loggers?

  • AEMC® Instrument's data loggers are versatile, powerful and cost-effective.
  • We offer single, dual, four, and eight channel data loggers to address a wide range of applications, both for general and special-purposes such as temperature, humidity, voltage, thermcouple, and events.
  • Simple to use, operation in a few minutes
  • Includes software for analyzing and reporting the recorded data
  • Models available with remote access via the internet and/or Android app

Cost Effective & Quick Ship

Our data loggers are built with exceptional quality for a great value and we offer a fast delivery of one week (in-stock).

Key Features

  • Programmable storage modes and rates
  • Accurate representation of measured signals for AC models
  • Stores over 240,000 measurements ensuring no valuable data is missed with more than 8 hours at 8 samples per second
  • Easily installed anywhere quickly – operational in seconds
  • Compact and runs on alkaline batteries
  • Wireless (Bluetooth) or USB communication (model specific)
  • Comprehensive DataView graphing, analysis and report generation software
  • Display and analyze real-time data on your PC
  • and more...

AEMC Dataloggers Measure a Wide Variety of Applications

  • Assists electricians and engineers in finding problems that occur randomly in fault/intermittent current detection
  • Neutral current monitoring finds unwanted leakage currents
  • Harmonic real-time current monitoring
  • Load profiling which size loads for proper transformer and meter selection
  • Process loops monitoring – finds troubled sensors and controls
  • HVAC and general temperature
  • and more...

Compatible Current Probes and Accessories

There are many compatible current probes available as accessories for select models.

Tech Support

AEMC provides complete technical support through our technical hot line 800-945-2362 (ext.351), speak directly to one of our tech support team members. Or e-mail your questions to our tech team techsupport@aemc.com

  • Simple Logger® II Model L101

    Cat. #2126.02
    1-Channel, TRMS, 0 to 1VAC, DataView® Software

    One channel recording device that performs line tracking by taking 64 samples over one line cycle. Harmonic measurements are calculated from these 64 samples. Records TRMS at a rate of up to eight times per second. TRMS calculations are performed on a single line cycle.

  • Simple Logger® II Model L111 (refurbished)

    Cat. #2126.04

    1-Channel, TRMS, 0 to 1AAC, DataView Software (Discontinued)

  • Simple Logger® II Model L322

    Cat. #2126.06

    2-Channel, 4 to 20mADC, Current, DataView® Software
    (Discontinued, replaced by Model L452)

  • Simple Logger® II Model L432

    Cat. #2126.07

    2-Channel, DC ±100mV/1V/10VDC, DataView® Software
    (Discontinued, replaced by Model L452)

  • Simple Logger® II Model L432 (Refurbished)

    Cat. #901.2126.07

    2-Channel, DC ±100mV/1V/10VDC, DataView® Software
    (Discontinued, replaced by Model L452)

  • Simple Logger® II Model L642

    Cat. #2126.08
    2-Channel, Temperature Thermocouple, DataView Software

    Two channel thermocouple data logger. With J, K, T, N, E, R or S thermocouples, it measures from -346° to + 1767°F (-210° to 964°C) with resolution to 0.1° (range dependent). Features include Extended Recording Mode (XRM) and delayed start time. Includes easy and intuitive setup from a computer using DataView software.

  • Simple Logger® Model SL01

    Cat. #2156.01
    Simple Logger® Model SL01 (Low voltage, 5VAC)

  • Simple Logger® Model SL10

    Cat. #2156.10
    Simple Logger® Model SL10 (Voltage, 100mVDC)

  • Simple Logger® Model SL11

    Cat. #2156.11
    Simple Logger® Model SL11 (Voltage, 1VDC)

  • Simple Logger® Model SL12

    Cat. #2156.12
    Simple Logger® Model SL12 (Voltage, 10VDC)

  • Simple Logger® Model SL13

    Cat. #2156.13
    Simple Logger® Model SL13 (Voltage, 50VDC)

  • Simple Logger® Model SL20

    Cat. #2156.20
    Simple Logger® Model SL20 (Current, 4 to 20mADC)

  • Simple Logger® Model SL30

    Cat. #2156.30
    Simple Logger® Model SL30 (Pulse)

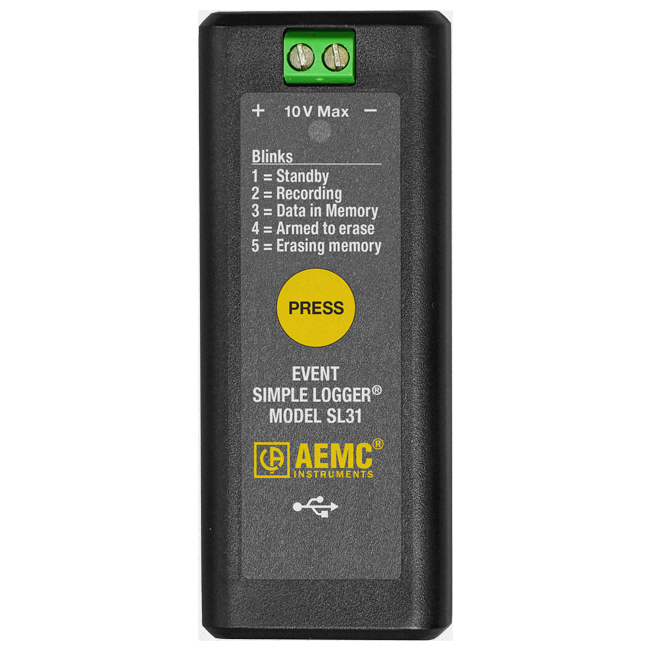

  • Simple Logger® Model SL31

    Cat. #2156.31
    Simple Logger® Model SL31 (Event)

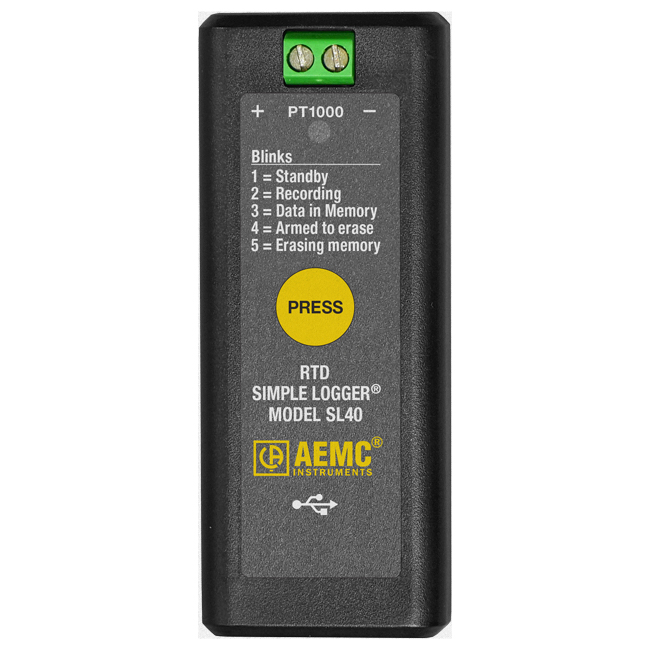

  • Simple Logger® Model SL40

    Cat. #2156.40
    Simple Logger® Model SL40 (Temperature, RTD)

  • Simple Logger® Model SL50

    Cat. #2156.50
    Simple Logger® Model SL50 (Temperature, Thermocouple)

  • Simple Logger® II Model ML914 (refurbished)

    Cat. #2126.40
    4-Channel, TRMS, Bluetooth, MiniFlex®, 100/1000AAC, DataView® Software
    Four channel AC current logger that measures in two user selectable ranges (100A and 1000A). Line tracking takes 64 samples over one line cycle; harmonic measurements are calculated from these 64 samples. Frequency tracking is performed around the nominal line frequency 50 or 60Hz. Stores TRMS at user programmable rates of up to eight times per second. TRMS calculations are performed on a single line cycle. Includes four integral 6" MiniFlex® flexible current probes. Includes easy and intuitive setup from a computer using DataView® software.

  • Data Logger Model DL-1081 (Refurbishd)

    Cat. #901.2134.62
    8 Analog & 8 Digital Channel, Display
    Eight channel data logger for measuring analog, digital and other types of data with high resolution and speed. Up to 128 math channels can be used to perform operations on the measured values. Up to 32 alarm events can be detected, allowing output activations, e-mails, and SNMP trap sending. RS485 interface can operate as a Modbus RTU master or slave. A 10/100Mbps Ethernet interface allows access through a browser HTTP, FTP client and server, e-mails sending SMTP, SNMP, and Modbus TCP.

  • Simple Logger® II Model L564

    Cat. #2126.36

    4-Channel, TRMS, Bluetooth, Voltage & Current, DataView® Software
    (Discontinued)

  • Simple Logger® II Model L564 (Refurbished)

    Cat. #901.2126.36

    4-Channel, TRMS, Bluetooth, Voltage & Current, DataView® Software
    (Refurbished)

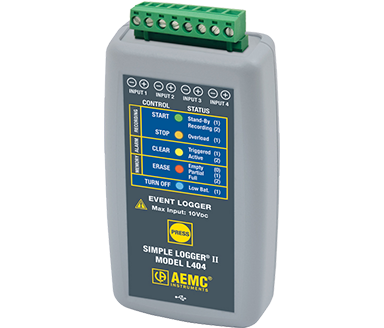

  • Simple Logger II Model L404

    Cat. #2126.29

    4-Channel, TRMS, 0 to 1VAC, DataView® Software
    (Discontinued, replaced by Model L452)

  • Simple Logger II Model L404 (refurbished)

    Cat. #2126.29

    4-Channel, TRMS, 0 to 1VAC, DataView® Software
    (Discontinued, replaced by Model L452)

  • Simple Logger® II Model L104

    Cat. #2126.10

    4-Channel, TRMS, Bluetooth, 0 to 1VAC, DataView® Software
    (Discontinued)

  • Simple Logger® II Model L104 (refurbished)

    Cat. #2126.10

    4-Channel, TRMS, Bluetooth, 0 to 1VAC, DataView® Software
    (Discontinued)
