We know how critical it is for electricians and facility maintenance professional to troubleshoot and benchmark power quality issues over time. Our easy-to-use line of portable power quality analyzers, power and energy loggers, and meters are designed to:
Our powerful DataView software is included to provide valuable insights about the performance of your electrical system. The software helps you:
Our instruments support a wide range of applications including:
We created this all-in-one comparison document to help you select a proper Power Analyzer for your specific needs.
We created this all-in-one comparison document to help you select a proper Power Energy Logger (PEL) for your specific needs.
AEMC® provides complete technical support through our technical hot line 800-945-2362 (ext.351), speak directly to one of our tech support team members today. Or e-mail your questions to our tech team. techsupport@aemc.com
Our knowledgeable and friendly service team provides the best support in the industry. We seek to understand your inquiry or feedback in a respectful and responsive way. Our goal at AEMC Instruments is to surpass your expectations.
Speak directly to one of our customer care team members today at 800-945-2362 (Ext. 361). Or e-mail your questions customerservice@aemc.com
Have questions on how to use AEMC® Power Analyzers and Energy Loggers? We're happy to provide a demonstration with our technical experts. Contact us at (800) 343-1391 or email us at sales@aemc.com
.png)
Cat. #2136.30
TRMS, 1000Vrms AC/DC, 10kArms/5000ADC, frequency, transients, harmonics, energy, DataView® software
The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.
Compact Size, Professional Functionality
Cat. #2139.40
TRMS, 1000VAC/DC, 600AAC/900ADC
Measures AC+DC voltage and current, frequency, continuity, resistance, power, Power Factor, phase rotation, and THD. Performs diode checks. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. MIN/MAX function tracks high and low values. Also tracks peak+ and peak– values. Safety rated at 600V CAT IV. IP54 rated to withstand dust and water spray.
Cat. #2139.50
TRMS, 1000VAC/DC, 1000AAC/1500ADC, Ohms, Continuity, Phase Rotation, Power, THD
Measures volts, amps, frequency, resistance, diode checking, and continuity. Features include True InRush®, Delta relative function, phase rotation indication, power measurements, and more. Easily used by one hand, including function selection and button pushing even with a glove on. Safety rated at 1000V CAT IV.

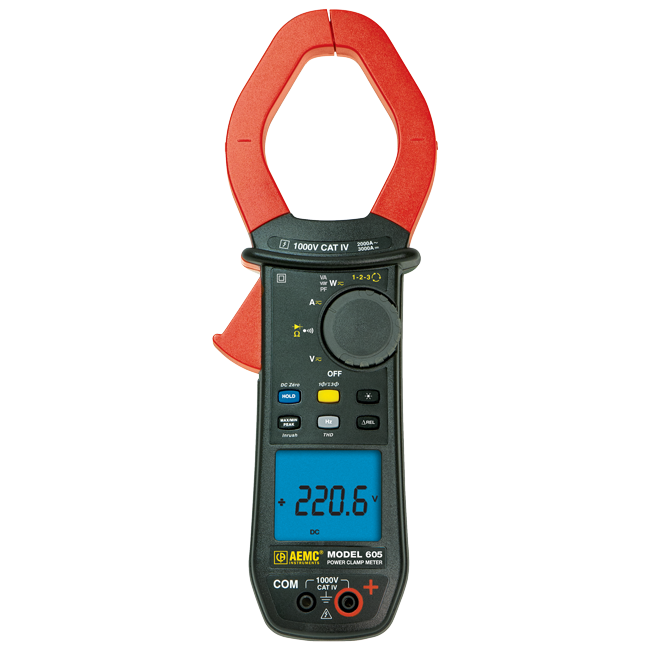

Cat. #2129.60
TRMS, 1000VAC/DC, 2000AAC/3000ADC, Ohms, Continuity, Phase Rotation, Power, THD
Measures volts, amps, frequency, resistance, diode checking, and continuity. Features include True InRush®, Delta relative function, phase rotation indication, power measurements, and more. Easily used by one hand, including function selection and button pushing even with a glove on. Safety rated at 1000V CAT IV.
Mid-Size, Professional Functionality
Cat. #2139.51
TRMS, True InRush®, 1000VAC/DC, 1000AAC /1500ADC, Data Recording
Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.
Large Size, Professional Functionality
Cat. #2139.61
TRMS, True InRush®, 1000VAC/DC, 2000AAC /3000ADC, Data Recording
Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.
