AEMC® Instruments Introduces Two NEW AC Data Loggers Models DL913 and DL914

January 9, 2023  |  English  |  Español

AEMC® Instruments Introduces two NEW AC Data Loggers Models DL913 and DL914

The Models DL913 and DL914 are easy-to-use, cost-effective, 3- & 4-channel AC data loggers that can be used indoors or outdoors. Three (DL913) or four (DL914) integral 24-inch captive MiniFlex® current sensors are included and capable of wrapping around a 7.64-inch conductor. A selection of data storage modes and data sampling rates is programmable through the included DataView® software. Recorded data is stored in the instrument’s internal memory to be downloaded to a computer using Wi-Fi or a USB connection. The data then can be analyzed, and reports generated using DataView®. These loggers help keep equipment up and running optimally and ensure facilities are operating safely and efficiently. Both the data logger housing and the current sensors are water resistant rated to IP 67.

Features

  • 3 and 4 channel AC current loggers
  • 4th channel for neutral current monitoring (Model DL914)
  • Includes 3 (DL913) or 4 (DL914) integral 24-inch flexible current sensors
  • Current measurements from 500 mA up to 3600 A
  • Built-in web server for remote communication
  • Wi-Fi Direct, Wi-Fi via Router, and USB to PC communications
  • Lightweight, compact, flame retardant and watertight (IP67) (with USB cap on and cover closed)
  • LCD display for viewing measurement data, configuring the instrument, changing modes, and viewing parameters such as memory, power, and communication status
  • Includes FREE DataView® software for analysis and report generation
  • Safety rating: 600 V CATIV, 1000 V CATIII, complies with IEC 61010-2-032


Applications

  • Single/Split-phase and 3-phase load monitoring
  • Neutral and ground current monitoring
  • Intermittent problem detection
  • Fault current detection
  • Load profiling and Process monitoring and recording

TARGET MARKETS

  • Electrical Contracting
  • Plant Maintenance
  • Electric Utilities
  • Process Control
  • Pharmaceutical

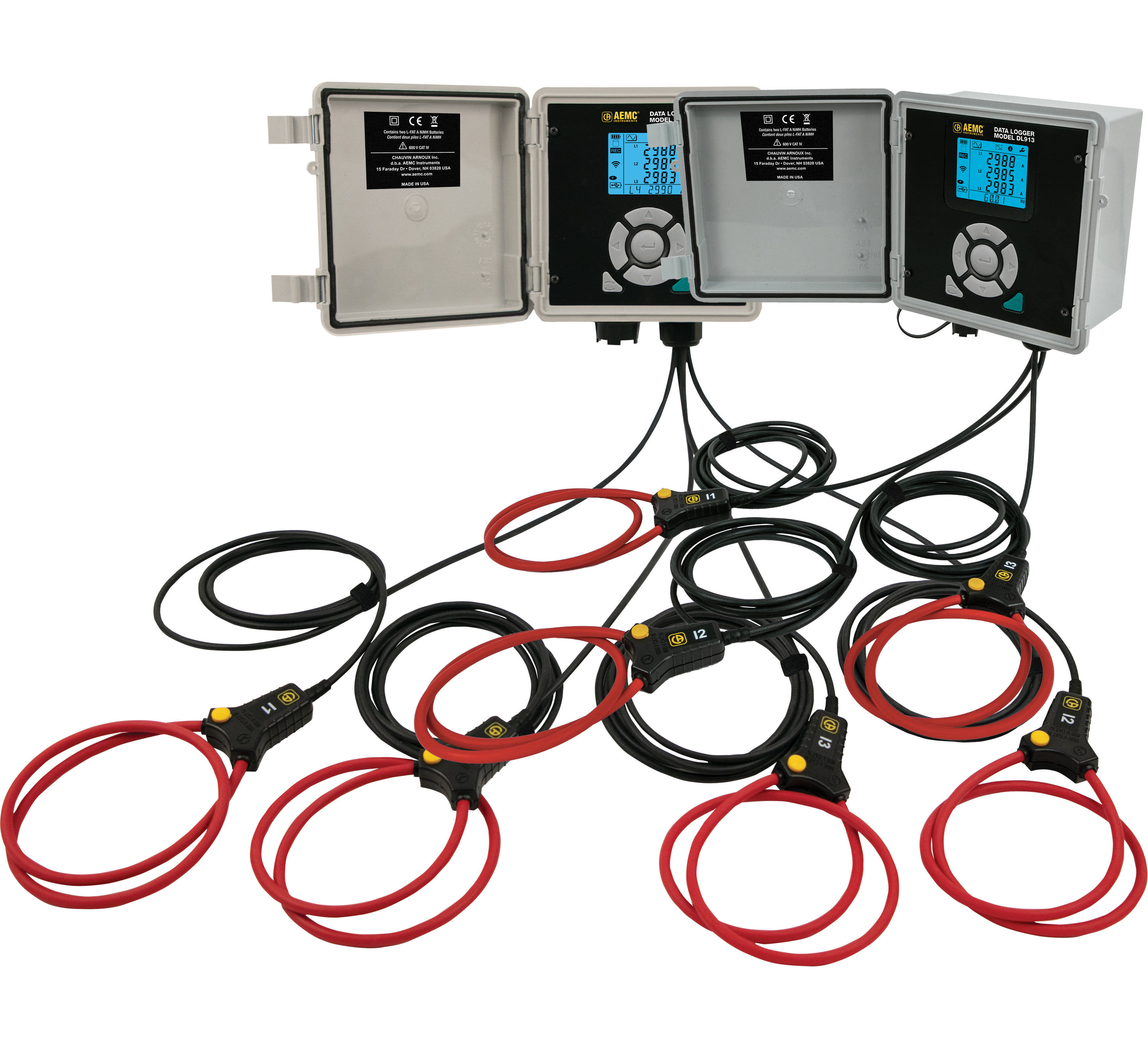

Two new AC data loggers models DL913 and DL914

PDF of the AEMC® Instruments Press Release introducing two AC new data loggers models DL913 and DL914

Model DL913 - Cat. #2153.61 (no probes)

Model DL914 - Cat. #2153.62 (w/4 194-24-BK Sensors)
