Data Logger Model DL914

The Data Logger Model DL914 is a 4-channel AC current data logger with four integral flexible current sensors. Each sensor is 24 inches long and capable of wrapping around a 7.64-inch conductor. The DL914 has two measurement ranges of up to (300 and 3000) Amps. Both the data logger housing and the current sensors are water resistant rated to IP 67. A selection of data storage modes, as well as data sampling rates is user programmable through the DataView® software included with the unit. However, most of the setup can also be done from the keypad and LCD display on the instrument. The measurements are stored in internal nonvolatile memory. Data storage rates as fast as once per second.

Communication is done through a USB port or wireless Wi-Fi and it is powered by two rechargeable NiMH batteries. The instrument can also be externally powered through the USB plug.

Meet the NEW Data Loggers® Models DL913 & DL914

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
DL914 2153.62 Data Logger Model DL914 (4 Channel, TRMS, MINIFLEX® 300/3000 A, Wi-Fi, DataView®) $1,999.00 In stock at factory. Find a Distributor
ModelDL914
Cat. #2153.62
DescriptionData Logger Model DL914 (4 Channel, TRMS, MINIFLEX® 300/3000 A, Wi-Fi, DataView®)
List Price$1,999.00
In stock at factory. Find a Distributor

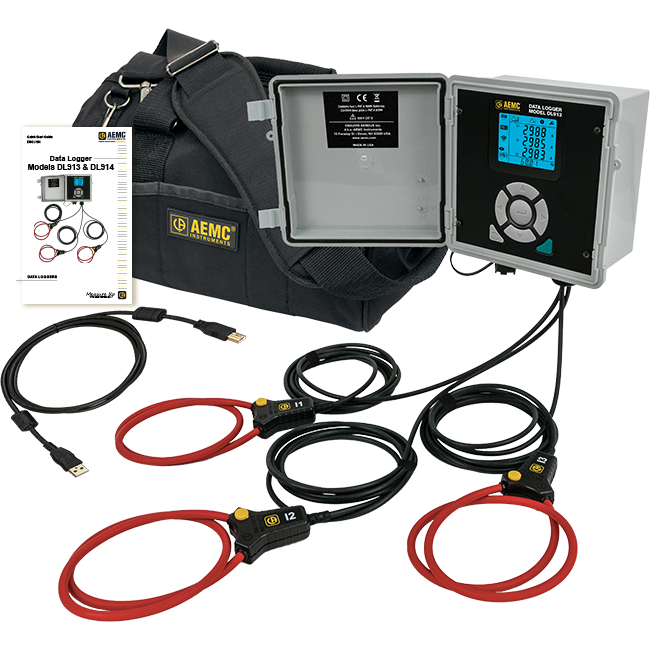

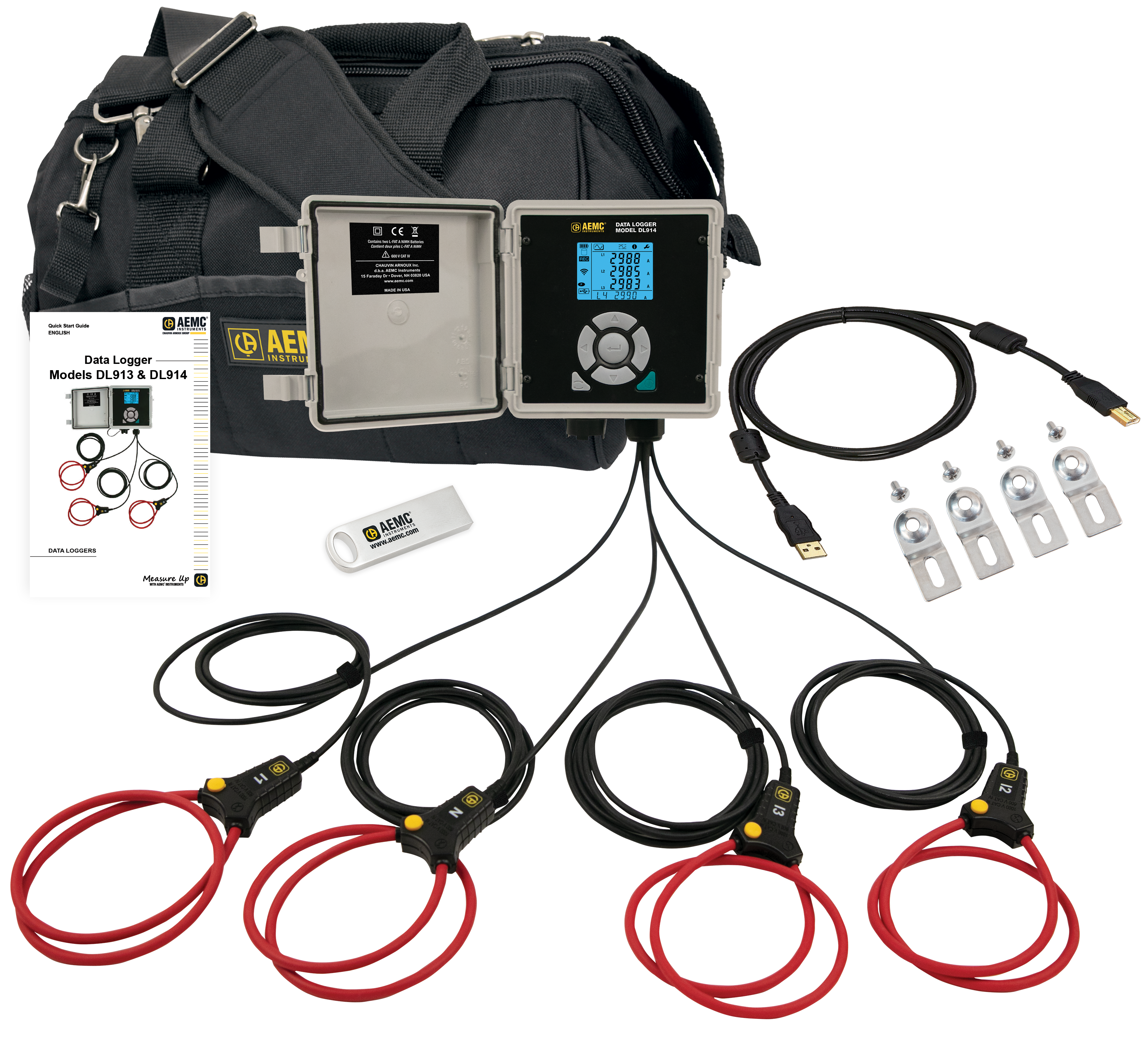

Model DL - Cat. #2153.62: Includes small classic tool bag, 10 ft USB Type A to Type B cable, (4) stainless steel mounting brackets with (4) Phillips M4-0.7 x 8 mm stainless steel machine screws, USB power adapter, quick start guide, and USB thumb drive with DataView® software and user manual.

Print
Channels Four
Input MiniFlex® integral AC current flexible sensors
Ranges (2) 300 Arms AC 3000 Arms AC
Max. Conductor 7.64 in (190 mm)
Accuracy (50/60Hz) (0.5 to 99.99) A ± (1 % r +10 D)
(90.0 to 360.0) A ± (1 % r +4 D)
(4.00 to 99.99) A (1 % r +10 D)
(90.0 to 999.9) A (± (1 % r +5 D)
(0.900 to 3.600) kA (± (1 % r +4 D)
Resolution (0.01 to 0.1) A (0.01 to 1) A
Storage Rate Normal recording mode: Once per second
Extended recording mode: Four per aggregation period
Storage Modes Start/Stop, extended mode
Recording Length Battery Power: 4 days with no missing samples (normal recording mode)
7 to 30 days depending on the selected aggregation period (extended recording mode)
External Power: 365 days
Memory Recorded data is stored in non-volatile 8 GB internal memory.
Communication USB, Wi-Fi direct or via router (Ethernet)
Power Source Internal: (2) 4.2 A·h NiMH rechargeable batteries
External: 5 V through USB port
Battery Charge 10 hrs (Wi-Fi off)
Dimensions (5.9 x 5.9 x 3.57) in (150 x 150 x 91) mm w/o sensor
Weight (with battery) 2.42 lbs (1.1 kg)
Operating Temperature (14 to 122) °F (-10 to 50) °C
Storage Temperature (-40 to 158) °F (-40 to 70) °C w/o batteries
Relative Humidity Up to 85% non-condensing
Ingress Protection (IP) IP67 (USB cap on and cover closed)
EMC EN 61326-1
Safety Compliance 600V CAT IV, 1000 V CAT III, IEC 61010-1, EN 61010-2-32

User Manuals

Quick Start Guides

Datasheets

Brochures

Software

Forms

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2133.72 Small Classic Tool Bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5"
$36.00
2136.80 Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 (Replacement for Models DTR® 8510, C.A6116, DL913, DL914, 5060, and 5070) $19.00
2153.79 Cable - 6 ft USB Type A to Type B (Waterproof) for Models DL913 and DL914 $79.00
2153.80 Battery - Replacement 4.2 A·h NiMH Rechargeable for Models DL913 & DL914 $134.00 Consult Factory for Availability
Model
Cat. #2133.72
DescriptionSmall Classic Tool Bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5"
List Price$36.00
Model
Cat. #2136.80
DescriptionCable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 (Replacement for Models DTR® 8510, C.A6116, DL913, DL914, 5060, and 5070)
List Price$19.00
Model
Cat. #2153.79
DescriptionCable - 6 ft USB Type A to Type B (Waterproof) for Models DL913 and DL914
List Price$79.00
Model
Cat. #2153.80
DescriptionBattery - Replacement 4.2 A·h NiMH Rechargeable for Models DL913 & DL914
List Price$134.00
Consult Factory for Availability
