NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
JM830A	2110.83	AC Current Probe Model JM830A (3000A, 0.333mA/A, Lead) NIST Calibration ($68.00 each)	$570.00

Model	JM830A
Cat. #	2110.83
Description	AC Current Probe Model JM830A (3000A, 0.333mA/A, Lead)
List Price	$570.00
NIST Calibration ($68.00 each)

Maximum Conductor Size	Cable: 2.52" (64mm) Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm)
Current Range	2400AAC (3000AAC if ambient temperature <95°F / 35C°)
Measurement Range	1 to 2400AAC (3000AAC if ambient temperature <95°F / 35C°)
Output Signal	0.333mAAC / AAC (1A @ 3000A)
Transformation Ratio	3000:1
Output	5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz	0.5% @ 3000A
Frequency Range	30Hz to 5kHz
Phase Shift	<0.5° (at maximum rating)
Load Impedance	≤5Ω
Overload	3600A for 5 min
Operating Temperature	+14° to +122°F (-10° to +50°C)
Storage Temperature	-13° to +176°F (-25° to +80°C)
Dimensions (HxWxD)	4.72 x 12.40 x 1.89” (120 x 315 x 48mm)
Weight	2.65 lbs (1200g)
Pollution Degree	2
Rating	UL 94 V0 (handles), ABS UL 94 V2 (jaws)
Ingress Protection	IP 20
Safety Compliance	IEC 1010-2-32, 600V CAT III

User Manuals

Model JM830A

Datasheets

Model JM830A - English

Modelo JM830A - Español

Comparison Charts

Current Probe Selection Chart - English

Current Probe Selection Chart - Español

Application Notes

Glossary of Current Probe Terms

Cat. #	Description	List Price	Quantity/Status
1017.45	Adapter - 4mm non-insulated for safety leads	$20.00
2118.09	Case – General Carrying Case — Dimensions: (13 x 9.5 x 3) in	$73.50
2118.46	Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers (600V CAT III)	$46.25
2133.72	Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in. For use with PEL Models: PEL 102 and PEL 103, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914.	$36.00
2133.73	Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105 Dimensions: (18 x 9 x 12) in	$53.00
5100.00	Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)	$11.50
5100.04	Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)	$11.50
5100.07	Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs	$25.00

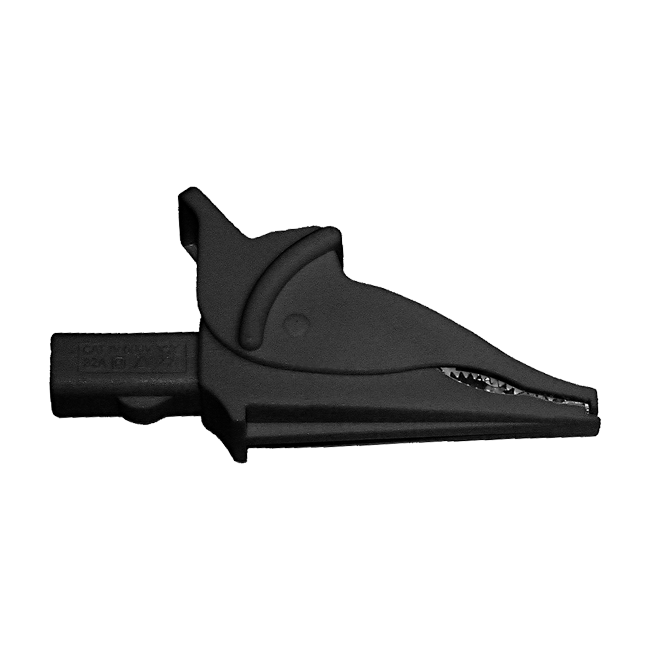

2140.53	Cat.# 2140.53 DISCONTINUED Click on replacement items: Cat #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)).;	$0.00	Discontinued

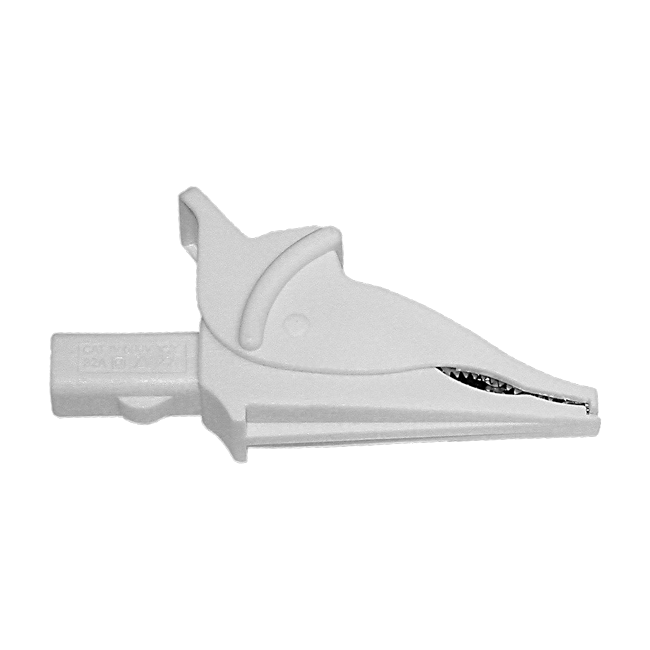

2140.55	Cat.# 2140.55 DISCONTINUED Click on replacement items: Cat #5100.05: Clip - Safety Alligator - White (1000 V CAT IV, 15 A, UL)	$0.00	Discontinued

Model
Cat. #	1017.45
Description	Adapter - 4mm non-insulated for safety leads
List Price	$20.00

Model
Cat. #	2118.09
Description	Case – General Carrying Case — Dimensions: (13 x 9.5 x 3) in
List Price	$73.50

Model
Cat. #	2118.46
Description	Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers (600V CAT III)
List Price	$46.25

Model
Cat. #	2133.72
Description	Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in. For use with PEL Models: PEL 102 and PEL 103, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914.
List Price	$36.00

Model
Cat. #	2133.73
Description	Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105 Dimensions: (18 x 9 x 12) in
List Price	$53.00

Model
Cat. #	5100.00
Description	Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price	$11.50

Model
Cat. #	5100.04
Description	Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price	$11.50

Model
Cat. #	5100.07
Description	Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs
List Price	$25.00

Model
Cat. #	2140.53
Description	Cat.# 2140.53 DISCONTINUED Click on replacement items: Cat #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)).;
List Price	$0.00
Discontinued

Model
Cat. #	2140.55
Description	Cat.# 2140.55 DISCONTINUED Click on replacement items: Cat #5100.05: Clip - Safety Alligator - White (1000 V CAT IV, 15 A, UL)
List Price	$0.00
Discontinued
