AC Current Probe Model MN01

Small and compact, the AC Current Probe Model MN01 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.
If there is a current in the conductor clamped, the Model MN01 is protected against overvoltages during disconnection from the measurement instrument.
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
MN01 2129.17 AC Current Probe Model MN01
(150AAC/0.15AAC (1mA/A), Lead)
$79.00
ModelMN01
Cat. #2129.17
DescriptionAC Current Probe Model MN01
(150AAC/0.15AAC (1mA/A), Lead)
List Price$79.00
Print
Maximum Conductor Size 0.39" (10mm)
Current Range 150Arms AC
Measurement Range 2 to 150A
Output 5ft (1.5m) lead with 4mm safety banana plug
Transformation Ratio 1000/1
Output Signal 150AAC/0.15AAC (1mA/A)
Accuracy 50/60 Hz 2.5% R  ± 0.15A with 1Ω load
Frequency Range 48 to 500Hz
Phase Shift At 50 Hz N/A
Open Secondary Voltage ≤30V
Load Impedance 10Ω max
Overload 170A for 10 min ON, 30 min OFF
Dimensions  (H x W x D) 4.43 x 1.48 x 1.02” (112.5 x 37.5 x 26 mm)
Weight 6.5 oz (180g)
Operating Temperature 14° to +122°F  (-10° to +50°C)
Storage Temperature -40° to +176°F  (-40° to +80°C)
Operating Humidity 90% RH
Pollution Degree 2
Ingress Protection (IP) IP40
EMC EN 61326-1
Safety Compliance EN/IEC 61010-1 600V CAT III,
EN/IEC 61010-032
Model Cat. # Description List Price Quantity/Status Distributor Stock Check

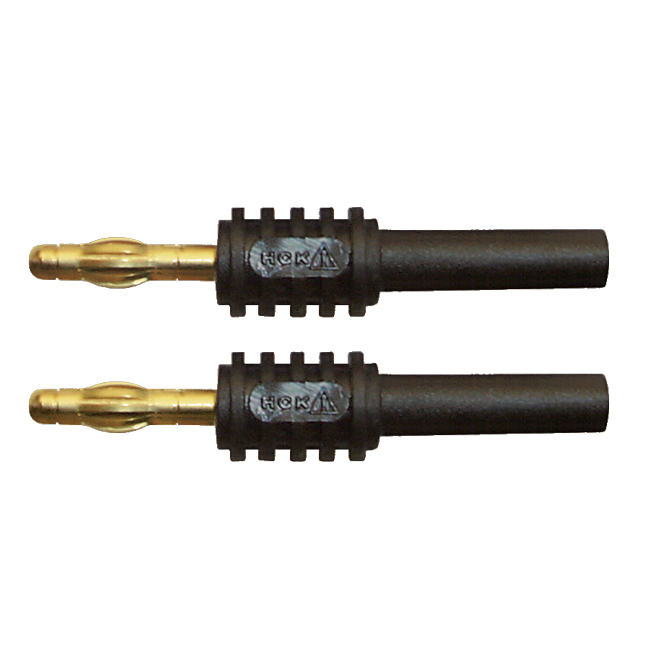

1017.45 Adapter - 4mm Non-insulated for Safety Leads $18.00

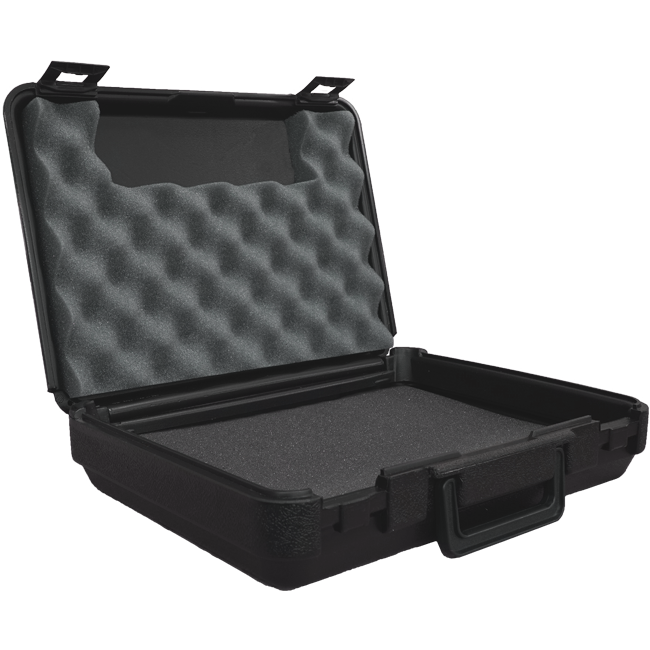

2118.09 General Carrying Case
Dimensions: 13 x 9.5 x 3"
$56.00
2118.46 Adapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers
(600V CAT III)
$44.00
2119.94 Adapter - BNC (Female) to 4mm Banana (Male) 600V CAT III $15.50
2133.72 Compact tool bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5"
$29.95

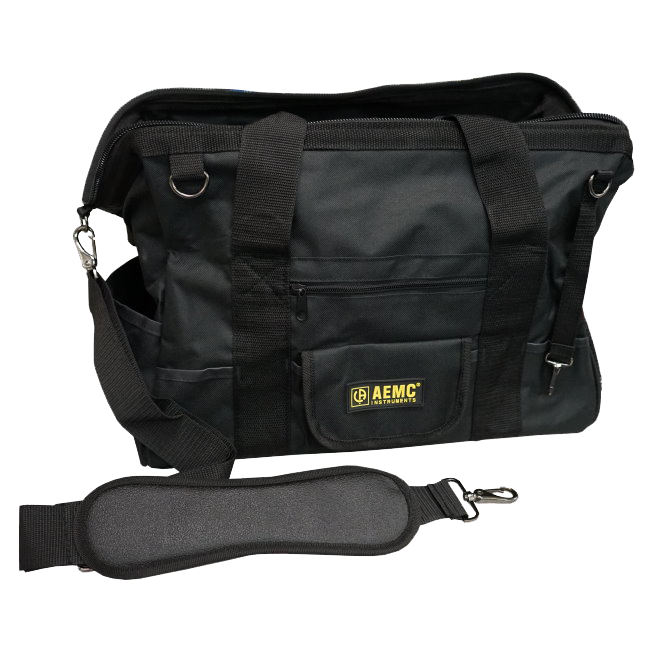

2133.73 Bag – Extra Large Classic Tool Bag Replacement for Models 3945/3945-B, 6240, 6250, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336 & PEL105
Dimensions: 18 x 9 x 12"
$44.00
2140.52 Clip - Safety Alligator - Red {Rated 1000V CAT IV, 15A, UL} $7.25
2140.53 Clip - Safety Alligator - Black {Rated 1000V CAT IV, 15A, UL} $7.25

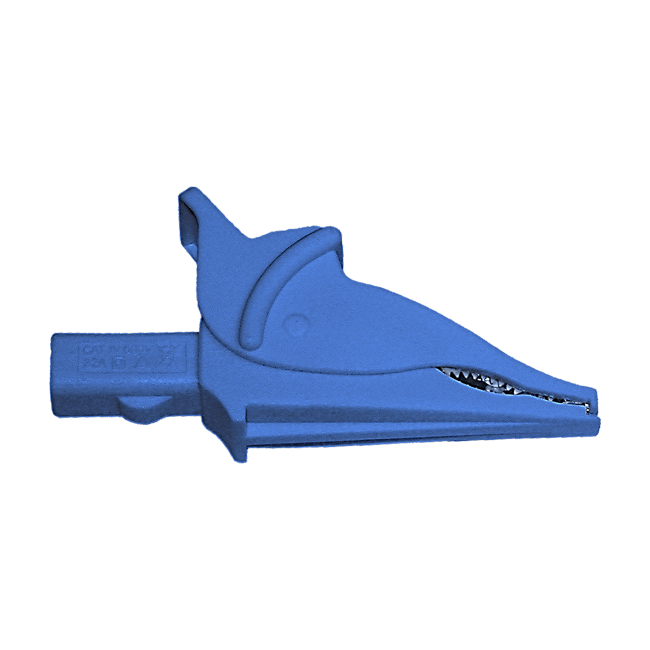

2140.54 Clip - Safety Alligator - Blue {Rated 1000V CAT IV, 15A, UL} $7.25

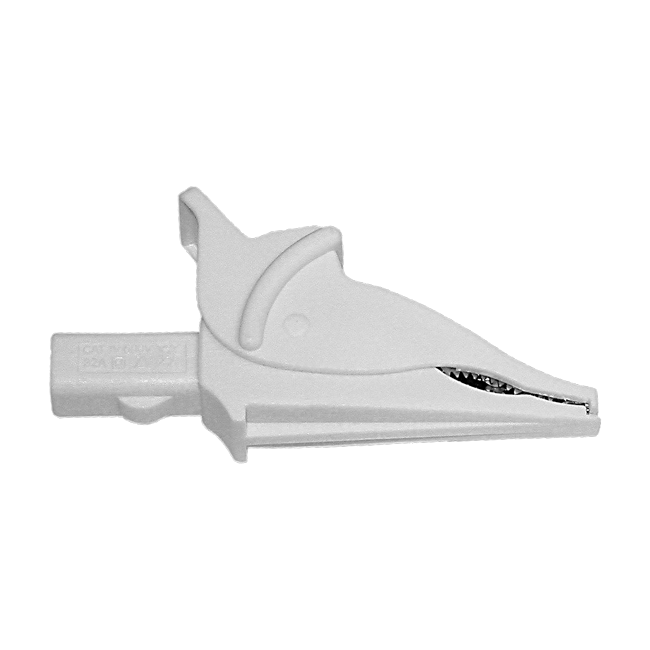

2140.55 Clip - Safety Alligator - White {Rated 1000V CAT IV, 15A, UL} $7.25
2140.56 Clip – Set of 4, Safety Alligator (Red, Black, Blue & White) {Rated 1000V CAT IV, 15A, UL} $30.50

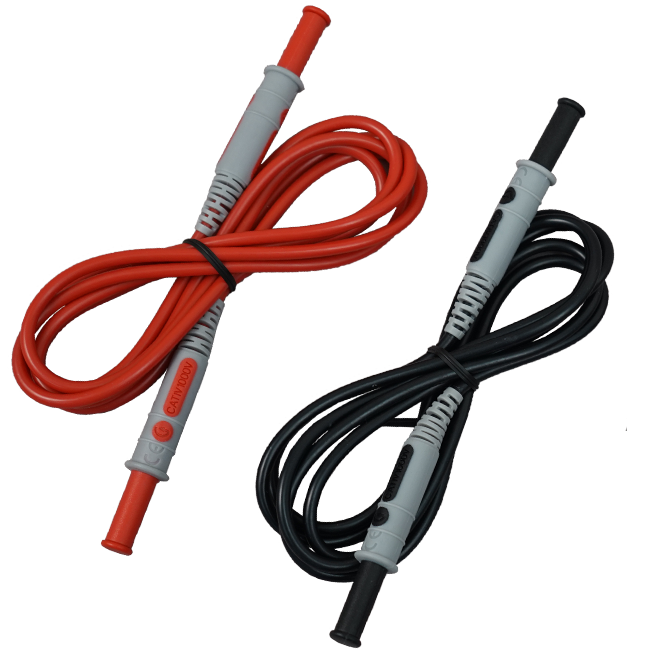

2152.24 Lead - Set of 2, Color-coded (red/black) 5 ft Safety Leads (1000V CAT IV)
Replacement for 2140.57
$20.50
Model
Cat. #1017.45
DescriptionAdapter - 4mm Non-insulated for Safety Leads
List Price$18.00
Model
Cat. #2118.09
DescriptionGeneral Carrying Case
Dimensions: 13 x 9.5 x 3"
List Price$56.00
Model
Cat. #2118.46
DescriptionAdapter - Banana (Female) - BNC (Male) (XM-BB) for use with AmpFlex Sensors, Models K100/K110 and SLII Data Loggers
(600V CAT III)
List Price$44.00
Model
Cat. #2119.94
DescriptionAdapter - BNC (Female) to 4mm Banana (Male) 600V CAT III
List Price$15.50
Model
Cat. #2133.72
DescriptionCompact tool bag for field use.
12 Exterior and 14 Interior pockets
Dimensions: 13.0 x 9.8 x 9.5"
List Price$29.95
Model
Cat. #2133.73
DescriptionBag – Extra Large Classic Tool Bag Replacement for Models 3945/3945-B, 6240, 6250, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336 & PEL105
Dimensions: 18 x 9 x 12"
List Price$44.00
Model
Cat. #2140.52
DescriptionClip - Safety Alligator - Red {Rated 1000V CAT IV, 15A, UL}
List Price$7.25
Model
Cat. #2140.53
DescriptionClip - Safety Alligator - Black {Rated 1000V CAT IV, 15A, UL}
List Price$7.25
Model
Cat. #2140.54
DescriptionClip - Safety Alligator - Blue {Rated 1000V CAT IV, 15A, UL}
List Price$7.25
Model
Cat. #2140.55
DescriptionClip - Safety Alligator - White {Rated 1000V CAT IV, 15A, UL}
List Price$7.25
Model
Cat. #2140.56
DescriptionClip – Set of 4, Safety Alligator (Red, Black, Blue & White) {Rated 1000V CAT IV, 15A, UL}
List Price$30.50
Model
Cat. #2152.24
DescriptionLead - Set of 2, Color-coded (red/black) 5 ft Safety Leads (1000V CAT IV)
Replacement for 2140.57
List Price$20.50
