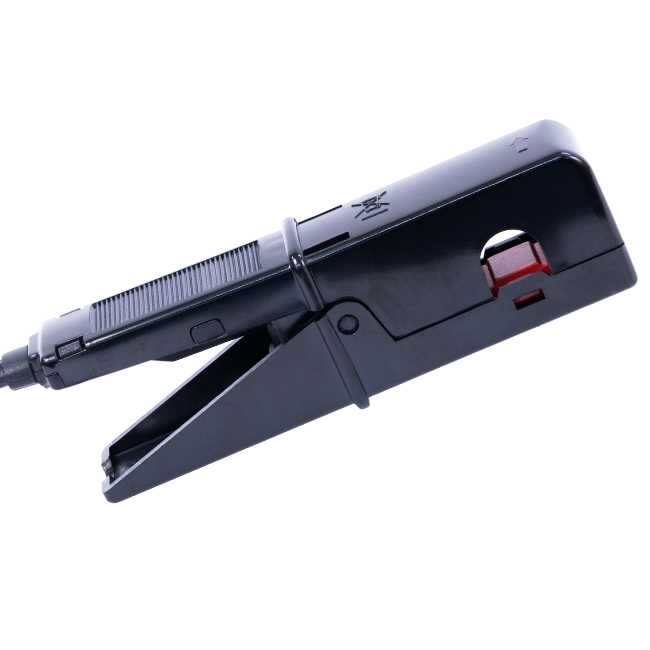

AC Current Probe Model MN134

The MN134 - your ultimate solution for precision in industry and electrical contracting. This compact AC current probe is meticulously crafted to not only meet but exceed the highest standards in safety and performance. Equipped with a generous measurement range of up to 10 Arms, it is the ideal companion for seamless measurements with DMMs and recorders. The Model MN134 is compatible with any AC multimeter or voltage measurement instrument with an input impedance greater than 1 MΩ. Elevate your accuracy game by pairing this probe with a voltmeter with an accuracy of 0.75% or better. Unleash the power of precision with the AEMC® Model MN134 – where cutting-edge meets compact convenience.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
MN134 2129.22 AC Current Probe Model MN134 (10A, 100 mV/A, Lead) $220.00
ModelMN134
Cat. #2129.22
DescriptionAC Current Probe Model MN134 (10A, 100 mV/A, Lead)
List Price$220.00
Print
Maximum Clamping Diameter 0.39 in (10 mm)
Nominal Range 10 AAC
Measurement Range 1 mA  to 10 AAC
Output Signal 100 mVAC / AAC (1 V @ 10 A)

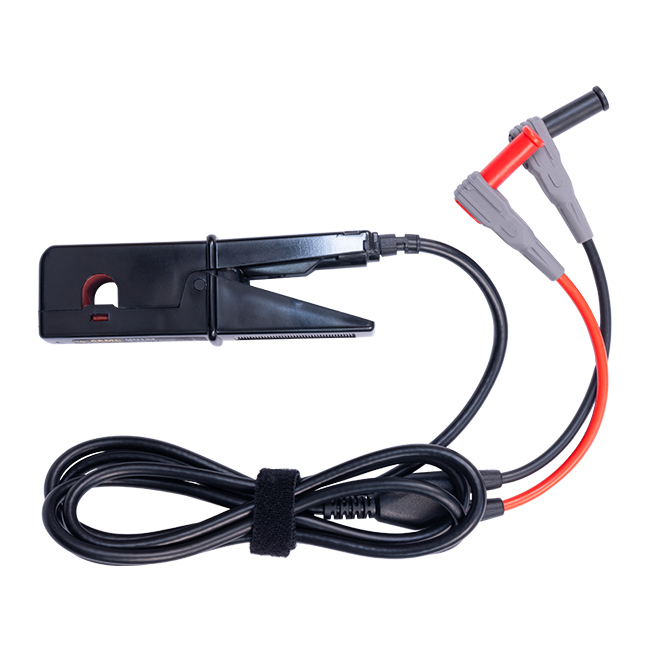

Output Double/reinforced 5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz 1 MΩ load: 2% Reading ± 2 mA
Phase Shift at 50/60Hz < 10°
Overload 20 A continuous
Frequency Range (48 to 500) Hz
Load Impedance 1 MΩ min
Open Secondary Voltage ≤ 30 V
Working Voltage 600 Vrms
Common Mode Voltage 600 Vrms
Dimensions (HxWxD) (5.12 x 1.46 x 0.874) in (130 x 37 x 25) mm
Weight 6.5 oz (180g)
Operating Temperature (14 to 122) °F  (-10° to 50) °C
Storage Temperature (-40° to 176) °F  (-40° to 80) °C
Case Protection IP 40 (IEC 60529)
Safety Electrical: IEC 61010-2-32 600 V AT III, Electromagnetic Compatibility: EN 61326-1

User Manuals

Model MN134

Brochures

Leakage Current Meters and Probes
