L412 Dual-Channel AC Current Data Logger

Two Channels. One Logger. Any Sensor.

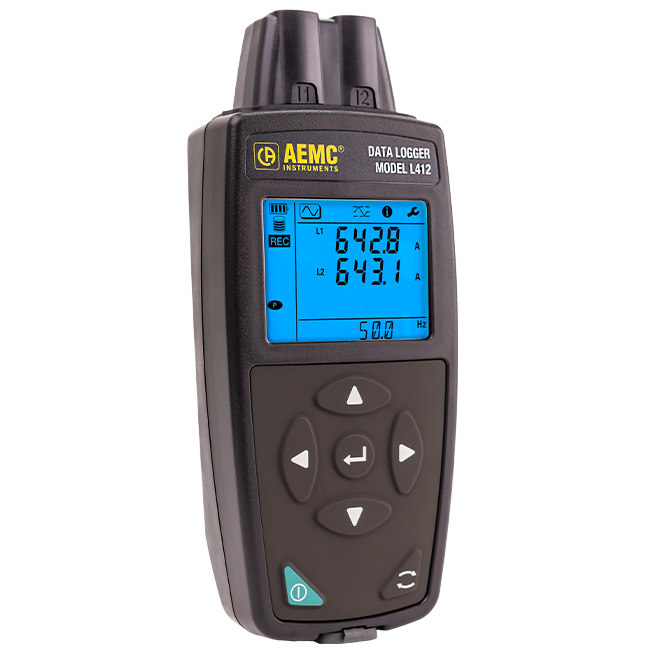

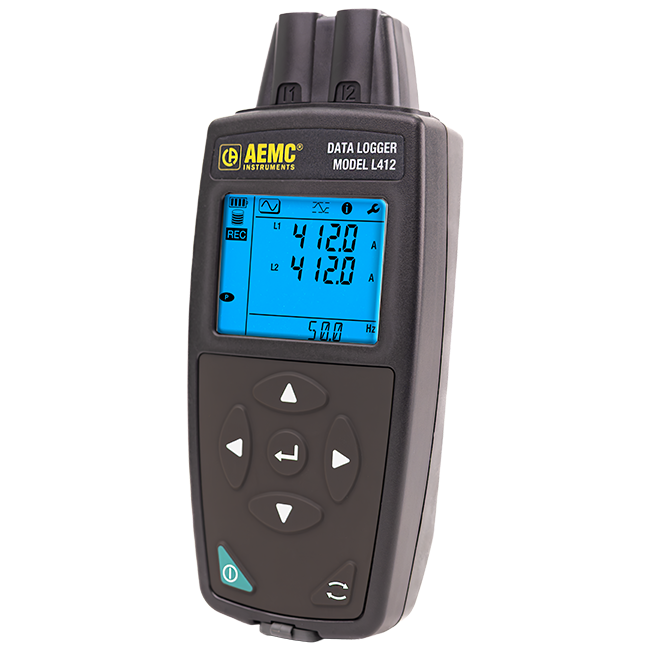

The AEMC® Data Logger Model L412 is a dual-channel RMS AC current logger with two universal current probe terminals — compatible with most AEMC® current sensors in the PEL and PowerPad family. Where the L411 gives you one flexible sensor built in, the L412 gives you two configurable channels and the flexibility to choose the right sensor for whatever you're measuring — from 10 mA on a sensitive control circuit up to 25,000 A on a main feeder (using a ratio-configured MN193-BK).

Both channels record 1-second TRMS measurements simultaneously and independently. That 1s trend data — the same granularity as a PEL power analyzer — is fully accessible through the DataView® Control Panel for analysis, comparison, and reporting across both circuits in the same session.

Like the rest of the L400 Series, the L412 runs on its own built-in web server. Connect via Wi-Fi AP mode (its own broadcast network) or Station mode (your facility network), open a browser on any device, you're live - no app, no software install, no laptop required on site. Remote access via DataViewSync™ extends that reach to anywhere with internet access.

Sensors are sold separately.

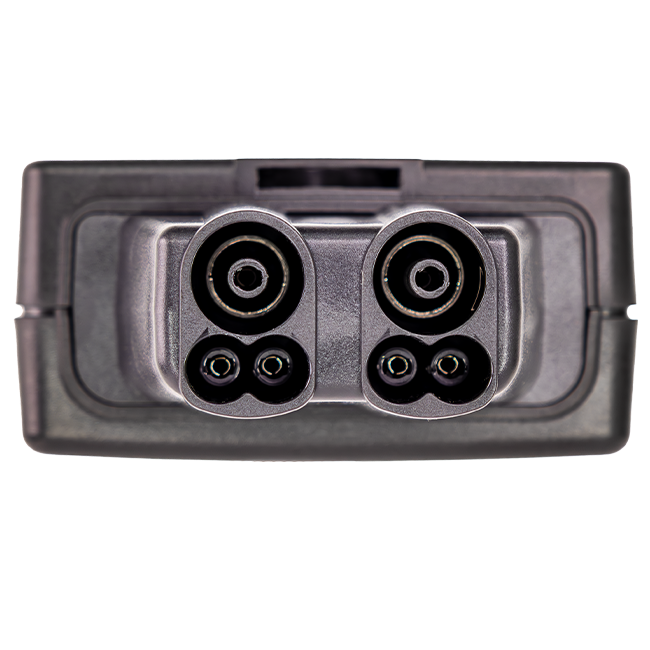

L1 and L2 — Independent & Simultaneous

Primary Current Input — Channel 1 — L1

Accepts any compatible CA current probe. Frequency measurement is available on Channel 1 only (45.00-65.00 Hz, 0.01 Hz resolution). The L1 input drives the frequency reference for the session.

Measurement range: 0.2% Inom — 120% Inom

Uncertainty: ±(1% R + 0.1% Inom)

Secondary Current Input — Channel 2 — L2

Logs independently from L1 with identical measurement specifications. If two sensors are connected, they must be the same model. If sensors don't match, the OL indicator blinks as a warning. L2 does not measure frequency.

Measurement range: 0.2% Inom — 120% Inom

Uncertainty: ±(1% R + 0.1% Inom)



Why Choose Model L412?


  • Two independent current probe terminals — L1 and L2 log simultaneously
  • Compatible with most PEL/PowerPad sensors
  • Sensor auto-detection — plug in a compatible probe and the L412 configures itself
  • 1-second TRMS trend logging on both channels, accessible via DataView® Control Panel
  • Built-in web server: browser access for live data, recording config, and time sync — no app required
  • Wi-Fi AP mode broadcasts its own network; Station mode joins facility Wi-Fi for DataViewSync™
  • Battery or USB powered — USB enables continuous uninterrupted operation
  • Two-button recording start/stop — no menus to navigate

Choose Your Recording Strategy

NORMAL MODE

Continuous 1-Second Sampling

Both channels are never in standby. A True RMS measurement is taken and stored every second on L1 and L2 for the full duration of the sessions — the same operational model as PEL power logger. Aggregated values are calculated from the complete 1s dataset on each channel independently.

Best for: simultaneous load comparison, verifying current balance between two circuits, control circuit monitoring, and any application where complete 1s trend data is required.

1s measurement interval — continuous, no sleep

EXTENDED MODE

Snapshot Measurements — Up to 10 Weeks

The instrument sleeps between recordings. A 1-second TRMS snapshot is taken on both channels at each preset interval (e.g., every 1 or 15 minutes) and the instrument returns to sleep. Fewer data points per channel, but dramatically longer battery life for extended unattended deployments.

Best for: long-term monitoring of two circuits simultaneously — standby consumption trending, seasonal load studies, or remote sites where battery replacement isn't practical.

~10 weeks at 10/15 min aggregration


Application Use Cases


01

Dual-Circuit Load Monitoring

Monitor two feeders, phases, or branch circuits simultaneously and compare load profiles side by side in DataView®. Identify imbalance, verify load distribution, and spot demand anomalies across both channels in the same recording session.

02

Low-Level Control Circuit Monitoring

Track low-level current draw on two channels simultaneously using high-resolution current probes — such as verifying HVAC control circuits or monitoring standby consumption on sensitive equipment. The MN193-BK 5A probe resolves current down to 100 mA, capturing draw that standard clamps can't see.

03

Before & After Efficiency Studies

Log current on two circuits simultaneously — one upstream, one downstream of a VFD, power conditioner, or efficiency upgrade — to document real-world energy reduction. Both channels run at 1-second resolution for precise comparison.

04

High-Current Main Feeder Logging

Deploy AmpFlex® or MiniFlex® sensors on large conductors — bus bars, main feeders, transformer secondaries — with 1-second trending up to 25,000 A using the MN193-BK ratio configuration. Log both the main and a sub-feed simultaneously.

05

Predictive Maintenance — Two Assets

Baseline two motors, compressors, or HVAC units in a single deployment. Extended mode lets you monitor both for up to 10 weeks on a single set of batteries — flag current drift on either channel before the next scheduled maintenance window.

06

Remote & Unattended Monitoring

Leave the L412 logging two circuits in a remote switchgear room or utility vault. Retrieve data wirelessly via DataViewSync™ from anywhere with internet access, or walk up and pull both channels from your browser in AP mode — no laptop required.



Introducing the AEMC® L400 Series Data Loggers!

These three dedicated loggers (L411, L412, and L461) are designed to help you log, analyze, and report current or voltage data from anywhere you have a connection.

With built-in Wi-Fi, USB connectivity, DataView® compatibility, automatic time stamping, and long-term measurement storage, the L400 Series makes it easy to spot variations, track system performance, and troubeshoot issues over time.

Watch Now!
Model Cat. # Description List Price Quantity/Status
L412 2153.53 AEMC® L412 dual-channel TRMS AC current data logger. Two independent inputs, 10mA to 25,000A sensor rangle, 1-second trending, built-in Wi-Fi, and browser-based control. Sensors sold separately. $725.00 Consult Factory for Availability
ModelL412
Cat. #2153.53
DescriptionAEMC® L412 dual-channel TRMS AC current data logger. Two independent inputs, 10mA to 25,000A sensor rangle, 1-second trending, built-in Wi-Fi, and browser-based control. Sensors sold separately.
List Price$725.00
Consult Factory for Availability

Model L412- Cat. #2153.53: Meter only (on current sensors), USB to micro USB cable, US wall plug to USB adapter (2 A, 5 V,10 W USB-A), (3) AA LR6 alkaline batteries, quick start guide, USB drive with DataView® software and user manual.

Note: Current sensors must be ordered separately. See compatible sensor list.

  • ✓ 2-Year Limited Warranty
  • ✓ NIST-Traceable Calibration Available
  • ✓ Free Software/Firmware Updates via DataView®
Print
TECHNICAL SPECIFICATIONS 1
Model  L411 L412
ELECTRICAL
Measurement Type AC Current
Channels 1 2
Measurement Range (0.4 to 3600) A 10 mA to 25,000 A*
Sensor Type Integrated MiniFlex® Compatible Current Probes and Sensors
Frequency Range (45 to 65) Hz
Accuracy ± (1% R + 5 cts typical) ± (1% R + sensor dependent)
Resolution Up to 10 mA Sensor dependent
GENERAL
Power Supply (3) AA batteries or USB
Battery Life Up to 3 Days
RECORDING
Normal Mode 3 days
Extended Mode Up to 10 weeks (15 min aggregation period)
DATA STORAGE & REPORTING
Recording Sessions Up to 200
Storage 8 GB micro SD (Internal)
Aggregation Intervals (1 to 60) min, 1 s trends
Data Interface USB, Wi-Fi and Web server
Software DataView® and DataViewSync™
MECHANICAL & ENVIRONMENTAL
Mounting Magnetic
IP Rating IP 54
CAT Rating 600 V CAT IV, 1000 V CAT III

Note 1: Refer to the user manual for complete technical specifications

*Range depends on selected sensor

User Manuals

Model L411-412-461 - English

Model L411-412-461 - Español

Model L411-412-461 - Francais

Quick Start Guides

Model L411-412-461 Quickstart - English

Model L411-412-461 Quickstart - Español

Model L411-412-461 Quickstart - Francais

Datasheets

Model L412 - English

Brochures

L400 Series Brochure - English

Comparison Charts

L400 Series Comparison Chart - English
Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2117.73 Pouch - Pouch – Replacement for Models 1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, & 6610 (8.5 x 6.75 x2.7) inches $24.00
2119.02 Soft Carrying Pouch for Models (CA7024, CA7026, CA7027-28, 6522-24, 6526, 6532, 6534, 6536, 6528-29, 5212, 5215, 5217, 5231, 5233, 3290-91, 3292-93B, 3292-93B-BT)
Dimensions: (7.75 x 9.25 x 2.75) in 		$52.90
2138.66 Cat. #2138.66

Cable – 6 ft. USB Type A - Type B micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and use with wall adapter for MR415 to MR527 series, SL306, & SL361

$20.75
MN93-BK 2140.32 AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $265.00
SR193-BK 2140.33 AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $449.00

193-24-BK 		2140.34 AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $335.00

193-36-BK 		2140.35 AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $390.00
MN193-BK 2140.36 AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $353.00 Consult Factory for Availability
MA193-10-BK 2140.48 MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $290.00
2140.50 2140.50 MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $320.00
MA194-24-BK 2140.80 MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $345.00
MN94 2140.81 AC Current Probe Model MN94 (200AAC) USED ONLY WITH MODELS 8345 & PEL52 $399.00
2153.78 Adapter – Replacement US Wall Plug to USB for Models L452, 1510, MH60 (Accessory for Models 1110,1227,1246, 1821,1822,1823, MR415 to MR527 series, SL306, & SL361) $23.50
5000.44 MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D $19.25
5000.99 Clip - Safety Alligator - Black (1000 V CAT IV, 15 A, UL V2) $12.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $12.50
5100.29 Lead-set of 2, 10 FT (3M) Color-Coded (RD/BK) ST/ST 4 MM Banana Plugs $35.00
Model
Cat. #2117.73
DescriptionPouch - Pouch – Replacement for Models 1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, & 6610 (8.5 x 6.75 x2.7) inches
List Price$24.00
Model
Cat. #2119.02
DescriptionSoft Carrying Pouch for Models (CA7024, CA7026, CA7027-28, 6522-24, 6526, 6532, 6534, 6536, 6528-29, 5212, 5215, 5217, 5231, 5233, 3290-91, 3292-93B, 3292-93B-BT)
Dimensions: (7.75 x 9.25 x 2.75) in
List Price$52.90
Model
Cat. #2138.66
DescriptionCat. #2138.66

Cable – 6 ft. USB Type A - Type B micro (Replacement for Models L452, 1110, 1227, 1246, 1510, 1821, 1822, 1823) and use with wall adapter for MR415 to MR527 series, SL306, & SL361

List Price$20.75
Model MN93-BK
Cat. #2140.32
DescriptionAC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$265.00
Model SR193-BK
Cat. #2140.33
DescriptionAC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$449.00
Model
193-24-BK
Cat. #2140.34
DescriptionAmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$335.00
Model
193-36-BK
Cat. #2140.35
DescriptionAmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$390.00
Model MN193-BK
Cat. #2140.36
DescriptionAC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$353.00
Consult Factory for Availability
Model MA193-10-BK
Cat. #2140.48
DescriptionMiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$290.00
Model 2140.50
Cat. #2140.50
DescriptionMiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$320.00
Model MA194-24-BK
Cat. #2140.80
DescriptionMiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$345.00
Model MN94
Cat. #2140.81
DescriptionAC Current Probe Model MN94 (200AAC) USED ONLY WITH MODELS 8345 & PEL52
List Price$399.00
Model
Cat. #2153.78
DescriptionAdapter – Replacement US Wall Plug to USB for Models L452, 1510, MH60 (Accessory for Models 1110,1227,1246, 1821,1822,1823, MR415 to MR527 series, SL306, & SL361)
List Price$23.50
Model
Cat. #5000.44
DescriptionMultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D
List Price$19.25
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000 V CAT IV, 15 A, UL V2)
List Price$12.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$12.50
Model
Cat. #5100.29
DescriptionLead-set of 2, 10 FT (3M) Color-Coded (RD/BK) ST/ST 4 MM Banana Plugs
List Price$35.00
