L461 AC/DC Voltage Data Logger

AC & DC Data Logger. One Instrument

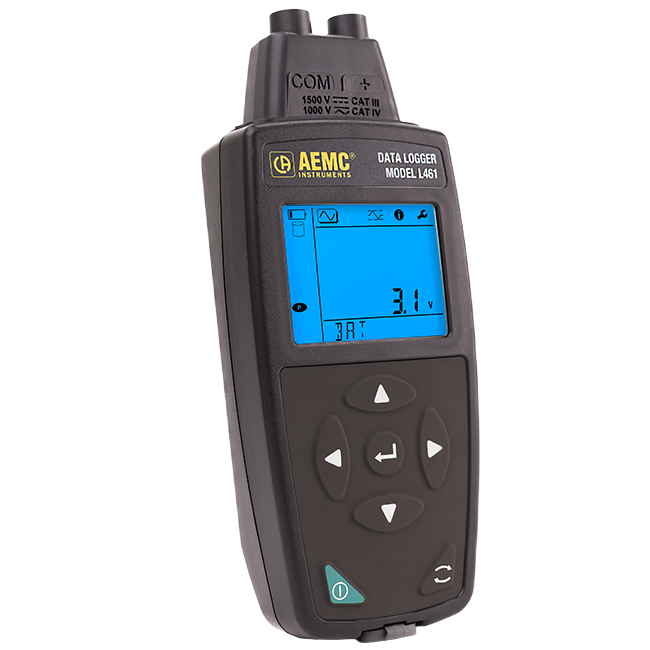

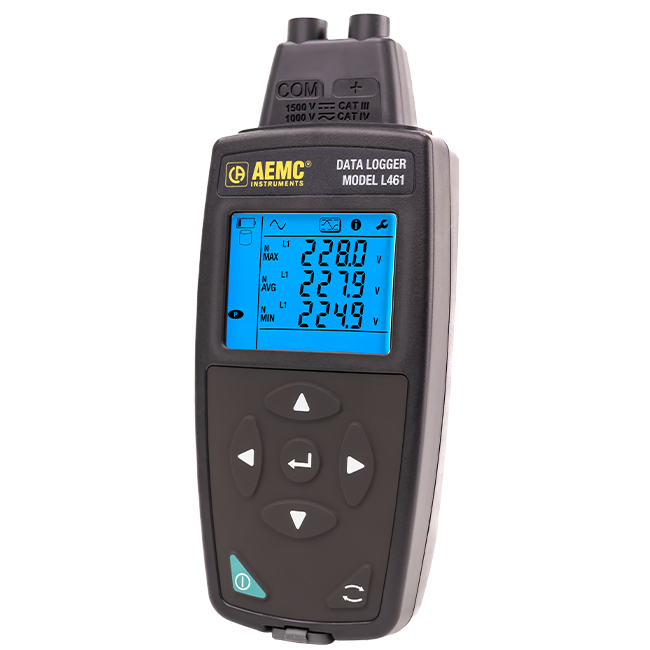

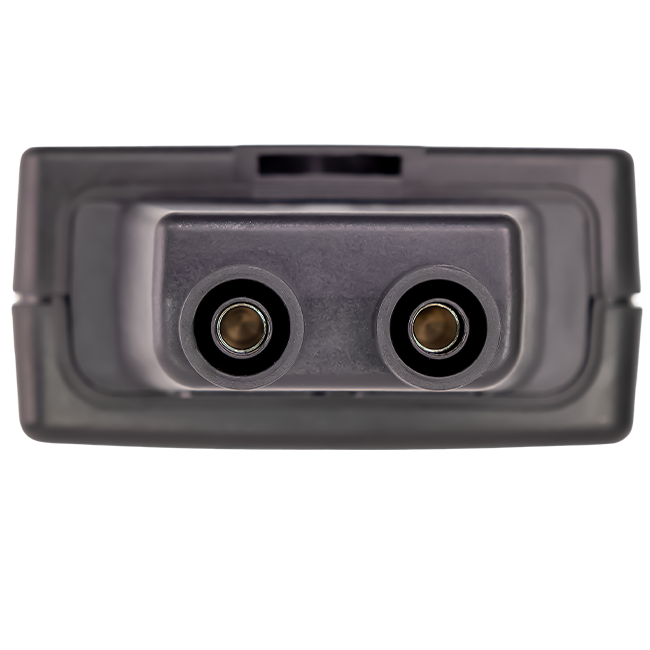

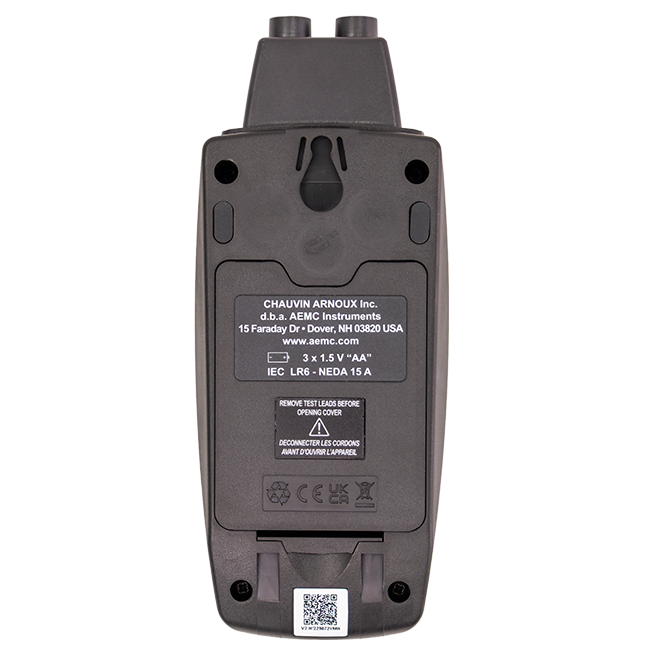

The AEMC^® Data Logger Model L461 is the only logger in the L400 Series that measures voltage — and the only one in the series that handles DC. It's a 2-input, single-channel TRMS AC/DC voltage quality logger built specifically for distribution monitoring and solar PV applications, with a voltage range that covers virtually every situation you'll encounter; up to 1,200 VAC for AC circuits and up to 1,700 VDC for DC systems including solar strings, battery banks, and DC bus rails. The two inputs — COM and + — connect directly to your voltage leads and alligator clips, which are included in the box.

The standout capability for the L461 is its 1-second TRMS trend logging. That 1s data — accessible through the DataView^® Control Panel — enables basic voltage quality analysis; documenting voltage sags, swells, and fluctuations at a resolution that longer-interval loggers simply can't provide. For solar PV verification, distribution auditing, or any application where voltage stability matters, this is the meaningful differentiator.

Like the rest of the L400 Series, the L461 runs a built-in web server. Connect via Wi-Fi, open a browser, and you're live — no software, no app, no laptop needed on site. Battery or USB power keeps it running continuously when plugged into a panel outlet or wall adapter.

Why Choose Model L461?

Voltage Quality Analysis — Why 1s Matters
Most data loggers in this class record at 1-minute intervals or longer. The L461 records every second. That difference matters when you're trying to document a voltage sag that lasts 3 seconds, a swell that occurs during motor startup, or a fluctuation pattern tied to a specific load cycle. The 1s trend data available through the DataView^® Control Panel gives you the resolution to see those events — not just an averaged value that hides them. For distribution voltage monitoring or solar PV string verification, that's the difference between finding the problem and missing it entirely.

AC/DC Switchable — One Instrument
Switch between AC and DC measurement mode directly from the instrument menu or browser interface. No range selection, no separate instrument. One L461 covers distribution voltage monitoring on the AC side and solar PV string voltage on the DC side — deploy it wherever the job takes you.

Solar PV Ready
Rated for solar PV voltage inputs up to 1,700 VDC. Log string voltage at combiner boxes, verify array performance, and document voltage fluctuations over days or weeks.

Browser-Based Access — No App Needed
Built-in web server — no software required. Open a browser on any Wi-Fi connected device to view live voltage, switch AC/DC mode, and configure recordings on the spot.

Battery or USB Power
3x AA alkaline for portable deployments, or USB power for continuous uninterrupted operation. Extended mode enables up to 10 weeks on batteries for long-term studies.

Switchable AC/DC mode — one instrument covers distribution and solar PV in a single deployment
1-second TRMS voltage trend logging — enables basic voltage quality analysis via DataView^® Control Panel
1,200 VAC range covers single and three-phase distribution, inverted output, and utility feeds
1,700 VDC range covers solar PV strings, battery systems, DC bus rails, and EV charging infrastructure
Built-in web server: browser access for live voltage, mode switching, recording config — no app required
Wi-Fi AP mode broadcasts its own network; Station mode joins facility Wi-Fi for DataViewSync^™
Includes safety leads and alligator clips rated for full voltage range
Battery or USB powered — USB enables continuous uninterrupted operation

Choose Your Recording Strategy

NORMAL MODE

Continuous 1-Second Sampling

The insturment is never in standby. A True RMS voltage measurement is taken and stored every second for the duration of the session. Aggregated values are calculated from the complete 1s dataset — making Normal mode more accurate than Extended snapshot mode, which averages only four measurements per interval. This is the mode that enables voltage quality analysis — sags, swells, and short-duration fluctuations are captured in the 1s trend data available through DataView^®

Best for: voltage quality studies, distribution auditing, solar PV performance verification.

1s measurement interval — continuous, no sleep

EXTENDED MODE

Snapshot Measurements — Up to 10 Weeks

The instrument sleeps between recordings to conserve battery. A 1-second TRMS snapshot is taken at each preset interval (e.g., every 1 minute, every 15 minutes). Only four snapshot measurements per aggregation period — Extended mode is less accurate than Normal mode due to the reduced sample count, but delivers dramatically longer battery life.

Best for: long-term voltage trending at remote sites — seasonal solar PV performance studies, utility feed monitoring over months.

~10 weeks at 10/15 min aggregration

Application Use Cases

Distribution Voltage Auditing

Log AC voltage at distribution panels, branch circuits, or utility service entrances to document voltage levels, identify sags and swells, and verify compliance with voltage tolerance standards. The 1-second trend data provides the resolution to catch short-duration events.

Solar PV String Monitoring

Log AC or DC voltage at a solar PV combiner box to verify string performance and document voltage fluctuations over time. Rated specifically for solar PV voltage inputs — deploy at the array and retrieve data wireless via DataViewSync^™ without a return site visit.

Voltage Quality Analysis

Use Normal mode with 1-second sampling to document voltage quality events — sags during motor starts, swells from capacitor switching, or fluctuations tied to specific load cycles. The 1s trend in DataView^® gives you the timeline to correlate events with equipment behavior.

Battery System Monitoring

Monitor DC bus voltage on battery banks, UPS systems, or energy storage installations. Log charge and discharge cycles, document voltage under load, and trend capacity degradation over weeks or months using Extended mode.

AC + DC

Inverter Input & Output

Deploy the L461 at a solar inverter — switch to DC mode to log PV string input voltage, then switch to AC mode to log inverter output. Two separate recording sessions, one instruments, full picture of inverter performance across both sides of the conversion.

Remote Utility Feed Monitoring

Leave the L461 logging at a remote substation feed, outdoor switchgear, or utility service point for weeks at a time. Extended mode with a 15-minute aggregation period stretches battery life to 10 weeks. Retrieve data remotely via DataViewSync^™ without a site visit.

Introducing the AEMC^® L400 Series Data Loggers!

These three dedicated loggers (L411, L412, and L461) are designed to help you log, analyze, and report current or voltage data from anywhere you have a connection.

With built-in Wi-Fi, USB connectivity, DataView^® compatibility, automatic time stamping, and long-term measurement storage, the L400 Series makes it easy to spot variations, track system performance, and troubeshoot issues over time.

Watch Now!

Model	Cat. #	Description	List Price	Quantity/Status
L461	2153.54	AEMC^® L461 AC/DC voltage quality data logger. Monitors distribution and solar PV voltages to 1,200VAC or 1,700VDC with 1-second trending, built in Wi-Fi, and browser-based control.	$750.00	Consult Factory for Availability

Model	L461
Cat. #	2153.54
Description	AEMC^® L461 AC/DC voltage quality data logger. Monitors distribution and solar PV voltages to 1,200VAC or 1,700VDC with 1-second trending, built in Wi-Fi, and browser-based control.
List Price	$750.00
Consult Factory for Availability

Model L461- Cat. #2153.54: Meter, USB to micro USB cable, US wall plug to USB adapter (2 A, 5 V, 10 W USB-A), set of 2 color-coded 10ft ST/ST leads (red/black), 2 color-coded safety alligator clips (red/black), (3) AA LR6 alkaline batteries, quick start guide, USB drive with DataView^® software and user manual.

An optional 110V Outlet Adapter with 4mm banana plugs (Cat. #2118.49) is available separately for outley monitoring applications.

✓ 2-Year Limited Warranty
✓ NIST-Traceable Calibration Available
✓ Free Software/Firmware Updates via DataView^®

TECHNICAL SPECIFICATIONS ¹
Model	L461
ELECTRICAL
Measurement Type	AC/DC Voltage
Channels	1
AC Voltage Range	(10 to 1200) V
DC Voltage Range	(10 to 1700) V
Frequency Range	(45 to 65) Hz
Accuracy	± (1% R + 5 cts typical)
GENERAL
Power Supply	(3) AA batteries or USB
Battery Life	Up to 3 Days
RECORDING
Normal Mode	3 days
Extended Mode	Up to 10 weeks (15 min aggregation period)
DATA STORAGE & REPORTING
Recording Sessions	Up to 200
Storage	8 GB micro SD (Internal)
Aggregation Intervals	(1 to 60) min, 1 s trends
Data Interface	USB, Wi-Fi and Web server
Software	DataView^® and DataViewSync^™
MECHANICAL & ENVIRONMENTAL
Mounting	Magnetic
IP Rating	IP 54
CAT Rating	1000 V CAT III, 1500 VDC CAT III

Note 1: Refer to the user manual for complete technical specifications
