Point to Point Continuity Tester - Model CA 6011

A unique wrist-worn continuity tester designed to verify pathways and ground connections over long distances – without juggling a traditional ground tester.

The CA 6011 Point-to-Point Continuity Tester is built for fast, simple verification of conductive paths across large interconnected systems. Instead of dragging conventional ground resistance testers and leads from point to point, you clip one side of the circuit to a known ground and walk the system with the continuity probe.

A constant 200 mA test current, automatic polarity reversal, and lead compensation provide accurate, repeatable continuity measurements. The large backlit display, programmable pass/fail thresholds, and audible/vibration alarms let you confirm continuity at a glance — or by feel — even in dark, noisy, or hard-to-reach components.

With a comfortable wrist-strap form factor and long battery life (up to approximately 30,000 measurements), the CA 6011 is ideal for commissioning and troubleshooting ground systems in the field.

Key Features

Wrist-worn and lightweight design for hands-free use during inspections
Fast point-to-point continuity testing — significantly faster than using a traditional ground resistance meter for bonded pathways

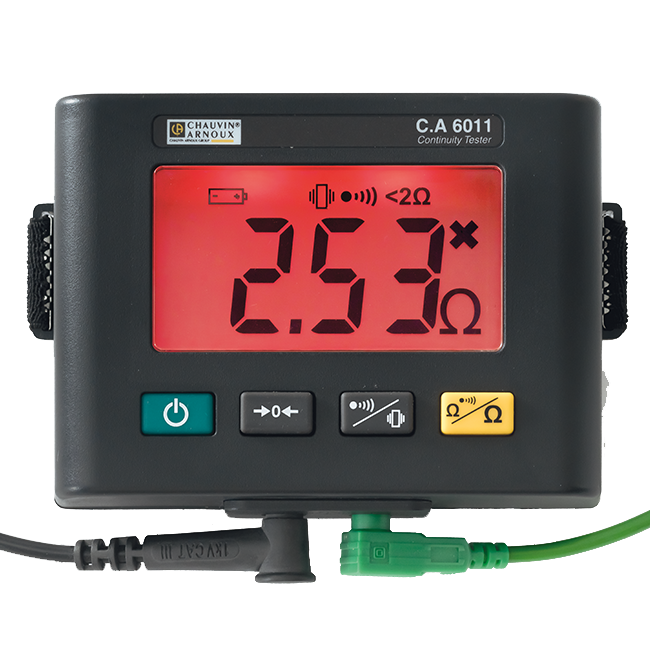

Large two-color backlit display with intuitive blue/red backgrounds and clear symbols for pass/fail indication
Audible alarm and vibration mode — use sound, vibration, or both depending on the environment
Always-on testing — once powered up, the instrument continuously tests; no need to press a “Test” button each time
Automatic standby after 10 minutes, deactivatable when you’re working continuously in the field
300 V CAT IV safety rating for use in demanding industrial and utility environments

Technical Characteristics

200 mA test current with automatic polarity reversal for reliable low-resistance measurements (applies current + to – and – to + and averages results)
Continuity ranges: (0.00 to 2.00) Ω and (2.00 to 20.00) Ω, 10 mΩ resolution; Programmable compliance thresholds of (1 or 2) Ω for quick pass/fail checks
Resistance mode: (1.0 to 200.0) Ω, 100 mΩ resolution for extended checks beyond basic continuity
Lead resistance compensation (up to 5 Ω) for more accurate low-ohm measurements

Typical Applications for Grounding & Bonding

Equipment grounds conductors (EGCs) and isolated ground conductors (IG)
Swimming pool grounds
Lightning protection systems – down conductors, bonding jumpers, and terminations
Electrical cabinets, motor frames, and building steel
Light fixtures and support structures
Data center bonding grids and racks
Solar / PV racking and frames
Wind turbine blades and structures
Static bonding for hazardous materials (paint shops, chemical processing, etc.)
Utility substations — commissioning ground integrity
…anywhere you need to confirm low-resistance conductive paths.

Introducing the AEMC^® Point-to-Point Continuity Tester Model CA 6011!

Below is an introductory video to help you become acquainted with the Model CA 6011 Point-to-Point Continuity Tester, covering the various features of the CA 6011 as well as demonstrating some common use cases.

Watch Now!

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
6011	2135.62	Point-to-Point Continuity Tester Model CA 6011	$449.00	Consult Factory for Availability
6011	2135.63	Point-to-point Continuity Testing Kit Model CA 6011	$749.00	Consult Factory for Availability

Model	6011
Cat. #	2135.62
Description	Point-to-Point Continuity Tester Model CA 6011
List Price	$449.00
Consult Factory for Availability

Model	6011
Cat. #	2135.63
Description	Point-to-point Continuity Testing Kit Model CA 6011
List Price	$749.00
Consult Factory for Availability

Model 6011- Cat. #2135.62: Includes CA 6011 continuity meter w/ elastic wrist strap, (4) AA batteries in small white box with sleeve, safety sheet, and user manual.

Model 6011- Cat. #2135.63: Includes CA 6011 continuity meter w/ elastic wrist strap, (4) AA batteries, small classic tool bag, (1) 5 ft red lead (straight/straight), (1) 5 ft black lead (straight/straight), (1) black test probe, (1) 150 ft red lead on spool, (1) continuity probe set, safety sheet and user manual.

TECHNICAL SPECIFICATIONS ¹
Model	CA 6011
ELECTRICAL
Continuity Mode
Range	(0.00 to 2.00) Ω	(2.00 to 20.00) Ω
Resolution	10 mΩ
Measurement Current (with automatic polarity reversal)	200 mA	20 mA
Open-Circuit Voltage	±(4 V_DC< U < 6 V_DC)
Threshold	Programmable 1 Ω or 2 Ω
Resistance Mode
Range	(1.0 to 200.0) Ω
Resolution	100 mΩ
Measurement Current	10 mA
Open-Circuit Voltage	±(4 V_DC< U < 6 V_DC)
Compensation of Lead Resistance	Yes, < 5 Ω
MECHANICAL
Battery Life	30,000 measurements typically
Automatic Standby	10 min / deactivatable
Power Supply	(4) 1.5 V AA / LR6 batteries
Dimensions	(8.86 x 7.28 x 5.31) in (225 x 185 x 135) mm
Weight	12.34 oz (350 g)
SAFETY
Safety Ratings	IEC 61557 parts 1 and 4, IEC 61010-1, IEC 61010-2-030, 300 V CAT IV

Note 1: Refer to the user manual for complete technical specifications
