NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|

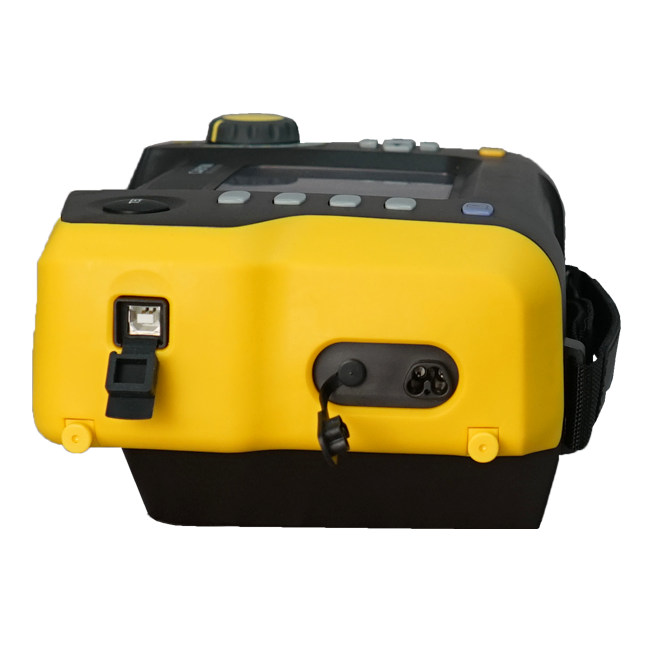

| C.A 6117 | 2138.07 | Multi-Function Installation Model C.A 6117 | $3,175.00 | Consult Factory for Availability |
|
| C.A 6117 Kit | 2138.11 | Multi-Function Installation Model C.A 6117 Kit (US) {includes C177A, DataView® Software} | $3,670.00 | Consult Factory for Availability |
|
|
||||||||||
|
||||||||||
Model CA 6117 - Cat. #2138.07: Includes carrying bag, US power cord and charger, Li-lon battery pack, USB A/B cable, set of (3) 3-prong color-coded safety voltage leads (red, blue, green), set of (3) color-coded test probes (red, blue, green), set of (3) alligator clips (red/blue/green), set of (2) color-coded safety leads (red/black) 4mm straight plug, 3-prong US measurement cord, remote test probe, wrist strap, hands-free strap, multi-lingual safety cared, and a USB drive with DataView® software and a user manual.
Model CA 6117N Kit- Cat. #2138.11: Includes carrying bag, AC Current Probe Model C177A, US power cord and charger, Li-lon battery pack, USB A/B cable, set of (3) 3-prong color-coded safety voltage leads (red, blue, green), set of (3) color-coded test probes (red, blue, green), set of (3) alligator clips (red/blue/green), set of (2) color-coded safety leads (red/black) 4mm straight plug, 3-prong US measurement cord, remote test probe, wrist strap, hands-free strap, multi-lingual safety cared, and a USB drive with DataView® software and a user manual.
| CONTINUITY / RESISTANCE | |
| I Rated / Range / Resolution | I > 200mA / 39.99Ω/ 0.01Ω / ± (1.5% of R + 2cts) 12mA / 39.99Ω & 399.9Ω / 0.01 & 0.1Ω /± (1.5% of R + 5cts) with beep |
| Range / Resolution / Accuracy | 4 kΩ/ 1Ω / ±(1.5% of R + 5cts) 40 kΩ - 400 kΩ/ 10Ω - 100Ω / ±(1.5% of R + 2cts) |
| INSULATION | |
| Rated Voltage | Utest: 50 /100 / 250 / 500 / 1000VDC |
| Range / Resolution / Accuracy | 0.01MΩ to 2GΩ / 10kΩ to 1MΩ / ±(5% of R + 3cts) |
| Short Circuit Current | ≤ 3mA |
| GROUND | |
| 3P GROUND Range / Resolution / Accuracy |
0.50 to 40Ω/ 0.01Ω / ±(2% of R + 10cts) 40Ω to 15kΩ / 0.1 to 1Ω / ±(2% of R + 2cts) 15 to 40kΩ / 10Ω/ ±(10% of R + 2cts) |
| Others | Measurement of resistance of auxiliary stakes RH & RS (up to 40kΩ) |
| Ufk | Complies with SEV 3569 |
| 1P SELECTIVE GROUND Range / Resolution / Accuracy |
0.20 to 39.99Ω - 40 to 399.9Ω / 0.01 to 0.1Ω / ±(10% of R + 10cts) (ISel via clamp) |
| LOOP IMPEDANCE (Zs (L-PE0 AND Zi (L-N OR L-L) – 1P LIVE GROUND | |
| Live Ground Installation Voltage / Frequency |
90 to 500 V / 15.8 to 17.5Hz - 45 to 65Hz |
| High-current mode with TRIP Zs (L- PE) & Zi (L- N or L - L) Range / Resolution / Accuracy |
Max. test current: 7.5 A (0.050) 0.100 to 0.5Ω / 0.001Ω/ ±(10% of R + 20cts) • 0.5Ω to 3.999Ω / 0.001Ω/ ±(5% of R + 20cts) 3.999 to 39.99Ω/ 0.01Ω / ±(5% of R + 2cts) • 39.99 to 399.99Ω / 0.1Ω/ ±(5% of R + 2cts) |
| NO TRIP mode (Zs (L – PE) 0nly) | Test current 6mA – 9mA – 12mA (as required) 0.20 to 0.99Ω / 0.01Ω / ±(15% of R + 10cts) 1.00 to 1.99Ω / 0.01Ω / ± (15% of R + 3cts) 2.00 to 39.99 / 0.01Ω / ± (10% of R + 3cts) 40.00 to 399.9Ω / 0.1Ω ± (5% of R + 2cts) 400 to 3999Ω / 1Ω ±(5% of R + 2cts) |
| Calculation of IK short circuit current (PFC (Zs), I Sc PSCC (Zi) | Fault current and short-circuit current: 0.1 to20kA |
| Integrated Fuse Table | Yes |
Voltage drop  V%(Zi) |
-40% to +40% |
| Others | Measurement of the resistive and inductive components of Zs and Zi impedances |
| AC and type RCDs | |
| Installation voltage / Frequency | 90 to 500V / 15.8 to 17.5Hz and 45 to 65Hz |
| IΔn | 10/30/100/500/650/1,000 (90V - 280V) or variable ramp and pulse test |
| N-trip test | At ½ IΔn – Duration 1000ms or 2000ms |
| Ramp mode | 0.2 to 0.5 x IΔn(Uf) / 0.3 x IΔn to 1.06 IΔn increments of 3.3% x IΔn |
| Trip test: R: Range / Resolution / Accuracy |
0.2 to 0.5 x IΔn(Uf) / 0.5 x IΔn / 2 x IΔn(selective) / 5 x IΔn Pulse: 0 to 500ms/0.1 and 1ms / 2ms, Ramp mode: 0 to 200 ms / 0.1 ms / 2 ms |
| B-Type RCDs | |
| Installation Voltage / Frequency | 90 to 275V / 15.8 to 17.5Hz and 45 to 65Hz |
| IΔn: ramp / pulse 2 x IΔn pulse 4 x IΔn |
10/30/100/500mA 10/30/100/500 mA with pulse 4 IΔn Duration: 150 ms with 4 x IΔn or 300 ms with 2 x IΔn |
| Test in ramp mode | 0.2 x IΔn to 2.2 x IΔn |
| Trip test: 2 x IΔn 4 x IΔn |
IΔn ≤ 200 mA: 2.2 x 2 x IΔn IΔn ≤ 200 mA: 1.1 x 2 x IΔn IΔn ≤ 100 mA: 2.2 x 4 x IΔn |
| OTHER MEASUREMENTS | |
| Current by Current Probe C177A | 5.0mA t0 199.9A |
| Current by Current Probe MN77 | (1mA*) 5.0mA to 19.99A |
| Voltage | 0 to 550VAC/DC / DC and 158 to 500Hz |
| Frequency | 10 to 500Hz |
| Phase rotation | 20 to 500VAC |
| Active power | 0 to 110kW single phase – 0 to 330kW three-phase Simultaneous display of voltage and current waveforms |
| Harmonics | Voltage and Current / up to 50th order / THD-F / THD-R |
| GENERAL SPECIFICATIONS | |
| Display | Large 5.7” backlit graphic color LCD 320 x 240 pixels |
| Storage/Communication | USB for data transfer to DataView software (included) |
| Power Supply | Rechargeable battery Lithium-Ion 10.8V, 5.8Ah |
| Battery Life | Up to 30 hours |
| Protection | IP 53 / IK04 |
| Dimension / Weight | 11 x 7.48 x 5.04” (280 x190 x 128mm); 4.85 lbs (2.2 kg) |
| EMC | IEC61326-1 |
| Safety | IEC61010-1 – 600V CAT III – 300V CAT IV – IEC 61557 |
User Manuals
Model 6116/6117
Battery Pack Replacement for PowerPad® IV 8345, Oscilloscope Models OX 9000 Series, and Multi-Function Installation Tester Models CA 6116N & CA6117
Quick Start Guides
Datasheets
Brochures
Comparison Charts
Software
Application Notes
Battery Recharge Time / Rechargeable NiMH Notice
Tiempo de recarga de las baterías / Aviso de NiMH recargable
An Introduction to Insulation Resistance Testing
Videos
Battery Pack (Cat. #2960.47) Replacement Procedure (PowerPad ® IV 8345, OX 9000 Series, Installation Testers CA 6116N & CA 6117
Understanding Insulation Resistance Testing
What's New in DataView 3.50
Understanding Ground Resistance Testing
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|

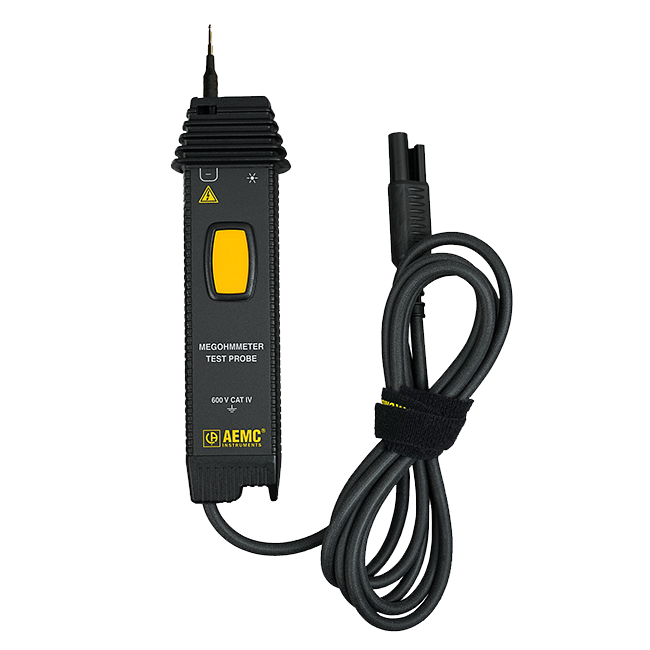

2155.75 | Megohmmeter Test Probe (600V CAT IV) for Models 6522-6536, 6116N & 6117 | $255.00 |
|
|
|
2960.47 | Battery – Replacement 5.8AH 61.9Wh Li-ion Battery Pack for Models C.A6116N, C.A6117, OX9104-OX9304, & 8345
  Instruction Sheet
|
$350.00 | Consult Factory for Availability |
|
|

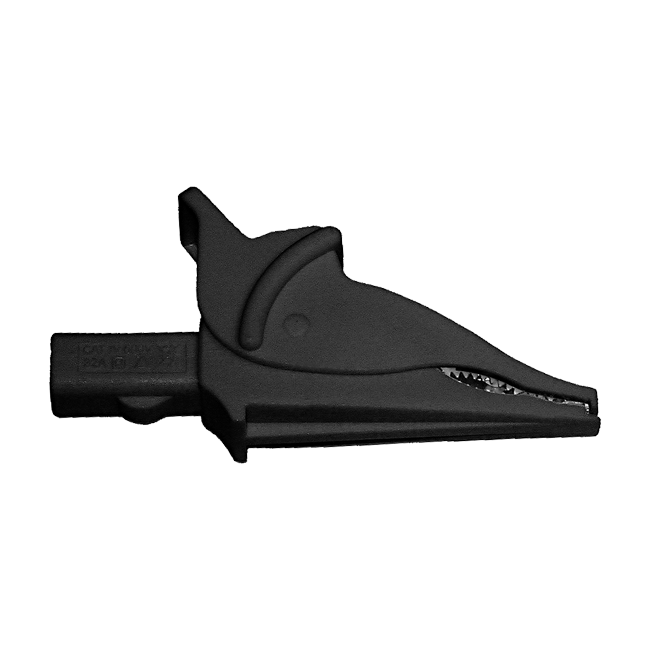

5000.99 | Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|
5100.00 | Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) | $11.50 |
|
|
|

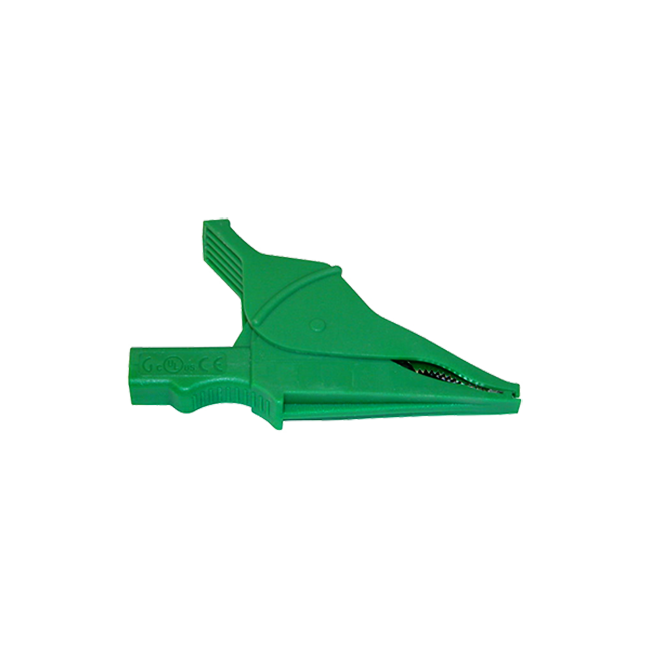

2140.69 | Cat.# 2140.69 is DISCONTINUED. Click on replacement item: Cat #5100.06: Clip – safety alligator – green (1000V CAT IV, 15A, UL) | $0.00 | Discontinued |
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
