NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
| 407 | 2139.51 | Power Clamp-on Meter Model 407 (Power Quality Analyzer) | $690.00 |
|
|
|
||||||||||
Model 407 - Cat. #2139.51: Includes hard carrying case, set of (2) color-coded (red/black) silicone insulated test leads, test probes and alligator clips (red/black), Bluetooth USB adapter, (4) 1.5 V AA batteries, safety information sheet, and USB thumb drive supplied with DataView® software and a user manual.
| Voltage Range: | 1000 Vrms AC/DC / AC+DC Autoranging |
| Resolution Max: | 0.01 V |
| Current Range: | 1000 Arms AC, 1500 ADC |
| Resolution Max: | 0.01 A |
| Accuracy V Typical: | 1 % ± 3 cts |
| Accuracy A Typical: | 1 % ± 3 cts |
| InRush: | (10 to 1000) AAC, 10 to 1500 ADC |
| Power Measurement Max: | 1 MW AC, 3 MW DC |
| Harmonics: | Up to 25th |
| THD: | Yes, %f and %r |
| Continuity: | Selectable from 0 to 999.9 Ω |
| Resistance: | 100 kΩ |
| Frequency: | V: 20 kHz A: 2 kHz |
| Power Factor: | Yes |
| MIN/MAX/PEAK-/PEAK+ | Yes |
| ∆REL: | Yes |
| Recording: | Yes, up to 1000 points (160 h at 10 min intervals) |
| Communication: | Bluetooth |
| Software: | Yes, DataView included |
| Power Source: | (4) AA, NEDA 15 A, IEC LR6 |
| Battery Life: | > 350 h |
| Dimensions: | (10.7 x 3.6 x 1.6) in (272 x 92 x 41) mm |
| Weight: | 1.32 lbs (600 g) with batteries |
| Jaw Opening: | 1.9in (48 mm) |
| Operating Temperature: | (-4 to +131) °F (-20 to +55) °C |
| Storage Temperature: | (-40 to +158) °F (-40 to +70) °C |
| Operating Humidity: | 90 % up to 131 °F (55 °C) |
| Pollution Degree: | 2 |
| Ingress Protection: | IP54 |
| EMC: | EN61326-1 |
| Safety Compliance: | EN/IEC 61010-1 to 1000V CAT IV EN/IEC 61010-2-030:2010 EN/IEC 61010-032:2002 |
User Manuals
Datasheets
Brochures
Clamp-on Meters
Power Quality (FR CAN)
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Comparison Charts
Application Notes
AC Line Splitter Model ALS-1 - How to Measure Power with a Clamp-on Watt Meter
True RMS, True InRush®, and True Megohmmeter®
Forms
Videos
What's New in DataView 3.50
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2119.48 | Multi-purpose Canvas Pouch for Ground Testers Models (6416-17), Clamp-on Meters Models (203, 401, 403-404, 601, 603), Power Meters Models (205, 405, 407, 605, 606-7), and Discontinued Models (3710-3731, 8220-30) Dimensions: (11 x 5 x 2.25) in |
$40.00 |
|
|
|
2121.05 | AC Line Splitter Model ALS-1 | $18.00 |
|
|
|

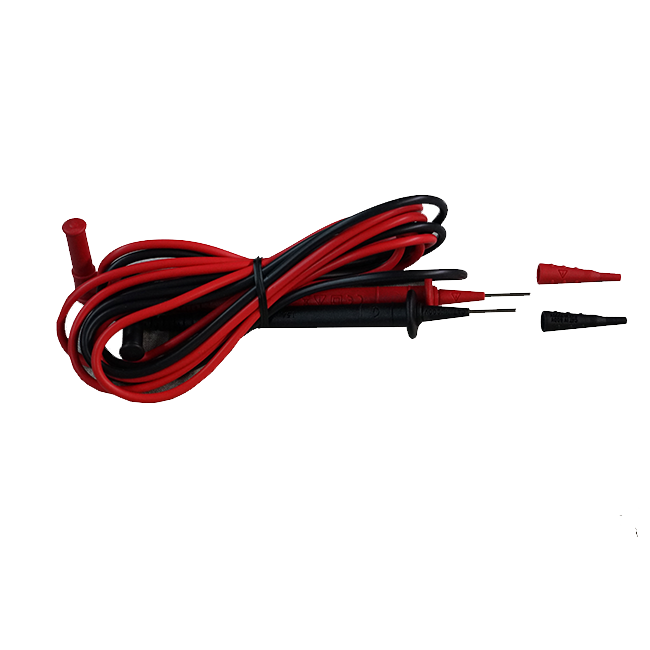

2154.74 | Lead - Replacement Set of 2, Needle Tip Color-coded (Red/Black) w/4mm Right-angle Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o Shield} for Models 5212, 5215 & 5217 (or any meter that accepts 4mm banana plugs) | $13.25 |
|
|
|
5000.94 | Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) | $28.00 |
|
|
|
5000.97 | Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2} | $9.00 |
|
|
|
5000.98 | Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2} | $9.00 |
|
|
|
5000.99 | Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) | $12.00 |
|
|
|
5100.00 | Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) | $12.00 |
|
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
