NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check

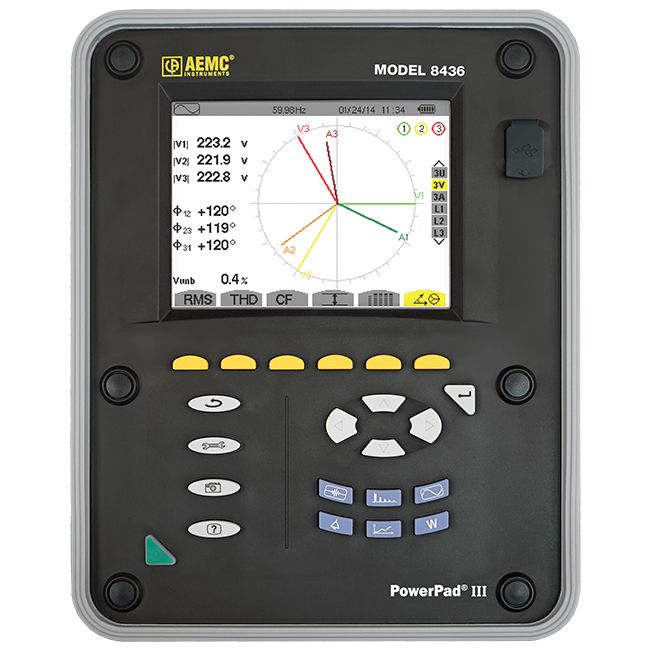

8436	2136.43	PowerPad^® Model 8436 (No Sensors - Waterproof IP67) NIST Calibration ($176.00 each)	$5,980.00	In stock at factory. Find a Distributor
8436	2136.44	PowerPad^® Model 8436 w/4 196A-24-BK (AmpFlex^®- Waterproof IP67 ) NIST Calibration ($215.00 each)	$6,990.00	Consult Factory for Availability

Model	8436
Cat. #	2136.43
Description	PowerPad^® Model 8436 (No Sensors - Waterproof IP67)
List Price	$5,980.00
In stock at factory. Find a Distributor

Model	8436
Cat. #	2136.44
Description	PowerPad^® Model 8436 w/4 196A-24-BK (AmpFlex^®- Waterproof IP67 )
List Price	$6,990.00
Consult Factory for Availability

Model 8436 - Cat. #2136.43: Includes extra-large tool bag, accessory pouch, 5 ft USB cable, (5) 10 ft black voltage leads with alligator clips, (12) color-coded input ID markers, 110 V US power cord, line power cord (100-1000) VDC to 400 Hz, NiMH battery, SD-Card, Quick Start Guide, high-voltage warning card, and a USB drive with DataView^® software and user manual.

Model 8436 Kit - Cat. #2136.44: Extra large tool bag, accessory pouch, 5 ft USB cable, (5) 10 ft black voltage leads with alligator clips, (12) color-coded input ID markers, 110 V US power cord, line power adapter (100-1000) VDC to 400 Hz, (4) water-tight AmpFlex^® 196A-24-BK, NiMH battery, SD card, Quick Start Guide, high-voltage warning card, and a USB drive with DataView^® software and user manual.

Inputs	4 Voltage / 4 Current
Sample Rate	256 per Cycle	12.8 kHz at 50 Hz	15.36 kHz at 60 Hz
Specification	Range	Measurement Range	Resolution	Accuracy (Typical)
Volt
Vrms (AC + DC)	1000 V P to N 2000 V P to P	(2 to 1000) V	0.1 V	±0.5 % Rdg + 200 mV
Vpk	1414 V	(2 to 1000) V	0.1 V	± 3 % Rdg + 2 V
Vrms Half Cycle	1000 V P to N 2000 V P to P	(2 to 1000) V	0.1 V	± 0.8 % Rdg + 1 V
Amps (accuracy excluding clamp accuracy)
Amps (AC + DC)	SR193 & MR193 MN193 5 A MN193 100 A	(1 to 1000) A 5 mA to 5 A 100 mA to 100 A	0.1 A 1 mA 10 mA	± 0.5 % Rdg + 200 mA ± 0.5 % Rdg + 2mA ± 0.5% Rdg + 20 mA
AmpFlex& MiniFlex	Range 100 A Range 6500 A Range 10 kA	100 mA to 100 A (10 to 6500) A 10 A to 10 kA	10 mA (0.1 and 1) A 1 A	± 0.5 % Rdg + 3 0mA ± 0.5 % Rdg + 3 A ± 0.5 % Rdg + 3 A
Apk	SR193 & MR193 MN193 5A MN193 100A	(1 to 1414) A 5 mA to 7.017 A 100 mA to 141.4 A	0.1 A 1 mA 10 mA	±1 % Rdg + 2 A ±1 % Rdg + 20 mA ±1 % Rdg + 200 mA
Apk AmpFlex & MiniFlex	Range 100 A Range 6500 A Range 10 kA	100 mA to 100 A (10 to 6500) A 10 A to 10 kA	1 A (0.1 and 1) A 1 A	± 3% Rdg + 600 mA ± 3 % Rdg + 5 A ± 3 % Rdg + 5 A
A Half Cycle	SR193 & MR193 MN193 5 A MN193 100 A	(1 to 1200) A 5 mA to 6 A 100 mA to 120 A	0.1 A 1 mA 10 mA	± 1 % Rdg + 1 A ± 1 % Rdg + 10 mA ± 1 % Rdg + 100 mA
Frequency	40 to 70 Hz		0.01	±0.01 Hz
Power
Watts (VA, var) P-Q-S	Probes: AmpFlex, MiniFlex	(10 to 10) MW (10 to 10) MW	4 digits min 4 digits min	± 1 % Rdg ± 1.5 % Rdg
Power Factor (Cos Φ/DPF)		-1.000 to 1.000	0.001	± 1 ° for Φ, + 5 cts for cos Φ
Energy
kWh (kVAh, kvarh) P-Q-S	(1 to 9,999,999) MWh (MVAh, Mvarh)			± 1 % Rdg
Harmonics	DC, 1 to 50
Volts & Amp %	f r Absolute V Absolute A THD	(0.0 to 1500) % (0.0 to 100) % (0.0 to 1000) V (0.0 to 1000) A (0.0 to 999.9) %	0.1 % 0.1 % 0.1 V 0.1 A 0.1 %	± 2.5 % Rdg + 5 cts ± 2.5 % Rdg + 5 cts ± 2.5 % Rdg + 1 V ± 2% Rdg + 1 A ± 2.5 % Rdg + 5 cts
Phase Angle		(-179 to 180) °	1 °	± 1.5 ° + 1 °x (n/12.5)
Also display Energy loss, Flicker, Plt (2H), Pst (10min), Unbalance V% & A%
General Features
Programmable Alarm	Up to 40 types: up to 16,362 recorded max
Transient Capture	Up to 210
Snapshot	Up to 50 (screen BMP + all channels data)
Interface	Isolated USB, SD card, and Dataview software for real time data, configuration, and reporting included
Memory	SD card (SDHC compliant, not formatted) standard, for trend Data, Internal memory for In-Rush, transients and alarms
Display	Color TFT 320 x 240 (1/4 OFT) with graphic representation of system parameters and measurements
Real-Time Clock	Time and date stamp for Trend mode, Transient display, System Monitor and event capture
Power Supply	External from (110 to 1000) V DC to 440 Hz
Charging Time	6 h approx.
Battery Backup	Rechargeable 9.6 V NiMH 4000 mA battery pack
Battery Life	≥10 h when display ON
Dimensions (L x W x H)	(10.6 x 9.85 x 7.09) in (270 x 250 x 180) mm
Weight	8.16 lbs (3.7 kg)
Altitude Operating	2000 m (6560 ft)
Operating Temperature	(32 to 122) °F (0 to 50) °C
Storage Temperature	(-4 to 122) °F (-20 to 50) °C
IP Rating	IP67 per IEC 60529 when housing close and A196 sensor used
Safety	IEC/EN 61010-1 (1000 V CAT III-600 V CAT IV), IEC 1326-1

Quick Start Guides

Model 8436

Comparison Charts

Power Quality Analyzer Comparison Chart - English

Power Quality Analyzer Comparison Chart - Español

Software

PowerPad III Control Panel

White Papers

For Electrical Power, Quality Matters

Forms

High Voltage Warning Sign (color)

High Voltage Warning Sign (black & white)

Firmware

PowerPad^® III Models 8333, 8336, and 8436 - Firmware

Applications - Graphic Illustrations

Manufacturing and Data Center Maintenance Testing

Videos

Quick Tip - Pole Mounting Kit for PEL 115 and PowerPad Model 8436

Model	Cat. #	Description	List Price	Quantity/Status
SL261	1201.51	AC/DC Current Probe Model SL261 NIST Calibration ($75.00 each)	$494.00
	2133.73	Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105 Dimensions: (18 x 9 x 12) in	$58.00
	2136.80	Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46	$19.00
	2137.82	Pole Mounting Kit for Model PEL 105, PEL 115 & PowerPad® Models 8435/8436 (Note: strapping to mount to a pole is not included)	$245.00
	2140.19	9.6V NiMH (color may vary) for Model 3945/3945-B, 8333, 8335, 8336, 8435, 8436, OX Oscilloscopes, C.A 6116, 6550 and 6555 (Note that 2 batteries are required for the 6550 and 6555)	$231.00
MR193-BK	2140.28	AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series NIST Calibration ($75.00 each)	$509.00
MN93-BK	2140.32	AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 NIST Calibration ($75.00 each)	$252.00
SR193-BK	2140.33	AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 NIST Calibration ($75.00 each)	$434.00
193-24-BK	2140.34	AmpFlex^® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$325.00
193-36-BK	2140.35	AmpFlex^® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$375.00	Consult Factory for Availability
MN193-BK	2140.36	AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 NIST Calibration ($75.00 each)	$339.00
	2140.40	Adapter – BNC Adapter for AC/DC Current Probe Model SL261 & SL361 to be used with Models 8220, 8333, 8335, 8336, 8436 & PEL 102 & PEL 103	$150.00
	2140.45	Replacement - Set of 12, color input ID markers for the PowerPad Series	$36.00
MA193-10-BK	2140.48	MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$278.00
2140.50	2140.50	MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$309.00
	2140.73	Lead - One 10 ft (3M) Black Lead (Waterproof cap) {Rated 1000V CAT IV} & One Black Alligator Clip {Rated 1000V CAT IV, 15A, UL} for Models 8435 & 8436	$39.00
196A-24-BK	2140.75	AmpFlex^® Sensor 24" (Waterproof - IP67) Model 196A-24-BK for use only with Models 8435, 8436, PEL 105, & PEL 115	$359.00
MA196-14-BK	2140.79	MiniFlex® Sensor 14" (Waterproof - IP67) Model MA196-14-BK for use only with Models 8435, 8436, PEL 105, & PEL 115 Special Order Only	$359.00	Consult Factory for Availability
	5000.14	Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers	$11.00
	5000.43	Probe - set of 2, color-coded (red/black) magnetized voltage probes (Rated 600V CAT IV, 1000V CAT III) for models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and PEL series (or any lead that accepts a 4mm safety banana plug)	$37.85
	5000.63	Power cord 110V for use with models 8435 & 8436 only	$59.95
	5000.89	Line power adapter 110-1000V DC to 400Hz (replacement, use only with 8436)	$120.00
	5000.99	Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)	$12.00
	2140.46	Cable - 5 ft USB cable for Model 6290, 6292, 8333, 8335, 8336, 8345, 8435, 8436, C.A 6116, C.A 1727 and PEL Series (DISCONTINUED replaced by 2136.80 )	$0.00	Discontinued
J93-BK	2140.49	AC/DC Current Probe Model J93-BK (Discontinued - No Replacement)	$0.00	Discontinued
	2140.78	MiniFlex® Sensor 24" Model MA193-24-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series (Discontinued: Replaced by Cat. #2140.80)	$0.00	Discontinued

Model	SL261
Cat. #	1201.51
Description	AC/DC Current Probe Model SL261
List Price	$494.00
NIST Calibration ($75.00 each)

Model
Cat. #	2133.73
Description	Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105 Dimensions: (18 x 9 x 12) in
List Price	$58.00

Model
Cat. #	2136.80
Description	Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46
List Price	$19.00

Model
Cat. #	2137.82
Description	Pole Mounting Kit for Model PEL 105, PEL 115 & PowerPad® Models 8435/8436 (Note: strapping to mount to a pole is not included)
List Price	$245.00

Model
Cat. #	2140.19
Description	9.6V NiMH (color may vary) for Model 3945/3945-B, 8333, 8335, 8336, 8435, 8436, OX Oscilloscopes, C.A 6116, 6550 and 6555 (Note that 2 batteries are required for the 6550 and 6555)
List Price	$231.00

Model	MR193-BK
Cat. #	2140.28
Description	AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series
List Price	$509.00
NIST Calibration ($75.00 each)

Model	MN93-BK
Cat. #	2140.32
Description	AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price	$252.00
NIST Calibration ($75.00 each)

Model	SR193-BK
Cat. #	2140.33
Description	AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price	$434.00
NIST Calibration ($75.00 each)

Model	193-24-BK
Cat. #	2140.34
Description	AmpFlex^® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$325.00
NIST Calibration ($75.00 each)

Model	193-36-BK
Cat. #	2140.35
Description	AmpFlex^® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$375.00
Consult Factory for Availability

Model	MN193-BK
Cat. #	2140.36
Description	AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price	$339.00
NIST Calibration ($75.00 each)

Model
Cat. #	2140.40
Description	Adapter – BNC Adapter for AC/DC Current Probe Model SL261 & SL361 to be used with Models 8220, 8333, 8335, 8336, 8436 & PEL 102 & PEL 103
List Price	$150.00

Model
Cat. #	2140.45
Description	Replacement - Set of 12, color input ID markers for the PowerPad Series
List Price	$36.00

Model	MA193-10-BK
Cat. #	2140.48
Description	MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$278.00
NIST Calibration ($75.00 each)

Model	2140.50
Cat. #	2140.50
Description	MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$309.00
NIST Calibration ($75.00 each)

Model
Cat. #	2140.73
Description	Lead - One 10 ft (3M) Black Lead (Waterproof cap) {Rated 1000V CAT IV} & One Black Alligator Clip {Rated 1000V CAT IV, 15A, UL} for Models 8435 & 8436
List Price	$39.00

Model	196A-24-BK
Cat. #	2140.75
Description	AmpFlex^® Sensor 24" (Waterproof - IP67) Model 196A-24-BK for use only with Models 8435, 8436, PEL 105, & PEL 115
List Price	$359.00

Model	MA196-14-BK
Cat. #	2140.79
Description	MiniFlex® Sensor 14" (Waterproof - IP67) Model MA196-14-BK for use only with Models 8435, 8436, PEL 105, & PEL 115 Special Order Only
List Price	$359.00
Consult Factory for Availability

Model
Cat. #	5000.14
Description	Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers
List Price	$11.00

Model
Cat. #	5000.43
Description	Probe - set of 2, color-coded (red/black) magnetized voltage probes (Rated 600V CAT IV, 1000V CAT III) for models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and PEL series (or any lead that accepts a 4mm safety banana plug)
List Price	$37.85

Model
Cat. #	5000.63
Description	Power cord 110V for use with models 8435 & 8436 only
List Price	$59.95

Model
Cat. #	5000.89
Description	Line power adapter 110-1000V DC to 400Hz (replacement, use only with 8436)
List Price	$120.00

Model
Cat. #	5000.99
Description	Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price	$12.00

Model
Cat. #	2140.46
Description	Cable - 5 ft USB cable for Model 6290, 6292, 8333, 8335, 8336, 8345, 8435, 8436, C.A 6116, C.A 1727 and PEL Series (DISCONTINUED replaced by 2136.80 )
List Price	$0.00
Discontinued

Model	J93-BK
Cat. #	2140.49
Description	AC/DC Current Probe Model J93-BK (Discontinued - No Replacement)
List Price	$0.00
Discontinued

Model
Cat. #	2140.78
Description	MiniFlex® Sensor 24" Model MA193-24-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series (Discontinued: Replaced by Cat. #2140.80)
List Price	$0.00
Discontinued
