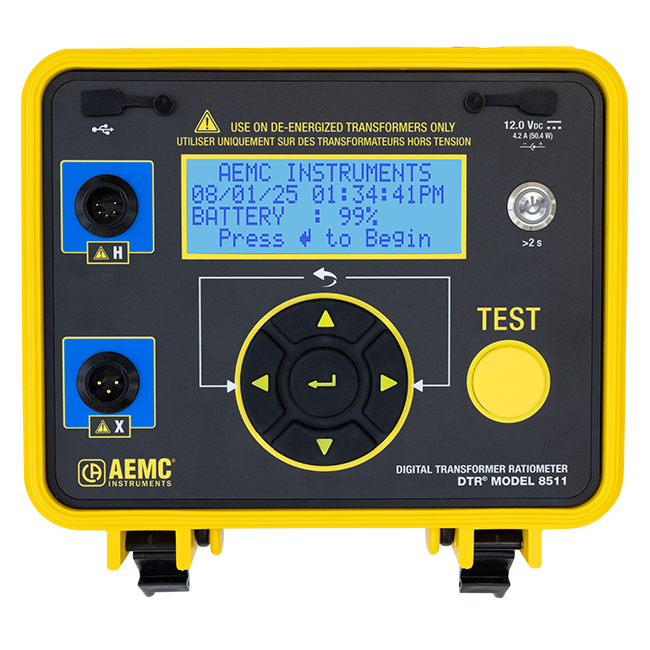

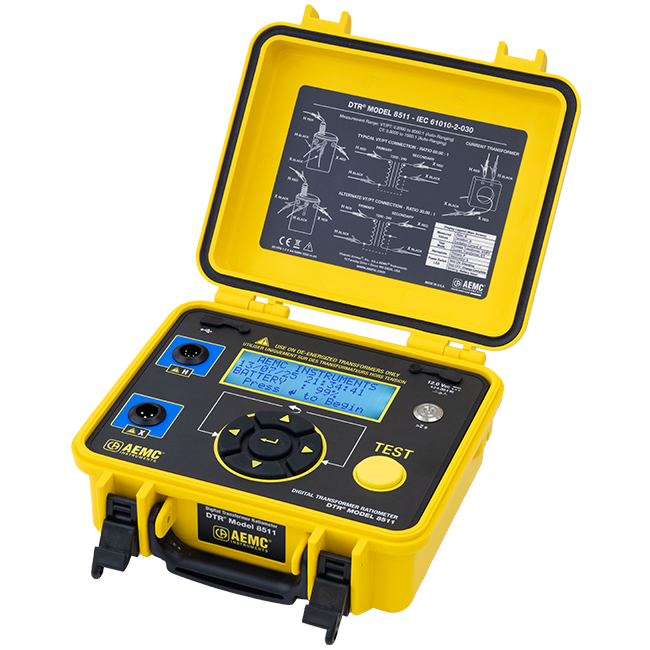

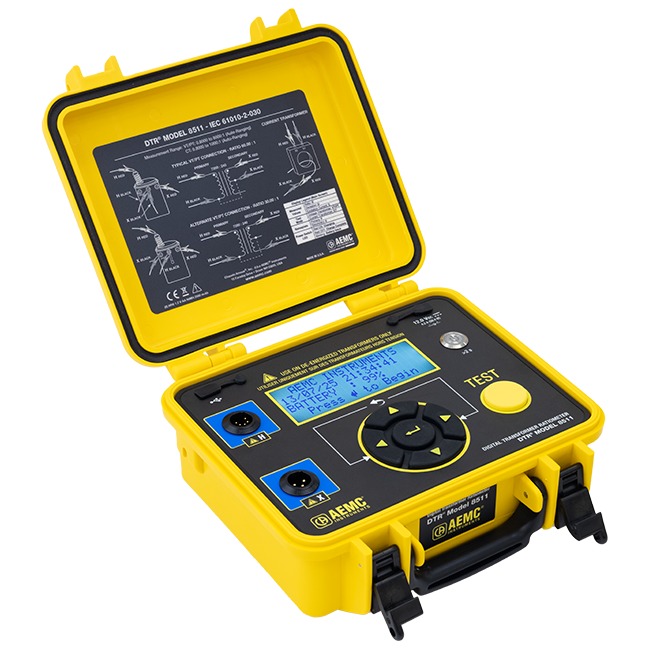

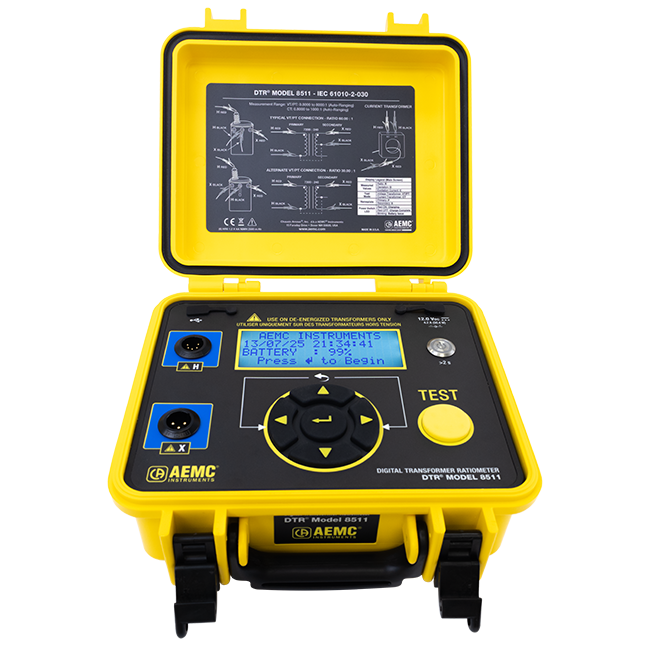

| DTR 8511 | 2136.55 | Digital Transformer Ratiometer DTR® Model 8511 (110/220) V | $3,790.00 | Consult Factory for Availability |
|
|
||||||||||
DTR® Model 8511 - Cat. #2136.55 :
Includes extra-large carrying bag, set of (2) 15 ft test leads (primary and secondary) with (4) alligator clips (red/black), 6 ft USB Type-C to Type-C cable, USB Type-C wall power adapter, 10 ft USB Type-A to Type-C cable, AC power adapter w/cord, (6) internal rechargeable AA NiMH batteries, and USB drive with DataView® software and user manual.
| TECHNICAL SPECIFICATIONS 1 | ||
| Catalog # | 2136.55 | |
| MEASUREMENTS | ||
| VT / PT Ratio Range | Auto-Ranging 0.8000:1 to 8000.0:1 | |
| VT / PT Accuracies* | Ratio 0.8000 to 9.9999 ± 0.2 % of Reading Ratio 10.000 to 999.99 ± 0.1 % of Reading Ratio 1000.0 to 4999.9 ± 0.2 % of Reading Ratio 5000.0 to 8000.0 ± 0.25 % of Reading |
|
| Excitation Current | Up to 2 A | |
| CT Ratio Range | Auto-Ranging 0.8000 to 1000.0 | |
| CT Accuracy* | ± 0.5 % of Reading | |
| Output Voltage (VT / PT) | 30 V @ 64 Hz | |
| Output Voltage (CT) | 5 V @ 64 Hz | |
| RECORDING | ||
| Data Storage | 9801 measurements | |
| OTHER FEATURES | ||
| Communication | USB Type-A to Type-C USB 2.1 | |
| Software | DataView® included, free App for Android™ | |
| Languages Support | English,Spanish,French,Italian,German,Portuguese | |
| Display | LCD 20 characters x 4 line display | |
| Powered from phase voltage | Phase Power Adapter (Cat. #2137.90) | |
| Power Supply | USB Type-C and 12 VDC charger | |
| Measurement Method | In accorance with IEEE Std. C57.12.90TM | |
| Buttons | 6 total buttons (One to start testing and five for navigation) | |
| Battery Life | 500 VT / PT Tests | |
| Battery Charge Time1 | 10 h | |
| Weight | 7.1 lbs (3.2 kg) | |
| SAFETY AND MECHANICAL | ||
| Safety Compliance | IEC 61010-2-030, IEC 61326-1, IEC 60529, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-31, Pollution 2 | |
* : Reference Condition: (23 ± 5) ºC, (50 to 70) % RH, full battery charge, no external fields or noise.
User Manuals
Quick Start Guides
Datasheets
Brochures
Rent Now
Comparison Charts
Software
Forms
Troubleshooting
Applications - Graphic Illustrations
Generation, Transmission & Distribution
Power Distribution (Switchgear)
Transformer Acceptance Maintenance Testing
Videos
AEMC - Introducing the NEW DTR 8511: Digital Transformer Ratiometer
AEMC - Unboxing the NEW DTR 8511
AEMC - DTR 8511 vs DTR 8510: What's New and Improved?
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2118.53 | Fuse – Set of 5, 0.5A, 250V, (Slow Blow), 5 x 20mm for Models DTR® 8500 & 8510 | $14.25 |
|
|
|
2118.55 | Fuse – Set of 3, 4 A, 125 V, (Slow Blow), 5 x 20 mm for Models DTR® 8500 & 8510 | $26.25 |
|
|
|
2133.72 | Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in. For use with PEL Models: PEL 102, PEL 103, PEL 112 & PEL 113, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914. |
$39.00 |
|
|
|
2133.73 | Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105 Dimensions: (18 x 9 x 12) in |
$58.00 |
|
|
|
2133.76 | Bag - Extra Large Carrying Bag w/Rubber Bottom (Replacement for Model 8345 & OX9000 series) may be used with Models: 3945/3945-B, 6240, 6250, 6255, 6471, 6472, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8436, 8510, PEL 105, & PEL 115 Dimensions: (22.5 x 12.5 x 7.5) in |
$148.00 |
|
|
|
2136.77 | Lead – Set of 2 (Replacement), 15 ft for DTR® Models 8500 & 8510 Replacement for Cat #2118.48 | $299.00 |
|
|
|
2136.78 | Battery – Replacement, Set of 2, 12V NiMH Rechargeable for DTR® Model 8510 | $255.00 |
|
|
|
2136.79 | Battery Charger – Replacement, 110 to 240V Charger for DTR® Model 8510 | $265.00 |
|
|
|
2136.80 | Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46 | $19.00 |
|
|
|
5000.99 | Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) | $12.00 |
|
|
|
5100.00 | Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) | $12.00 |
|
|
|
5100.02 | Latches - Replacement set of 2 for use with AEMC Yellow cases | $13.50 |
|
|
|

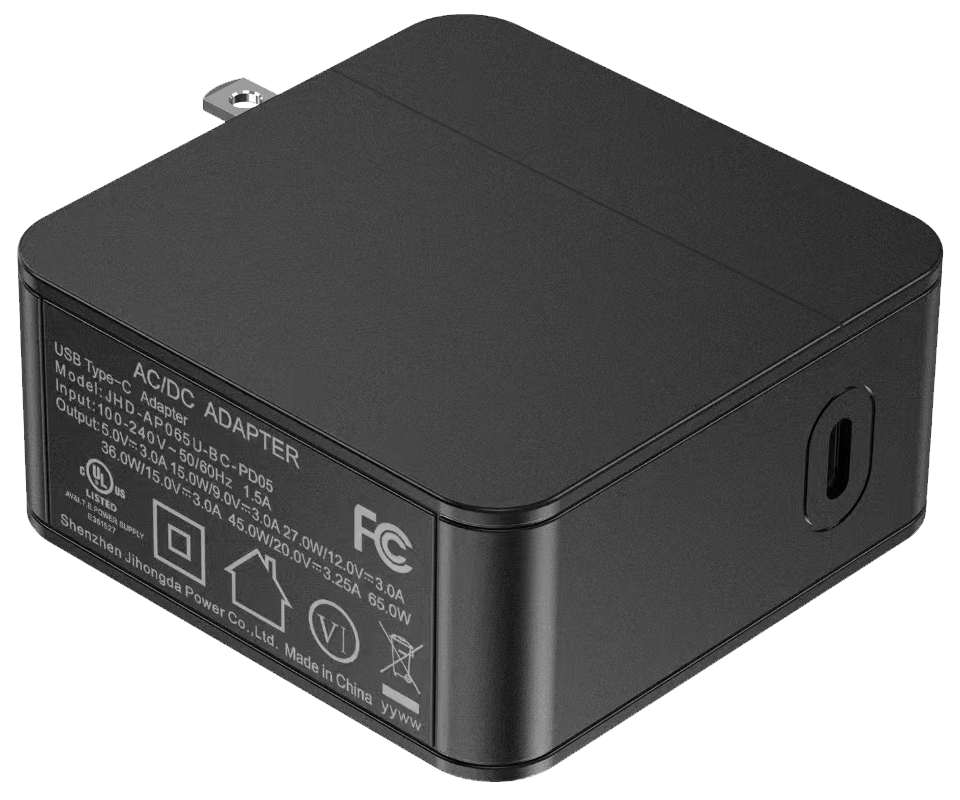

5100.25 | Adapter - USB Type C Wall Power Adapter | $32.00 | Consult Factory for Availability | |
|

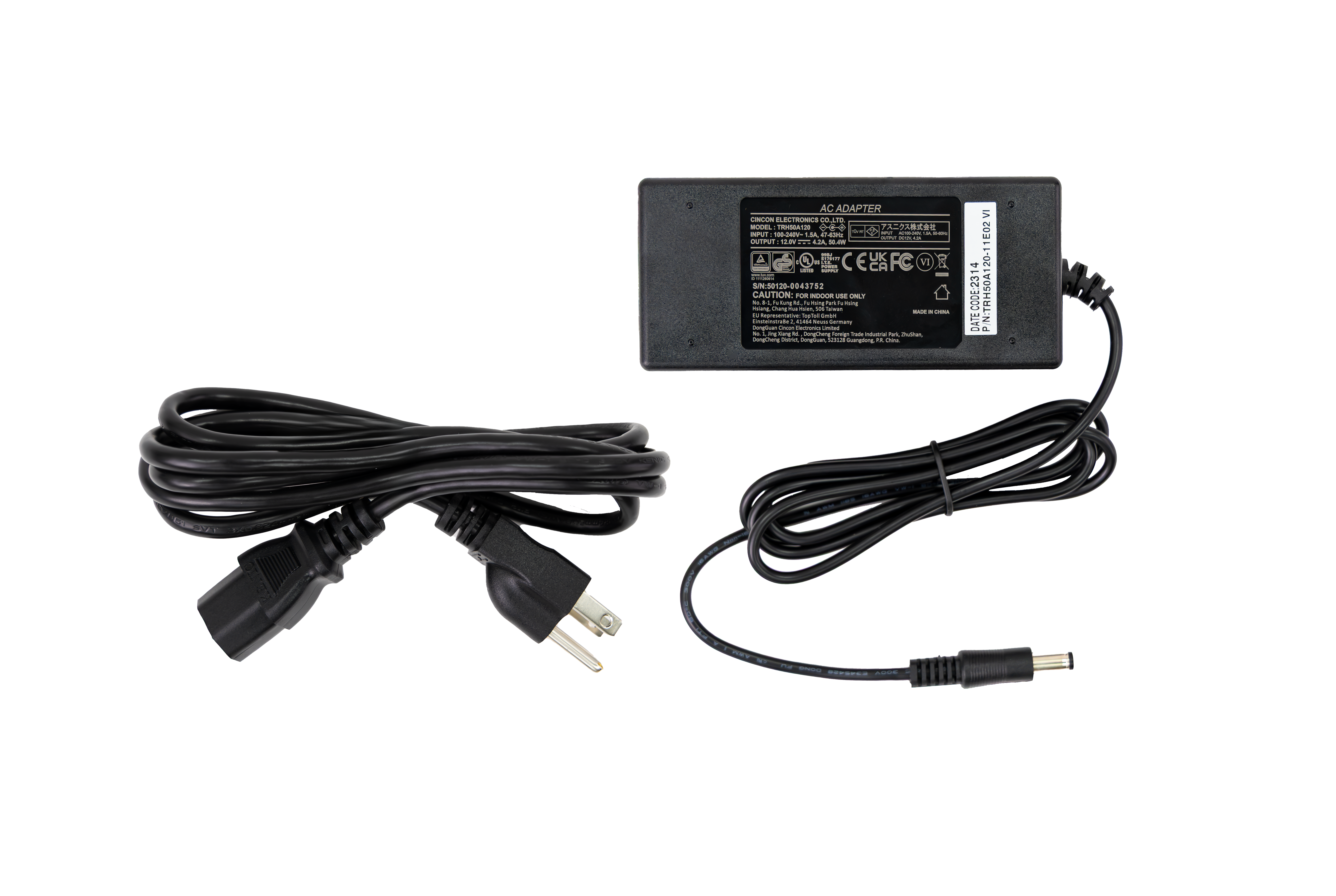

5100.26 | Adapter - Replacement, AC Power Adapter w/ Cord for DTR Model 8511 | $84.00 | Consult Factory for Availability | |
|

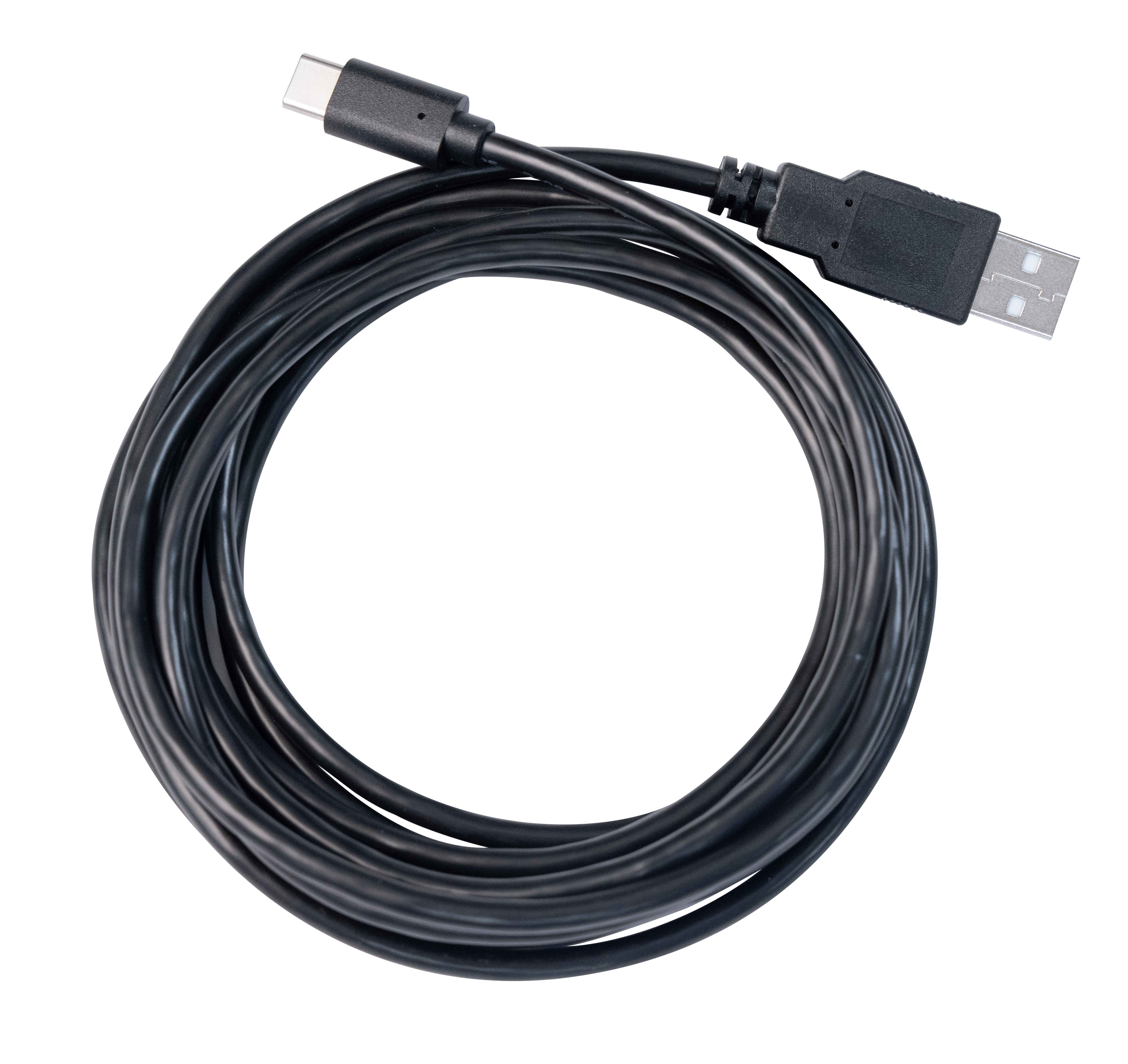

5100.27 | Cable - 10 ft Type C to Type A | $18.00 | Consult Factory for Availability | |
|

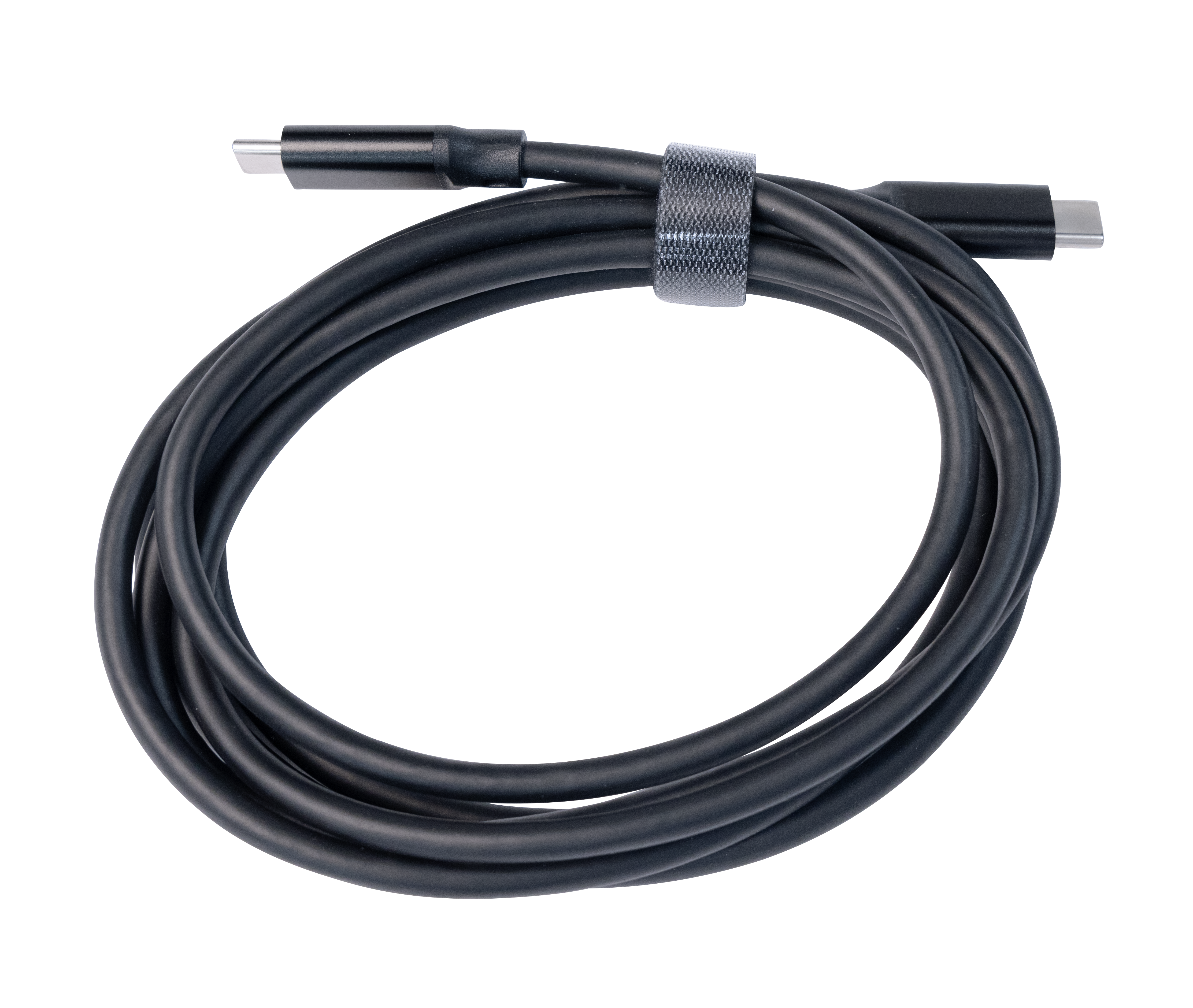

5100.28 | Cable - 6ft USB Type C 3.1 PD to Type C | $25.00 | Consult Factory for Availability |
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
