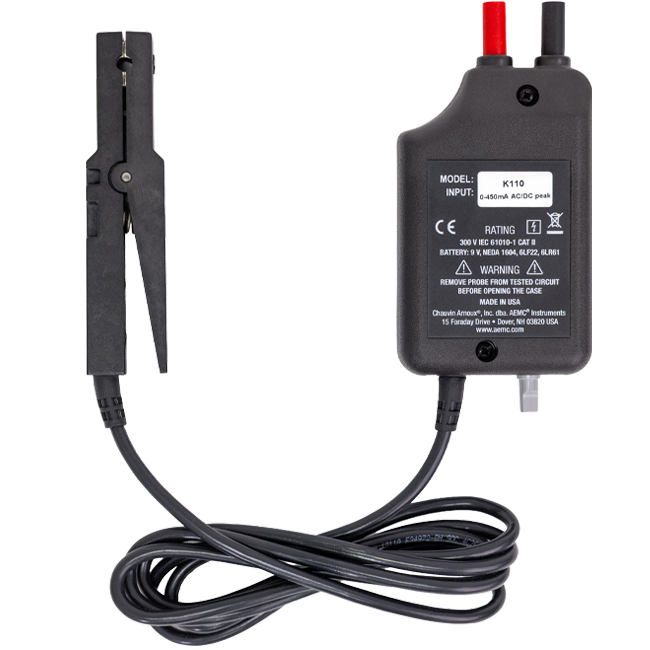

AC/DC MicroProbe Model K110 (450 mA, 10 mV/mA)

The K110 AC/DC Microprobe is built for the low end. It reads currents as low as 50 µA DC (150 µA AC) up to 400 mA peak — AC and DC — and outputs 10 mV per mA. That's ten times the signal-per-amp of a standard AC/DC clamp, giving you cleaner waveforms on your oscilloscope and finer resolution on your DMM in the ranges where every microamp counts.

Same slim jaw as the K100 probe. Same non-intrusive clamp-on measurement. Different scaling — tuned for the bench, the R&D lab, and the process-control loop where low-current accuracy is everything.

Why the K110 Probe

High-gain 10 mV/mA output
Sub-milliamp resolution
Scope-ready waveform capture
True AC and DC in one probe
Non-intrusive 4-20 mA loop verification
Slim jaw for crowded wiring.

APPLICATIONS

WHERE THE K110 SHINES
- Industrial & Process Control - Calibrate and troubleshoot 4-20 mA process control loops without ever breaking the circuit.
- For controls engineers, calibration techs, and field service techs
- Electronics R&D Test Labs - Scope-ready 10 mV/mA output for capturing low-level current waveforms no standard clamp can see.
- For design, bring-up, and validation engineers

ALSO WELL-SUITED FOR
- Battery & Low-Power Electronics - Sub-milliamp precision for IoT and embedded devices, down to 50 µA.
- Automotive Electronics - Precision parasitic-draw diagnostics in the microamp range.
- EV & E-Mobility - 12 V parasitic draws and BMS sense-line troubleshooting.
- Energy & Renewables - Non-intrusitve standby and low-string measurement on solar/PV systems.

Also serving: Avionics & Aerospace, Medical Devices, Data Centers, Defense, Marine, and Drones/UAS.

ALSO CONSIDER

Model K100 — If your work goes above 400 mA and up to 4 A, or you want a single probe that covers a broader current range for general troubleshooting, look at the K100. Same slim jaw, lower output gain (1 mV/mA), wider window.

Technical Hotline: (800) 343-1391 | www.aemc.com

Talk to an AEMC applications engineer about your measurement — free.

Check out the AEMC^® Models K100 and K110 MicroProbes!

See how the AEMC^® K100 and K110 AC/DC MicroProbes make microamp-level current measurements simple.

These advanced yet intuitive probes cover 4-20 mA loops, electronics, automotive parasitic draw, fault location, and more — all without interrupting the circuit!

Watch Now!

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
K110	2111.73	AC/DC MicroProbe Model K110 NIST Calibration ($75.00 each)	$1,050.00	Consult Factory for Availability

Model	K110
Cat. #	2111.73
Description	AC/DC MicroProbe Model K110
List Price	$1,050.00
Consult Factory for Availability

AC/DC Microprobe Model K110 - Cat. #1200.67: Includes 9 V battery and user manual.

TECHNICAL SPECIFICATIONS ¹

Model

K100

K110

ELECTRICAL

AC Range

(0 to 3) ARMS

(0 to 300) mARMS

DC Range

0 to ± 4 A

0 to ± 400 mA

Output Signal

1 mV/mA

10 mV/mA

Resolution

*Mfg. Before 04/01/24* DC: 50 µA typical AC: 100 µA typical
*Mfg.After 04/01/24* DC: 100 µA typical AC: 200 µA typical	*Mfg.After 04/01/24* DC: 50 µA typical AC: 150 µA typical

Typical Accuracy

*Mfg. Before 04/01/24* DC: 1 % Reading ± 200 µA AC: 2 % Reading ± 200 µA	*Mfg. Before 04/01/24* DC: (1 to 450) mA: 0.5 % Reading ± 150 µA AC: 0.8 % Reading ± 300 µA
*Mfg. After 04/01/24* DC: 1 mA to 2 A: 1 % Reading ± 300 µA (2 to 4) A: 2 % Reading ± 500 µA AC: 2 % Reading ± 500 µA	*Mfg. After 04/01/24* DC: (1 to 200) mA: 0.5 % Reading ± 150 µA (200 to 400) mA: 1.5 % Reading ± 200 µA AC: 1 % Reading ± 300 µA

Frequency Range / Bandwidth

DC to 2 kHz

DC to 1.2 kHz

MECHANICAL

Max Conductor Size

Ø 0.18 in (4.5 mm)

Output Termination

4 mm safety banana plugs

POWER

Power Supply

9 V alkaline battery

Battery Life

20 h

SAFETY

Safety Rating

300 V CAT II

Ingress Protection

IP40

COMPATIBILITY

Compatible Instruments

DMMs, Oscilloscopes

Note 1: Refer to the user manual for complete technical specifications
Consult factory for NIST Calibration prices.

User Manuals

Models K100 and K110

K110 and MTX-329X DMM - Using the Clamp Function - English

Datasheets

Model K110 - English

Modelo K110 - Español

Comparison Charts

Current Probe Selection Chart - English

Current Probe Selection Chart - Español

Application Notes

Glossary of Current Probe Terms

Technical Bulletins

Watts Current Issue 06

Applications - Graphic Illustrations

Manufacturing and Data Center Maintenance Testing - Current Probes

Data Centers

Videos

AC/DC Microamp Current Measurement Made Simple - The K100 and K110
