Electrical Test Tools

Everyday low cost electrical test tools to help you measure voltage and current.

Electrical Test Tools

Why Choose AEMC® Electrical Test Tools?

Cost Effective & Quick Ship

AEMC® offers economically priced phase/motor rotation meters, line splitters, voltage and outlet testers employing both contact and non-contact measurement. Essential for every electrician’s tool bag.

We offer a fast delivery of one week for our in-stock products.

Safety

Non-contact measurement features provide for operator safety for both low voltage and high voltage applications.

Features

Voltage Absence Testers

  • Full Autotest with indication of the type of fault
  • IP65 protection for indoor and outdoor use
  • Automatic standby
  • Audio and visual continuity

Phase & Motor Rotation Meters

  • Identify phase rotation on 3-Phase systems
  • Identify live and open/de-energized phases
  • Ideal for measuring the proper rotation of motors, conveyors, pumps and other electrical devices interconnected ton the power line system

Tech Support

AEMC provides complete technical support through our technical hot line 800-945-2362 (ext.351), speak directly to one of our tech support team members. Or e-mail your electrical test tool questions to our tech team techsupport@aemc.com

  • Voltage Absence Tester Model C.A 771

    Cat. #2121.14
    (LEDs, 12VAC ≤ U ≤ 1000VAC; 12VDC ≤ U ≤ 1400VDC)

  • Voltage Absence Tester Model C.A 773

    Cat. #2121.15
    Voltage Tester Model C.A 773 (LEDs & Backlit Display, 12VAC ≤ U ≤ 1000VAC; 12VDC ≤ U ≤ 1400VDC)

  • Phase Rotation Meter Model 6608

    Cat. #2121.10
    Operating voltages 40 to 850VAC between phases, Frequency range 15 to 400HZ, Test current 1mA
    Verify proper phase wiring, detect open or de-energized phases and determine correct wiring for proper rotation on motors, pumps, etc.

  • Phase & Motor Rotation Meter Model 6609

    Cat. #2121.11
    Operating voltages: Leads Connected 40 to 600VAC Between Phases, Unconnected 120 to 400VAC Between Phases, Frequency range 15 to 400HZ
    Verify proper phase wiring, detect open or de-energized phases and determine correct wiring for proper rotation on motors, pumps, etc.

  • Phase Rotation Meter Model 6610

    Cat. #2121.12
    Operating voltage 75 to 1000VAC, Frequency range 45 to 65Hz
    Verify proper phase wiring, detect open or de-energized phases and determine correct wiring for proper rotation on motors, pumps, etc.

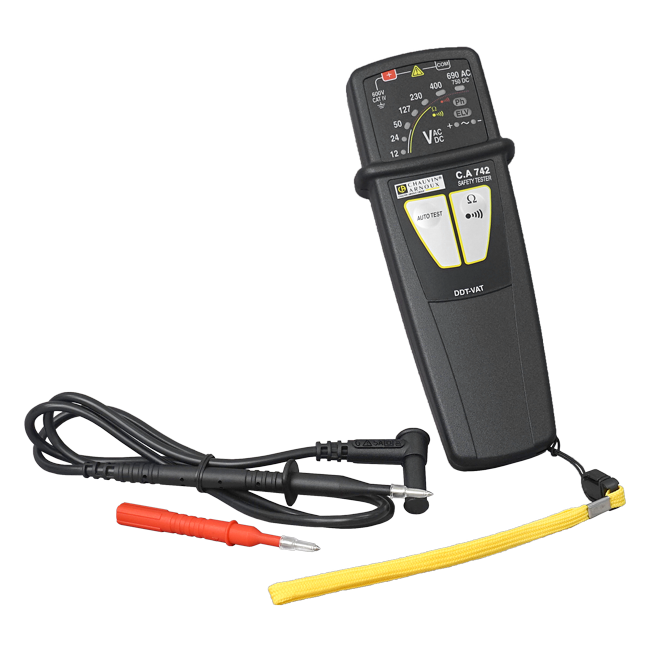

  • Low Voltage Two-Pole Absence Detector Model C.A 742 DDT

    Cat. #903.1917.42Z
    The C.A 742 Voltage Absence Tester is an essential tool for any electrician to check that no voltage is present before working on an electrical installation connected to the network. It complies with IEC 61243-3 Edition 2 and can be used to work on any indoor or outdoor 600V CAT IV installation. To fulfil the requirements of the standards and legislation in certain countries, there are 2 references, with or without IP2X accessories.
