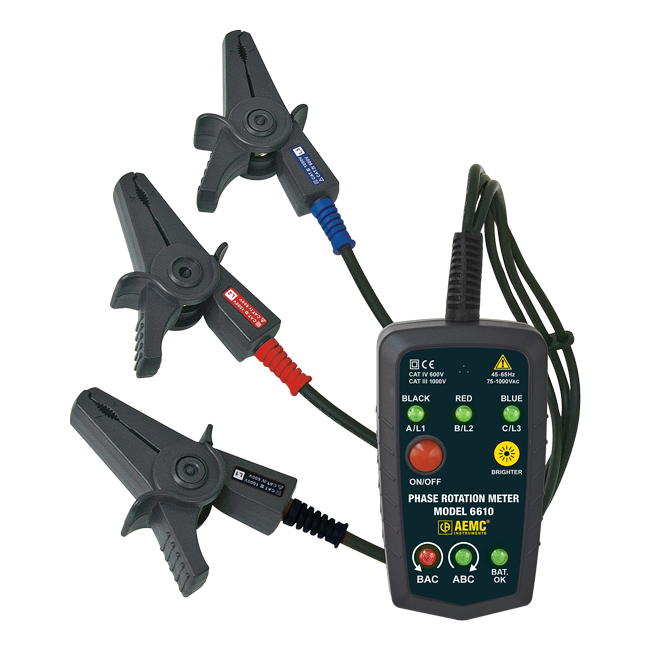

Phase Rotation Meter Model 6610

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is a phase meter with voltage sensing detector clips (no metal contact points) designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. The presence of live wires and phase sequence are provided by LED indication and buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator phase rotation direction.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
6610 2121.12 Phase Rotation Meter Model 6610 $179.00
Model6610
Cat. #2121.12
DescriptionPhase Rotation Meter Model 6610
List Price$179.00
Print
Connection Method Non-Contact Static Induction with Color-coded Leads
Operating Voltage 75 to 1000VAC
Frequency Range 45 to 65Hz
Phase Rotation Indicator LEDs For ABC or BAC Rotation
Auto OFF Yes if not in use for 5 Minutes
Power Supply One 9V Alkaline Battery (Included)
Low Battery Indicator Yes
Dimensions 5.0 x 2.8 x 1.8” (128 x 72 x 46mm)
Maximum Clamping Diameter 1.18" (30mm)
Weight (With Battery) 13.1 oz (375g)
Operating Temperature 14° to 122°F (-10° to 50°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Relative Humidity 80%
Safety Compliance IEC 61010-1; 1000V CAT III ; 600V CAT IV
Electro-Magnetic Compatibility EN 61326-1
CE Approved Yes

User Manual

Datasheet

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
5000.41 Case - replacement soft carrying case for model 6610 $11.95 Out of Stock Consult Factory for Availability
Model
Cat. #5000.41
DescriptionCase - replacement soft carrying case for model 6610
List Price$11.95
Out of Stock Consult Factory for Availability
