NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status | |
|---|---|---|---|---|---|

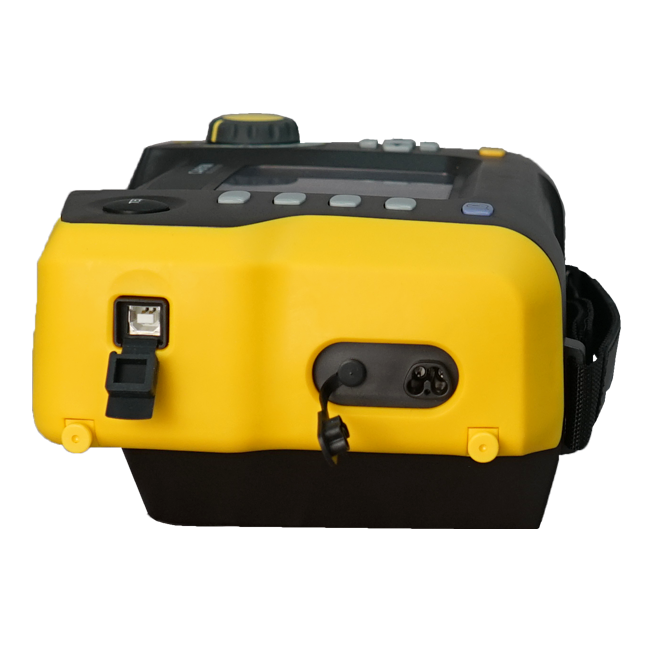

| C.A 6116N | 2138.06 | Multi-Function Installation Model C.A 6116N | $2,860.00 | Consult Factory for Availability | |
| C.A 6116N KIT | 2138.10 | Multi-Function Installation Model C.A 6116N Kit (US) {Includes C177A, Dataview™ Software} | $3,250.00 | Consult Factory for Availability |
|
|
||||||||||
|
||||||||||
Model CA 6116N- Cat. #2138.06: Includes carrying bag, US power cord and charger, Li-lon battery pack, USB A/B cable, set of (3) 3-prong color-coded safety voltage leads (red, blue, green), set of (3) color-coded test probes (red, blue, green), set of (3) alligator clips (red/blue/green), set of (2) color-coded safety leads (red/black) 4mm straight plug, 3-prong US measurement cord, remote test probe, wrist strap, hands-free strap, multi-lingual safety cared, and a USB drive with DataView® software and a user manual.
Model CA 6116N Kit- Cat. #2138.10: Includes carrying bag, AC Current Probe Model C177A, US power cord and charger, Li-lon battery pack, USB A/B cable, set of (3) 3-prong color-coded safety voltage leads (red, blue, green), set of (3) color-coded test probes (red, blue, green), set of (3) alligator clips (red/blue/green), set of (2) color-coded safety leads (red/black) 4mm straight plug, 3-prong US measurement cord, remote test probe, wrist strap, hands-free strap, multi-lingual safety cared, and a USB drive with DataView® software and a user manual.
| INSULATION | |
| Rated Voltage | Utest: 50 /100 / 250 / 500 / 1000VDC |
| Range / Resolution / Accuracy | 0.01MΩ to 2GΩ / 10kΩ to 1MΩ / ±(5% of Reading +3cts) |
| Short Circuit Current | ≤3mA |
| CONTINUITY | |
| I rated / Range / Resolution / Accuracy | I > 200mA / 39.99Ω/ 0.01Ω / ±(1.5% of Reading +2cts) 12mA / 39.99Ω & 399.9Ω / 0.01 & 0.1Ω / ±(1.5% of Reading +5cts) with beep |
| RESISTANCE | |
| Range / Resolution / Accuracy | 4kΩ / 1Ω / ±(1.5% of Reading +5cts) 40kΩ - 400kΩ / 10Ω - 100Ω / ±(1.5% of Reading +2cts) |
| GROUND | |
| 3P GROUND Range / Resolution / Accuracy |
0.50Ω to 40Ω/ 0.01Ω / ±(2% of Reading +10cts) 40Ω to 15kΩ / 0.1Ω to 1Ω / ±(2% of Reading +2cts) 15kΩ to 40kΩ / 10Ω/ ±(10% of Reading +2cts) |
| Others | Measurement of resistance of auxiliary stakes RH & RS (up to 40kΩ) |
| Ufk | Complies with SEV 3569 |
| 1P SELECTIVE GROUND Range / Resolution / Accuracy |
0.20Ω to 39.99Ω - 40Ω to 399.9Ω / 0.01Ω – 0.1Ω / ±(10% of Reading +10cts) (ISel via clamp) |
| LOOP IMPEDANCE (Zs (L-PE0 AND Zi (L-N OR L-L) – 1P LIVE GROUND | |
| Live Ground Installation Voltage / Freq. |
90 to 500V / 15.8 to 17.5Hz - 45 to 65Hz |
| High-Current Mode with TRIP Zs (L- PE) & Zi (L- N or L - L) Range / Resolution / Accuracy |
Max. test current: 7.5A 0.100Ω to 0.5Ω / 0.001Ω/ ±(10% of Reading +20cts) • 0.5Ω to 3.999Ω / 0.001Ω/ ±(5% of Reading +20cts) 3.999 to 39.99Ω/ 0.01Ω / ±(5% of Reading +2cts) • 39.99Ω to 399.99Ω / 0.1Ω/ ±(5% of Reading +2cts) |
| NO TRIP Mode (Zs (L – PE) only) | Test current 6mA – 9mA – 12mA (as required) 0.20 to 0.99Ω / 0.01Ω / ±(15% of Reading +10cts) 1.00 to 1.99Ω / 0.01Ω / ±(15% of Reading +3cts) 2.00 to 39.99 / 0.01Ω / ±(10% of Reading +3cts) 40.00 to 399.9Ω / 0.1Ω ±(5% of Reading +2cts) 400 to 3999Ω / 1Ω ±(5% of Reading +2cts) |
| Calculation Of IK Short Circuit Current (PFC (Zs), I Sc PSCC (Zi) | Fault current and short-circuit current: 0.1 to 20kA |
| Others | Measurement of the resistive and inductive components of Zs and Zi impedances |
| Type AC and Type A RCDs | |
| Installation Voltage / Frequency | 90 to 500V / 15.8 to 17.5Hz and 45 to 65Hz |
| IΔn | 10/30/100/300/500/650/1000mA (90 to 280V) 10/30/100/300/500mA (280 to 550V) or Variable Ramp and Pulse test |
| N-trip Test | At ½ IΔn – Duration 1,000ms or 2,000ms |
| Ramp Mode | 0.2 to 0.5 x IΔn(Uf) / 0.3 x IΔn to 1.06 IΔn increments of 3.3% x IΔn |
| Trip Test: Reading: Range / Resolution / Accuracy |
0.2 to 0.5 x IΔn(Uf) / 0.5 x IΔn / 2 x IΔn(selective) / 5 x IΔn Pulse: 0 to 500ms / 0.1 and 1ms / 2ms, Ramp mode: 0 to 200ms / 0.1ms / 2ms |
| OTHER MEASUREMENTS | |
| Current By Current Probe C177A | 5.0mA to 199.9A (0.5mA with voltage between L and PE) |
| Current By Current Probe MN77 | 5.0mA to 19.99A (1mA with voltage between L and PE) |
| Voltage | 0 to 550Vac/dc / DC and 158 to 500Hz |
| Frequency | 10 to 500Hz |
| Phase Rotation | 20 to 500VAC |
| Active Power | 0 to 110kW single-phase / 0 to 330kW three-phase Simultaneous display of voltage and current waveforms |
| Harmonics | Voltage and Current / up to 50th order / THD-F / THD-R |
| GENERAL SPECIFICATIONS | |
| Display | Large 5.7” backlit graphic color LCD (320x240 pixels) |
| Storage/Communication | USB for data transfer with DataView software (Included) |
| Battery | Lithium-Ion 10.8V, 5.8Ah |
| Battery life | Up to 30 hours |
| Protection | IP 53 / IK04 |
| Dimension | 11x7.48x5.04” (280x190x128mm) |
| Weight | 4.85lbs (2.2kg) |
| EMC | IEC61326-1 |
| Electrical Safety | IEC61010-1 – 600V CAT III – 300V CAT IV – IEC 61557 |
User Manuals
Model 6116/6117
Battery Pack Replacement for PowerPad® IV 8345, Oscilloscope Models OX 9000 Series, and Multi-Function Installation Tester Models CA 6116N & CA6117
Quick Start Guides
Datasheets
Model CA 6116N - English
Multi-Function Installation Tester Model CA 6116N Kit - English
Modelo CA 6116N - Español
Kit del controlador de instalaciones multifunción modelo CA 6116N - Español
Brochures
Comparison Charts
Software
Application Notes
Battery Recharge Time / Rechargeable NiMH Notice
Tiempo de recarga de las baterías / Aviso de NiMH recargable
An Introduction to Insulation Resistance Testing
Megohmmeter Calibration Checker and Ground Resistance Checker
Videos
Battery Pack (Cat. #2960.47) Replacement Procedure (PowerPad ® IV 8345, OX 9000 Series, Installation Testers CA 6116N & CA 6117
Understanding Insulation Resistance Testing
What's New in DataView 3.50
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2135.35 | Ground Resistance Test Kit for 3-Point Testing - 150ft Test Kit for 3-Point Testing, Kit (Carrying Bag, [2] 150 ft Color-coded Leads on Spools (Red/Blue), [1] 30 ft Lead (Green), [2] 5 ft Color-coded Leads (Red/Blue), [2] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) | $595.00 |
|
|
|
2135.36 | Ground Resistance Test Kit for 4-Point Testing - 300ft Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 300 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) | $760.00 |
|
|
|
2138.54 | Continuity Probe for use with Megohmmeters and Installation Testers | $121.00 |
|
|
|
2155.75 | Megohmmeter Test Probe (600V CAT IV) for Models 6522-6536, 6116N & 6117 | $255.00 |
|
|
|
2960.47 | Battery – Replacement 5.8AH 61.9Wh Li-ion Battery Pack for Models C.A6116N, C.A6117, OX9104-OX9304, & 8345
  Instruction Sheet
|
$350.00 | Consult Factory for Availability |
|
|
2140.52 | Cat.# 2140.52 is DISCONTINUED. Click on replacement items: Cat #5100.00: Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). DISCONTINUED | $0.00 | Discontinued | |
|
2140.53 | Cat.# 2140.53 DISCONTINUED Click on replacement items: Cat #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)).; | $0.00 | Discontinued | |
|
2140.69 | Cat.# 2140.69 is DISCONTINUED. Click on replacement item: Cat #5100.06: Clip – safety alligator – green (1000V CAT IV, 15A, UL) | $0.00 | Discontinued | |
|
2140.70 | Cat.# 2140.70 is DISCONTINUED. Click on replacement items: Cat #5100.00: Clip – safety alligator – red (1000V CAT IV, 15A, UL V2) Cat #5100.04: Clip – safety alligator – blue (1000V CAT IV, 15A, UL V2) Cat #5100.06: Clip – safety alligator – green (1000V CAT IV, 15A, UL) | $0.00 |
|
|
|
2140.71 | Probe - Set of 3, Color-coded test probes (red, blue & green) for use w/C.A 6116 | $0.00 | Discontinued |
|
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
