Multi-Function Installation Tester Model C.A 6117

The High performance C.A6117 offers excellent measurement stability, even in electrically noisy industrial environments. All the measurements needed to test an electrical installation are available: continuity, resistance, insulation, ground resistance, selective earth measurements, loop impedance and type A and AC RCDs (GFCI circuits). The 6117 can also be used to measure voltage, frequency, AC current (via a current clamp), active power, harmonics and phase rotation.

The C.A6117 is also equipped with type B RCD testing, a built in fuse table and a voltage drop feature.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
C.A 6117 2138.07 Multi-Function Installation Model C.A 6117 $3,175.00 Consult Factory for Availability
C.A 6117 Kit 2138.11 Multi-Function Installation Model C.A 6117 Kit (US) {includes C177A, Dataview™ Software} $3,670.00 Consult Factory for Availability
ModelC.A 6117
Cat. #2138.07
DescriptionMulti-Function Installation Model C.A 6117
List Price$3,175.00
Consult Factory for Availability
ModelC.A 6117 Kit
Cat. #2138.11
DescriptionMulti-Function Installation Model C.A 6117 Kit (US) {includes C177A, Dataview™ Software}
List Price$3,670.00
Consult Factory for Availability

Model CA 6117 - Cat. #2138.07: Includes carrying bag, US power cord and charger, Li-lon battery pack, USB A/B cable, set of (3) 3-prong color-coded safety voltage leads (red, blue, green), set of (3) color-coded test probes (red, blue, green), set of (3) alligator clips (red/blue/green), set of (2) color-coded safety leads (red/black) 4mm straight plug, 3-prong US measurement cord, remote test probe, wrist strap, hands-free strap, multi-lingual safety cared, and a USB drive with DataView® software and a user manual.

Model CA 6117N Kit- Cat. #2138.11: Includes carrying bag, AC Current Probe Model C177A, US power cord and charger, Li-lon battery pack, USB A/B cable, set of (3) 3-prong color-coded safety voltage leads (red, blue, green), set of (3) color-coded test probes (red, blue, green), set of (3) alligator clips (red/blue/green), set of (2) color-coded safety leads (red/black) 4mm straight plug, 3-prong US measurement cord, remote test probe, wrist strap, hands-free strap, multi-lingual safety cared, and a USB drive with DataView® software and a user manual.

Print
CONTINUITY / RESISTANCE
I Rated / Range / Resolution I > 200mA / 39.99Ω/ 0.01Ω / ± (1.5% of R + 2cts)
12mA / 39.99Ω & 399.9Ω / 0.01 & 0.1Ω /± (1.5% of R + 5cts) with beep
Range / Resolution / Accuracy 4 kΩ/ 1Ω / ±(1.5% of R + 5cts) 40 kΩ - 400kΩ/ 10Ω - 100Ω / ±(1.5% of R + 2cts)
INSULATION
Rated Voltage Utest: 50 /100 / 250 / 500 / 1000VDC
Range / Resolution / Accuracy 0.01MΩ to 2GΩ / 10kΩ to 1MΩ / ±(5% of R + 3cts)
Short Circuit Current ≤ 3mA
GROUND
3P GROUND
Range / Resolution / Accuracy
0.50 to 40Ω/ 0.01Ω / ±(2% of R + 10cts) 40Ω to 15kΩ / 0.1 to 1Ω / ±(2% of R + 2cts )
15 to 40kΩ / 10Ω/ ±(10% of R + 2cts )
Others Measurement of resistance of auxiliary stakes RH & RS (up to 40kΩ)
Ufk Complies with SEV 3569
1P SELECTIVE GROUND
Range / Resolution / Accuracy
0.20 to 39.99Ω - 40 to 399.9Ω / 0.01 to 0.1Ω / ±(10% of R + 10cts) (ISel via clamp)
LOOP IMPEDANCE (Zs (L-PE0 AND Zi (L-N OR L-L) – 1P LIVE GROUND
Live Ground
Installation Voltage / Frequency
90 to 500 V / 15.8 to 17.5Hz - 45 to 65Hz
High-current mode with TRIP
Zs (L- PE) & Zi (L- N or L - L)
Range / Resolution / Accuracy
Max. test current: 7.5 A
(0.050) 0.100 to 0.5Ω / 0.001Ω/ ±(10% of R + 20cts) • 0.5Ω to 3.999Ω / 0.001Ω/ ±(5% of R
+ 20cts) 3.999 to 39.99Ω/ 0.01Ω / ±(5% of R + 2cts) • 39.99 to 399.99Ω / 0.1Ω/ ±(5% of R + 2cts)
NO TRIP mode (Zs (L – PE) 0nly) Test current 6mA – 9mA – 12mA (as required) 0.20 to 0.99Ω / 0.01Ω / ±(15% of R + 10cts) 1.00 to 1.99Ω / 0.01Ω / ± (15% of R + 3cts) 2.00 to 39.99 / 0.01Ω / ± (10% of R + 3cts) 40.00 to 399.9Ω / 0.1Ω ± (5% of R + 2cts) 400 to 3999Ω / 1Ω ±(5% of R + 2cts)
Calculation of IK short circuit current (PFC (Zs), I Sc PSCC (Zi) Fault current and short-circuit current: 0.1 to20kA
Integrated Fuse Table Yes
Voltage drop V%(Zi) -40% to +40%
Others Measurement of the resistive and inductive components of Zs and Zi impedances
AC and type RCDs
Installation voltage / Frequency 90 to 500V / 15.8 to 17.5Hz and 45 to 65Hz
IΔn 10/30/100/500/650/1,000 (90V - 280V) or variable ramp and pulse test
N-trip test At ½ IΔn – Duration 1000ms or 2000ms
Ramp mode 0.2 to 0.5 x IΔn(Uf) / 0.3 x IΔn to 1.06 IΔn increments of   3.3% x IΔn
Trip test:  R:
Range / Resolution / Accuracy
0.2 to 0.5 x IΔn(Uf) / 0.5 x IΔn / 2 x IΔn(selective) /  5 x IΔn
Pulse: 0 to 500ms/0.1 and 1ms / 2ms, Ramp mode: 0 to 200 ms / 0.1 ms / 2 ms
B-Type RCDs
Installation Voltage / Frequency 90 to 275V / 15.8 to 17.5Hz and 45 to 65Hz
IΔn: ramp / pulse 2 x IΔn
pulse 4 x IΔn
10/30/100/500mA
10/30/100/500 mA with pulse 4 IΔn
Duration: 150 ms with 4 x IΔn or 300 ms with 2 x IΔn
Test in ramp mode 0.2 x IΔn to 2.2 x IΔn
Trip test:  2 x IΔn
4 x IΔn
IΔn ≤ 200 mA: 2.2 x 2 x IΔn
IΔn ≤ 200 mA: 1.1 x 2 x IΔn
IΔn ≤ 100 mA: 2.2 x 4 x IΔn
OTHER MEASUREMENTS
Current by Current Probe C177A 5.0mA t0 199.9A
Current by Current Probe MN77 (1mA*) 5.0mA to 19.99A
Voltage 0 to 550VAC/DC / DC and 158 to 500Hz
Frequency 10 to 500Hz
Phase rotation 20 to 500VAC
Active power 0 to 110kW single phase – 0 to 330kW three-phase
Simultaneous display of voltage and current waveforms
Harmonics Voltage and Current / up to 50th order / THD-F / THD-R
GENERAL SPECIFICATIONS
Display Large 5.7” backlit graphic color LCD 320 x 240 pixels
Storage/Communication USB for data transfer to Dataview software (Included)
Power Supply Rechargeable battery Lithium-Ion 10.8V, 5.8Ah
Battery Life Up to 30 hours
Protection IP 53 / IK04
Dimension / Weight 11 x 7.48 x 5.04” (280 x190 x 128mm)  4.85 lbs (2.2 kg)
EMC IEC61326-1
Safety IEC61010-1 – 600V CAT III – 300V CAT IV – IEC 61557

User Manuals

Quick Start Guides

Datasheets

Brochures

Comparison Charts

Software

Application Notes

Videos

Battery Pack (Cat. #2960.47) Replacement Procedure (PowerPad ® IV 8345, OX 9000 Series, Installation Testers CA 6116N & CA 6117

Understanding Insulation Resistance Testing

What's New in DataView 3.50

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2135.35 Ground Resistance Test Kit for 3-Point Testing - 150ft Test Kit for 3-Point Testing, Kit (Carrying Bag, [2] 150 ft Color-coded Leads on Spools (Red/Blue), [1] 30 ft Lead (Green), [2] 5 ft Color-coded Leads (Red/Blue), [2] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) $595.00
2135.36 Ground Resistance Test Kit for 4-Point Testing - 300ft Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 300 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) $760.00
2136.80 Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 (Replacement for Models DTR® 8510, C.A6116, DL913, DL914, 5060, and 5070) $19.00

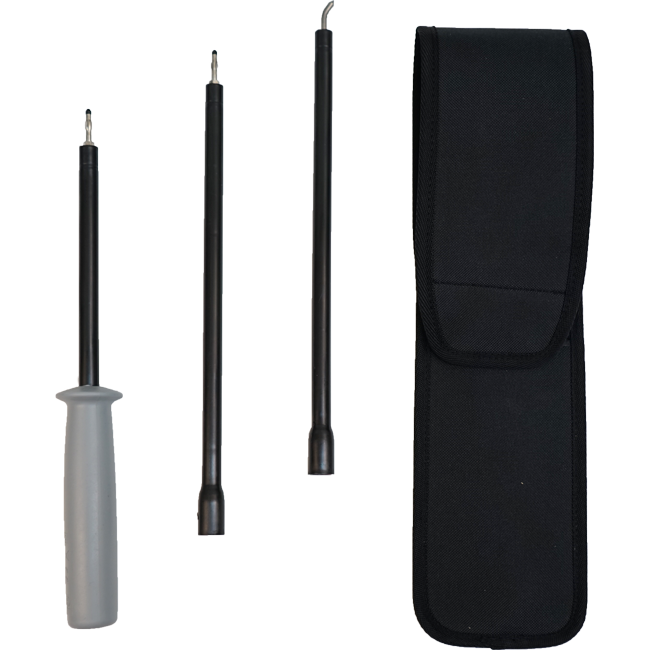

2138.54 Continuity Probe for use with Megohmmeters and Installation Testers $121.00
2155.75 Megohmmeter Test Probe (600V CAT IV) for Models 6522-6536, 6116N & 6117 $255.00
2960.47 Battery – Replacement 5.8AH 61.9Wh Li-ion Battery Pack for Models C.A6116N, C.A6117, OX9104-OX9304, & 8345

Instruction Sheet
$350.00 Consult Factory for Availability
2140.52 Cat.# 2140.52 is DISCONTINUED. Click on replacement items: Cat #5100.00: Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). DISCONTINUED $0.00 Discontinued
2140.53 Cat.# 2140.53 DISCONTINUED Click on replacement items: Cat #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)).; $0.00 Discontinued
2140.69 Cat.# 2140.69 is DISCONTINUED. Click on replacement item: Cat #5100.06: Clip – safety alligator – green (1000V CAT IV, 15A, UL) $0.00 Discontinued

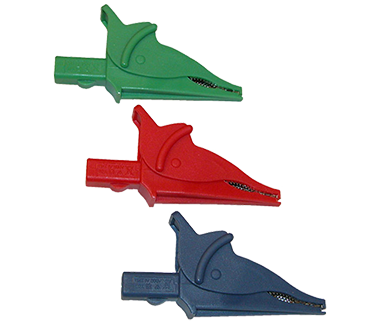

2140.70 Cat.# 2140.70 is DISCONTINUED. Click on replacement items: Cat #5100.00: Clip – safety alligator – red (1000V CAT IV, 15A, UL V2) Cat #5100.04: Clip – safety alligator – blue (1000V CAT IV, 15A, UL V2) Cat #5100.06: Clip – safety alligator – green (1000V CAT IV, 15A, UL) $0.00

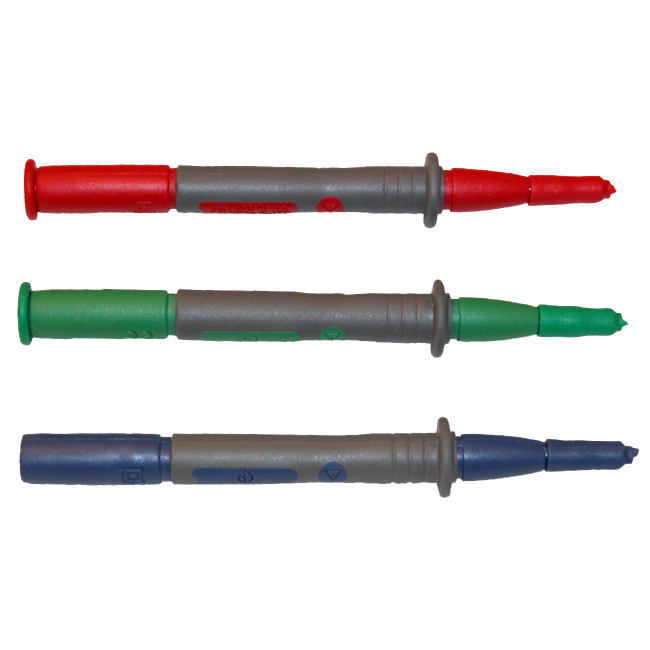

2140.71 Probe - Set of 3, Color-coded test probes (red, blue & green) for use w/C.A 6116 $0.00 Discontinued
