Digital Multimeter Model 5217

The Model 5217 is a portable hand-held multimeter that measures a variety of electrical and physical quantities including voltage (AC and DC), resistance, capacitance, frequency and temperature. These instruments can also perform continuity checks, voltage detection and diode testing (including forward bias voltage). Measurement features include Auto Range mode, which enables the instrument to select the best range for the input detected, and a Data HOLD function. These instruments are rugged and simple to use and rated to 600V CAT III.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
5217 2154.09 Digital Multimeter Model 5217 $119.00 Consult Factory for Availability
Model5217
Cat. #2154.09
DescriptionDigital Multimeter Model 5217
List Price$119.00
Consult Factory for Availability

Model 5215 - Cat. #2154.09: Includes soft carrying pouch, set of (2) color-coded leads (red/black), K-Thermocouple adapter, (2) 1.5V batteries and a user manual.

Print
Counts 6000
Voltage AC/DC 750VAC/1000VDC
Current AC/DC 10AAC/DC
Bandwidth AC 1kHz
Resistance 60MΩ
Frequency 1kHz
Capacitance 100mF
Continuity <50Ω
Non-Contact Voltage >90V
Temperature (K-type TC): -67° to 2192°F
Diode Test Yes
VLowZ Yes
Duty Cycle Yes
∆REL Yes
MIN/MAX/AVG/PEAK MIN/MAX
Flashlight Yes
Display Digital with backlighting
Dimensions  (HxWxD) 6.7 x 3.1 x 2" (170 x 80 x 50mm)
Weight 11.2oz (320g)
Power Source 2 x1.5V AA
Battery Life >500 hours
Operating Temperature -4° to 120°F (-20° to 49°C)
Storage Temperature -22° to 130°F (-30° to 54°C)
Pollution Degree 2
Ingress Protection (IP) IP54
EMC EN 61326-1, EN 61326-2-2
Safety Compliance IEC61010-1, IEC61010-2-033, 600V CAT III

User Manual

Datasheet

Brochure

Comparison Charts

Application Notes

Technical Bulletins

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
MN03 2129.18 AC Current Probe Model MN03
(100AAC/0.1VAC (1mV/A), Lead)
$89.00 Consult Factory for Availability
2139.71 Thermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 401, 403, 601, 603, 607, 675 & 5217) $12.50
2139.74 Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug $107.00
2152.28 Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL) $180.00
2154.71 Pouch - Replacement Carrying Pouch for Models 5212, 5215, 5217, C.A 1510 & L452 $12.50
2154.74 Lead - Replacement Set of 2, Needle Tip Color-coded (Red/Black) w/4mm Right-angle Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o Shield} for Models 5212, 5215 & 5217 (or any meter that accepts 4mm banana plugs) $13.25

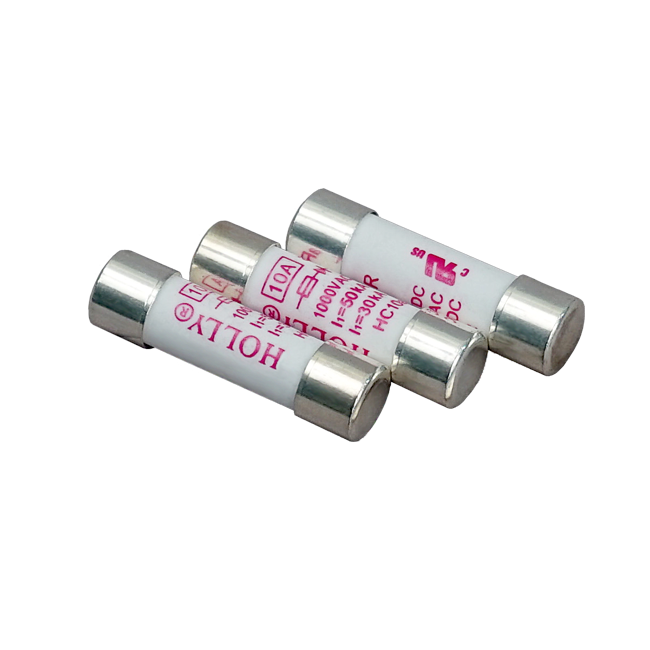

2154.75 Fuse - Set of 3, 10A, 1000V (Fast Blow), 30kA, 10x38mm for Models 5212, 5215 & 5217 $20.50

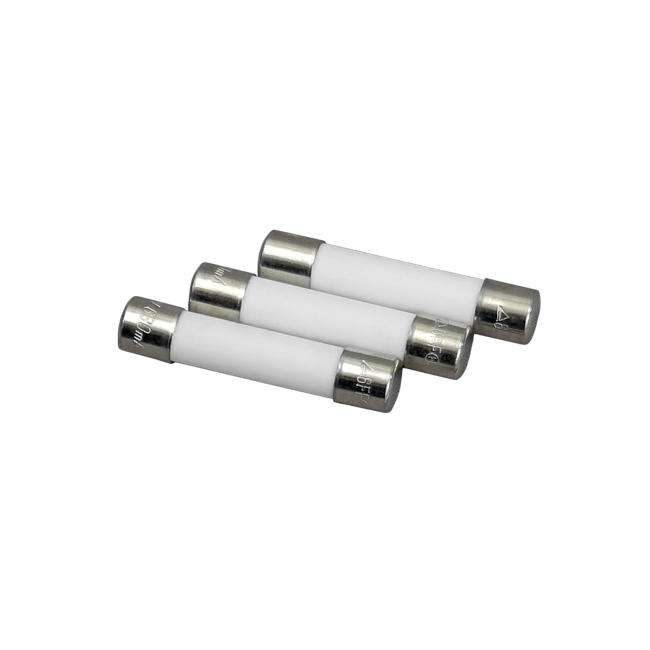

2154.76 Fuse - Set of 3, 0.63A, 1000V (Fast Blow), 10kA, 6.3x32mm for Models 5212, 5215 & 5217 $13.25
5000.30 Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets $6.00
5000.44 MultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D $17.75
5000.94 Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) $25.00
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
5100.04 Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) $11.50
5100.05 Clip - Safety Alligator - White (1000V CAT IV, 15A, UL) $11.50
5100.06 Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL) $11.50
5100.07 Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs $25.00
2152.05 Cat.# 2152.05 is DISCONTINUED. Click on replacement items: Cat. #5000.94: Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL). Cat. #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) . Cat. #5100.00:Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). Cat #5000.30: Probe - black test probe (Rated 1000V CAT IV, 15A, UL). Cat #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. $0.00 Discontinued
5000.31 Cat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. $0.00 Discontinued
Model MN03
Cat. #2129.18
DescriptionAC Current Probe Model MN03
(100AAC/0.1VAC (1mV/A), Lead)
List Price$89.00
Consult Factory for Availability
Model
Cat. #2139.71
DescriptionThermocouple – K-thermocouple w/4mm Integrated Adapter (Replacement for Models 401, 403, 601, 603, 607, 675 & 5217)
List Price$12.50
Model
Cat. #2139.74
DescriptionLead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug
List Price$107.00
Model
Cat. #2152.28
DescriptionLead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL)
List Price$180.00
Model
Cat. #2154.71
DescriptionPouch - Replacement Carrying Pouch for Models 5212, 5215, 5217, C.A 1510 & L452
List Price$12.50
Model
Cat. #2154.74
DescriptionLead - Replacement Set of 2, Needle Tip Color-coded (Red/Black) w/4mm Right-angle Plug {600V CAT IV w/shield on Needle Tip, 1000V CAT II w/o Shield} for Models 5212, 5215 & 5217 (or any meter that accepts 4mm banana plugs)
List Price$13.25
Model
Cat. #2154.75
DescriptionFuse - Set of 3, 10A, 1000V (Fast Blow), 30kA, 10x38mm for Models 5212, 5215 & 5217
List Price$20.50
Model
Cat. #2154.76
DescriptionFuse - Set of 3, 0.63A, 1000V (Fast Blow), 10kA, 6.3x32mm for Models 5212, 5215 & 5217
List Price$13.25
Model
Cat. #5000.30
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets
List Price$6.00
Model
Cat. #5000.44
DescriptionMultiFix (universal mounting system) for use with models 5231, 5233, 400D, and 4000D
List Price$17.75
Model
Cat. #5000.94
DescriptionLead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)
List Price$25.00
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.04
DescriptionClip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.05
DescriptionClip - Safety Alligator - White (1000V CAT IV, 15A, UL)
List Price$11.50
Model
Cat. #5100.06
DescriptionClip - Safety Alligator - Green (1000V CAT IV, 15A, UL)
List Price$11.50
Model
Cat. #5100.07
DescriptionLead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs
List Price$25.00
Model
Cat. #2152.05
DescriptionCat.# 2152.05 is DISCONTINUED. Click on replacement items: Cat. #5000.94: Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL). Cat. #5000.99: Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) . Cat. #5100.00:Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2). Cat #5000.30: Probe - black test probe (Rated 1000V CAT IV, 15A, UL). Cat #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}.
List Price$0.00
Discontinued
Model
Cat. #5000.31
DescriptionCat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}.
List Price$0.00
Discontinued
