NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
| Model | Cat. # | Description | List Price | Quantity/Status |
|---|---|---|---|---|

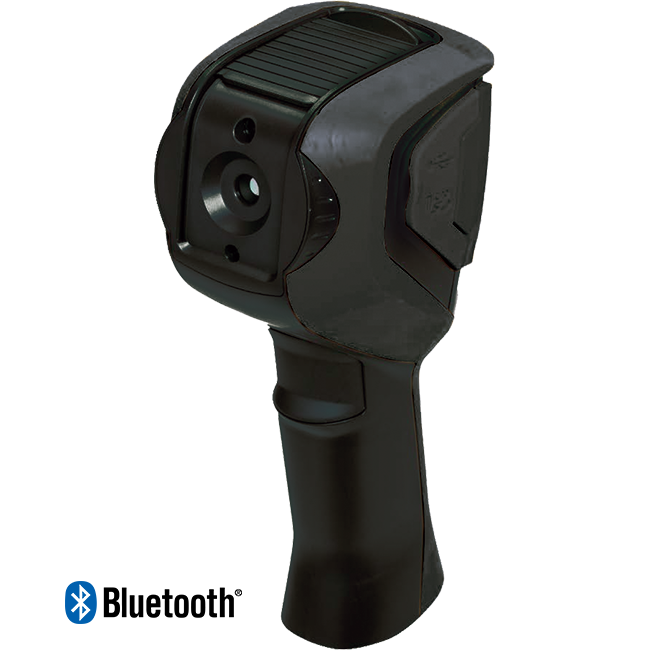

| 1950 (refurbished) | 901.2121.40 | Thermal Imaging IR Camera Model 1950 (Resolution 80 x 80) (refurbished) Allow up to 72 hours for shipping | $1,495.00 Sale: $897.00 |
|
|
||||||||||
Model 1950 - Cat. #2121.40: Includes carrying case, eUSB cable,(4) NiMH rechargeable batteries, micro SD card with adapter, Bluetooth headset, quick start guide and a USB drive with CAmReport software, and user and software manuals.
| DETECTOR SPECIFICATIONS | |
| Detector Resolution | 80 x 80 |
| Type | UFPA microbolometer, 8-14µm |
| Frequency | 9Hz |
| Thermal Sensitivity (NETD) | 80mK @ 86°F (30°C) |
| TEMPERATURE MEASUREMENT | |
| Temperature Range | -4° to +482°F (-20° to +250°C) |
| Accuracy | ± 3.6° F (±2 °C) or ±2% of Reading |
| INFRARED IMAGE | |
| Field of View | 20° x 20° |
| IFOV (Spatial Resolution) | 4.4mrad |
| Minimum Focus Distance | 1.3ft (0.4m), fixed focus |
| VISUAL IMAGE | |
| Resolution | 320 x 240 |
| Minimum Focus Distance | 2” (0.05m), fixed focus |
| IMAGE PRESENTATION | |
| Images Displayed | Infrared image, visual image with automatic parallax compensation. Merging of both images is possible with included PC software |
| LCD Screen | 2.8” (7.1cm) |
| Freezing of Image | Animated or fixed image |
| Adjustment | Automatic or manual adjustment of palette min-max |
| Display Colors | Pseudo-colors, multiple palettes |
| FUNCTIONS FOR ANALYSIS | |
| Measurement Tools | 1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm |
| Parameter Settings | Emissivity, environmental temperature, distance, relative humidity |
| Voice Recordings | Via Bluetooth headset (included) |

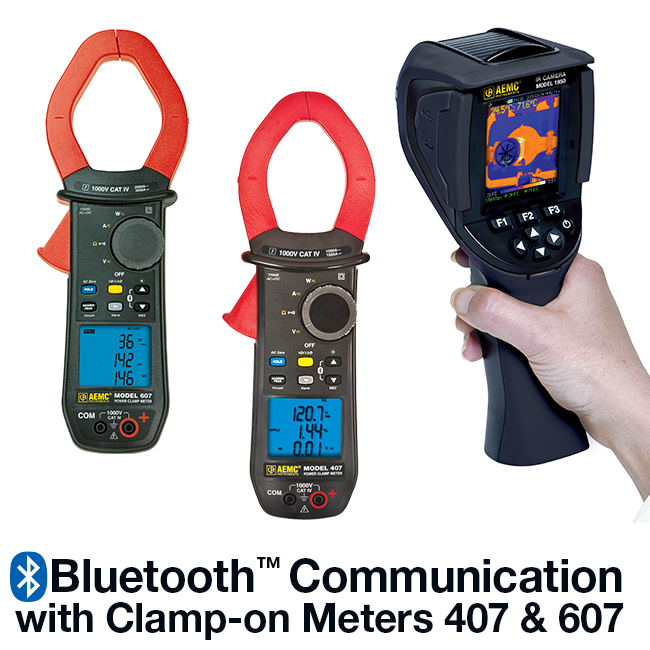

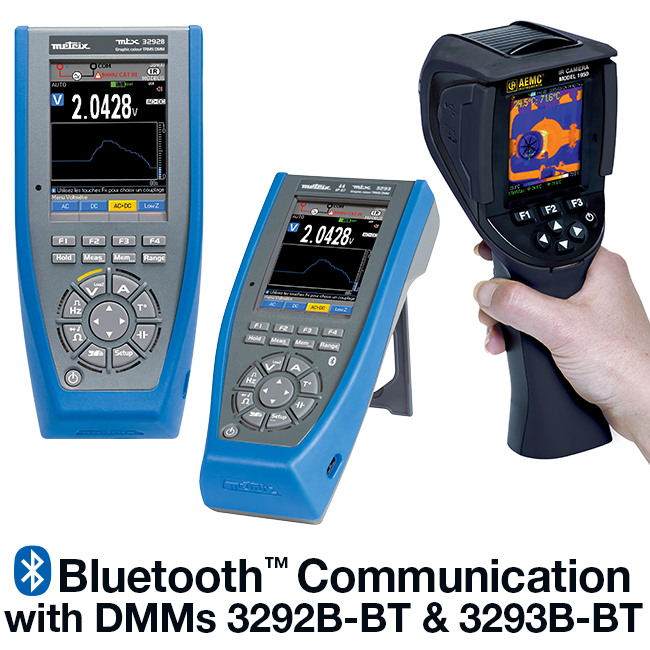

| External Measurements | AEMC current clamps 407, 607 and Multimeters MTX3292 and MTX3293 |
| GENERAL SPECIFICATIONS | |
| Data Storage | 2 GB micro SD card included (approx. 4,000 images) Replaceable with up to 32 GB SD card |
| Communication | USB link and Bluetooth |
| Tripod Mounting | 1/4” insert on camera (tripod not included) |
| Software | CAmReport software included, for data analysis and report generation |
| Power Supply | 4 x AA (1.5V) alkaline or NiMH rechargeable batteries with charger included |
| Battery Life | 13:30 hours typical (11 hours minimum) |
| Operating Temperature | -4° to 122°F (-15° to 50°C); 95% RH |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Dimensions | 8.86 x 4.92 x 3.27” (225 x 125 x 83mm) |
| Weight | 24.7 oz (700g) with batteries |
| Ingress Protection | IP 54 |
| EMC | EN61326-1 |
| Safety | IEC 61010-1 Ed. 02 |
User Manuals
Quick Start Guides
Datasheets
Brochures
Model 1950
Models 1950 and 1954
AEMC® Instruments Product Line Brochure
AEMC® Instruments Product Line Brochure (FR CAN)
Software
Technical Bulletins
Videos
Model 1950 IR Camera and Connecting Peripherals
| Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
|---|---|---|---|---|---|
|
2121.60 | Case with Foam Inset for Model 1950 | $105.00 |
|
|
|
2126.49 | Cable – Replacement USB (type A to 5-pin mini-B) cable for Simple Logger® II series and Model 1950 (RoHS Compliant) | $10.50 |
|
|
607
|
2139.61 | Power Clamp-on Meter Model 607 | $670.00 | Consult Factory for Availability |
|
MTX 3292B-BT
|
2154.05 | Digital Multimeter Model MTX 3292B-BT (ASYC IV, TRMS, 100K-CTS, BT, USB, Color Graphical Display) | $925.00 |
|
|
MTX 3293B-BT
|
2154.06 | Digital Multimeter Model MTX 3293B-BT (ASYC IV, TRMS, 100K-CTS, BT, USB, Color Graphic Display) | $995.00 |
|
|
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
