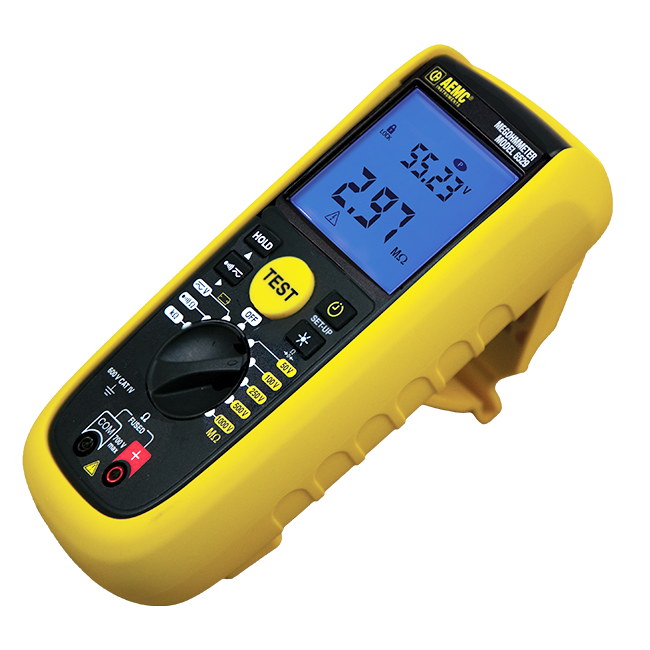

Megohmmeter Model 6529

Low Cost, Hand-held Multimeter/Megohmmeter

Model 6529 is a low cost 1000V hand-held instrument that offers Multimeter functions as well as Megohmmeter functions. This model is created for the commercial, industrial and contractor markets and is simple to use. It's priced at a point tailored to contractors and independent electricians that need to check the quality of insulation as well as perform basic electrical measurements.

True Megohmmeter®

It is a True Megohmmeter® in compliance with IEC 61010 and is designed with features and functions for use in the field:

  • lightweight
  • compact
  • rugged
  • easy to handle, even when wearing gloves.

Its construction and interface is intended to simplify use. An intuitive pass/fail indication offering a blue/red backlight makes it very easy to identify defective conditions.

Automatic Test Inhibit for Safety

It includes an automatic test inhibit if connected to a live circuit as well as automatic discharge at the completion of the test.

DMR Functionality - Unique to AEMC

A relative measurement function called DMR, unique to AEMC, provides the capability to compare measurements to a known reference quickly recognizing potential problems. It includes Megohmmeter DAR and PI ratio test functions. Multimeter functions include AC/DC voltage, resistance, continuity.

US Design Patent

US Patent Logo

The design for the Models 6528/6529 is protected by United States Design Patent US D890,617 S.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
6529 2126.55 Megohmmeter Model 6529 (Digital, 50V, 100V, 250V, 500V, 1kV, 420K-Ohm, V, Continuity, Alarm & Timer, PI/DAR) $349.00
Model6529
Cat. #2126.55
DescriptionMegohmmeter Model 6529 (Digital, 50V, 100V, 250V, 500V, 1kV, 420K-Ohm, V, Continuity, Alarm & Timer, PI/DAR)
List Price$349.00

Model 6529 - Cat. #2126.55: Includes soft carrying case, set of (2) 5 ft color-coded silicone leads and alligator clips (red/black), (2) color-coded test probes (red/black) {Rated 1000V CAT IV, UL V2}, (6) 1.5V AA batteries and a user manual.

Print
AC/DC Voltage Measurement
Range 700VAC and 700VAC+DC
Accuracy DC: ± (1% R + 1ct)
AC+DC: ± (1.2% R + 1ct)
Resolution 1V
Frequency Range DC & 30 to 440Hz
Input Impedance  25MΩ
Insulation Measurement
Test Voltage / Resistance Range 50V: 0.010 MΩ to 420.0MΩ
100V: 0.020 MΩ to 420.0MΩ
250V: 0.050MΩ to 4200MΩ
500V: 0.100MΩ to 4200MΩ
1000V: 0.20MΩ to 11.00GΩ
Measurement Accuracy 4MΩ/40MΩ/400MΩ: ± (1.5% R + 10ct)
4.2GΩ: ± (4% R + 10ct)
11GΩ: ± (10% R + 10ct) (1000V range)
Continuity Measurement
Ranges 0 to 40Ω (200mA test current ≤2Ω)
Accuracy 1.2% R + 3ct
Resolution max 0.01Ω
Leads compensation Up to 5Ω
Threshold Audible signal triggered Selectable ≤1 or 2Ω
Resistance Measurement
Range 0 to 420kΩ (Auto ranging)
Accuracy ± (1.2%R + 3ct)
Resolution max 0.1Ω
General Features
Time test 1 second to 39.59 minutes selectable
DAR - PI Default: DAR 30-secs and 1mn and PI 1 and 10mn (User Adjustable)
Display LCD with backlight
Power Supply Six AA batteries (NEDA 15A or IEC LR6)
Battery Life
5s ON, 25s OFF		 >2000 measurement in MΩ,
>300h in V AC/DC,
>6000 measurement in Continuity Test
Protection Fast fuse 200mA 1000A 10kA (6.3 x 32mm)
Dimensions 8.54 x 3.54 x 2.44” (217 x 90 x 62mm)
Weight 1.68 lbs (760g)
Altitude Operating 2000m
Operating Temperature 14° to +122°F (-10° to +50°C), 90% RH
Storage Temperature -40° to +140°F (-40° to +60°C)
IP Rating IP 40 with leads connected
Safety Compliance IEC/EN 61010-1, 600V CAT IV,

User Manuals

Models 6528 & 6529 - English

Datasheets

Model 6529 - English

Modelo 6529 - Español

Brochures

Megohmmeter Brochure

Megohmmeter Brochure (FR CAN)

AEMC® Instruments Product Line Brochure

AEMC® Instruments Product Line Brochure (FR CAN)

Comparison Charts

Megohmmeter (Hand-held) Comparison Chart

Megohmmeter (Hand-held) Comparison Chart - Español

Application Notes

An Introduction to Insulation Resistance Testing

Megohmmeter Calibration Checker and Ground Resistance Checker

True RMS, True InRush®, and True Megohmmeter®

Technical Bulletins

Watts Current Issue 10

Videos

Understanding Insulation Resistance Testing

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2117.73 Pouch - Replacement or use with Models (1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, 6610, 6611, 6612, L261, 6527, 1510, 400D-10, 4000D-14, L452)
Dimensions: (7 x 8.5 x 2) in 		$24.00
2119.02 Soft Carrying Pouch for Models (CA7024, CA7026, CA7027-28, 6522-24, 6526, 6532, 6534, 6536, 6528-29, 5212, 5215, 5217, 5231, 5233, 3290-91, 3292-93B, 3292-93B-BT)
Dimensions: (7.75 x 9.25 x 2.75) in 		$49.00
2138.54 Continuity Probe for use with Megohmmeters and Installation Testers $121.00
2139.74 Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug $114.00
2152.28 Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL) $189.00
2971.04 Fuse - Set of 2, FF, 200mA, 1000V, 10kA, 6x32mm for Models 6528 & 6529 $13.00
5000.94 Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) $26.50
5000.97 Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2} $9.00
5000.98 Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2} $9.00
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
5100.04 Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) $11.50
5100.05 Clip - Safety Alligator - White (1000V CAT IV, 15A, UL) $11.50
5100.06 Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL) $11.50
5100.07 Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs $25.00
Model
Cat. #2117.73
DescriptionPouch - Replacement or use with Models (1026, 505, 566, 5212-5217, 5231, 5233, 6608, 6609, 6610, 6611, 6612, L261, 6527, 1510, 400D-10, 4000D-14, L452)
Dimensions: (7 x 8.5 x 2) in
List Price$24.00
Model
Cat. #2119.02
DescriptionSoft Carrying Pouch for Models (CA7024, CA7026, CA7027-28, 6522-24, 6526, 6532, 6534, 6536, 6528-29, 5212, 5215, 5217, 5231, 5233, 3290-91, 3292-93B, 3292-93B-BT)
Dimensions: (7.75 x 9.25 x 2.75) in
List Price$49.00
Model
Cat. #2138.54
DescriptionContinuity Probe for use with Megohmmeters and Installation Testers
List Price$121.00
Model
Cat. #2139.74
DescriptionLead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug
List Price$114.00
Model
Cat. #2152.28
DescriptionLead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL)
List Price$189.00
Model
Cat. #2971.04
DescriptionFuse - Set of 2, FF, 200mA, 1000V, 10kA, 6x32mm for Models 6528 & 6529
List Price$13.00
Model
Cat. #5000.94
DescriptionLead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)
List Price$26.50
Model
Cat. #5000.97
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price$9.00
Model
Cat. #5000.98
DescriptionProbe - red test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price$9.00
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.04
DescriptionClip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.05
DescriptionClip - Safety Alligator - White (1000V CAT IV, 15A, UL)
List Price$11.50
Model
Cat. #5100.06
DescriptionClip - Safety Alligator - Green (1000V CAT IV, 15A, UL)
List Price$11.50
Model
Cat. #5100.07
DescriptionLead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs
List Price$25.00
