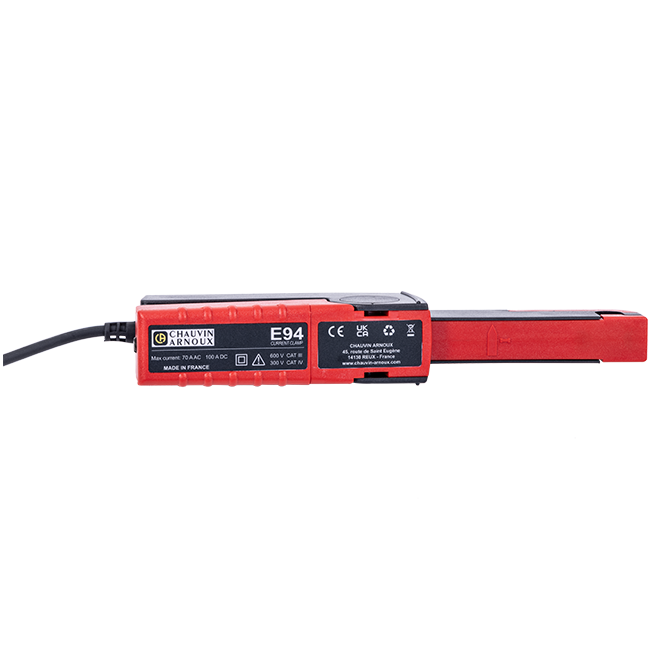

AC/DC Current Probe Model E94
(Used only with model 8345)

With cutting-edge Hall-effect technology, the E94 Current Clamp defines the way you measure alternating or direct currents. No interruptions to your installations — no need to cut off the current being measured.

Why Choose the E94?

  • Compact and Ergonomic Design: We understand that some spaces can be a tight squeeze. That's why the E94 boasts a compact design and ergonomic shape, making it the perfect companion for those hard-to-reach places.
  • Precision Sensitivity: Accuracy is key when it comes to current measurements. The E94 offers unrivaled measurement sensitivity, ensuring you get precise readings every time.
  • User-Friendly: Simplicity meets safety with the E94. It's designed for ease of use, so you can confidently measure currents without any hassle.

Performance at a Glance

The E94 Current Clamp delivers outstanding performance too:

  • Current Measurement Range: From 100 mA to 100 A peak, with two selectable ranges: 10 A and 100 A.
  • Wide Bandwidth: Covering a range from DC to 100 kHz (3 dB), the E94 is ready for a variety of applications.

The E94 Current Clamp is equipped with a molded 4-pin connector compatible with the latest-generation PowerPad® IV Class A model 8345. When connected, the clamp draws power directly from the instrument, and the specific connector even allows automatic recognition by the instrument itself.

  • "Zero DC" Pushbutton: Easily reset your measurements with the "Zero DC" function, and rest assured that your parameters are saved for future use.
  • Range Overshoot Indicator: Stay informed with the range overshoot indication, ensuring you're always in control.
  • DC Zero Confirmation: The DC Zero confirmation status provides an extra layer of reliability to your measurements.
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
E94 2140.82 AC/DC Current Probe Model E94 USED ONLY WITH MODEL 8345 $429.00
ModelE94
Cat. #2140.82
DescriptionAC/DC Current Probe Model E94 USED ONLY WITH MODEL 8345
List Price$429.00
Print
Clamping Diameter 0.464 in (11.8 mm)
Current Range 100 mA 100 A
Selectable Frequency Ranges 10 A (0.1 to 10) A peak and
100 A (0.5 to 100) A peak)
Dimensions (H x W x D) (9.09 x 1.41 x 2.65) in (231 x 36 x 67) mm
Weight 11.64 oz (330 g)
Lead length 10 ft (3 m)
Type of current sensor Type A
Operating Temperature (14 to 131) °F  (-10 to 55) °C
Storage Temperature (-40 to 158) °F  ( -40 to 70) °C
Operating Humidity (10 to 85) % RH
Storage Humidity (10 to 90) % RH
Double Insulated Yes
Ingress Protection (Ip) IP20
Pollution Degree 2
Electromagnetic Compatibility (EMC) EN/IEC 61326-1
Safety Compliance EN/IEC 61010-2-032 600 V CAT III, 300 V CAT IV
Warranty 2 Years
