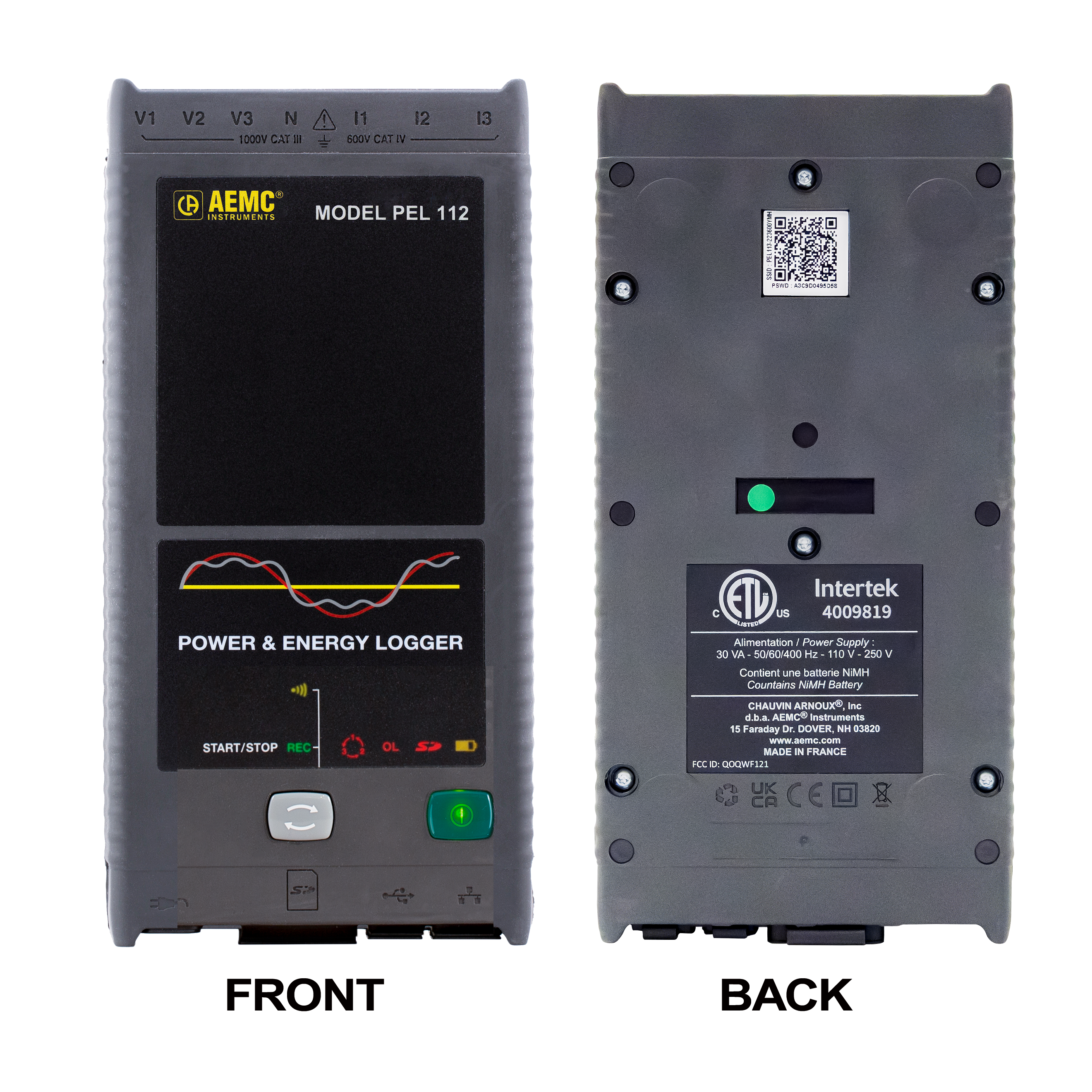

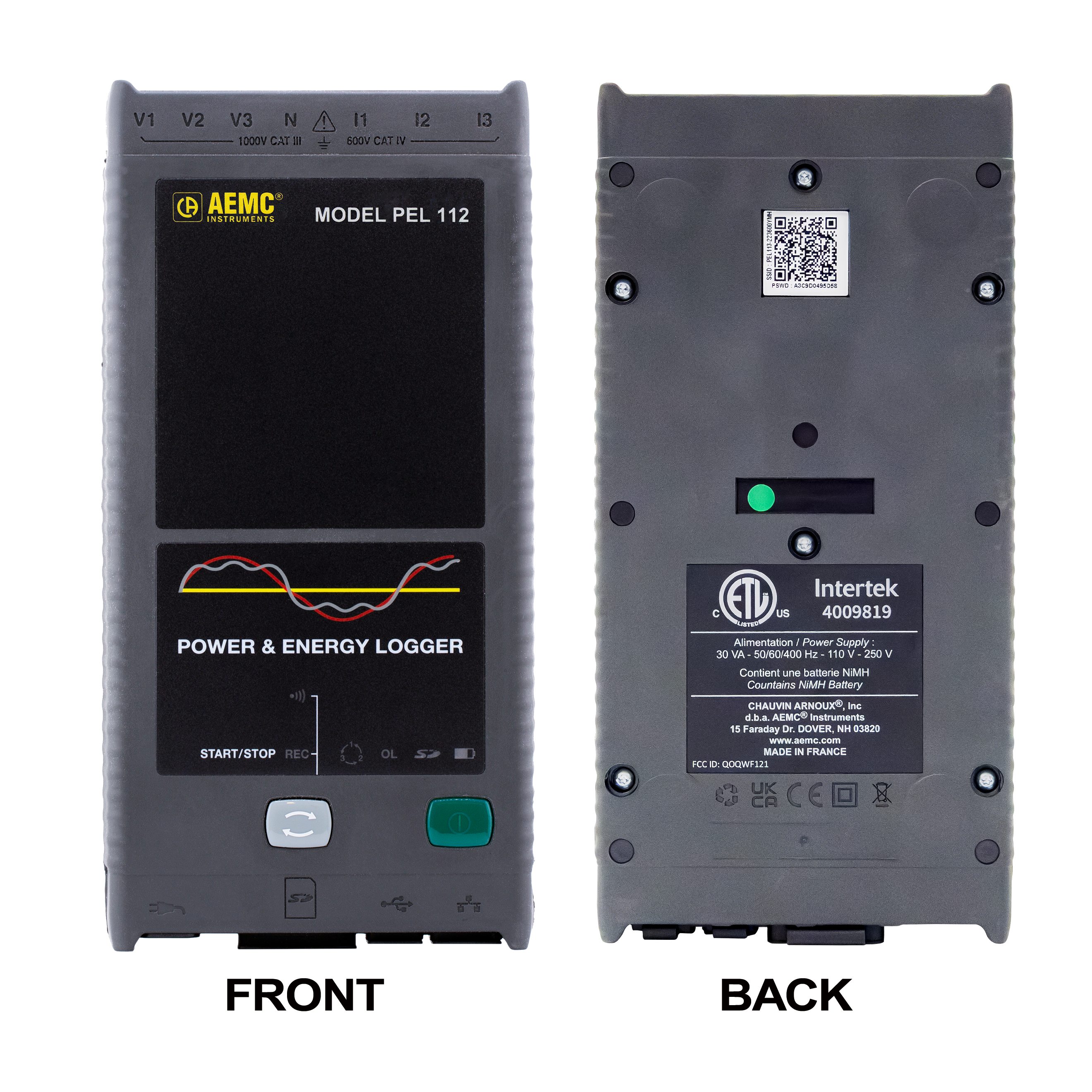

Power & Energy Logger Model PEL 112

The PEL 112 is a cost-effective, easy-to-use power and energy data logger that supports single-phase, split-phase, and three-phase (Y, Δ) systems. Ideal for electricians, engineers, and contractors, it is perfect for building and system monitoring, upgrades, and energy audits. It accurately measures, records, and analyzes vital energy data, generating standard and customizable reports with minimal setup.

Designed for convenience, the PEL 110 series can be installed inside a load center panel—sensors included—while allowing the panel door to close in most cases. These loggers provide all essential power/energy monitoring functions for 17 different electrical network setups worldwide.

The PEL 112 measures and records all power and energy data. It is designed for use anywhere electricity is present, including:

  • Power generation: Renewable energy, thermal power plants
  • Industrial applications: Metalworking, glass manufacturing, food production
  • Residential and commercial buildings
  • Infrastructure and transportation
  • Data centers

Applications

  • Energy audits
  • Electrical diagnostics
  • Industrial maintenance
  • Building and system monitoring

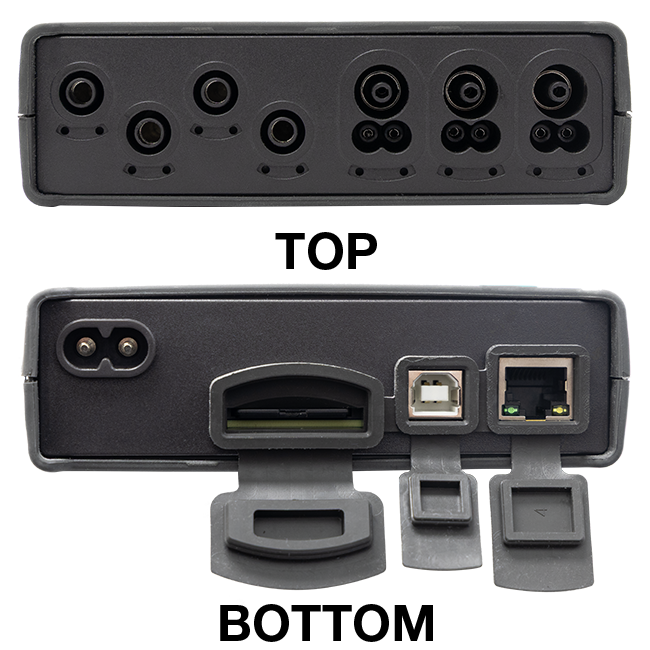

Compact and User-Friendly Design

  • Small, lightweight, and magnetic for easy placement
  • Three voltage inputs and three current inputs
  • Operates in cold environments down to -4°F (-20°C)
  • Self-powered via phase (optional)

Comprehensive Power Measurements

  • Supports AC/DC voltage up to 1000 V
  • Measures currents up to 10 kA AC and 5 kA DC (sensor-dependent)
  • Tracks active, reactive, and apparent power and energy
  • Analyzes fundamental, balanced, and unbalanced active power
  • Performs motor measurement and analysis via Android app
  • Logs True RMS voltage, current, watts, VARs, VA, and energy (kWh, kVA)
  • Calculates power factor (PF), displacement power factor (DPF), crest factor, and total harmonic distortion (THD)
  • Records harmonic content up to the 50th harmonic
  • Stores all data at one-second intervals, with user-selectable recording intervals from 1 to 60 minutes

Advanced Features

  • Identifies energy losses
  • Provides phase information: power factor (PF), cos φ, tan Φ
  • Measures crest factor and total harmonic distortion (THD) for voltage and current
  • Supports DC, 50 Hz, 60 Hz, and 400 Hz measurements (ideal for marine applications)

DataView® Software

The DataView® software simplifies setup, monitoring, and analysis:
✔ Configure your PEL device
✔ Verify connections before recording
✔ Download and analyze recorded data
✔ Convert energy consumption into cost estimates in up to 8 pricing tiers

Flexible Network Connectivity

  • NEW: Wi-Fi Direct DataViewSync® – Create a direct wireless connection to a computer (supports up to 5 devices)
  • NEW: Ethernet LAN/Wi-Fi (server mode) – Enables remote access from any networked device with DataView® software
  • USB – Quick and direct connection
  • The PEL Family of Loggers Android Application

The PEL Family of Loggers Android Application

Download the Chauvin Arnoux® PEL Android application to remotely configure and see measurements of your PEL instruments in real time on an Android device.


NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
PEL 112 - w/o sensors 2137.63 Power & Energy Logger Model PEL 112 (No sensors) $1,850.00 Consult Factory for Availability
PEL 112 2137.53 Power & Energy Logger Model PEL 112 (No LCD, w/3 MA193-10-BK Sensors) {ETL} $2,525.00 Consult Factory for Availability
ModelPEL 112 - w/o sensors
Cat. #2137.63
DescriptionPower & Energy Logger Model PEL 112 (No sensors)
List Price$1,850.00
Consult Factory for Availability
ModelPEL 112
Cat. #2137.53

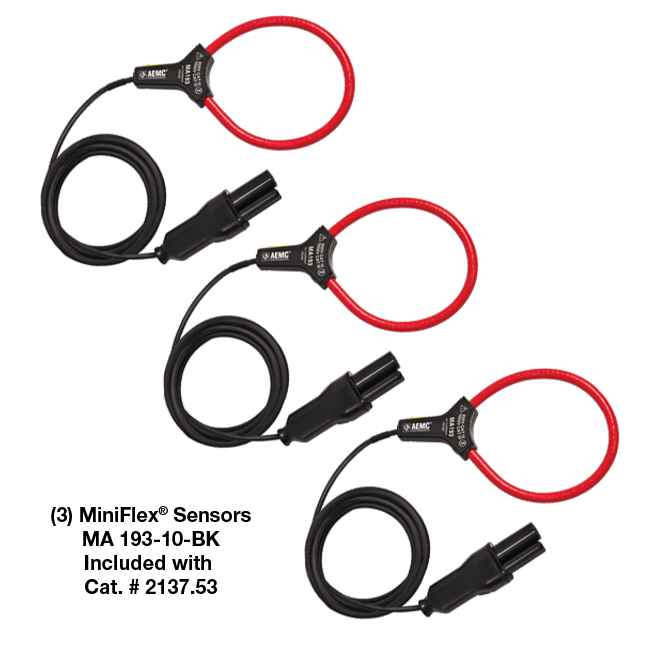

DescriptionPower & Energy Logger Model PEL 112 (No LCD, w/3 MA193-10-BK Sensors) {ETL}
List Price$2,525.00
Consult Factory for Availability

Model PEL 112 - Cat. #2137.63 (LCD, with sensors): Includes small classic tool bag, (3) MiniFlex® MA193-10-BK sensors, (4) 10 ft black test leads in a cable reeling box, (4) alligator clips, set of (12) color-coded input ID markers, 5 ft USB type A to type B cable, 5 ft 115 V power cord, NiMH AAA 8.4 V battery (installed), 8 GB SD-Card with USB-SD-Card reader, safety and compliance sheets, printed Quick Start Guide, and USB drive with DataView® software and a user manual.

Model PEL 112 - Cat. #2137.53 (No LCD, w/3 MA193-10-BK Sensors) {ETL}: Includes small classic tool bag, (4) 10 ft black test leads in a cable reeling box, (4) alligator clips, set of (12) color-coded input ID markers, 5 ft USB type A to type B cable, 5 ft 115 V power cord, NiMH AAA 8.4 V battery (installed), 8 GB SD-Card with USB-SD-Card reader, safety and compliance sheets, printed Quick Start Guide, and USB drive with DataView® software and a user manual.

Print
TECHNICAL SPECIFICATIONS 1
Catalog # 2137.63 (No Current Probes/Sensors) 2137.53 (w/ 196A-24-BK Sensors)
GENERAL
Number of Voltage Inputs 3 (V1, V2, V3)
Number of Current Inputs 3 (L1, L2, L3)
Distribution Systems Single-/Split-/3-phase, DC, etc. (17 choices)
MEASUREMENTS
Voltage Range - Phase-Neutral (V) (10 to 1000) V AC/DC 2
Voltage Range - Phase-Phase (U) (10 to 1000) V AC 2
Typical Accuracy - Voltage ± 0.2% R ± 0.2 V
Current Range AC 5 mA to 12 kA AC 3 200 mA to 12 kA AC
Current Range DC 50 mA to 1300 ADC 3
Typical Accuracy - Current -(Meter Only) 4 ± 0.4 % R ± 0.04 % Inom
Network Frequencies DC/50/60/400 Hz (VFD/PWM not available)
CALCULATED MEASUREMENTS
Voltage Ratios up to 650 kV
Current Ratios up to 25 kA (MN193 probe, 5 A range) Not available with AmpFlex®/MiniFlex® sensors
Power (P, P+ , Punb, Qf, N, D, S) up to 10 GW/Gvar/GVA 5
Energy up to 4 EWh/EVAh/Evarh 5
Phase cos φ, tan Φ, PF
Phase Order / Phasor Diagram Yes / Yes (with DataView® or App for Android)
Harmonics THD for V, A and harmonics to 50th order for V, A
RECORDING
Aggregations (Fixed) 200 ms/1 s trends
Aggregations (Selectable) (1 to 60) min (12 choices)
Min/Max Values Yes
Alarms up to 32 separate alarms
Emailed Reports Yes, Alarms and Periodical Min/Max data through DataViewSync®
Storage Media SD Card (32 GB Max)
Recording Length Several weeks to years (Configuration dependent)
OTHER FEATURES
Communication USB, Ethernet Wi-Fi LAN, Ethernet/Wi-Fi Direct, DataViewSync®
Software DataView® included, free App for Android™
NEC Article 220.87 - Load Study Compliant Yes, DataView® configuration button and report templates
Mounting Embedded magnets in case
Powered from phase voltage Phase Power Adapter (Catalog #2137.90)
External Power Supply 120 / 240 V Line Power Cord
SAFETY AND MECHANICAL
Electrical Safety 600 V CAT IV / 1000 V CAT III
Ingress Protection IP 54 / IP 20
Weight < 2.2 lbs (1 kg)

Note 1: Refer to the user manual for complete technical specifications
Note 2: 400 Hz - Phase-Neutral-V (5 to 600) V ; Phase-Phase-U (10 to 600) V
Note 3: Probe dependent
Note 4: Accuracy of connected current probe must be added to this value
Note 5: (G = Giga = 109), (E = Exa = 1018)
Note 6: (PEL 115) IP 67 with included waterproof accessories; (PEL 112/113) IP 54 instrument disconnected (de-energized) / IP 20 instrument connected (energized and operating)

User Manuals

Models PEL 112 and PEL 113

PEL Adapter - English, Español, and French

PEL 102 & 103 - Battery Replacement Procedure

Modelos PEL 112 y PEL 113 - Español (CA France version)

Battery Recharge Time / Rechargeable NiMH Notice

Tiempo de recarga de las baterías / Aviso de NiMH recargable

Quick Start Guides

Models PEL 112 and PEL 113

Datasheets

Model PEL 112 - English

Model PEL 112 - Español

Brochures

PEL 110 Series Brochure - EN

Power Quality

Android App for PEL Motor Data Software Sensor

Sensor Software para Datos Del Motor - ES

Power Quality (FR CAN)

Grounding Traffic Control Signal Equipment Simplified

AEMC® Instruments Product Line Brochure (FR CAN)

Comparison Charts

Power Analyzer - Current Probe Selection Chart

Power Energy Logger (NEW PEL Series) Comparison Chart - English

Power Quality Analyzers and Loggers Sensor Compatibility

PEL 102-103 versus PEL 112-113

Software

LabView Drivers

Procedures for installing the LabView drivers.   LabView Installation PDF

Digital Multimeters - MTX-3292B, MTX3292BT, MTX3293B, MTX3293-BT
Ver. 1.0 LabView Drivers

  Megohmmeters
Ver. 1.0 Model 1060 Overview PDF
Ver. 1.1 Models 5060 & 5070 Overview PDF
Ver. 1.0 Models 6550 & 6555 Overview PDF

  Power Quality & Energy
Ver. 1.0 Models 8333, 8435, 8335, & 8336 Overview PDF
Ver. 1.0 Models PEL 102 & 103 Overview PDF

  Simple Logger II Series

Ver. 1.0

Simple Logger II

 Overview PDF
  SCOPIX IV – OX9000 Series

Ver. 1.0

Ver. 1.0

LabView Drivers

LabWindows/CVI drivers:

LabWindowsCVI_SCOPIX_IV_ox9000.zip

LabWindowsCVI_SCOPIX_IV_ox9000.zip



PEL Family of Loggers Android Application

Download the Chauvin Arnoux® PEL Android application to remotely configure and see measurements of your PEL instruments in real time on an Android device.



Application Notes

Glossary of Power Terms

DataView PEL Control Panel Event Log Messages

Harmonics: A Brief Introduction

How to Determine WHY the PEL Order Indicator is Blinking Red

Cómo Determinar POR QUÉ Parpadea el Indicador de Orden de Fases del PEL

Data Aggregation in PowerPad III® and PEL® Instruments

Upgrading Firmware on PEL® Instruments

White Papers

For Electrical Power, Quality Matters

Understanding an Energy Load Study

DÉTERMINER VOTRE RENDEMENT DU CAPITAL INVESTI (RCI) AVEC UNE ÉTUDE DE CHARGE ÉNERGÉTIQUE - Français

Forms

Stored Measurement Results Form

High Voltage Warning Sign (color)

High Voltage Warning Sign (black & white)

Firmware

PEL Power & Energy Meters Models PEL 102 & 103 - Firmware

Technical Bulletins

Watts Current Issue 17

Watts Current Issue 16

Watts Current Issue 12

Applications - Graphic Illustrations

Power Distribution (Switchgear)

Videos

PEL App for Android

PEL 102/103 Battery Replacement

Viewing PEL Real-time Data in the DataView® PEL Control Panel

Creating A DataView® Report in the PEL Control Panel

Español - Configuración de un PEL de AEMC mediante DataView®

Español - Datos del PEL en Tiempo Real

PEL - Synchronized Recordings With Multiple PELs

Introduction To Data Loggers

Firmware Update for PEL

Data Aggregation for PEL® and PowerPad®

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2133.72 Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in.
For use with PEL Models: PEL 102, PEL 103, PEL 112 & PEL 113, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914. 		$39.00
2136.80 Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46 $19.00
2137.81 Battery - Replacement NiMH 8.4V for the PEL 100 Series (ETL Approved)

Instruction Sheet 		$79.00
