NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.

Model	Cat. #	Description	List Price	Quantity/Status	Distributor Stock Check
PEL 115 - w/o sensors	2137.56	Power & Energy Logger Model PEL 115 (No sensors, Waterproof IP67, DataView® Software) Replaces Cat #2137.57 NIST Calibration ($176.00 each)	$4,295.00	In stock at factory. Find a Distributor
PEL 115	2137.58	Power & Energy Logger Model PEL 115 w/4 196A-24-BK AmpFlex® Sensors (Waterproof IP67, DataView® Software) Replaces Cat #2137.59 NIST Calibration ($215.00 each)	$5,400.00	Consult Factory for Availability

Model	PEL 115 - w/o sensors
Cat. #	2137.56
Description	Power & Energy Logger Model PEL 115 (No sensors, Waterproof IP67, DataView® Software) Replaces Cat #2137.57
List Price	$4,295.00
In stock at factory. Find a Distributor

Model	PEL 115
Cat. #	2137.58
Description	Power & Energy Logger Model PEL 115 w/4 196A-24-BK AmpFlex® Sensors (Waterproof IP67, DataView® Software) Replaces Cat #2137.59
List Price	$5,400.00
Consult Factory for Availability

Model PEL 115 - Cat. #2137.56 (no sensors): Includes extra-large classic tool bag with rubber bottom, (5) 10 ft (3 m) black test leads (with watertight cap), (5) alligator clips, power adapter (110/230) V w/ US power cord, 5 ft USB cable, 8 GB SD-Card (installed), USB-SD-Card reader, set of (12) color-coded input ID markers, (1) 9.6 V NiMH battery (installed), set of (4) large and (5) small caps (watertight) (stored in instrument case inside cover), printed quick start guide, and USB drive with DataView^® software and user manual.

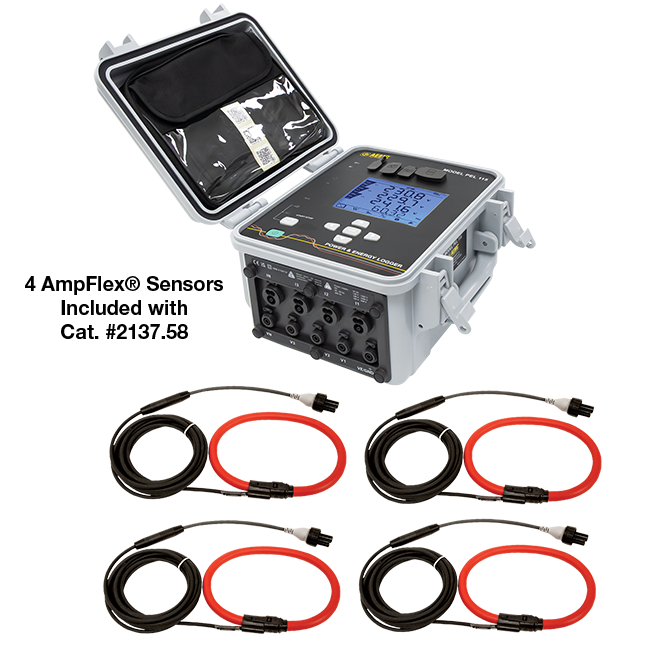

Model PEL 115 - Cat. #2137.58 (with four 196A-24-BK sensors): Includes extra large carrying bag with rubber bottom, (4) AmpFlex® sensors 24 in (waterproof - IP67) Model 196A-24-BK, (5) 10 ft (3 m) black leads (with watertight cap), (5) black alligator clips, power adapter (110/230) V with US power cord,5 ft USB cable, 8 GB SD-Card (installed), USB-SD-Card reader, set of (12) color-coded input ID markers, (1) 9.6 V NiMH battery (installed), set of (4) large and (5) small caps (watertight) (stored in instrument case inside cover), printed quick start guide, and USB drive with DataView^® software and user manual.

TECHNICAL SPECIFICATIONS ¹
Catalog #	2137.56 (No Current Probes/Sensors)	2137.58 (w/ 196A-24-BK Sensors)
GENERAL

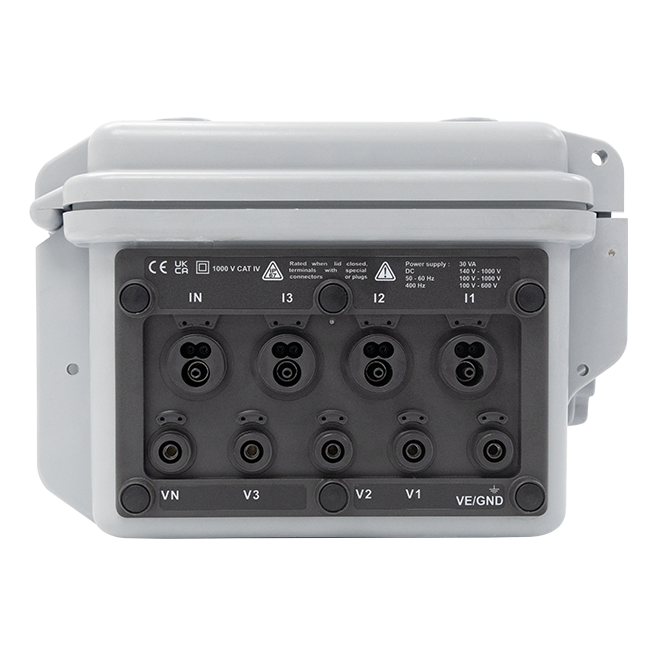

Number of Voltage Inputs	4 (V1, V2, V3, Earth/Ground)
Number of Current Inputs	4 (L1, L2, L3, Earth/Ground)
Distribution Systems	Single-/Split-/3-phase, DC, etc. (17 choices)
MEASUREMENTS
Voltage Range - Phase-Neutral (V)	(10 to 1000) V AC/DC ²
Voltage Range - Phase-Phase (U)	(17 to 1700) VAC ²
Typical Accuracy - Voltage	± 0.2 % R ± 0.2 V
Current Range AC	5 mA to 12 kAAC ³	200 mA to 12 kAAC
Current Range DC	50 mA to 1300 ADC ³
Typical Accuracy - Current (Meter Only) ⁴	± 0.4 % R ± 0.04 % Inom
Network Frequencies	DC/50/60/400 Hz (VFD/PWM not available)
CALCULATED MEASUREMENTS
Voltage Ratios	up to 650 kV
Current Ratios	up to 25 kA (MN193 probe, 5 A range)	Not available with AmpFlex^®/MiniFlex^® sensors
Power (P, P+ , Punb, Qf, N, D, S)	up to 10 GW/Gvar/GVA ⁵
Energy	up to 4 EWh/EVAh/Evarh ⁵
Phase	cos φ, tan Φ, PF
Phase Order / Phasor Diagram	Yes / Yes (with DataView^® or App for Android™)
Harmonics	THD for V, A and harmonics to 50th order for V, A
RECORDING
Aggregations (Fixed)	200 ms/1 s trends
Aggregations (Selectable)	(1 to 60) min (12 choices)
Min/Max Values	Yes
Alarms	Up to 32 separate alarms
Emailed Reports	Yes, Alarms and Periodical Min/Max data through DataViewSync^™
Storage Media	SD Card (32 GB Max)
Recording Length	Several weeks to years (Configuration dependent)
OTHER FEATURES
Communication	USB, Ethernet/Wi-Fi LAN, Ethernet/Wi-Fi Direct, DataViewSync^™
Software	DataView^® included, free App for Android™
NEC Article 220.87 - Load Study Compliant	Yes, DataView^® configuration button and report templates
Mounting	Pole mounting kit available (Cat. #2137.82)
Powered from phase voltage	Yes, from phase-phase or phase-neutral voltage inputs
External Power Supply	Power Adapter
Altitude Operating	Operating: < 6562 ft (< 2000 m) Non-Operating: < 32,808 ft (< 10,000 m)
Operating Temperature	(-4 to 108.5) °F (-20 to 42.5) °C from (10 to 85) % RH (-4 to 122) °F (-20 to 50) °C from (10 to 75) % RH
Storage Temperature (with battery)	(-40 to 95) °F (-40 to 35) °C from (0 to 95) % RH (-40 to 158) °F (-40 to 70) °C from (0 to 75) % RH
SAFETY AND MECHANICAL
Electrical Safety	1000 V CAT IV per IEC 61010
Ingress Protection	Per IEC 60529: IP67 (waterproof) when the cover of the instrument is closed, the voltage leads are screwed tight and the leads of the AmpFlex® 196A connectors are screwed tight. IP54: when the cover is open, the instrument is in a horizontal position, and the terminal plugs are in place. IP40: when the cover is open, the instrument is in a horizontal position, and the terminal plugs are not in place.
Dimensions	(10.63 x 9.65 x 7.09) in; (270 x 245 x 180) mm
Weight	8.8 lb (4 kg)
Drop Test	Approximately 8 in (20 cm) in the most severe position without permanent mechanical damage and functional deterioration. 3.28 ft (1 m) in its packaging.

Note 1: Refer to the user manual for complete technical specifications
Note 2: 400 Hz - Phase-Neutral-V (5 to 600) V ; Phase-Phase-U (10 to 600) V
Note 3: Probe dependent
Note 4: Accuracy of connected current probe must be added to this value
Note 5: (G = Giga = 10⁹), (E = Exa = 10¹⁸)

Datasheets

Modelo PEL 115 - Español

Model PEL 115 - English

Software

PEL Family of Loggers Android Application

Applications - Graphic Illustrations

Transformer Acceptance Maintenance Testing

Videos

Introducing the NEW PEL 110 Series: Power & Energy Loggers

PEL App for Android

Español - Configuración de un PEL de AEMC mediante DataView^®

Español - Datos del PEL en Tiempo Real

PEL - Synchronized Recordings With Multiple PELs

Introduction To Data Loggers

Firmware Update for PEL

Data Aggregation for PEL^® and PowerPad^®

Quick Tip - Pole Mounting Kit for PEL 115 and PowerPad Model 8436

Model	Cat. #	Description	List Price	Quantity/Status
	2133.76	Bag - Extra Large Carrying Bag w/Rubber Bottom (Replacement for Model 8345 & OX9000 series) may be used with Models: 3945/3945-B, 6240, 6250, 6255, 6471, 6472, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8436, 8510, PEL 105, & PEL 115 Dimensions: (22.5 x 12.5 x 7.5) in	$148.00
	2136.80	Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46	$19.00
	2137.82	Pole Mounting Kit for Model PEL 105, PEL 115 & PowerPad® Models 8435/8436 (Note: strapping to mount to a pole is not included)	$245.00
MR193-BK	2140.28	AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series NIST Calibration ($75.00 each)	$509.00
MN93-BK	2140.32	AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 NIST Calibration ($75.00 each)	$252.00
SR193-BK	2140.33	AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 NIST Calibration ($75.00 each)	$434.00
193-24-BK	2140.34	AmpFlex^® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$325.00
193-36-BK	2140.35	AmpFlex^® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$375.00
MN193-BK	2140.36	AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 NIST Calibration ($75.00 each)	$339.00
	2140.45	Replacement - Set of 12, color input ID markers for the PowerPad Series	$36.00
MA193-10-BK	2140.48	MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$278.00
2140.50	2140.50	MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$309.00
	2140.73	Lead - One 10 ft (3M) Black Lead (Waterproof cap) {Rated 1000V CAT IV} & One Black Alligator Clip {Rated 1000V CAT IV, 15A, UL} for Models 8435 & 8436	$39.00
196A-24-BK	2140.75	AmpFlex^® Sensor 24" (Waterproof - IP67) Model 196A-24-BK for use only with Models 8435, 8436, PEL 105, & PEL 115	$359.00
MA196-14-BK	2140.79	MiniFlex® Sensor 14" (Waterproof - IP67) Model MA196-14-BK for use only with Models 8435, 8436, PEL 105, & PEL 115 Special Order Only	$359.00	Consult Factory for Availability
MA194-24-BK	2140.80	MiniFlex^® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series NIST Calibration ($75.00 each)	$335.00
E94	2140.82	AC/DC Current Probe Model E94 for use with Model 8345, PEL 112, PEL 113, & PEL 115 NIST Calibration ($75.00 each)	$449.00	Consult Factory for Availability
	5000.14	Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers	$11.00
	5000.19	Power adapter (replacement) 110/230V with US power cord for use with models 8333, 8335, 8336, PEL 105, and C.A 6116	$220.00
	5000.45	USB SD - card reader (replacement for Power & Energy Logger Models PEL 52, PEL 102, PEL 103, PEL 112 PEL 113 & PEL 115)	$17.75
	5000.67	Caps - replacement caps (set 4-lg, 5-sm) for PowerPad III models 8435, 8436, PEL 105, & PEL 115	$80.00
	5000.99	Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)	$12.00

Model
Cat. #	2133.76
Description	Bag - Extra Large Carrying Bag w/Rubber Bottom (Replacement for Model 8345 & OX9000 series) may be used with Models: 3945/3945-B, 6240, 6250, 6255, 6471, 6472, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8436, 8510, PEL 105, & PEL 115 Dimensions: (22.5 x 12.5 x 7.5) in
List Price	$148.00

Model
Cat. #	2136.80
Description	Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46
List Price	$19.00

Model
Cat. #	2137.82
Description	Pole Mounting Kit for Model PEL 105, PEL 115 & PowerPad® Models 8435/8436 (Note: strapping to mount to a pole is not included)
List Price	$245.00

Model	MR193-BK
Cat. #	2140.28
Description	AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series
List Price	$509.00
NIST Calibration ($75.00 each)

Model	MN93-BK
Cat. #	2140.32
Description	AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price	$252.00
NIST Calibration ($75.00 each)

Model	SR193-BK
Cat. #	2140.33
Description	AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price	$434.00
NIST Calibration ($75.00 each)

Model	193-24-BK
Cat. #	2140.34
Description	AmpFlex^® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$325.00
NIST Calibration ($75.00 each)

Model	193-36-BK
Cat. #	2140.35
Description	AmpFlex^® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$375.00
NIST Calibration ($75.00 each)

Model	MN193-BK
Cat. #	2140.36
Description	AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price	$339.00
NIST Calibration ($75.00 each)

Model
Cat. #	2140.45
Description	Replacement - Set of 12, color input ID markers for the PowerPad Series
List Price	$36.00

Model	MA193-10-BK
Cat. #	2140.48
Description	MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$278.00
NIST Calibration ($75.00 each)

Model	2140.50
Cat. #	2140.50
Description	MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$309.00
NIST Calibration ($75.00 each)

Model
Cat. #	2140.73
Description	Lead - One 10 ft (3M) Black Lead (Waterproof cap) {Rated 1000V CAT IV} & One Black Alligator Clip {Rated 1000V CAT IV, 15A, UL} for Models 8435 & 8436
List Price	$39.00

Model	196A-24-BK
Cat. #	2140.75
Description	AmpFlex^® Sensor 24" (Waterproof - IP67) Model 196A-24-BK for use only with Models 8435, 8436, PEL 105, & PEL 115
List Price	$359.00

Model	MA196-14-BK
Cat. #	2140.79
Description	MiniFlex® Sensor 14" (Waterproof - IP67) Model MA196-14-BK for use only with Models 8435, 8436, PEL 105, & PEL 115 Special Order Only
List Price	$359.00
Consult Factory for Availability

Model	MA194-24-BK
Cat. #	2140.80
Description	MiniFlex^® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price	$335.00
NIST Calibration ($75.00 each)

Model	E94
Cat. #	2140.82
Description	AC/DC Current Probe Model E94 for use with Model 8345, PEL 112, PEL 113, & PEL 115
List Price	$449.00
Consult Factory for Availability

Model
Cat. #	5000.14
Description	Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers
List Price	$11.00

Model
Cat. #	5000.19
Description	Power adapter (replacement) 110/230V with US power cord for use with models 8333, 8335, 8336, PEL 105, and C.A 6116
List Price	$220.00

Model
Cat. #	5000.45
Description	USB SD - card reader (replacement for Power & Energy Logger Models PEL 52, PEL 102, PEL 103, PEL 112 PEL 113 & PEL 115)
List Price	$17.75

Model
Cat. #	5000.67
Description	Caps - replacement caps (set 4-lg, 5-sm) for PowerPad III models 8435, 8436, PEL 105, & PEL 115
List Price	$80.00

Model
Cat. #	5000.99
Description	Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price	$12.00
