Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|
PEL 113 | 2137.54 | Power & Energy Logger Model PEL 113 (Includes LCD. w/ sensors) | $2,775.00 | Consult Factory for Availability |
|
PEL 113 - w/o sensors | 2137.64 | Power & Energy Logger Model PEL 113 (Includes LCD, no sensors) | $2,115.00 | In stock at factory. Find a Distributor |
|
|
||||||||||
|

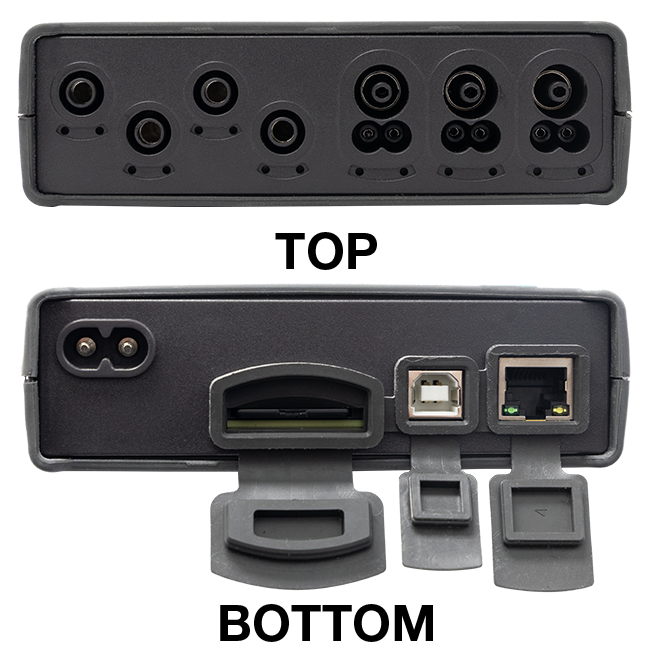

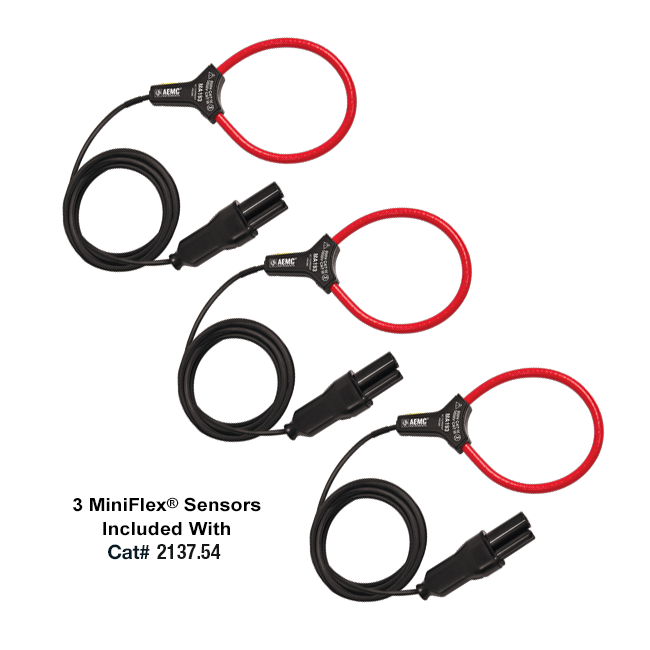

Model PEL 113 - Cat. #2137.54 (LCD, with sensors): Includes small classic tool bag, (3) MiniFlex® MA193-10-BK sensors, (4) 10 ft black test leads in cable reeling box, (4) black alligator clips, set of (12) color-coded ID markers, 8 GB SD-Card (installed), USB-SD-Card reader, 5 ft USB type A to type B cable, 5 ft 115 V power cord, NiMH AAA 8.4 V battery (installed), safety and compliance sheets, printed Quick Start Guide, and USB drive with DataView® software and user manual.
Model PEL 113 - Cat. #2137.64 (LCD, without sensors): Includes small classic tool bag, (4) 10 ft black test leads in cable reeling box, (4) black alligator clips, set of (12) color-coded ID markers, 8 GB SD-Card (installed), USB-SD-Card reader, 5 ft USB type A to type B cable, 5 ft 115 V power cord, NiMH AAA 8.4 V battery (installed), safety and compliance sheets, printed Quick Start Guide, and USB drive with DataView® software and user manual.
TECHNICAL SPECIFICATIONS 1 | ||
Catalog # | 2137.64 (No Current Probes/Sensors) | 2137.54 (w/ 196A-24-BK Sensors) |
GENERAL | ||
Number of Voltage Inputs | 3 (V1, V2, V3) | |
Number of Current Inputs | 3 (L1, L2, L3) | |
Distribution Systems | Single-/Split-/3-phase, DC, etc. (17 choices) | |
MEASUREMENTS | ||
Voltage Range - Phase-Neutral (V) | (10 to 1000) V AC/DC 2 | |
Voltage Range - Phase-Phase (U) | (10 to 1000) V AC 2 | |
Typical Accuracy - Voltage | ± 0.2% R ± 0.2 V | |
Current Range AC | 5 mA to 12 kAAC 3 | 200 mA to 12 kAAC |
Current Range DC | 50 mA to 1300 ADC 3 | |
Typical Accuracy - Current -(Meter Only) 4 | ± 0.4 % R ± 0.04 % Inom | |
Network Frequencies | DC/50/60/400 Hz (VFD/PWM not available) | |
CALCULATED MEASUREMENTS | ||
Voltage Ratios | up to 650 kV | |
Current Ratios | up to 25 kA (MN193 probe, 5 A range) | Not available with AmpFlex®/MiniFlex® sensors |
Power (P, P+ , Punb, Qf, N, D, S) | up to 10 GW/Gvar/GVA 5 | |
Energy | up to 4 EWh/EVAh/Evarh 5 | |
Phase | cos φ, tan Φ, PF | |
Phase Order / Phasor Diagram | Yes / Yes (with DataView® or App for Android) | |
Harmonics | THD for V, A and harmonics to 50th order for V, A | |
RECORDING | ||
Aggregations (Fixed) | 200 ms/1 s trends | |
Aggregations (Selectable) | (1 to 60) min (12 choices) | |
Min/Max Values | Yes | |
Alarms | Up to 32 separate alarms | |
Emailed Reports | Yes, Alarms and Periodical Min/Max data through DataViewSync® | |
Storage Media | SD Card (32 GB Max) | |
Recording Length | Several weeks to years (Configuration dependent) | |
OTHER FEATURES | ||
Communication | USB, Ethernet/Wi-Fi LAN, Ethernet/Wi-Fi Direct, DataViewSync® | |
Software | DataView® included, free App for Android™ | |
NEC Article 220.87 - Load Study Compliant | Yes, DataView® configuration button and report templates | |
Mounting | Embedded magnets in case | |
Powered from phase voltage | Phase Power Adapter (Cat. #2137.90) | |
External Power Supply | 120 / 240 V Line Power Cord | |
SAFETY AND MECHANICAL | ||
Electrical Safety | 600 V CAT IV / 1000 V CAT III | |
Ingress Protection | IP 54 / IP 20 | |
Weight | < 2.2 lbs (1 kg) |
Note 2: 400 Hz - Phase-Neutral-V (5 to 600) V ; Phase-Phase-U (10 to 600) V
Note 3: Probe dependent
Note 4: Accuracy of connected current probe must be added to this value
Note 5: (G = Giga = 109), (E = Exa = 1018)
Note 6: (PEL 115) IP 67 with included waterproof accessories; (PEL 112/113) IP 54 instrument disconnected (de-energized) / IP 20 instrument connected (energized and operating)
User Manuals
Models PEL 112 and PEL 113
PEL Adapter - English, Español, and French
PEL 102 & 103 - Battery Replacement Procedure
Modelos PEL 112 y PEL 113 - Español (CA France version)
Battery Recharge Time / Rechargeable NiMH Notice
Tiempo de recarga de las baterías / Aviso de NiMH recargable
Quick Start Guides
Datasheets
Brochures
PEL 110 Series Brochure - EN
Power Quality
Android App for PEL Motor Data Software Sensor
Sensor Software para Datos Del Motor - ES
Power Quality (FR CAN)
Grounding Traffic Control Signal Equipment Simplified
AEMC® Instruments Product Line Brochure (FR CAN)
Comparison Charts
Power Analyzer - Current Probe Selection Chart
Power Energy Logger (NEW PEL Series) Comparison Chart - English
Power Quality Analyzers and Loggers Sensor Compatibility
PEL 102-103 versus PEL 112-113
Software
LabView Drivers
Procedures for installing the LabView drivers. LabView Installation PDF
Digital Multimeters - MTX-3292B, MTX3292BT, MTX3293B, MTX3293-BT | |||
Ver. 1.0 | LabView Drivers | ||
Megohmmeters | |||
Ver. 1.0 | Model 1060 | Overview PDF | |
Ver. 1.1 | Models 5060 & 5070 | Overview PDF | |
Ver. 1.0 | Models 6550 & 6555 | Overview PDF | |
Power Quality & Energy | |||
Ver. 1.0 | Models 8333, 8435, 8335, & 8336 | Overview PDF | |
Ver. 1.0 | Models PEL 102 & 103 | Overview PDF | |
Simple Logger II Series | |||
Ver. 1.0 |
Overview PDF | ||
SCOPIX IV – OX9000 Series | |||
Ver. 1.0 Ver. 1.0 |
PEL Family of Loggers Android Application
Download the Chauvin Arnoux® PEL Android application to remotely configure and see measurements of your PEL instruments in real time on an Android device.
Application Notes
Glossary of Power Terms
DataView PEL Control Panel Event Log Messages
Harmonics: A Brief Introduction
How to Determine WHY the PEL Order Indicator is Blinking Red
Cómo Determinar POR QUÉ Parpadea el Indicador de Orden de Fases del PEL
Data Aggregation in PowerPad III® and PEL® Instruments
Upgrading Firmware on PEL® Instruments
White Papers
For Electrical Power, Quality Matters
Understanding an Energy Load Study
DÉTERMINER VOTRE RENDEMENT DU CAPITAL INVESTI (RCI) AVEC UNE ÉTUDE DE CHARGE ÉNERGÉTIQUE - Français
Forms
Stored Measurement Results Form
High Voltage Warning Sign (color)
High Voltage Warning Sign (black & white)
Firmware
Technical Bulletins
Applications - Graphic Illustrations
Videos
PEL App for Android
PEL 102/103 Battery Replacement
Viewing PEL Real-time Data in the DataView® PEL Control Panel
Creating A DataView® Report in the PEL Control Panel
Español - Configuración de un PEL de AEMC mediante DataView®
Español - Datos del PEL en Tiempo Real
PEL - Synchronized Recordings With Multiple PELs
Introduction To Data Loggers
Firmware Update for PEL
Data Aggregation for PEL® and PowerPad®
Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|
![]() |
2133.72 | Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in. For use with PEL Models: PEL 102, PEL 103, PEL 112 & PEL 113, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914. |
$39.00 |
|
|
![]() |
2136.80 | Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105, PEL 112,PEL 113, & PEL 115 (Replacement for Models DTR® 8510, 5060, 5070, C.A 6116, C.A1727, DL913, & DL914) Replaces Cat #2140.46 | $19.00 |
|
|
![]() |
2137.81 | Battery - Replacement NiMH 8.4V for the PEL 100 Series (ETL Approved)![]() ![]() |
$79.00 |
|
|
![]() |
2137.90 | Adapter - 600 V CAT III Power to Phase Adapter for use with Models PEL 102, PEL 103, PEL 112 & PEL 113 | $379.00 | Consult Factory for Availability |
|
![]() |
2140.28 | AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series | $509.00 |
|
|
![]() |
2140.32 | AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $252.00 |
|
|
![]() |
2140.33 | AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $434.00 |
|
|
![]() 193-24-BK |
2140.34 | AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $325.00 |
|
|
![]() 193-36-BK |
2140.35 | AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $375.00 |
|
|
![]() |
2140.36 | AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $339.00 |
|
|
![]() |
2140.44 | Lead – One 10 ft (3M) Black Lead w/Black Alligator Clip {Lead rated 1000 V CAT IV 15 A, Clip rated 1000 V CAT IV 15 A, UL} for PowerPad® & PEL series | $31.75 |
|
|
![]() |
2140.45 | Replacement - Set of 12, color input ID markers for the PowerPad Series | $36.00 |
|
|
![]() |
2140.48 | MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $278.00 | Consult Factory for Availability |
|
![]() |
2140.50 | MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $309.00 |
|
|
![]() |
2140.80 | MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $335.00 |
|
|
![]() |
2140.82 | AC/DC Current Probe Model E94 for use with Model 8345, PEL 112, PEL 113, & PEL 115 | $449.00 |
|
|
![]() |
5000.14 | Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers | $11.00 |
|
|
![]() |
5000.45 | USB SD - card reader (replacement for Power & Energy Logger Models PEL 52, PEL 102, PEL 103, PEL 112 PEL 113 & PEL 115) | $17.75 |
|
|
![]() |
5000.77 | Cable reeling box for organizing leads less than 10 ft ![]() ![]() |
$23.50 |
|
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
