Ground Resistance Tester Model 4620

The Digital Ground Resistance Tester Model 4620 performs ground resistance and soil resistivity tests. This direct reading tester measures from 0 to 2000Ω, and is auto-ranging, so it automatically seeks outs the optimum measurement range. The Model 4620 is rugged, easy-to-use and is ideal for maintenance crews performing numerous tests. It exceeds mechanical and safety specifications for shock, vibration and drop tests specified in IEC standards. It is designed to reject high levels of interference, so it can be used under difficult conditions such as high stray currents that normally affect accuracy.

The Model 4620 is also available in complete Kits (150ft, 300ft and 500ft).

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
4620 2130.43 Ground Resistance Tester Model 4620 $999.00 In stock at factory. Find a Distributor
4620 Kit-150ft 2135.19 Ground Resistance Tester Model 4620 Kit-150ft $1,419.00 Out of Stock Consult Factory for Availability
4620 Kit-300ft 2135.20 Ground Resistance Tester Model 4620 Kit-300ft $1,519.00 Out of Stock Consult Factory for Availability
4620 Kit-500ft 2135.21 Ground Resistance Tester Model 4620 Kit-500ft $1,669.00 Out of Stock Consult Factory for Availability
Model4620
Cat. #2130.43
DescriptionGround Resistance Tester Model 4620
List Price$999.00
In stock at factory. Find a Distributor
Model4620 Kit-150ft
Cat. #2135.19
DescriptionGround Resistance Tester Model 4620 Kit-150ft
List Price$1,419.00
Out of Stock Consult Factory for Availability
Model4620 Kit-300ft
Cat. #2135.20
DescriptionGround Resistance Tester Model 4620 Kit-300ft
List Price$1,519.00
Out of Stock Consult Factory for Availability
Model4620 Kit-500ft
Cat. #2135.21
DescriptionGround Resistance Tester Model 4620 Kit-500ft
List Price$1,669.00
Out of Stock Consult Factory for Availability

Model 4620 - Cat. 2130.43: Ground Resistance Tester Model 4620 only

Model 4620 Kit 150ft - Cat. 2135.19: Ground Resistance Tester Model 4620 and Test Kit For 3-Point Testing cat. 2135.35 (carrying bag, 2 14.5" T-shaped Auxiliary Ground Electrodes, set of 5 spaded lugs, and 100ft AEMC® tape measure)

Model 4620 Kit 300ft - Cat. 2135.20: Ground Resistance Tester Model 4620 and Test Kit for 4-Point Testing cat. 2135.36 (carrying bag, red 300ft color-coded lead on spool, blue 300ft color-coded lead on spool, 4 14.5" T-shaped Auxiliary Ground Electrodes, set of 5 spaded lugs, and 100ft AEMC® tape measure)

Model 4620 Kit 500ft - Cat. 2135.21: Includes meter, carrying bag, two 500 ft color-coded leads on spools (red/blue), two 5 ft color-coded leads (red/blue), two 100 ft color-coded leads (green and black), one 30 ft lead (green), four 14.5" T-shaped auxiliary ground electrodes, one set of five spaded lugs and 100 ft tape measure and a USB stick supplied with ground tester workbook and a user manual.

Print
Range (Auto-ranging) 0 to 2000Ω
Resolution 0.01 to 1Ω
Test Current 0.1 to 10mA
Accuracy  Typical ±(2% Reading +1ct)
Open Voltage 42V peak
Withstanding Voltage 250V AC or 100V DC
Operating Frequency 128Hz square wave
Interference Rejection to high levels of interference voltage (DC, 50/60Hz, harmonics)
Maximum Auxiliary Rod Resistance Current Circuit:
3kΩ @ 20Ω range
30kΩ @ 200Ω range
50kΩ @ 2000Ω range
Voltage Circuit:
50kΩ on all ranges
Response Time 4 to 8 seconds for a stabilized measurement
Display 200 counts, 7 segment LCD, backlight
Power Source 8 x 1.5V C alkaline batteries
Battery Life 4500 15-seconds tests, low battery indicator
Dimensions 10.8 x 9.7 x 5.0” (273 x 247 x 127mm)
Weight (with Battery) 6.28 lbs (2.85kg)
Operating Temperature 14° to 131°F (-10° to 55°C)
Storage Temperature -40° to 158°F (-40° to 70°C)
Relative Humidity Up to 90%
Ingress Protection (IP) IP 65 (closed); IP 63 (open)
EMC EN 61326-1
Safety Compliance EN 61557, EN 61010-1, 30V CAT III, Pollution Degree 2
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
2117.76 Bag - Small Flat Black Canvas Bag for Ground/Accessories
Dimensions: 17 x 6.5 x 2.75"
$39.00
2119.82 Multi-purpose Large Canvas Bag
Dimensions: 22 x 10.5 x 12"
$121.00

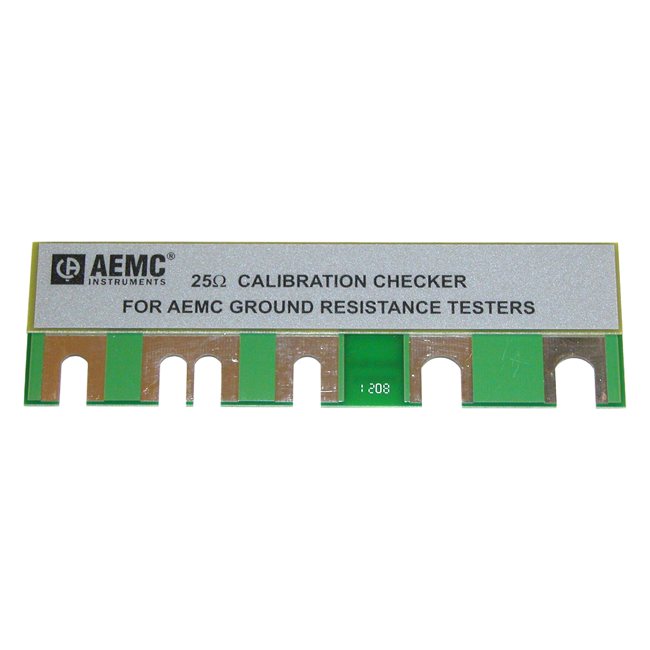

2130.59 25Ω Calibration Checker for Ground Testers Model 3620, 3640, 4610, 4620 and 4630. $72.00

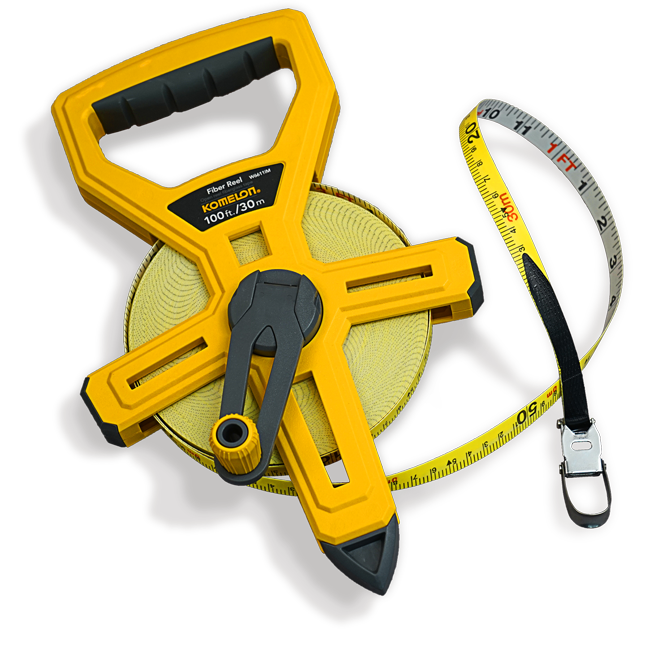

2130.60 100 ft Tape Measure for use with Ground Resistance Tester Kits $36.00
2135.35 Ground Resistance Test Kit for 3-Point Testing - 150ft Test Kit for 3-Point Testing, Kit (Carrying Bag, [2] 150 ft Color-coded Leads on Spools (Red/Blue), [1] 30 ft Lead (Green), [2] 5 ft Color-coded Leads (Red/Blue), [2] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) $490.00
2135.36 Ground Resistance Test Kit for 4-Point Testing - 300ft Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 300 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) $590.00
2135.37 Ground Resistance Test Kit for 4-Point Testing - 500ft Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 500 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [1] 30 ft Lead (Green), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure) $740.00

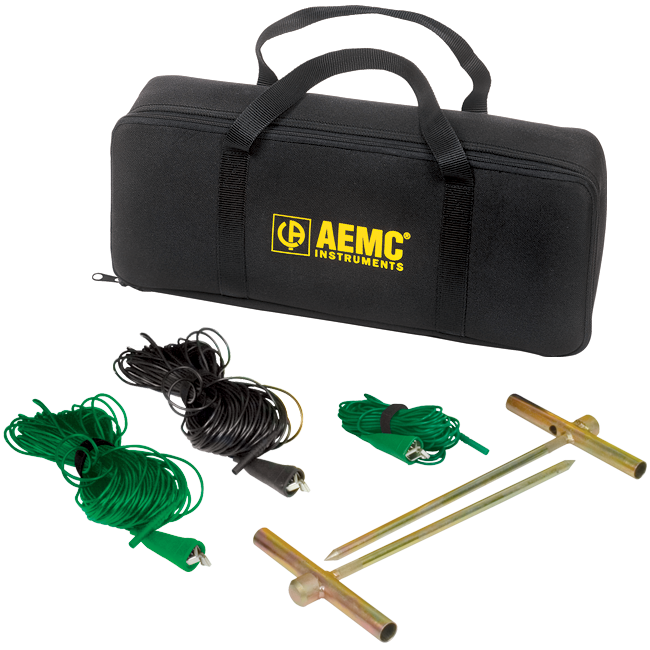

2135.38 Test Kit for 3-Point testing (supplemental for 4-Point testing) - includes two 100 ft color-coded leads (hand tied - green and black), one 30 ft lead (green) and two 14.5" T-shaped auxiliary ground electrodes and carrying bag. $255.00
2135.39 Set of 2, 14.5" T-shaped Ground Rods for use with all Ground Testers (except clamp-ons) $33.00
2135.44 Ground Rods – Set of 2, 17" Stainless Steel T-shaped Auxiliary Ground Electrodes $149.00

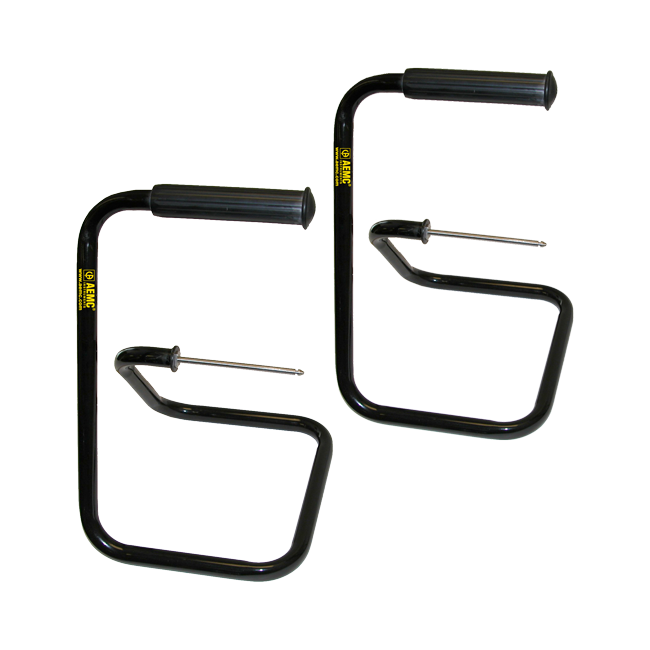

2135.85 Set of 2 reel caddies for use with ground kit spools $85.00

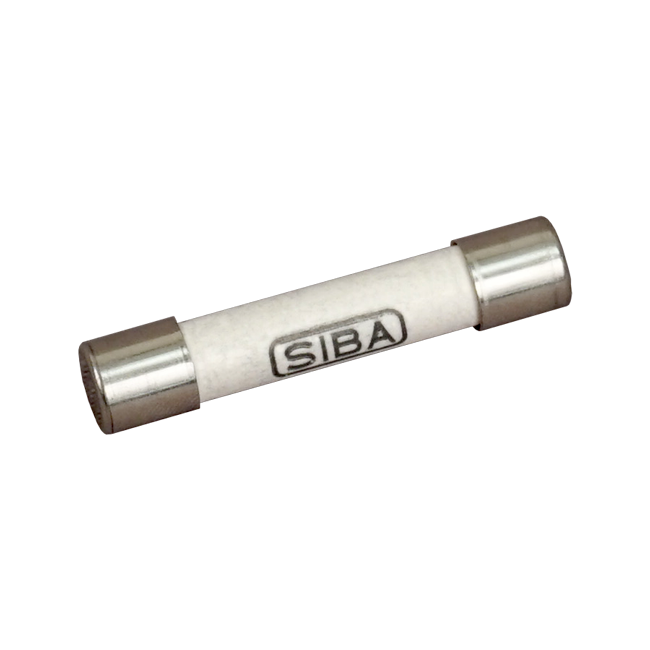

2970.12 Fuse - Set of 5, 0.1A, 250V (fast blow), 6 x 32mm (0.25 x 1.25") for Models 3620, 3640, 4500, 4600, 4610 $11.95

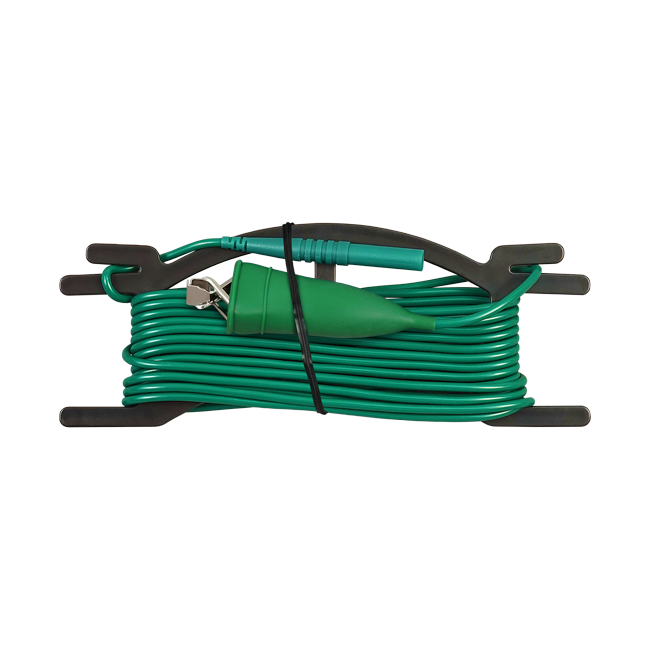

5000.01 Green replacement wire (30 ft, hand-tied) for ground resistance tester kits. $29.95
5000.02 Red replacement wire (500 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472) $199.00

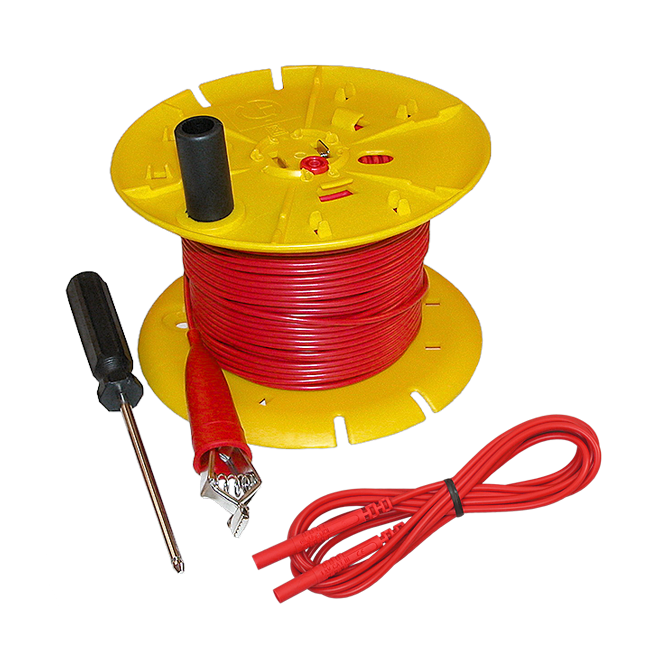

5000.03 Red replacement wire (300 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472) $169.00
5000.04 Red replacement wire (150 ft) on reel for ground resistance tester kits (Models 6470-B, 6471 and 6472 series) $139.00

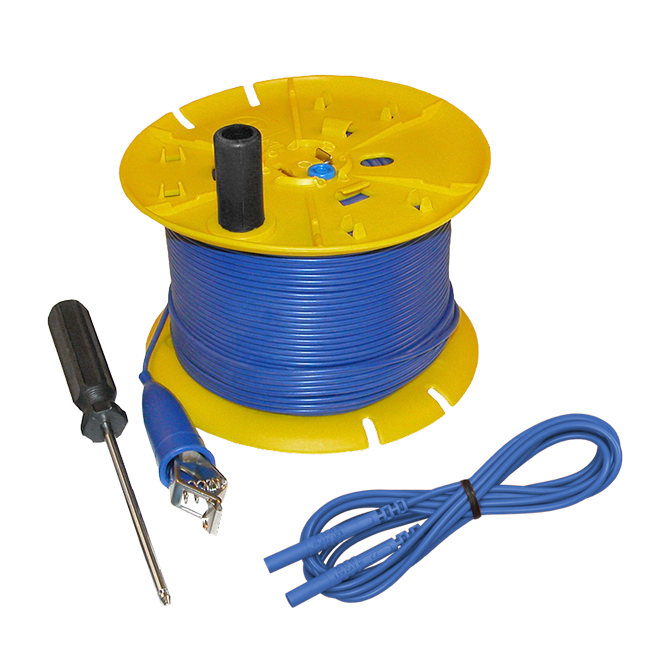

5000.05 Blue replacement wire (500 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472) $199.00

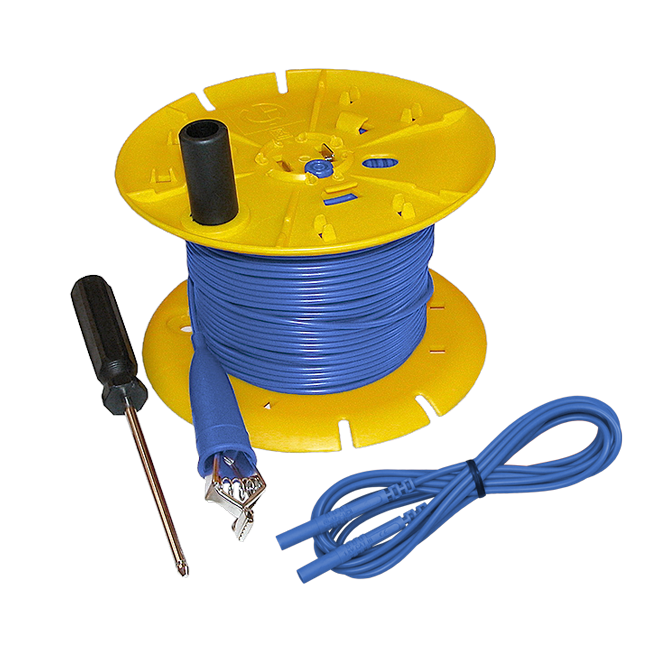

5000.06 Blue replacement wire (300 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472) $169.00
5000.07 Blue replacement wire (150 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472) $139.00

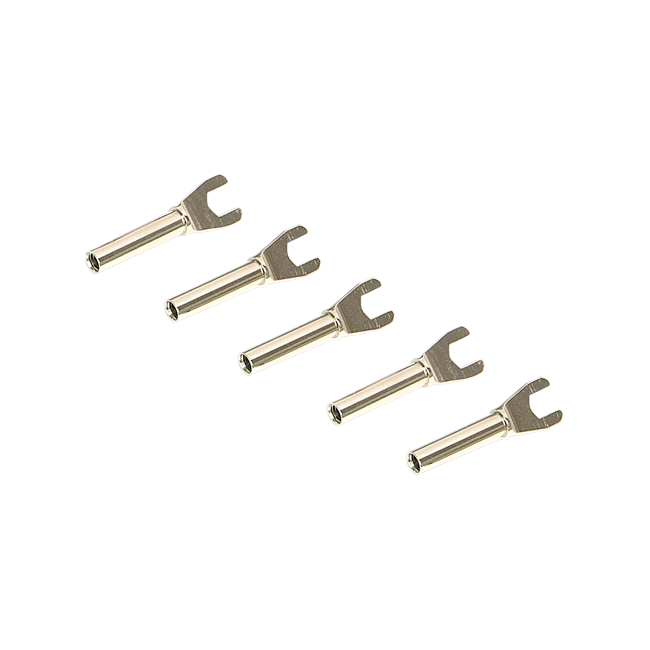

5000.10 Set of 5, replacement screw-on spaded lugs for ground resistance tester kits. $11.95

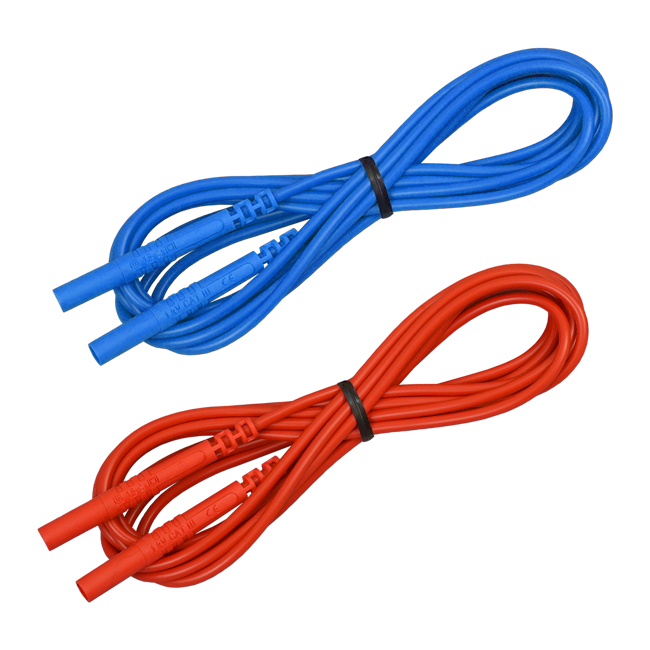

5000.34 Lead - Set of 2, Color-coded (Red/Blue) Leads for use with AEMC Ground Tester Reels Incorporating Banana Jack Input $20.50

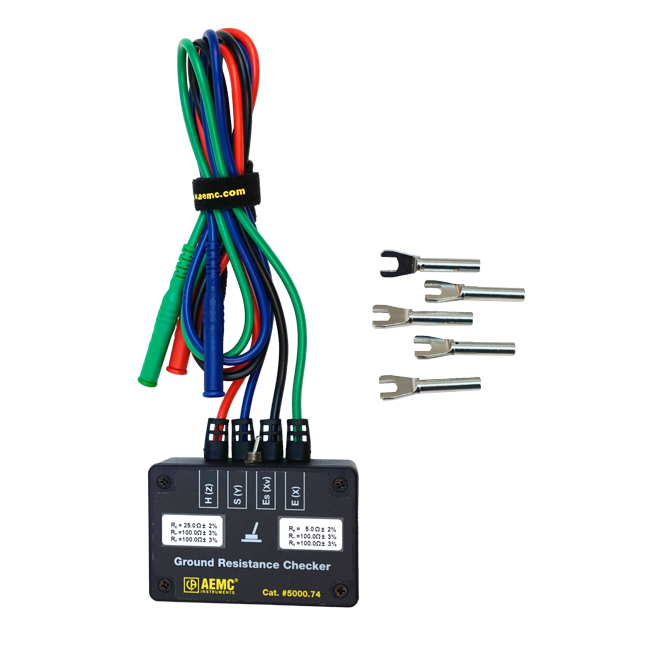

5000.74 Ground Resistance Tester Checker
Calibration Checker - 5/25Ω for use with Models 6470/6470-B, 6471, and 6472
Instruction Sheet
$149.00
Model
Cat. #2117.76
DescriptionBag - Small Flat Black Canvas Bag for Ground/Accessories
Dimensions: 17 x 6.5 x 2.75"
List Price$39.00
Model
Cat. #2119.82
DescriptionMulti-purpose Large Canvas Bag
Dimensions: 22 x 10.5 x 12"
List Price$121.00
Model
Cat. #2130.59
Description25Ω Calibration Checker for Ground Testers Model 3620, 3640, 4610, 4620 and 4630.
List Price$72.00
Model
Cat. #2130.60
Description100 ft Tape Measure for use with Ground Resistance Tester Kits
List Price$36.00
Model
Cat. #2135.35
DescriptionGround Resistance Test Kit for 3-Point Testing - 150ft Test Kit for 3-Point Testing, Kit (Carrying Bag, [2] 150 ft Color-coded Leads on Spools (Red/Blue), [1] 30 ft Lead (Green), [2] 5 ft Color-coded Leads (Red/Blue), [2] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure)
List Price$490.00
Model
Cat. #2135.36
DescriptionGround Resistance Test Kit for 4-Point Testing - 300ft Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 300 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure)
List Price$590.00
Model
Cat. #2135.37
DescriptionGround Resistance Test Kit for 4-Point Testing - 500ft Test Kit for 4-Point Testing, Kit (Carrying Bag, [2] 500 ft Color-coded Leads on Spools (Red/Blue), [2] 100 ft Color-coded Leads (hand tied-Green/Black), [1] 30 ft Lead (Green), [2] 5 ft Color-coded Leads (Red/Blue), [4] 14.5" T-shaped Auxiliary Ground Electrodes, [1] Set of 5, Spaded Lugs and [1] 100 ft AEMC® Tape Measure)
List Price$740.00
Model
Cat. #2135.38
DescriptionTest Kit for 3-Point testing (supplemental for 4-Point testing) - includes two 100 ft color-coded leads (hand tied - green and black), one 30 ft lead (green) and two 14.5" T-shaped auxiliary ground electrodes and carrying bag.
List Price$255.00
Model
Cat. #2135.39
DescriptionSet of 2, 14.5" T-shaped Ground Rods for use with all Ground Testers (except clamp-ons)
List Price$33.00
Model
Cat. #2135.44
DescriptionGround Rods – Set of 2, 17" Stainless Steel T-shaped Auxiliary Ground Electrodes
List Price$149.00
Model
Cat. #2135.85
DescriptionSet of 2 reel caddies for use with ground kit spools
List Price$85.00
Model
Cat. #2970.12
DescriptionFuse - Set of 5, 0.1A, 250V (fast blow), 6 x 32mm (0.25 x 1.25") for Models 3620, 3640, 4500, 4600, 4610
List Price$11.95
Model
Cat. #5000.01
DescriptionGreen replacement wire (30 ft, hand-tied) for ground resistance tester kits.
List Price$29.95
Model
Cat. #5000.02
DescriptionRed replacement wire (500 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472)
List Price$199.00
Model
Cat. #5000.03
DescriptionRed replacement wire (300 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472)
List Price$169.00
Model
Cat. #5000.04
DescriptionRed replacement wire (150 ft) on reel for ground resistance tester kits (Models 6470-B, 6471 and 6472 series)
List Price$139.00
Model
Cat. #5000.05
DescriptionBlue replacement wire (500 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472)
List Price$199.00
Model
Cat. #5000.06
DescriptionBlue replacement wire (300 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472)
List Price$169.00
Model
Cat. #5000.07
DescriptionBlue replacement wire (150 ft) on reel for ground resistance tester kits (Models 4620, 4630, 6470-B, 6471 & 6472)
List Price$139.00
Model
Cat. #5000.10
DescriptionSet of 5, replacement screw-on spaded lugs for ground resistance tester kits.
List Price$11.95
Model
Cat. #5000.34
DescriptionLead - Set of 2, Color-coded (Red/Blue) Leads for use with AEMC Ground Tester Reels Incorporating Banana Jack Input
List Price$20.50
Model
Cat. #5000.74
DescriptionGround Resistance Tester Checker
Calibration Checker - 5/25Ω for use with Models 6470/6470-B, 6471, and 6472
Instruction Sheet
List Price$149.00
