Megohmmeter Model 1060

The Digital/Analog Megohmmeter Model 1060 is a fully automated 1000V insulation tester. It provides insulation measurements to 4000GΩ (4TΩ). Test results include DAR, PI, capacitance, voltage measurement and duration of test.
The True Megohmmeter® Model 1060 has an RS-232 interface and an extensive memory function, which permits storage results in files specific to a sample. A standard software package (DataView®) included with the Model 1060 enables the user to display test results and graphs. The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC.

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
1060 2130.03 Megohmmeter Model 1060 $2,119.00 In stock at factory. Find a Distributor
Model1060
Cat. #2130.03
DescriptionMegohmmeter Model 1060
List Price$2,119.00
In stock at factory. Find a Distributor

Model 1060 - Cat. #2130.03: Includes detachable accessory pouch, (2) 5 ft color-coded (red/blue) leads, (1) black shielded lead, (3) color-coded (red/black/blue) alligator clips, (1) black test probe, (1) RS-232 DB9 F/F 6 ft null model cable, (1) RS-232 to USB adapter, US 115V power cord, rechargeable NiMH battery, spare fuses, and a USB thumbdrive with DataView® software and a user manual.

Print
AC/DC Voltage Measurement
Range 1 to 1000V
Accuracy ±(1% R + 3V)
Resolution 1 to 99.9V: 0.1V
100 to 1000V: 1V
Frequency Range DC and 16 to 65Hz
Input Impedance 750kΩ approx
Insulation Measurement
Test Voltage / Resistance Range 50V: 2kΩ to 200GΩ
100V: 4kΩ to 400GΩ
250V: 10kΩ to 1TΩ
500V: 20kΩ to 2TΩ
1000V: 40kΩ to 4TΩ
Measurement Accuracy 2kΩ to 39.99GΩ: ±(5% R + 3ct)
40.0GΩ 4TΩ: ±(15% R + 10ct)
Auto Discharge Discharge time < 2s/µF from Vtest to 25V
Live Circuit Indicator Inhibit test if terminal voltage > 25V prior to initialization of test
Resistance Measurement
Range 0.01Ω to 399.9kΩ
Accuracy ± (3% R + 3ct)
Open Circuit Voltage Approximately 12.4V DC
Short Circuit Current <6mA DC
Continuity Measurement
Range 0.01 to 39.99Ω
Accuracy ± (3% R + 4ct) with lead compensation
Open Circuit Voltage 12.4V DC
Short Circuit Current ≥ 200mA DC from 0.01 to 20.00Ω
General Features
Programmable Alarm Yes
DAR – PI Yes
Ramp Mode No
Step Mode No
Capacitance Measurement 0.05nf to 4.999µf, Accuracy: ± (10% R + 1ct)
Memory 128kB Memory / Stores over 1500 test results
Communication Serial port RS-232 with USB adapter (included)
Software DataView Software (included)
Power Supply Rechargeable NIMH battery pack; external 85-256V, 50/60Hz
Battery Life ≥ 5000 IR tests at 1000V into 1MΩ with a duty cycle of 5s on and 20s off; ≥ 4000 R tests of 1Ω with a duty cycle of 5s on and 20s off
Charging Time 4.5 hours approximately
Dimensions 9.45 x 7.28 x 4.33” (240 x 185 x 110mm)
Weight 7.5 lbs (3.4kg)
Altitude Operating 2000m
Operating Temperature 14° to +131°F (-10° to +55°C) ≤80% RH
Storage Temperature -40° to +158°F (-40° to +70°C) ≤90% RH
IP Rating IP 54
Safety Compliance EN 61010-1, EN 61557, 600V CAT III, Pollution Degree 2, CE

User Manual

Datasheet

Brochure

Comparison Charts

Software

DataView Software

Ver. 3.61.0008   Open Release Notes for the latest updates   |   Models Supported by DataView
Release Date: November 12, 2019

DataView® Complete

Contains report generation and ALL DataView® control panels. If you don't want to download the entire DataView® package, simple scroll below to locate individual component installers.

Self-extracting Executable: v3.61.0008 .exe — We recommend you use the executable file to simplify the installation process. Click on the link to download it, double-click on the downloaded .exe file to begin the installation process, and follow the installation prompts.

Zipped File: v3.61.0008 (471MB). zip — Alternatively you can manually extract the files from the zipped file. Please note: you should NEVER install these files from within the zipped file. You MUST extract them prior to installing.

IMPORTANT:

  • Back-up all template files before installation to ensure that they do not get overwritten.
  • Uninstall previous version of DataView before installing a new version.
  • PQL Loggers and Sentinel Series are no longer supported by DataView. See bottom of the page for a compatible version

Click here for the Minimum System Requirements



Below are the individual DataView component installers

This is the DataView core report generation software without any control panels

Release Date: 07/15/19
77MB Download v3.61.0008 .zip format

This control panel supports models: L452, 1510, 1821, 1822, 1823, 1110, 1246, 1227, 10101, and 10141

Release Date: 02/25/19
75MB Download v2.02.0085 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports model 8510

Release Date: 02/25/19
40MB Download v1.02.0006 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports model 6417

Release Date: 02/25/19
57MB Download v1.02.0004 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 6470-B, 6471, and 6472

Release Date: 02/25/19
44MB Download v1.05.0003 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 6116, 6116N, and 6117

Release Date: 02/25/19
65MB Download v1.07.0022 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 1060, 5060, 5070, 6550, 6555, 6526, 6532, and 6534

Release Date: 02/25/19
57MB Download v4.02.0071 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 6240, 6250, 6255, and 6292

Release Date: 02/25/19
47MB Download v1.07.0005 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 8220, 8230, 3945-B, 407, 607, and 8335 (if using firmware ≤2.8)

Release Date: 09/17/19
70MB Download v3.08.0019 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: 8333, 8335 (if using firmware >2.8), 8336, 8435, 8436

Release Date: 11/12/19

67MB Download v1.07.13010 .zip format
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: PEL102, PEL103, and PEL105
39MB Download v2.5.12642 .zip format

Release Date: 06/03/19
This control panel requires DataView version 3.61.0008 or higher

This control panel supports models: L261, L264, CL601, L702, L101, L102, L104, L642, L111, L432, AL834, ML912, ML914, L322, L562, L564, L404, and L481

Release Date: 10/17/19
63MB Download v1.05.0009 .zip format

This control panel requires DataView version 3.61.0008 or higher






NOTE: PQL Loggers and Sentinel Series are no longer supported by DataView.

To obtain an older version of DataView that is compatible for these instruments, click the link below:

Download v3.09.0008 - .zip format

Supported Operating Systems:
Windows XP
Windows 7 (32 & 64 Bit)
Windows 8/8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)

LabView Drivers

Procedures for installing the LabView drivers.   LabView Installation PDF


  Megohmmeters
Ver. 1.0 Model 1060 Overview PDF
Ver. 1.1 Models 5060 & 5070 Overview PDF
Ver. 1.0 Models 6550 & 6555 Overview PDF

  Power Quality & Energy
Ver. 1.0 Models 8333, 8435, 8335, & 8336 Overview PDF
Ver. 1.0 Models PEL 102 & 103 Overview PDF

  Simple Logger II Series

Ver. 1.0

Simple Logger II

Overview PDF
  SCOPIX IV – OX9000 Series

Ver. 1.0

Ver. 1.0

LabView Drivers

LabWindows/CVI drivers:

LabWindowsCVI_SCOPIX_IV_ox9000.zip

LabWindowsCVI_SCOPIX_IV_ox9000.zip





Application Notes

Forms

Technical Bulletins

Videos

Understanding Insulation Resistance Testing

What's New in DataView 3.50

Using AEMC Megohmmeter Model 1060 Part 1: Setting Up and Running a Test

Using AEMC Megohmmeter Model 1060 Part 2: DataView

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check

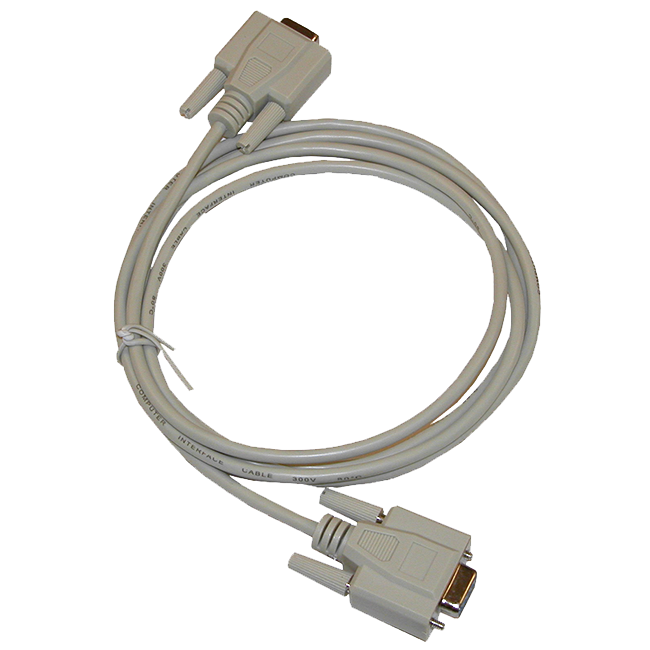

2119.45 Cable – Replacement PC RS-232, DB9 F/F 6 ft Null Modem Cable for 1060, 5060, 5070, 6250, and 6255 $18.00

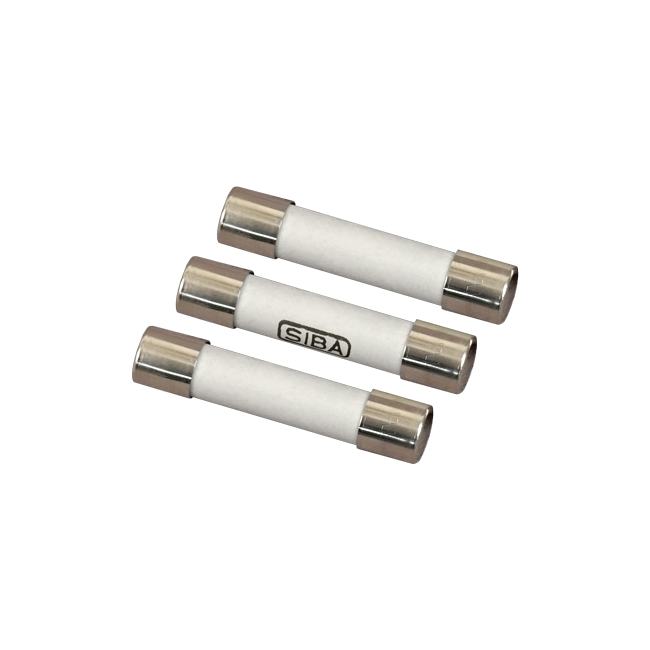

2119.56 Fuse, Set of 3, 0.1A, 660V, 20kA, 6x32mm for Models 1050/1060/6550/6555 $35.50

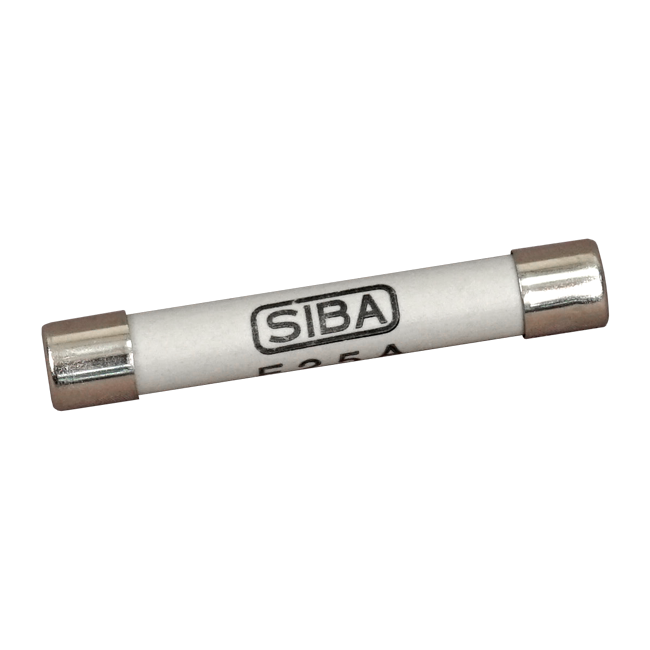

2119.57 Fuse - Set of 1, 2.5A, 1200V, 8 x 50mm for Models 1050/1060 $19.00

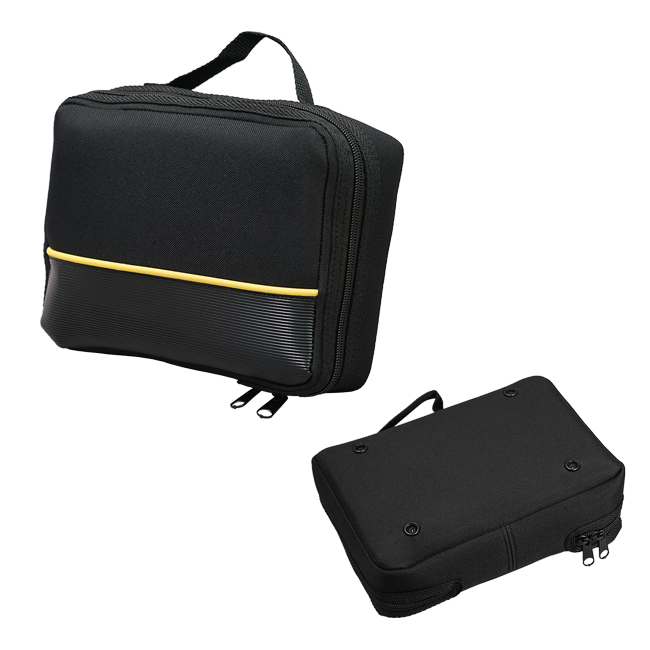

2119.59 Pouch - Replacement for Models 1050/1060
Dimensions: 8 x 10 x 2"
$73.00
2119.82 Multi-purpose Large Canvas Bag
Dimensions: 22 x 10.5 x 12"
$163.00

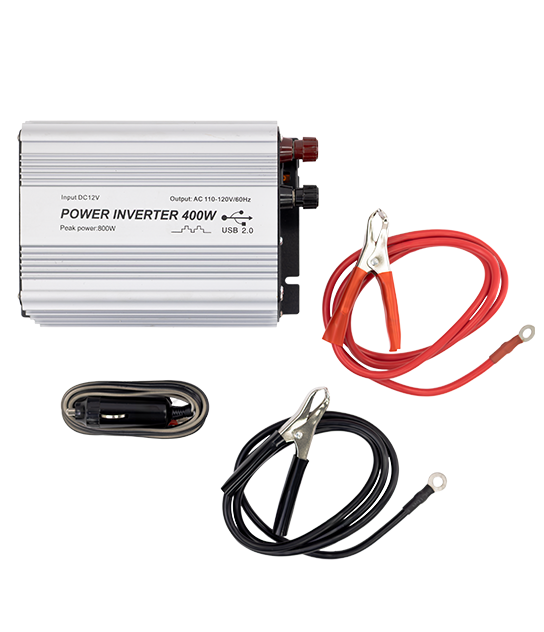

2135.43 Inverter - 12VDC to 120VAC 200 Watt for Vehicle Use (use with Ground Testers, Megohmmeters & Micro-ohmmeters) $90.00

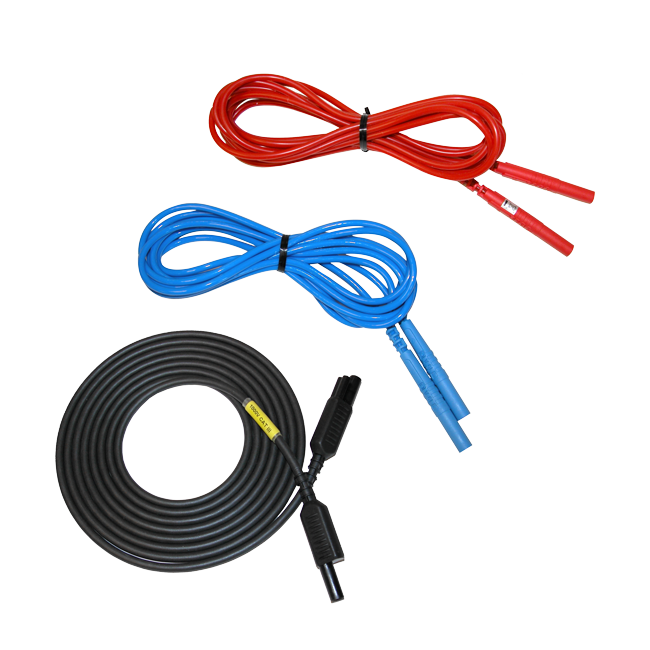

2951.70 Lead - Set of 3, Color-coded 10 ft safety leads for use with Models 1050/1060/1035 $184.00 Consult Factory for Availability
2960.21 Replacement 9.6V Rechargeable Battery Pack for Models 1060, 5050, 5060, 5070, 6505, 4630, 6470/6470-B, 6471 & 6472 $184.00
5000.14 Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers $10.00
5000.30 Probe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets $6.00

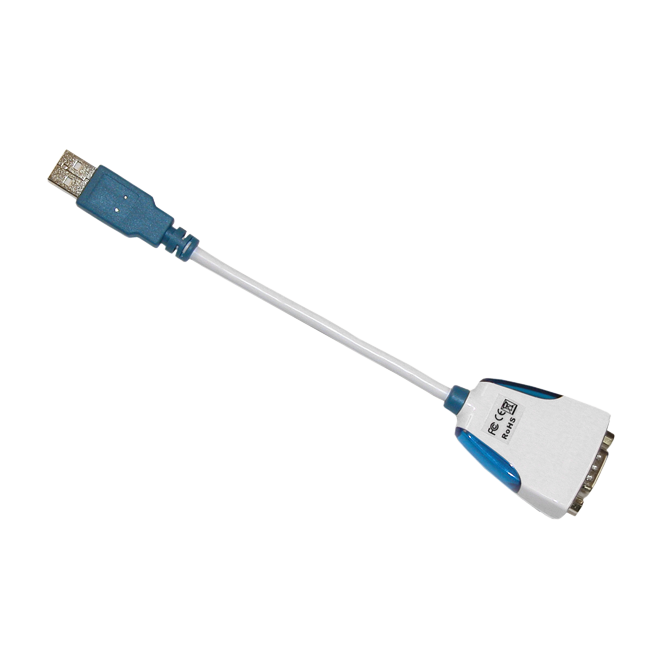

5000.60 Adapter - RS-232 to USB 2.0 replacement for models 3945-B, 1060, 5060, 5070, 6250, & 6255 $47.75
5000.66 Megohmmeter calibration checker - provides two test resistances of 150kO and 100MO.
NOTE: The 150kO terminal accepts test voltages up to 1000V. The 100MO terminal accepts voltages up to 2500V.
$124.00

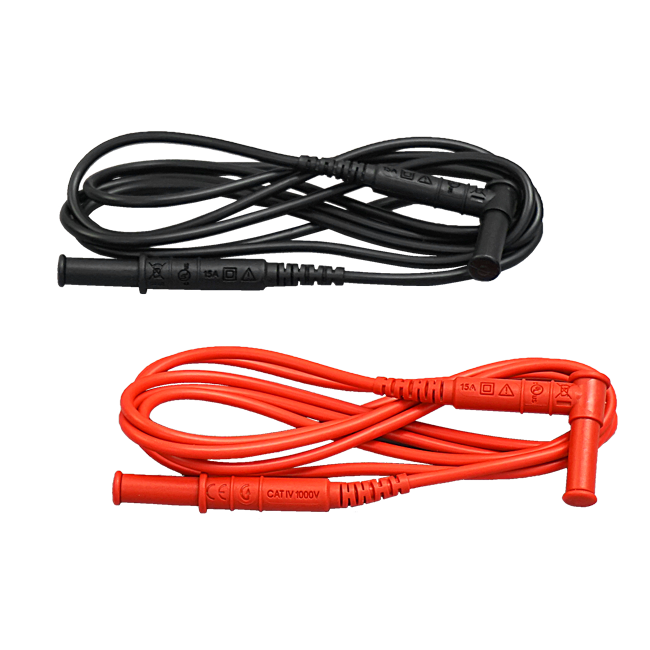

5000.78 Lead - set of 2, 5 ft PVC color-coded (red/black) with 4mm straight/right banana plugs $25.00

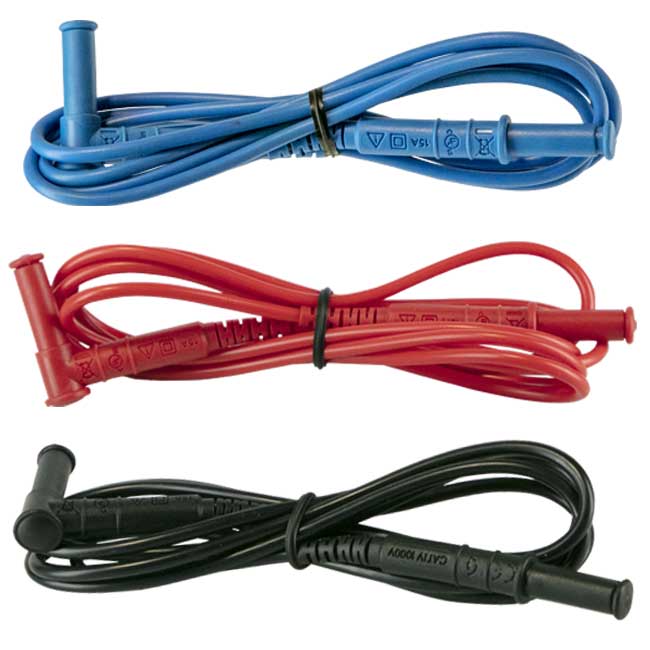

5000.93 Lead - set of 3, 5 ft PVC color-coded (red/black/blue) with 4mm straight/right banana plugs $33.75

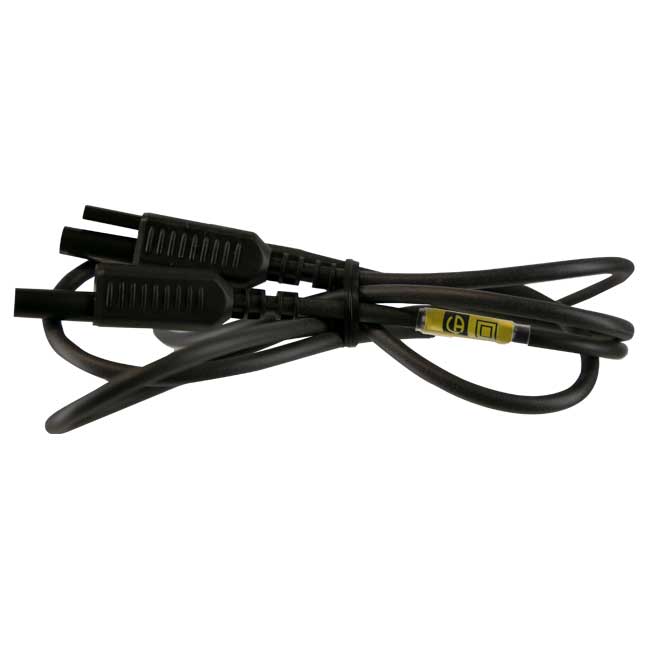

5000.95 Lead - replacement black 5 ft shielded lead for use with models 1050 and 1060 $98.00
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $11.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $11.50
5100.02 Latches - Replacement set of 2 for use with AEMC Yellow cases $10.25
5100.04 Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) $11.50

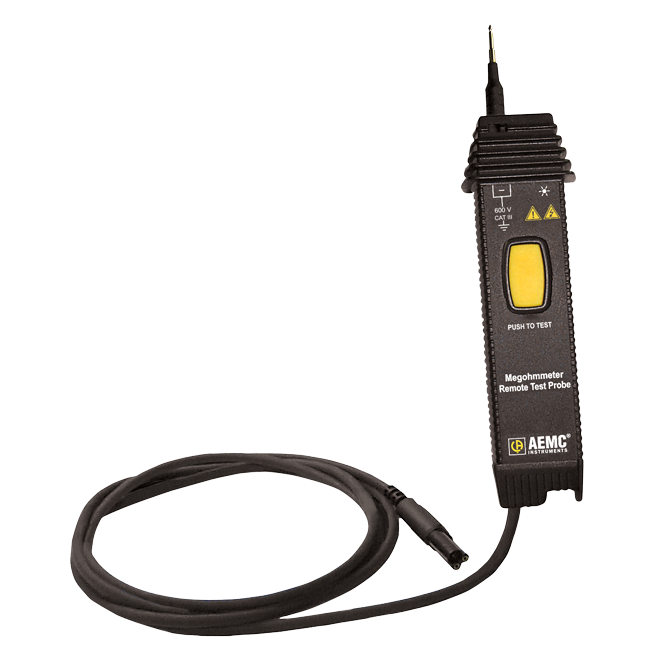

2118.97 Remote Test Probe (for use with Megohmmeter Models 1030-1045, 1060 & Installation Tester Model 6116/6116N & 6117). See replacement Cat #2155.75 $0.00 Discontinued
5000.31 Cat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}. $0.00 Discontinued
Model
Cat. #2119.45
DescriptionCable – Replacement PC RS-232, DB9 F/F 6 ft Null Modem Cable for 1060, 5060, 5070, 6250, and 6255
List Price$18.00
Model
Cat. #2119.56
DescriptionFuse, Set of 3, 0.1A, 660V, 20kA, 6x32mm for Models 1050/1060/6550/6555
List Price$35.50
Model
Cat. #2119.57
DescriptionFuse - Set of 1, 2.5A, 1200V, 8 x 50mm for Models 1050/1060
List Price$19.00
Model
Cat. #2119.59
DescriptionPouch - Replacement for Models 1050/1060
Dimensions: 8 x 10 x 2"
List Price$73.00
Model
Cat. #2119.82
DescriptionMulti-purpose Large Canvas Bag
Dimensions: 22 x 10.5 x 12"
List Price$163.00
Model
Cat. #2135.43
DescriptionInverter - 12VDC to 120VAC 200 Watt for Vehicle Use (use with Ground Testers, Megohmmeters & Micro-ohmmeters)
List Price$90.00
Model
Cat. #2951.70
DescriptionLead - Set of 3, Color-coded 10 ft safety leads for use with Models 1050/1060/1035
List Price$184.00
Consult Factory for Availability
Model
Cat. #2960.21
DescriptionReplacement 9.6V Rechargeable Battery Pack for Models 1060, 5050, 5060, 5070, 6505, 4630, 6470/6470-B, 6471 & 6472
List Price$184.00
Model
Cat. #5000.14
DescriptionPower cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers
List Price$10.00
Model
Cat. #5000.30
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL} replacement for Megohmmeter lead sets
List Price$6.00
Model
Cat. #5000.60
DescriptionAdapter - RS-232 to USB 2.0 replacement for models 3945-B, 1060, 5060, 5070, 6250, & 6255
List Price$47.75
Model
Cat. #5000.66
DescriptionMegohmmeter calibration checker - provides two test resistances of 150kO and 100MO.
NOTE: The 150kO terminal accepts test voltages up to 1000V. The 100MO terminal accepts voltages up to 2500V.
List Price$124.00
Model
Cat. #5000.78
DescriptionLead - set of 2, 5 ft PVC color-coded (red/black) with 4mm straight/right banana plugs
List Price$25.00
Model
Cat. #5000.93
DescriptionLead - set of 3, 5 ft PVC color-coded (red/black/blue) with 4mm straight/right banana plugs
List Price$33.75
Model
Cat. #5000.95
DescriptionLead - replacement black 5 ft shielded lead for use with models 1050 and 1060
List Price$98.00
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #5100.02
DescriptionLatches - Replacement set of 2 for use with AEMC Yellow cases
List Price$10.25
Model
Cat. #5100.04
DescriptionClip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price$11.50
Model
Cat. #2118.97
DescriptionRemote Test Probe (for use with Megohmmeter Models 1030-1045, 1060 & Installation Tester Model 6116/6116N & 6117). See replacement Cat #2155.75
List Price$0.00
Discontinued
Model
Cat. #5000.31
DescriptionCat.# 5000.31 is DISCONTINUED. Click on replacement item: Cat. #5000.98: Probe - red test probe {Rated 1000V CAT IV, 15A, UL V2}.
List Price$0.00
Discontinued
