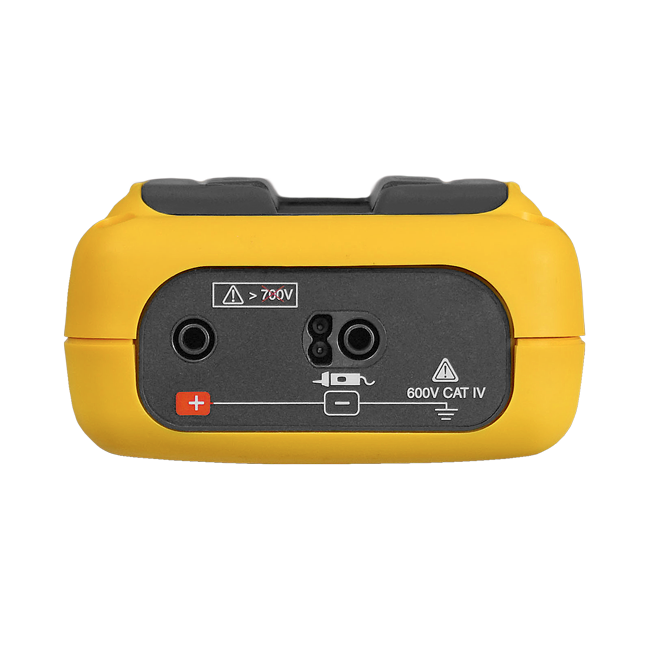

Megohmmeter Model 6536

  • True Megohmmeter®
  • 10 to 100V (variable) Insulation and Multi-Function Tester (Resistance, Continuity and Voltage)
  • Variable 10 to 100V (1V increments) Insulation Test Voltages
  • 20GΩ Max Insulation Resistance
  • Timed Test Mode up to 40 minutes for Insulation Resistance Test
  • Test Lock feature for hands free timed measurements up to 15 minutes
  • Continuity tests at 20mA or 200mA
  • Test lead resistance compensation for accurate low resistance measurements
  • True RMS AC/DC Voltmeter up to 700V
  • Ohmmeter to 1000kΩ
  • Auto discharge after Insulation Test
  • Hold function to "freeze" readings
  • Large and bright dual display with blue backlight
  • Auto Standby Feature due to inactivity saves battery power
  • Optional Remote Probe accessory
  • Optional Electro Static Discharge (ESD) Floor Test Kit for testing both point-to-ground and point-to-point electrostatic discharge
NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
6536 2155.56 Megohmmeter Model 6536 $839.00 In stock at factory. Find a Distributor
6536 ESD Floor Kit 2155.57 Megohmmeter Model 6536 ESD Floor Kit $1,344.00 Consult Factory for Availability
Model6536
Cat. #2155.56
DescriptionMegohmmeter Model 6536
List Price$839.00
In stock at factory. Find a Distributor
Model6536 ESD Floor Kit
Cat. #2155.57
DescriptionMegohmmeter Model 6536 ESD Floor Kit
List Price$1,344.00
Consult Factory for Availability
Print
AC/DC Voltage Measurement
Range 0.3 to 700V
Accuracy ±(3% R + 2ct)
Resolution 1 to 99.9V: 0.1V
100 to 999V: 1V
1000 to 4000V: 2V
Frequency Range DC & 15.3 to 800Hz
Input Impedance  400kΩ
Insulation Measurement
Test Voltage / Resistance Range Test Voltage: Variable 10 to 100V (1V steps)
10V: 2kΩ to 2GΩ
25V: (Vtest/5)kΩ to (Vtest/5) GΩ
100V: 20kΩ to 20GΩ
Measurement Accuracy 2-999kΩ only:  ±(4% + 20 ct)
All other ranges:  ±(3% + 2 ct)+(10%V) per 100MΩ
Auto Discharge Discharge time < 2s/µF From Vtest to 25V
Live Circuit Indicator Inhibit test if terminal voltage > 25V prior to initialization of test
Continuity Measurement
Ranges 0.00 to 10Ω (200mA test current)
0.0 to 100Ω (20mA test current)
Accuracy ± (2% R + 2ct) with lead compensation
Open Voltage ≥ 6V
Resistance Measurement
Range 1Ω to 1000kΩ
Accuracy ± (3% R + 2ct)
Open Voltage Approximately 4.5V
General Features
Programmable Alarm Yes
Timer 0:00 to 39:59mn, with 1s resolution
Display Backlit digital with bargraph
Power Supply Six AA batteries (NEDA 15A or IEC LR6)
Battery Life ≥ 6000 IR tests at 100V into 100kΩ with a duty cycle of 5 seconds on and 1 min off.
≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off.
Dimensions 8.31 x 4.25 x 2.36” (211 x 108 x 60mm)
Weight 1.87 lb (850g)
Altitude Operating 2000m
Operating Temperature -4° to +131°F (-20° to +55°C) & 20 to 80% RH
Storage Temperature -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries
IP Rating IP 54
Safety Compliance IEC/EN 61010-1, 600V CAT IV, IEC 61557

User Manuals

Datasheets

Brochures

Comparison Charts

Application Notes

Technical Bulletins

Videos

Understanding Insulation Resistance Testing

Hand-Held Megohmmeters

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
1017.45 Adapter - 4mm Non-insulated for Safety Leads $18.00 Consult Factory for Availability
2118.98 DISCONTINUED Case - Field Case (Waterproof) for Models 1030-1045, 6522, 6526, 6532, 6532 & 6536
Dimensions: 12 x 9 x 5.25"
See replacement Cat.# 2155.77
$0.00 Discontinued
2118.99 Case - Hands-free Carrying Case for Models 1030, 1035, 1039, 1040, 1045, 6522, 6524, 6526, 6532 & 6536
DISCONTINUED:
$0.00 Discontinued
2138.54 Continuity Probe for use with Megohmmeters and Installation Testers $71.00
2139.74 Lead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug $89.00
2152.26 Probe-Set of 2, color-coded Grip Probes (Red/Black) 1000V CAT III 20A for use with Models 6532, 6534 & 6536 $48.50
2152.28 Lead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL) $162.00
2155.75 Megohmmeter Test Probe (600V CAT IV) for Models 6522-6536, 6116N & 6117 $199.00

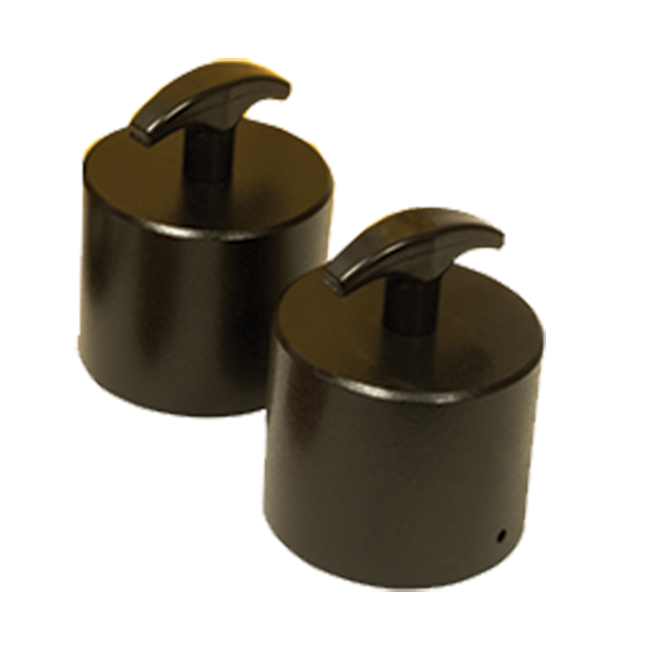

2155.76 Weights - Set of 2 (5 lb each) with conductive rubber bottom pad (RoHS) for use with Model 6536 ESD Kit $308.00
2155.77 Case - Field Case for use with all Hand-Held Meters (IP67) Replacements for Models 6536 ESD Kit & OX5042 Kit
Replacement for Cat#2118.98
$235.00
5000.66 Megohmmeter calibration checker - provides two test resistances of 150kO and 100MO.
NOTE: The 150kO terminal accepts test voltages up to 1000V. The 100MO terminal accepts voltages up to 2500V.
$104.00
5000.94 Lead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL) $24.00
5000.97 Probe - black test probe {Rated 1000V CAT IV, 15A, UL V2} $7.50
5000.99 Clip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2) $9.50
5100.00 Clip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2) $9.50
5100.04 Clip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2) $9.50
5100.05 Clip - Safety Alligator - White (1000V CAT IV, 15A, UL) $9.50
5100.06 Clip - Safety Alligator - Green (1000V CAT IV, 15A, UL) $9.50
5100.07 Lead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs $24.00
Model
Cat. #1017.45
DescriptionAdapter - 4mm Non-insulated for Safety Leads
List Price$18.00
Consult Factory for Availability
Model
Cat. #2118.98
DescriptionDISCONTINUED Case - Field Case (Waterproof) for Models 1030-1045, 6522, 6526, 6532, 6532 & 6536
Dimensions: 12 x 9 x 5.25"
See replacement Cat.# 2155.77
List Price$0.00
Discontinued
Model
Cat. #2118.99
DescriptionCase - Hands-free Carrying Case for Models 1030, 1035, 1039, 1040, 1045, 6522, 6524, 6526, 6532 & 6536
DISCONTINUED:
List Price$0.00
Discontinued
Model
Cat. #2138.54
DescriptionContinuity Probe for use with Megohmmeters and Installation Testers
List Price$71.00
Model
Cat. #2139.74
DescriptionLead - Set of 2, 6.5ft Color-coded Red/Black Fused Leads (.63A) w/ 4mm Plug
List Price$89.00
Model
Cat. #2152.26
DescriptionProbe-Set of 2, color-coded Grip Probes (Red/Black) 1000V CAT III 20A for use with Models 6532, 6534 & 6536
List Price$48.50
Model
Cat. #2152.28
DescriptionLead - Set of 2, 6.5 ft. Color-coded (Red/Black) Fused Leads (0.63A); Two Screw-on Alligator Clips, Two Screw-on Test Probes, Set of 5, 0.63A Fuses (UL)
List Price$162.00
Model
Cat. #2155.75
DescriptionMegohmmeter Test Probe (600V CAT IV) for Models 6522-6536, 6116N & 6117
List Price$199.00
Model
Cat. #2155.76
DescriptionWeights - Set of 2 (5 lb each) with conductive rubber bottom pad (RoHS) for use with Model 6536 ESD Kit
List Price$308.00
Model
Cat. #2155.77
DescriptionCase - Field Case for use with all Hand-Held Meters (IP67) Replacements for Models 6536 ESD Kit & OX5042 Kit
Replacement for Cat#2118.98
List Price$235.00
Model
Cat. #5000.66
DescriptionMegohmmeter calibration checker - provides two test resistances of 150kO and 100MO.
NOTE: The 150kO terminal accepts test voltages up to 1000V. The 100MO terminal accepts voltages up to 2500V.
List Price$104.00
Model
Cat. #5000.94
DescriptionLead - set of 2, 5 ft silicone color-coded (red/black) with 4mm straight/right banana plugs (Rated 1000V, CAT IV, UL)
List Price$24.00
Model
Cat. #5000.97
DescriptionProbe - black test probe {Rated 1000V CAT IV, 15A, UL V2}
List Price$7.50
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000V CAT IV, 15A, UL V2)
List Price$9.50
Model
Cat. #5100.00
DescriptionClip - Safety Alligator - Red (1000V CAT IV, 15A, UL V2)
List Price$9.50
Model
Cat. #5100.04
DescriptionClip - Safety Alligator - Blue (1000V CAT IV, 15A, UL V2)
List Price$9.50
Model
Cat. #5100.05
DescriptionClip - Safety Alligator - White (1000V CAT IV, 15A, UL)
List Price$9.50
Model
Cat. #5100.06
DescriptionClip - Safety Alligator - Green (1000V CAT IV, 15A, UL)
List Price$9.50
Model
Cat. #5100.07
DescriptionLead - set of 2, 5 ft color-coded (red/black) PVC w/ 4mm ST/ST plugs
List Price$24.00
