Why AEMC® Instruments Power Analyzers/Energy Loggers?

We know how critical it is for electricians and facility maintenance professional to troubleshoot and benchmark power quality issues over time. Our easy-to-use line of portable power quality analyzers, power and energy loggers, and meters are designed to:

  • Identify power, quality and energy waste in your facility
  • Ensure continuity of service
  • Find intermittent problems with voltage
  • Detect and prevent power issues before they become costly problems
  • Record trend, transient, event and harmonic data simultaneously – saves time finding problem areas
  • Assist in capturing accurate power and energy data necessary to maintain optimum performance and reliability
  • Included DataView® software for easy analysis and reporting
  • Real-time display provides on-site analysis capability
  • All key measurement functions are available with one button access – eliminating confusion and error
  • All needed probes and accessories included – no guess work needed to be sure you have everything you need

Powerful and Flexible Data Analysis Software

Our powerful DataView software is included to provide valuable insights about the performance of your electrical system. The software helps you:

  • Display and analyze real-time data
  • Configure functions and parameters
  • Customize views, templates and reports to your exact needs
  • Display waveforms, trend graphs, harmonic spectrums, text summaries, transients, event logs and stored alarms
  • Lifetime of free updates

Applications of Use

Our instruments support a wide range of applications including:

  • Power and electric monitoring
  • Harmonic detection & analysis
  • Utility testing
  • Energy management
  • Power factor analysis and correction
  • Power demand and consumption
  • kW measurement
  • Industrial power systems
  • Commercial maintenance

Power Analyzer Comparison Chart

We created this all-in-one comparison document to help you select a proper Power Analyzer for your specific needs.

Comparison Chart

Cuadro Comparativo – Español

Power Energy Logger (PEL) Comparison Chart

We created this all-in-one comparison document to help you select a proper Power Energy Logger (PEL) for your specific needs.

PEL Comparison Chart

Cuadro Comparativo – Español

Expert Tech Support

AEMC® provides complete technical support through our technical hot line 800-945-2362 (ext.351), speak directly to one of our tech support team members today. Or e-mail your questions to our tech team. techsupport@aemc.com

Excellent Customer Service

Our knowledgeable and friendly service team provides the best support in the industry. We seek to understand your inquiry or feedback in a respectful and responsive way. Our goal at AEMC Instruments is to surpass your expectations.

Speak directly to one of our customer care team members today at 800-945-2362 (Ext. 361). Or e-mail your questions customerservice@aemc.com

Request a Demo

Have questions on how to use AEMC® Power Analyzers and Energy Loggers? We're happy to provide a demonstration with our technical experts. Contact us at (800) 343-1391 or email us at sales@aemc.com

Power Analyzers / Energy Loggers

  •

    Handscope Portable Harmonic Analyzer Model OX 5042B

    Cat. #2150.21
    2-Channel, 40 MHz
    Two-channel oscilloscope with 40 MHz bandwidth. Also functions as an 8000-count multimeter with power measurements, and a harmonic analyzer to the 31st harmonic. Can store up to 2 MB of recorded data. USB communication enables programing the instrument remotely with the supplied SX-METRO software.

  •

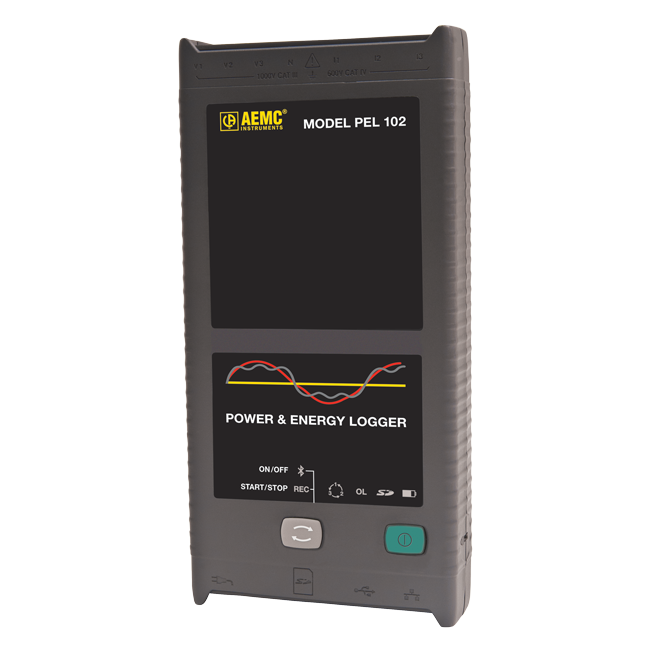

    Power & Energy Logger Model PEL 102

    Cat. #2137.51
    Voltage, current, power, harmonics, energy, multiple communication options (USB, Ethernet, Bluetooth), DataView® software
    The PEL 102 is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

  •

    Power & Energy Logger Model PEL 103

    Cat. #2137.62
    Voltage, current, power, harmonics, energy, multiple communication options (USB, Ethernet, Bluetooth), DataView® software
    The PEL 103 is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

  •

    Power & Energy Logger Model PEL 105

    Cat. #2137.57 & #2137.59
    Voltage, current, power, harmonics, energy, multiple communication options (USB, Ethernet, Bluetooth, Wi-Fi, AndroidTM app), DataView® software, waterproof IP67
    Monitors and records power, energy, cost, and harmonics. Waterproof case (IP67) designed for outdoor use/pole mounting. Bluetooth and Wi-Fi wireless communication provides option to work a safe distance from dangerous voltages and currents. Includes DataView® for configuration, viewing real-time data, and downloading data for report generation. Android™ app available to configure, view, and capture data wirelessly. Designed for electricians, engineers and contractors.

  •

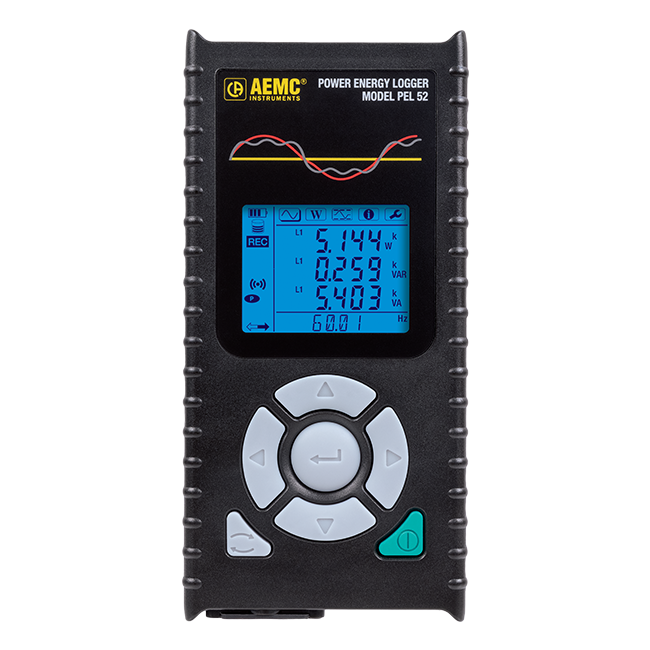

    Power & Energy Logger Model PEL 52 (w/ LCD, w/ (2) MA193-10-BK)

    Cat. #2137.69
    Voltage, current, power, harmonics, energy, multiple communication options (USB, Ethernet, Bluetooth), DataView® software
    The PEL 52 is aan affordable and user-friendly power/energy data logger, suitable for both single and split-phase (two-phase) applications. It is specifically designed for electricians, engineers, and contractors working in residential areas.

  •

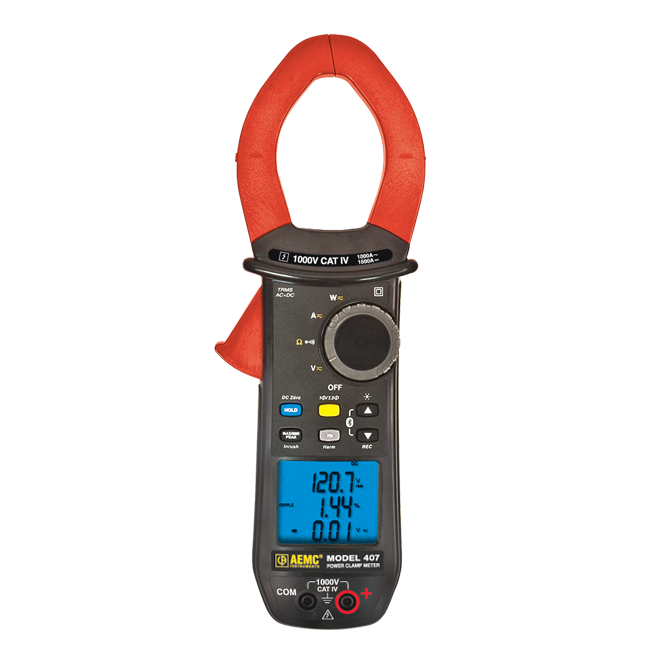

    Power Clamp-on Meter Model 407

    Mid-Size, Professional Functionality
    Cat. #2139.51
    TRMS, True InRush®, 1000VAC/DC, 1000AAC /1500ADC, Data Recording
    Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

  •

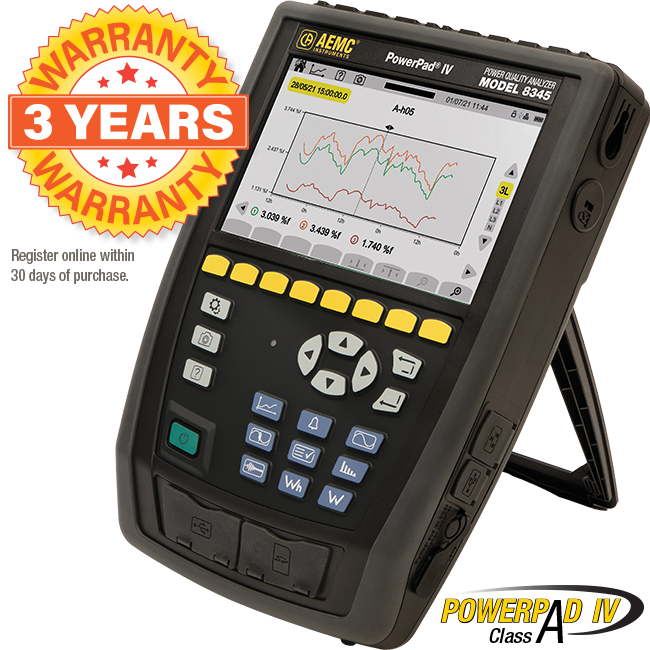

    PowerPad® IV Model 8345

    Cat. #2136.35
    Class A, TRMS, 1000 Vrms AC/DC, 10 kArms/5000 ADC, frequency, transients, harmonics, energy, DataView® software
    The PowerPad® IV Model 8345 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out precise diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current isolated inputs are provided. It is IEC 61000-4-30 Class A and safety rated to 1000 V CAT IV.

  •

    PowerPad® III Model 8336

    Cat. #2136.30
    TRMS, 1000Vrms AC/DC, 10kArms/5000ADC, frequency, transients, harmonics, energy, DataView® software
    The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

  •

    PowerPad® III Model 8333

    Cat. #2136.10
    TRMS, 1000Vrms/1200VDC, 10kArms/5000ADC, frequency, harmonics, energy, DataView® software
    The PowerPad® III Model 8333 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on single- or three-phase networks. Three current and four voltage input terminals are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

  •

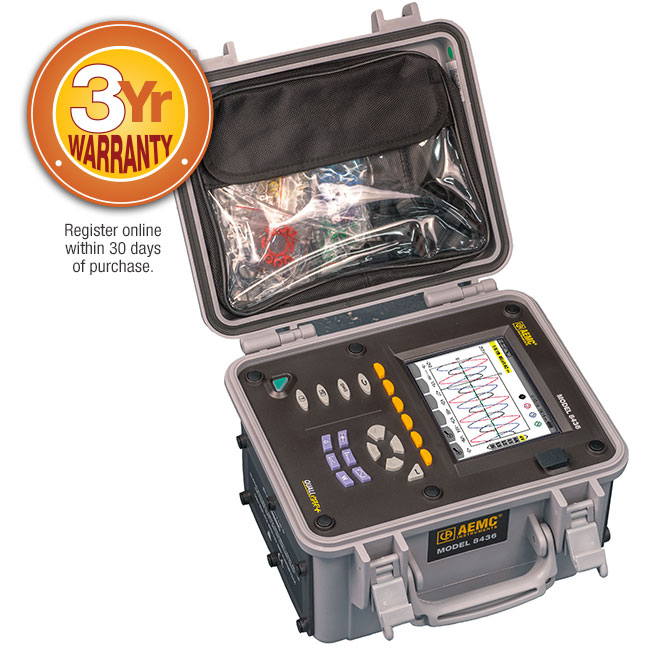

    PowerPad® Model 8436

    Cat. #2136.43
    TRMS, 1000Vrms AC/DC, 6500Arms, frequency, transients, harmonics, energy, DataView® software, IP67
    The PowerPad® III Model 8436 is a three-phase power quality analyzer that is easy-to-use, compact, and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Four voltage input terminals and four current input terminals are provided. It is IP67 waterproof rated when recording with cover closed.

  •

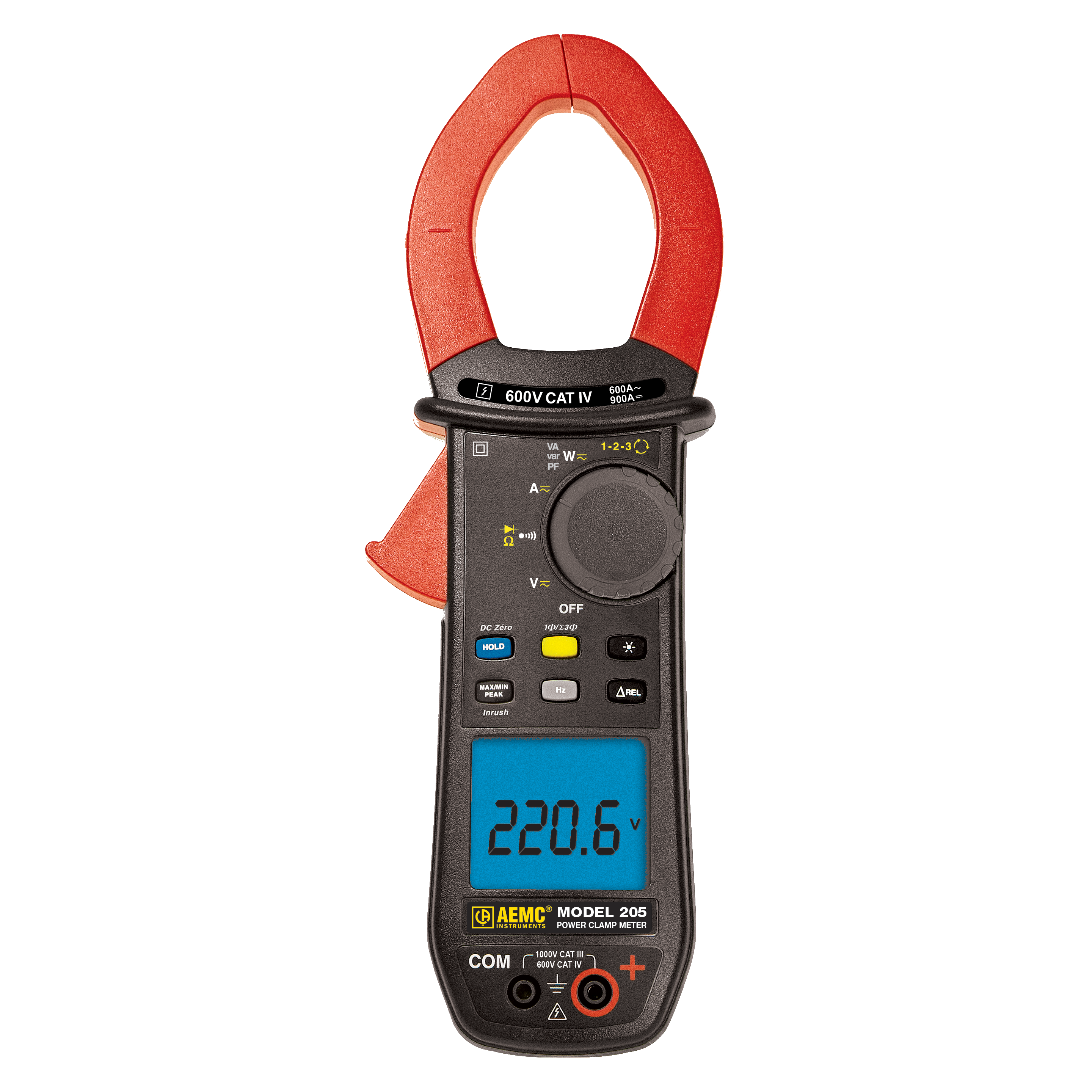

    Clamp-on Meter Model 205

    Compact Size, Professional Functionality
    Cat. #2139.40
    TRMS, 1000VAC/DC, 600AAC/900ADC
    Measures AC+DC voltage and current, frequency, continuity, resistance, power, Power Factor, phase rotation, and THD. Performs diode checks. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. MIN/MAX function tracks high and low values. Also tracks peak+ and peak– values. Safety rated at 600V CAT IV. IP54 rated to withstand dust and water spray.

  •

    Power Clamp-on Meter Model 405

    Cat. #2139.50
    TRMS, 1000VAC/DC, 1000AAC/1500ADC, Ohms, Continuity, Phase Rotation, Power, THD
    Measures volts, amps, frequency, resistance, diode checking, and continuity. Features include True InRush®, Delta relative function, phase rotation indication, power measurements, and more. Easily used by one hand, including function selection and button pushing even with a glove on. Safety rated at 1000V CAT IV.

  •

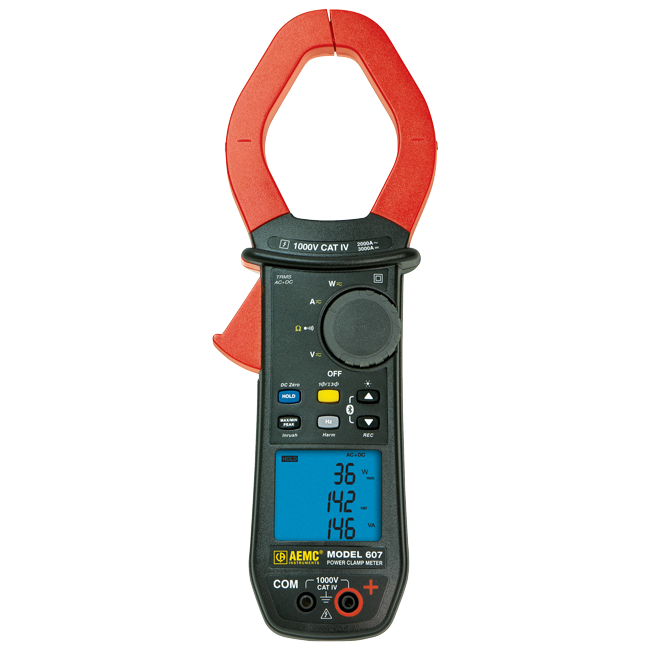

    Power Clamp-on Meter Model 607

    Large Size, Professional Functionality
    Cat. #2139.61
    TRMS, True InRush®, 1000VAC/DC, 2000AAC /3000ADC, Data Recording
    Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

Show Discontinued Products
