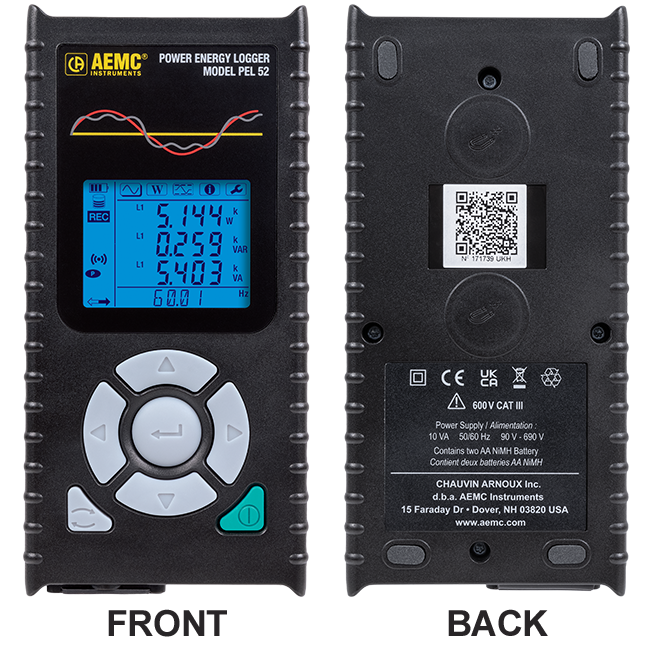

Power & Energy Logger Model PEL 52 (w/ LCD, w/ (2) MA193-10-BK)

Low Cost, Portable, and Easy-To-Use

The PEL 52 represents an affordable and user-friendly power and energy data logger, suitable for both single and split-phase applications. It is specifically designed for electricians, engineers, and contractors working in residential and light commercial areas. This device allows effortless measurement, recording, and analysis of crucial energy data. Generating reports is a breeze, requiring minimal configuration time and effort, with the added benefit of having standard and customizable report options available.

The instrument is powered from V1 inputs from (90 to 690) V or (2) 800 mA•h NIMH batteries supply power if a source is not available.

The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 52 series energy loggers measure and record one or two True RMS voltage inputs up to 690 V and current inputs up to 3600 A (sensor dependent), Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), and Frequency are calculated and recorded as well. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

By combining energy-saving techniques with detailed power consumption monitoring, residential and commercial builders can gain valuable insights into their energy usage, pinpoint areas for improvement, and monitor their advancements in energy conservation efforts. Ultimately, this results in decreased energy expenses, a diminished environmental footprint, and improved operational efficiency.

Key Features

  • Accurate and reliable: Provides precise readings over time to make accurate assessments of energy consumption
  • Real-time monitoring to identify patterns, monitor changes, and make informed decisions to optimize energy usage
  • Works with a wide range of electrical equipment, systems and residential and light commercial single or split phase measurements

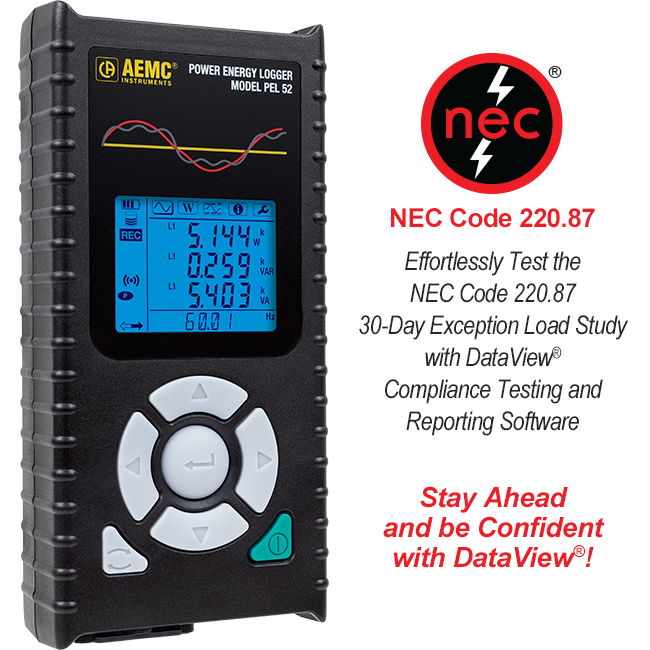

  • Capable of performing load studies in compliance with NEC 220.87
  • Log data over an extended period, to analyze historical trends and identify areas for improvement
  • DataView® software included for data analysis and report generation
  • Rugged and durable: withstands the demands of real-world applications
  • Wi-Fi communication and remote viewing with integrated web server (AndroidTM, iOS, Windows, etc.)
  • Compact casing with built-in magnets for mounting easily inside electrical cabinets

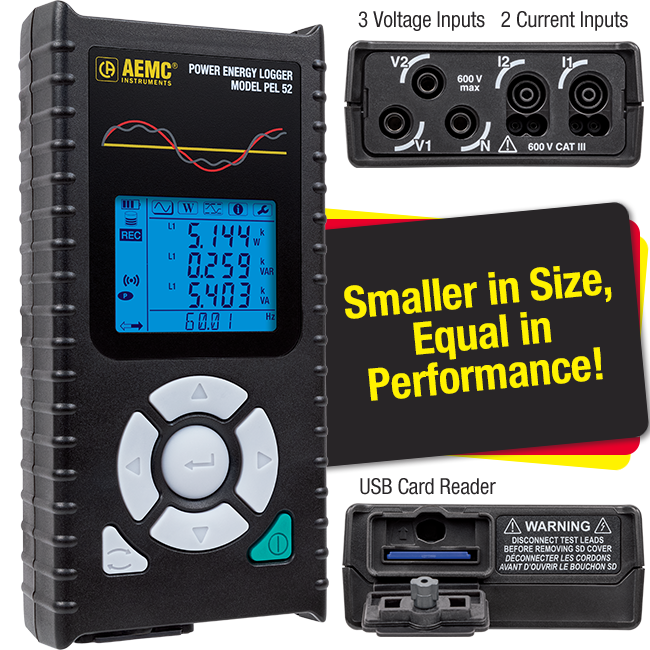

Meet the PEL 52 - A Compact and Powerful PEL!

NOTE: Our complete catalog is not available for direct online purchase, refer to the Status Column for purchasing options. Items that do not have an Add to Cart button must be purchased from an Authorized Distributor.
Model Cat. # Description List Price Quantity/Status Distributor Stock Check
PEL 52 2137.69 Power & Energy Logger Model PEL 52 (Includes two MA193-10-BK sensors) $1,495.00 In stock at factory. Find a Distributor
PEL 52 2137.71 Power & Energy Logger Model PEL 52 (No sensors) $1,195.00 Consult Factory for Availability
ModelPEL 52
Cat. #2137.69
DescriptionPower & Energy Logger Model PEL 52 (Includes two MA193-10-BK sensors)
List Price$1,495.00
In stock at factory. Find a Distributor
ModelPEL 52
Cat. #2137.71
DescriptionPower & Energy Logger Model PEL 52 (No sensors)
List Price$1,195.00
Consult Factory for Availability

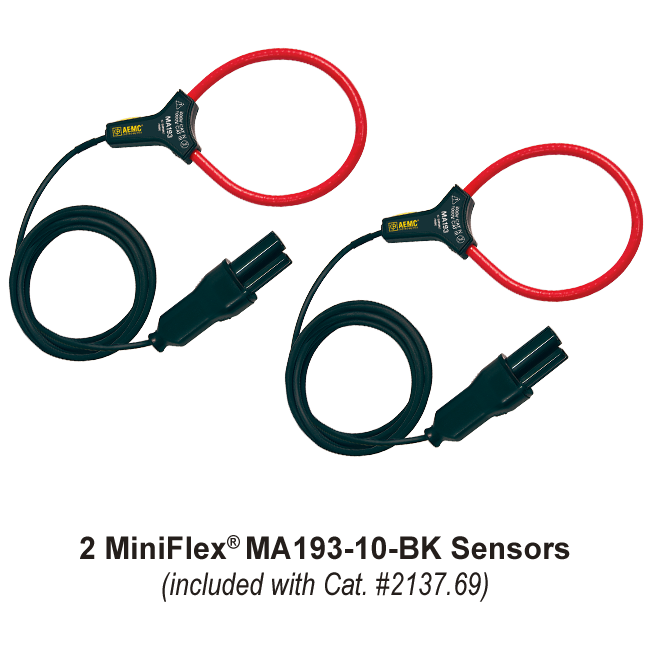

Model PEL 52 - Cat. #2137.69 (LCD, with (2) MA193-10-BK sensors): Includes soft carrying bag, (2) MiniFlex® MA193-10-BK sensors, (3) black test
leads and alligator clips, 115 V US power cord, adapter for power cord, SD card,USB SD card adapter, (2) 1.2 V AAA rechargeable batteries (installed), quick start guide, and USB drive with DataView® software and User Manual.

Model PEL  52 - Cat. #2137.71 (LCD, without sensors): Includes soft carrying bag, (3) black test leads and alligator clips, 115 V US
power cord, adapter for power cord, SD card, USB SD card adapter, (2) 1.2 V AAA rechargeable batteries (installed), quick start guide, and USB drive with
DataView® software and User Manual.

Print
Inputs  2 Voltage / 2 Current (Split Phase)
Sample Rate 128 per Cycle: 6.4 kHz at 50 Hz / 7.68 kHz at 60 Hz
Specification Range Measurement Range Resolution Accuracy (Typical)
Volt
Vrms 600 V ph to pn (10 to 600) V 0.1 V ±0.2 % Rdg + 0.2 V
Urms 600 V ph to ph (10 to 600) V 0.1 V ±0.2 % Rdg + 0.4 V
Amps @ 50 and 60Hz
Amps (1V nominal)
(excluding clamp accuracy 		Probe dependent 0.2 % < I < 120 % Inom Probe dependent ±0.2 % Rdg + 0.02 % Inom
Frequency   (42.5 to 69) Hz 0.01 Hz ±0.1 Hz
Power
Watts (VA, var) P-Q-S PF PF=1 V = (100 to 690)
I - (5 to 120) % Inom		 4 digits min ±0.5 % Rdg + 0.005 % Pnom
Power Factor (Cos Φ/DPF) -1  to 1 0.01 ±0.05
Energy
kWh (kVAh, kvarh) P-Q-S V = (100 to 690)
I - (10 to 120) % Inom		 ±0.5% Rdg
Volts & Amp %   (0.01 to 655.0) % 0.01 % ±1 % Rdg from 1 to 25
THD   (0.00 to 655.0) % 0.01 % ±1 % Rdg
General Features
Case Compact and rugged. Shock and vibration IEC 61010
Communication Wi-Fi (access point and hot spot)
Memory 8 GB SD card (SDHC compliant, FAT32 formatted) 32 GB max
Display LCD with blue backlight
Real-Time Clock Time and date stamp for Trend mode
Power From phase 1 (90 to 600) V battery backup when power OFF, 60 min typical with Wi-Fi enable
Dimensions (L x W x H) (4.92 x 2.58 x 1.28) in (125 x 65.5 x 32.4) mm
Weight 7.05 oz (200 g)
Altitude Operating 2000 m (6560 ft)
Operating Temperature (-4 to 107.6) °F; (-20 to +42) °C from (10 to 85) % RH
(-4 to 122) °F;  (-20 to 50) °C from (10 to 75) % RH
Storage Temperature (-40 to 95) °F;  (-40 to 35) °C from (0 to 95) % RH
(-40 to 158) °F;  (-40 to 70) °C from (0 to 75) % RH
Electro-Magnetic-Compatibility (EMC) EN 61326-1 for emission and immunity
IP Rating IP54 per IEC 60529
Safety IEC/EN 61010-1 (600 V CAT III)

The following Ampflex/Miniflex uncertainties include PEL uncertainties for AC current values. For Power/Energies and other quantities, the following uncertainties shall be added to the uncertainties of PEL52

AmpFlex A193 Range 300 A 500 mA to 10 A 0.1 A ±1.2 % Rdg + 0.2 A
AmpFlex A196 Range 300 A (10 to 360) A 0.1 A ±1.2 % Rdg + 0.2 A
AmpFlex A193 Range 3000 A (1 to 100) A 0.1 A ±1.2 % Rdg + 1 A
AmpFlex A196 Range 3000 A (100 to 3600) A 0.1 A ±1.2 % Rdg + 1 A
MiniFlex MA193 Range 300 A 500 mA to 10 A 0.1 A ±1 % Rdg + 0.2 A
MiniFlex MA194 Range 300 A (10 to 360) A 0.1 A ±1 % Rdg + 0.2 A
MiniFlex MA193 Range 3000 A (1 to 100) A 0.1 A ±1 % Rdg + 1 A
MiniFlex MA194 Range 3000 A (100 to 3600) A 0.1 A ±1 % Rdg + 1 A

User Manuals

Model PEL 52

Modelo PEL 52 - Español (CA France version)

DataView PEL Control Panel Event Log Messages

Upgrading Firmware on PEL Instruments

Quick Start Guides

Model PEL 52

Modelo PEL 52 - Guía de Inicio Rápido

Model PEL 52 - Français

Datasheets

Model PEL 52 - English

Modelo PEL 52 - Español

Brochures

Model PEL 52

Power Quality

Power Quality (FR CAN)

Grounding Traffic Control Signal Equipment Simplified

AEMC® Instruments Product Line Brochure

AEMC® Instruments Product Line Brochure (FR CAN)

Comparison Charts

Power Analyzer - Current Probe Selection Chart

Power Energy Logger (NEW PEL Series) Comparison Chart - English

Power Energy Logger (PEL) Comparison Chart - Español

Power Quality Analyzers and Loggers Sensor Compatibility

Power Analyzer - Current Probe Selection Chart (Nueva serie PEL) - Español

Application Notes

Glossary of Power Terms

PowerPads® vs PELs Feature Comparison

Glosario de Términos Eléctricos

White Papers

Understanding an Energy Load Study

DÉTERMINER VOTRE RENDEMENT DU CAPITAL INVESTI (RCI) AVEC UNE ÉTUDE DE CHARGE ÉNERGÉTIQUE - Français

Forms

Stored Measurement Results Form

High Voltage Warning Sign (color)

High Voltage Warning Sign (black & white)

Applications - Graphic Illustrations

Residential & Commercial Applications

Videos

Viewing PEL Real-time Data in the DataView® PEL Control Panel

Español - Datos del PEL en Tiempo Real

Meet the PEL 52 - A Compact and Powerful PEL!

Model Cat. # Description List Price Quantity/Status Distributor
Stock Check
2126.71 Case - Replacement Carrying Case for Models 3620, 3640, 4600, 4610, AN1, 1210,1250, 6501 & 6503, 6422 & 6424 (Meter only)
Dimensions: (10.5 x 6.5 x 6) in 		$38.90
MR193-BK 2140.28 AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series $535.00 Consult Factory for Availability
MN93-BK 2140.32 AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $265.00
SR193-BK 2140.33 AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $449.00

193-24-BK 		2140.34 AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $335.00

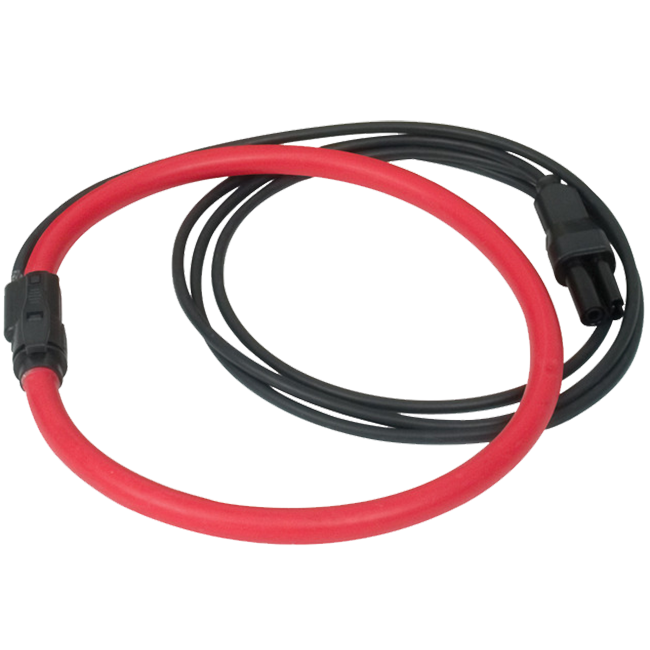

193-36-BK 		2140.35 AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $390.00
MN193-BK 2140.36 AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 $353.00 Consult Factory for Availability

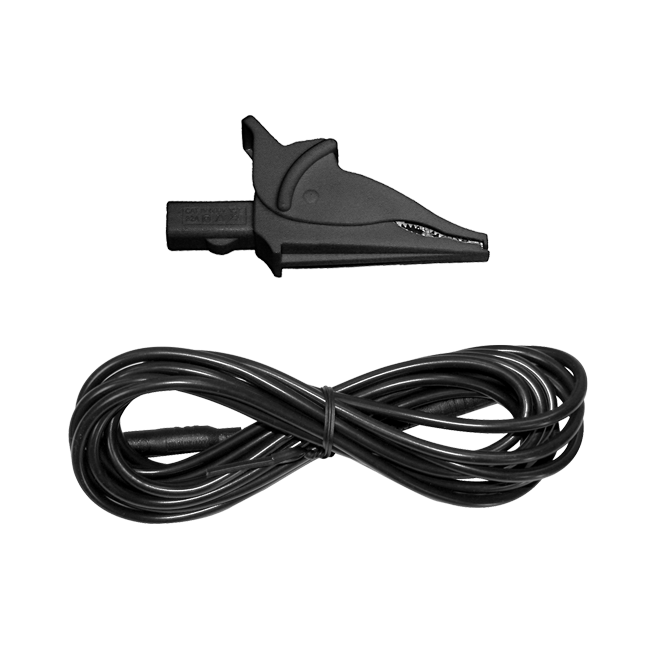

2140.44 Lead – One 10 ft (3M) Black Lead w/Black Alligator Clip {Lead rated 1000 V CAT IV 15 A, Clip rated 1000 V CAT IV 15 A, UL} for PowerPad® & PEL series $32.50

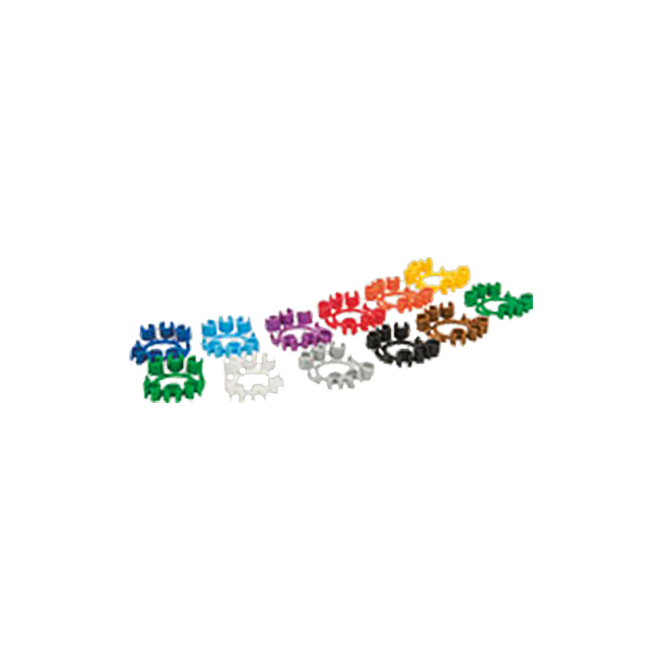

2140.45 Replacement - Set of 12, color input ID markers for the PowerPad Series $36.75
MA193-10-BK 2140.48 MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $290.00
2140.50 2140.50 MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $320.00

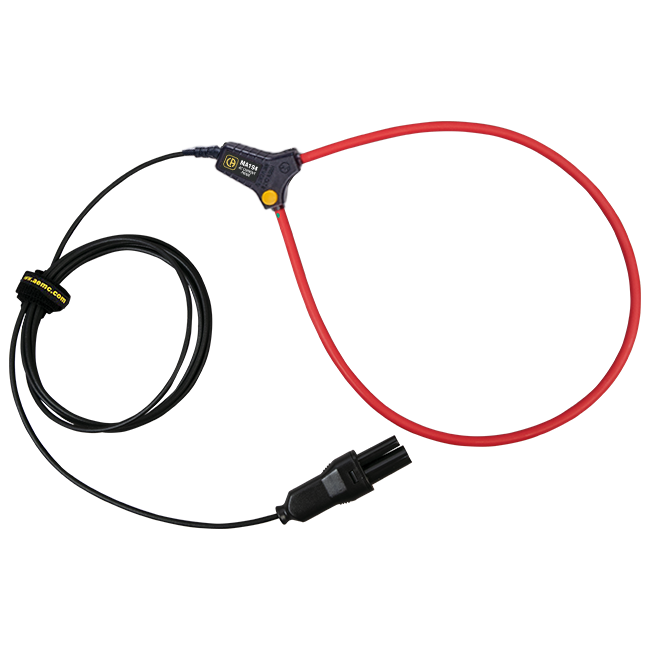

MA194-24-BK 2140.80 MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series $345.00
MN94 2140.81 AC Current Probe Model MN94 (200AAC) USED ONLY WITH MODELS 8345 & PEL52 $399.00
5000.14 Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers $11.60 Consult Factory for Availability
5000.45 USB SD - card reader (replacement for Power & Energy Logger Models PEL 52, PEL 102, PEL 103, PEL 112 PEL 113 & PEL 115) $18.20
5000.99 Clip - Safety Alligator - Black (1000 V CAT IV, 15 A, UL V2) $12.50
5100.14 5100.14 - Adapter - Replacement power plug for PA32ER power supply $35.00
6000.07 Calibration Interface Adapter for Data Logger Models L104, L564, PowerPad® Models 8333, 8336, 8345, 8435, 8436, and PEL Series (PEL 52, PEL 112, PEL 113, & PEL 115) $300.00
Model
Cat. #2126.71
DescriptionCase - Replacement Carrying Case for Models 3620, 3640, 4600, 4610, AN1, 1210,1250, 6501 & 6503, 6422 & 6424 (Meter only)
Dimensions: (10.5 x 6.5 x 6) in
List Price$38.90
Model MR193-BK
Cat. #2140.28
DescriptionAC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series
List Price$535.00
Consult Factory for Availability
Model MN93-BK
Cat. #2140.32
DescriptionAC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$265.00
Model SR193-BK
Cat. #2140.33
DescriptionAC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$449.00
Model
193-24-BK
Cat. #2140.34
DescriptionAmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$335.00
Model
193-36-BK
Cat. #2140.35
DescriptionAmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$390.00
Model MN193-BK
Cat. #2140.36
DescriptionAC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564
List Price$353.00
Consult Factory for Availability
Model
Cat. #2140.44
DescriptionLead – One 10 ft (3M) Black Lead w/Black Alligator Clip {Lead rated 1000 V CAT IV 15 A, Clip rated 1000 V CAT IV 15 A, UL} for PowerPad® & PEL series
List Price$32.50
Model
Cat. #2140.45
DescriptionReplacement - Set of 12, color input ID markers for the PowerPad Series
List Price$36.75
Model MA193-10-BK
Cat. #2140.48
DescriptionMiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$290.00
Model 2140.50
Cat. #2140.50
DescriptionMiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$320.00
Model MA194-24-BK
Cat. #2140.80
DescriptionMiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series
List Price$345.00
Model MN94
Cat. #2140.81
DescriptionAC Current Probe Model MN94 (200AAC) USED ONLY WITH MODELS 8345 & PEL52
List Price$399.00
Model
Cat. #5000.14
DescriptionPower cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers
List Price$11.60
Consult Factory for Availability
Model
Cat. #5000.45
DescriptionUSB SD - card reader (replacement for Power & Energy Logger Models PEL 52, PEL 102, PEL 103, PEL 112 PEL 113 & PEL 115)
List Price$18.20
Model
Cat. #5000.99
DescriptionClip - Safety Alligator - Black (1000 V CAT IV, 15 A, UL V2)
List Price$12.50
Model
Cat. #5100.14

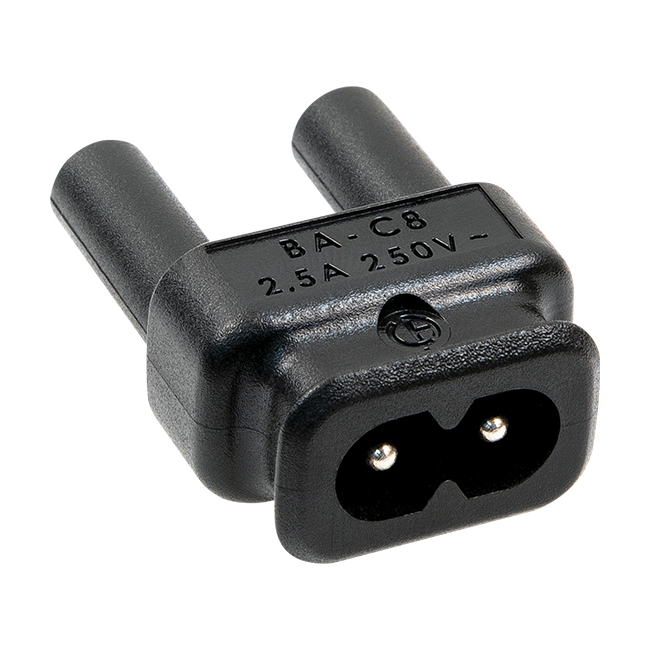

Description5100.14 - Adapter - Replacement power plug for PA32ER power supply
List Price$35.00
Model
Cat. #6000.07

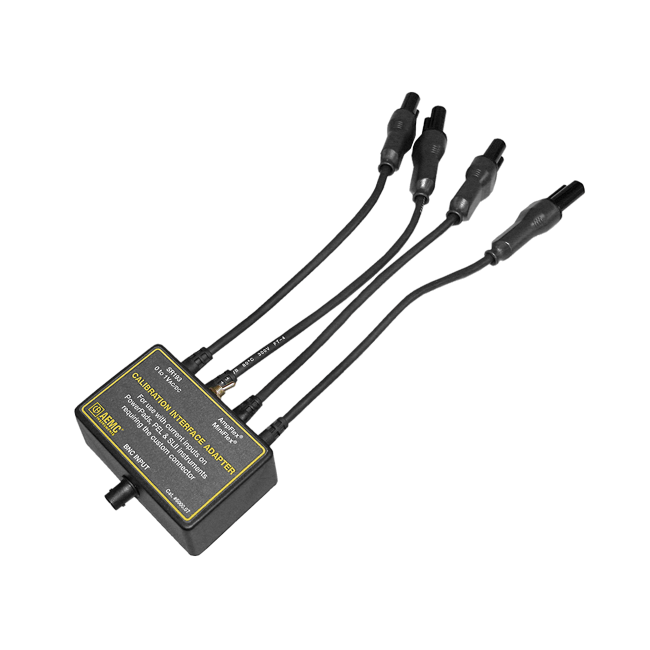

DescriptionCalibration Interface Adapter for Data Logger Models L104, L564, PowerPad® Models 8333, 8336, 8345, 8435, 8436, and PEL Series (PEL 52, PEL 112, PEL 113, & PEL 115)
